Availability: | |
---|---|
Quantity: | |
J-VALVES-BV
J-VALVES
8481804090

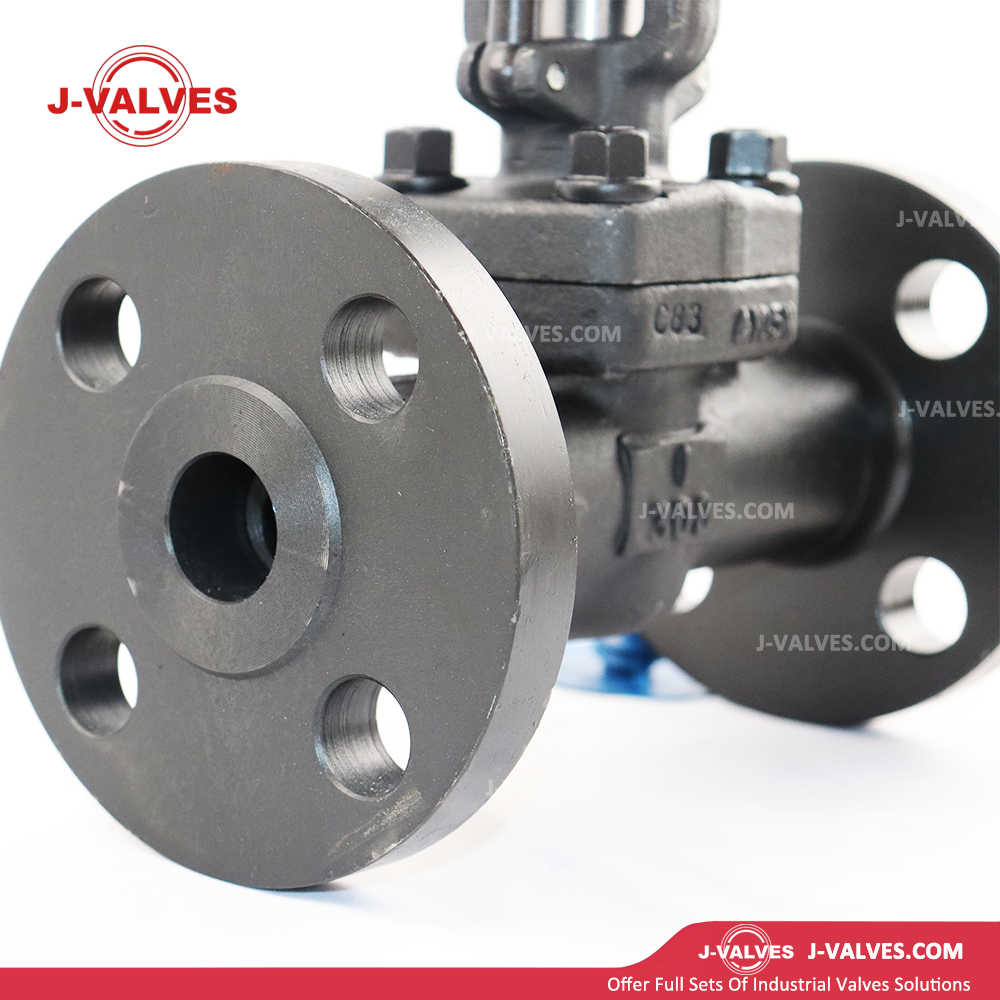

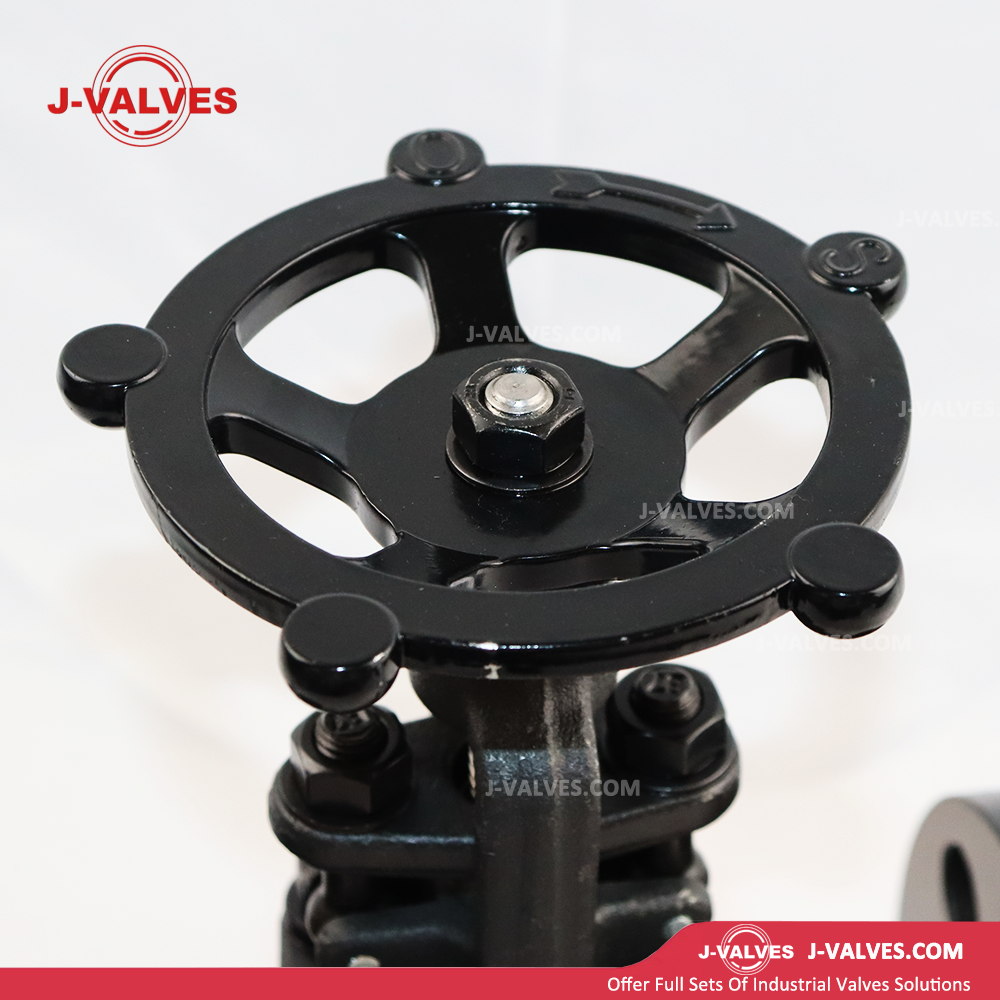

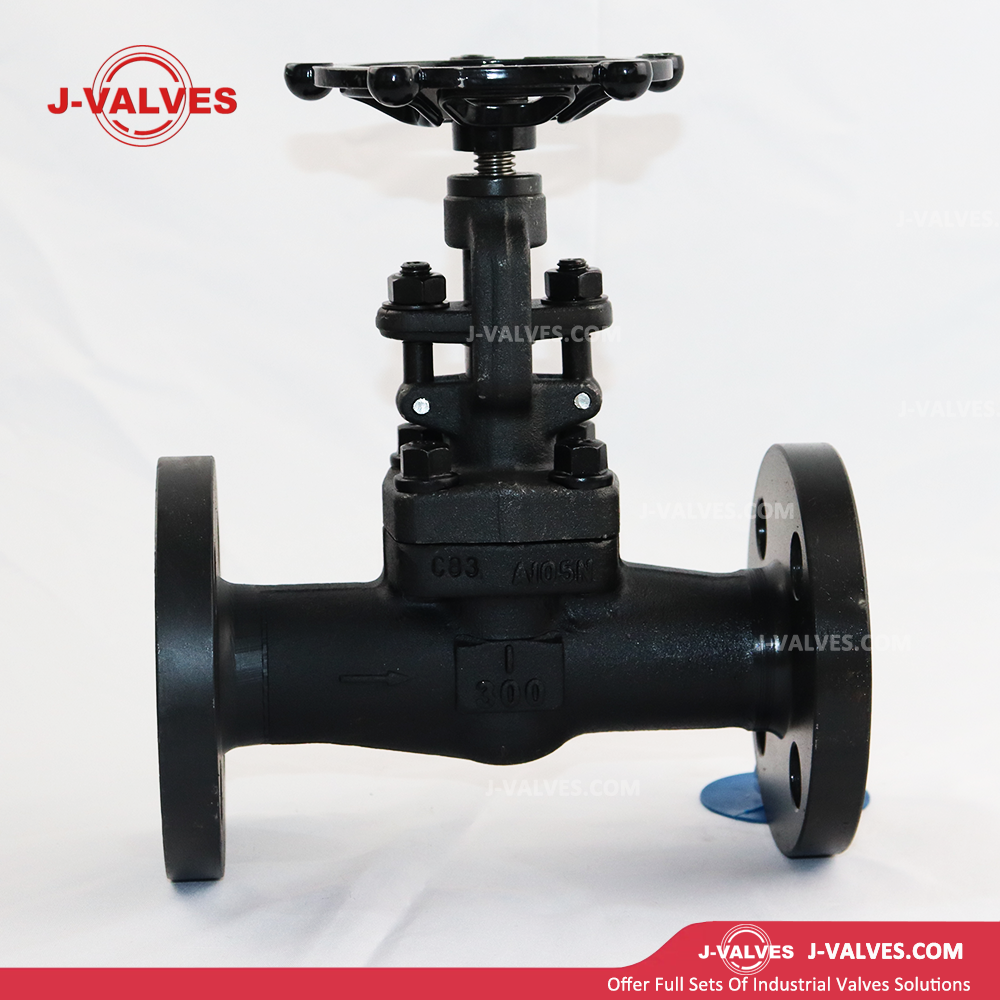

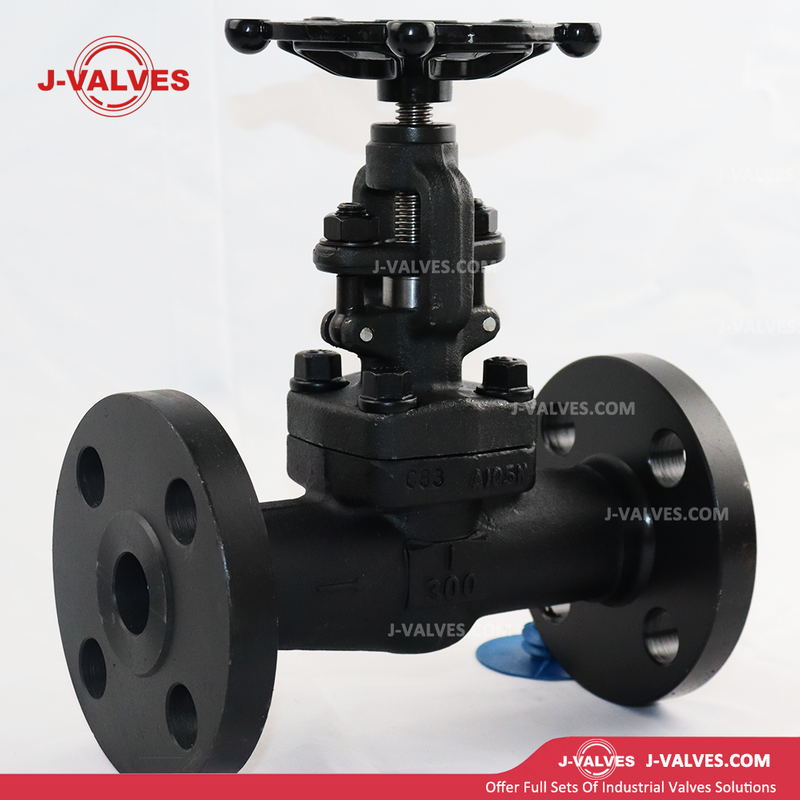

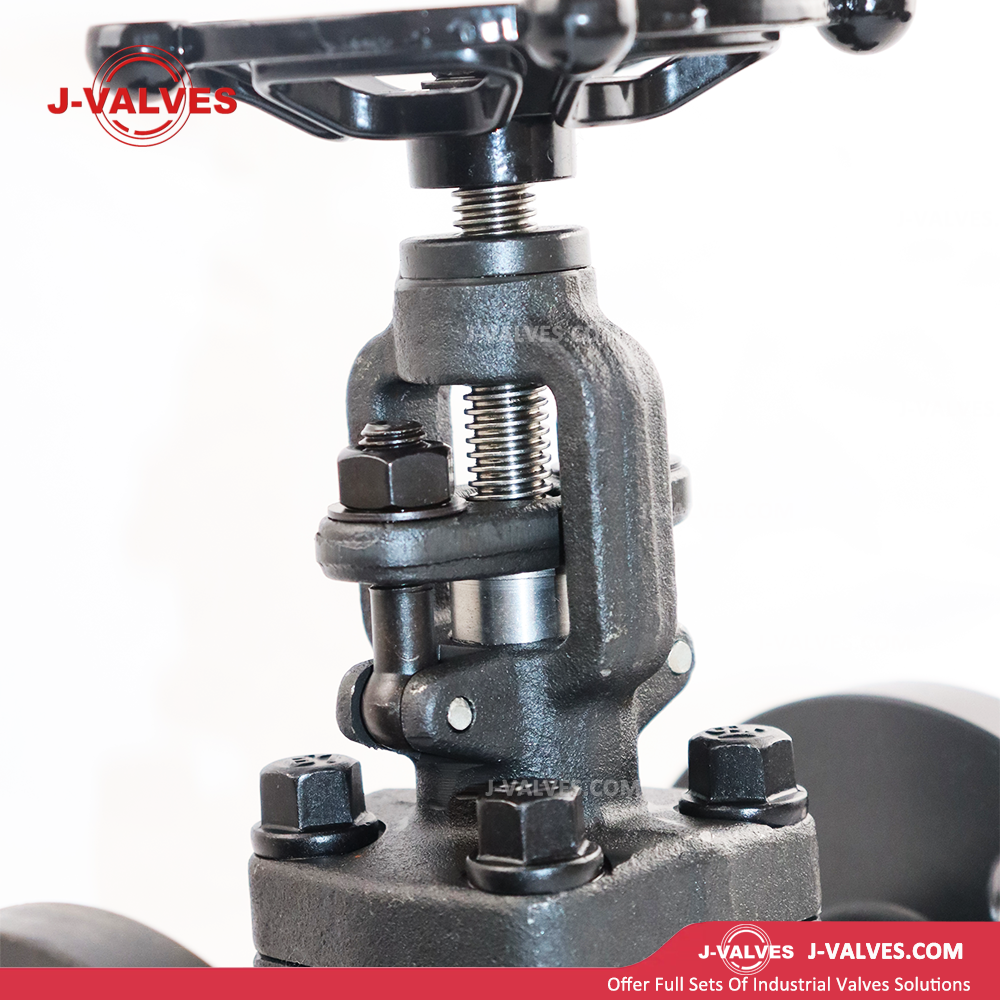

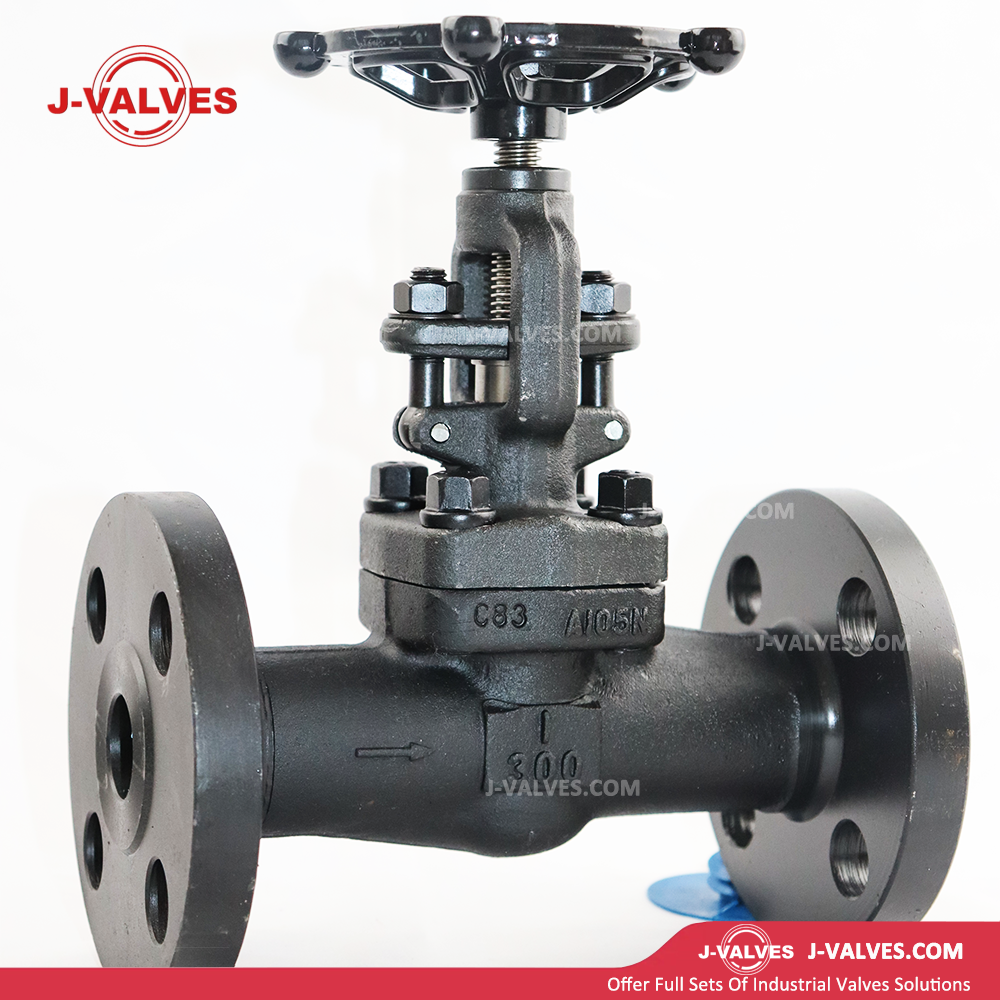

Porduct Name | J-Valves China150lb-2500lb Forged Steel Flange Rising Stem Gate Valve |
Material | 304/316/B62/2207/2507/316ti/C95800, etc. |
Size | 2"-24"(DN100-DN600) |
Port | Full Port |
Working Pressure | 150LB/300LB |
Connection Ends | RF |
Working Temp. | -20ºC~200ºC |
Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
Operated | Manual, Worm Gear, Pneumatic actuator, Electric Actuator |
Features | Investment casting,Blow-out proof stem,Anti-static device(option) |
Design standard | API6D/API608/API607 |
Inspection&Testing | According to API598 |
Brand | J-VALVES |
Advantages
High - Quality Materials:J-Valves China forged steel flange rising stem gate valves are crafted from top - grade forged steel. Forged steel offers remarkable strength, excellent resistance to high pressure and temperature fluctuations, and enhanced durability. This makes the valves suitable for long - term operation in harsh industrial environments, reducing the need for frequent replacements and thus cutting maintenance costs.
Reliable Sealing Performance:The rising stem design, combined with precision - engineered components, ensures a tight seal. The valve's ability to effectively prevent leakage is crucial, especially when handling fluids such as steam, oil, and corrosive chemicals. Whether in a closed or open position, it maintains reliable sealing, minimizing the risk of product loss and environmental contamination.
Precise Flow Control:The rising stem provides clear visual indication of the valve's position, allowing operators to accurately control the flow rate. This feature is beneficial in systems where precise regulation of fluid flow is required, such as in power plants, refineries, and chemical processing facilities. Additionally, the smooth operation of the valve enables gradual adjustment of flow, preventing sudden pressure surges.
Versatile Pressure Ratings:Available in pressure ratings ranging from 150lb to 2500lb, these valves can meet the diverse requirements of different industrial applications. Whether for low - pressure or high - pressure systems, users can select the appropriate valve to ensure optimal performance and system safety.
Easy Maintenance:The simple and straightforward design of the valve facilitates easy disassembly and reassembly. This simplifies maintenance tasks, enabling technicians to quickly access internal components for inspection, cleaning, or repair. As a result, downtime is minimized, and production continuity is maintained.
Applications
Oil and Gas Industry:In oil refineries, these valves are used to control the flow of crude oil, refined products, and natural gas. They can withstand the high pressures and temperatures associated with oil and gas processing, ensuring safe and efficient operation.
Power Generation:Power plants, including coal - fired, gas - fired, and nuclear plants, rely on these valves to regulate the flow of steam, water, and other working fluids. Their ability to handle high - pressure and high - temperature conditions makes them essential for power generation systems.
Chemical Processing:Chemical plants use these valves to manage the flow of various corrosive and non - corrosive chemicals. The valves' reliable sealing and resistance to chemical attack make them suitable for use in chemical reactors, storage tanks, and pipelines.
Water and Wastewater Treatment:In water treatment plants, these valves are used to control the flow of raw water, treated water, and wastewater. Their ability to provide precise flow control and prevent leakage helps ensure the efficient operation of water treatment processes.
Porduct Name | J-Valves China150lb-2500lb Forged Steel Flange Rising Stem Gate Valve |
Material | 304/316/B62/2207/2507/316ti/C95800, etc. |
Size | 2"-24"(DN100-DN600) |
Port | Full Port |
Working Pressure | 150LB/300LB |
Connection Ends | RF |
Working Temp. | -20ºC~200ºC |
Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
Operated | Manual, Worm Gear, Pneumatic actuator, Electric Actuator |
Features | Investment casting,Blow-out proof stem,Anti-static device(option) |
Design standard | API6D/API608/API607 |
Inspection&Testing | According to API598 |
Brand | J-VALVES |
Advantages
High - Quality Materials:J-Valves China forged steel flange rising stem gate valves are crafted from top - grade forged steel. Forged steel offers remarkable strength, excellent resistance to high pressure and temperature fluctuations, and enhanced durability. This makes the valves suitable for long - term operation in harsh industrial environments, reducing the need for frequent replacements and thus cutting maintenance costs.
Reliable Sealing Performance:The rising stem design, combined with precision - engineered components, ensures a tight seal. The valve's ability to effectively prevent leakage is crucial, especially when handling fluids such as steam, oil, and corrosive chemicals. Whether in a closed or open position, it maintains reliable sealing, minimizing the risk of product loss and environmental contamination.
Precise Flow Control:The rising stem provides clear visual indication of the valve's position, allowing operators to accurately control the flow rate. This feature is beneficial in systems where precise regulation of fluid flow is required, such as in power plants, refineries, and chemical processing facilities. Additionally, the smooth operation of the valve enables gradual adjustment of flow, preventing sudden pressure surges.
Versatile Pressure Ratings:Available in pressure ratings ranging from 150lb to 2500lb, these valves can meet the diverse requirements of different industrial applications. Whether for low - pressure or high - pressure systems, users can select the appropriate valve to ensure optimal performance and system safety.
Easy Maintenance:The simple and straightforward design of the valve facilitates easy disassembly and reassembly. This simplifies maintenance tasks, enabling technicians to quickly access internal components for inspection, cleaning, or repair. As a result, downtime is minimized, and production continuity is maintained.
Applications
Oil and Gas Industry:In oil refineries, these valves are used to control the flow of crude oil, refined products, and natural gas. They can withstand the high pressures and temperatures associated with oil and gas processing, ensuring safe and efficient operation.
Power Generation:Power plants, including coal - fired, gas - fired, and nuclear plants, rely on these valves to regulate the flow of steam, water, and other working fluids. Their ability to handle high - pressure and high - temperature conditions makes them essential for power generation systems.
Chemical Processing:Chemical plants use these valves to manage the flow of various corrosive and non - corrosive chemicals. The valves' reliable sealing and resistance to chemical attack make them suitable for use in chemical reactors, storage tanks, and pipelines.
Water and Wastewater Treatment:In water treatment plants, these valves are used to control the flow of raw water, treated water, and wastewater. Their ability to provide precise flow control and prevent leakage helps ensure the efficient operation of water treatment processes.
1.Design & Manufacture standard:API600
2.Pressure & Temperature standard:ASME B16.25
3.Face to face dimension standard: ASME B16.10
4.Ends Connection standard:ASME B16.5
5.Test & Inspect standard: API598
Design & Manufacture standard | ASME B16.34 |
Pressure & Temperature standard | ASME B16.34 |
Face to face dimension standard | MFG Standard |
Ends Connection standard | ASME B1.20.1 |
Test & Inspect standard | API 598 |
Testing Pressure(Mpa)
Pressure | 150LB | 300LB | 600LB | 900LB | 1500LB | 2500LB | |
Strength Testing | 3.0 | 7.5 | 15.4 | 23.0 | 37.5 | 63.0 | Mpa |
Seal Testing | 2.2 | 5.5 | 11.2 | 16.9 | 27.5 | 46.2 | |
Air Testing | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
Design & Manufacture standard | ASME B16.34 |
Pressure & Temperature standard | ASME B16.34 |
Face to face dimension standard | MFG Standard |
Ends Connection standard | ASME B1.20.1 |
Test & Inspect standard | API 598 |
Testing Pressure(Mpa)
Pressure | 150LB | 300LB | 600LB | 900LB | 1500LB | 2500LB | |
Strength Testing | 3.0 | 7.5 | 15.4 | 23.0 | 37.5 | 63.0 | Mpa |
Seal Testing | 2.2 | 5.5 | 11.2 | 16.9 | 27.5 | 46.2 | |
Air Testing | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
