J-VALVES-BV
J-VALVES
8481804090

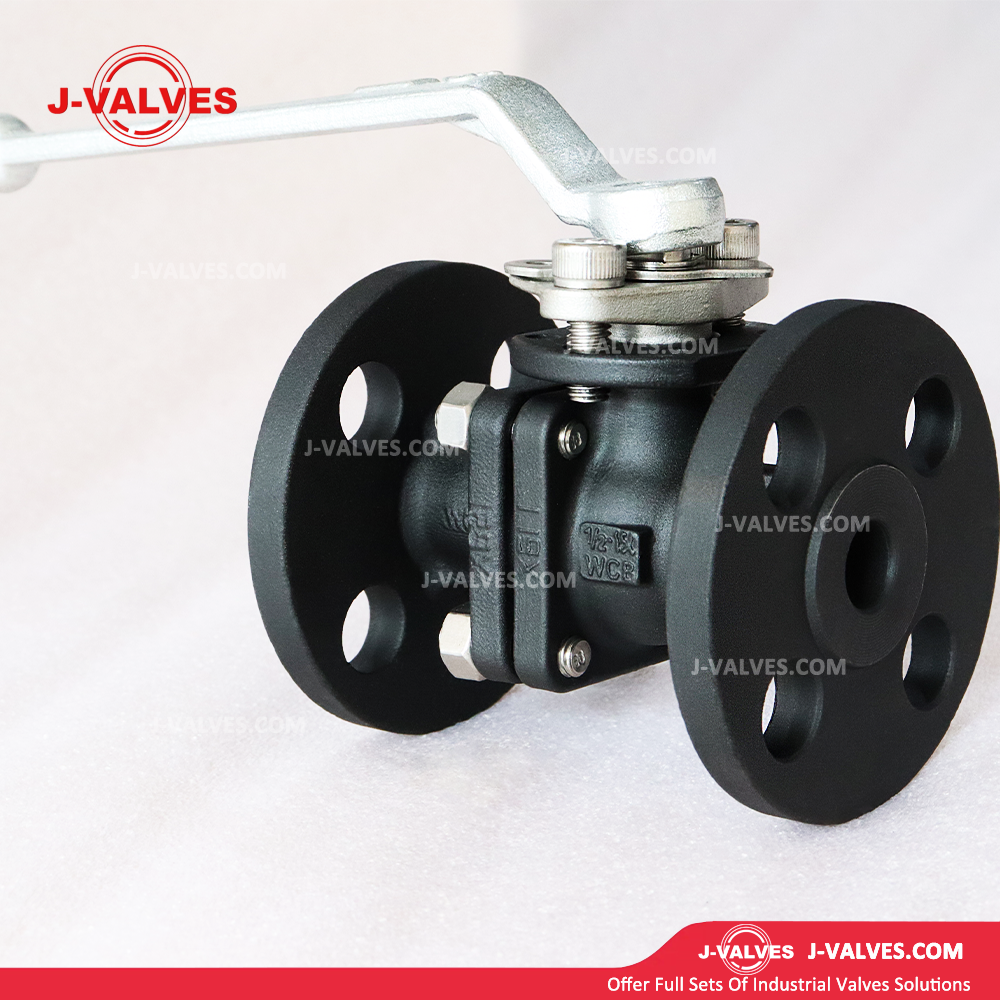

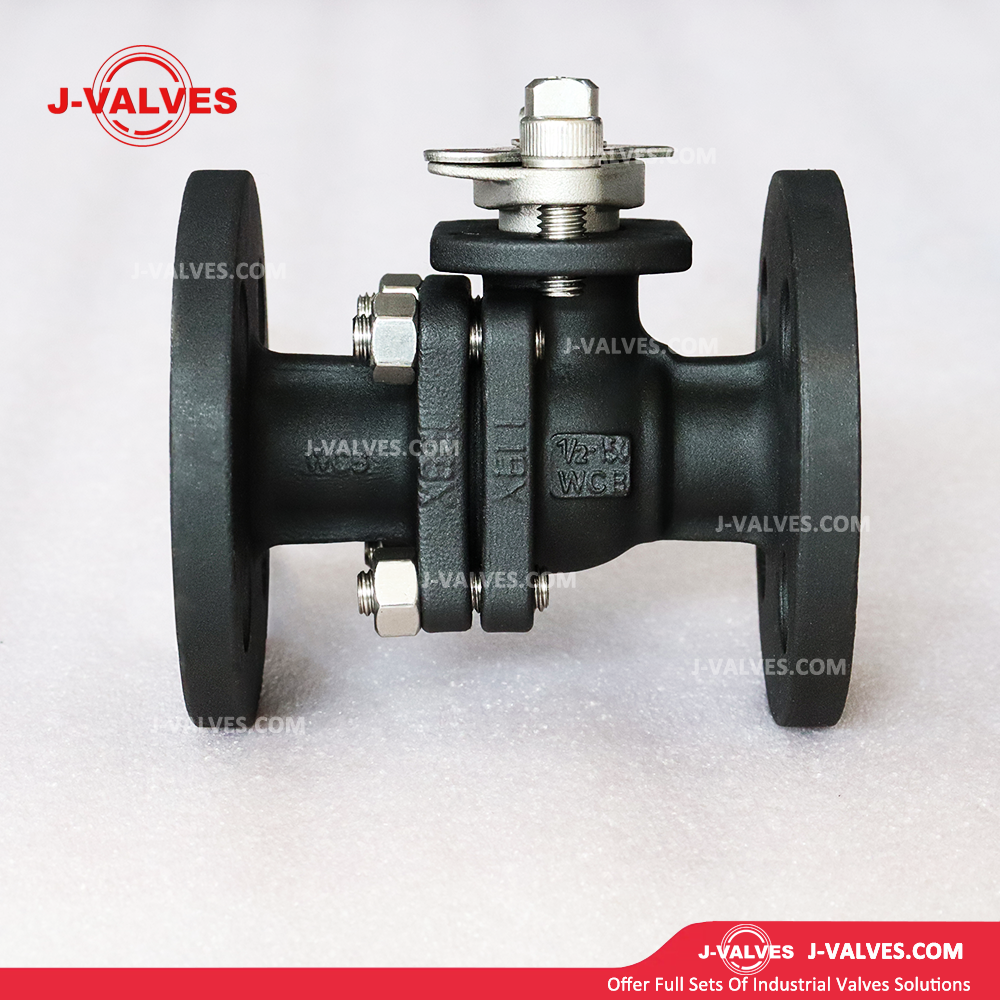

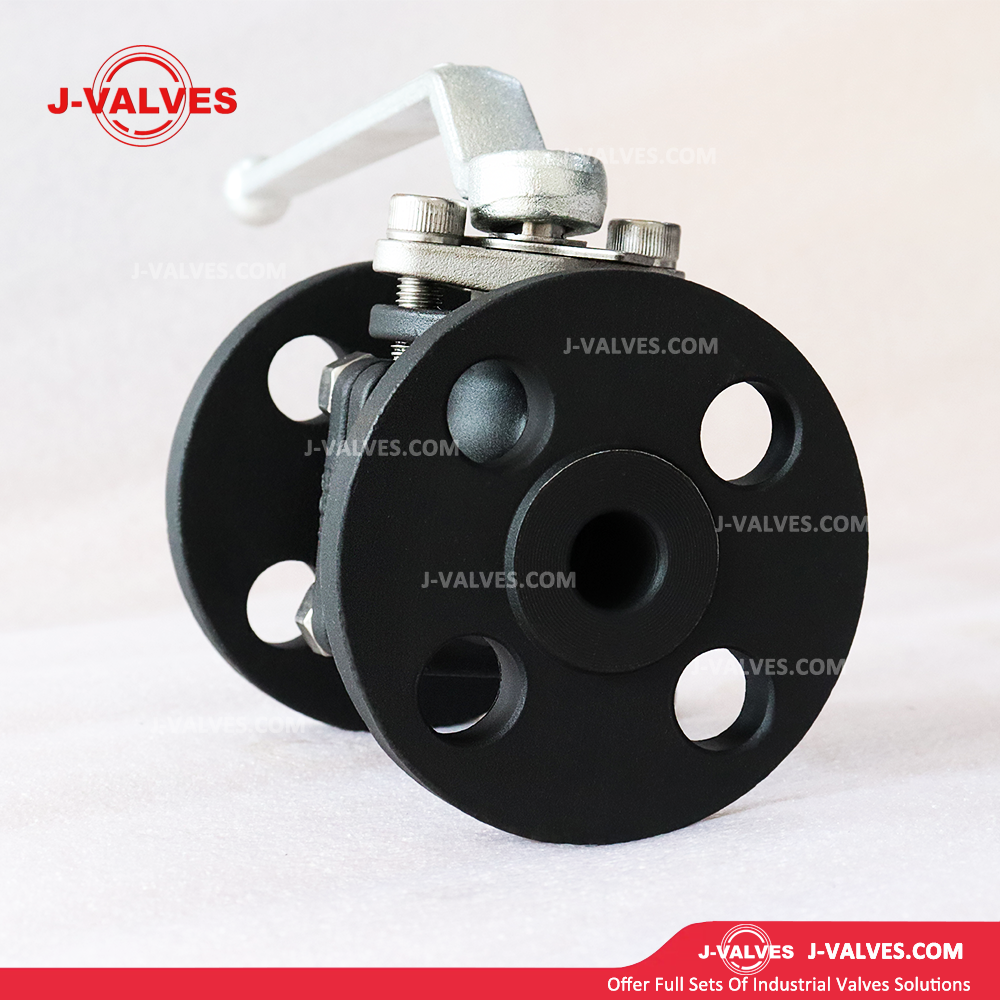

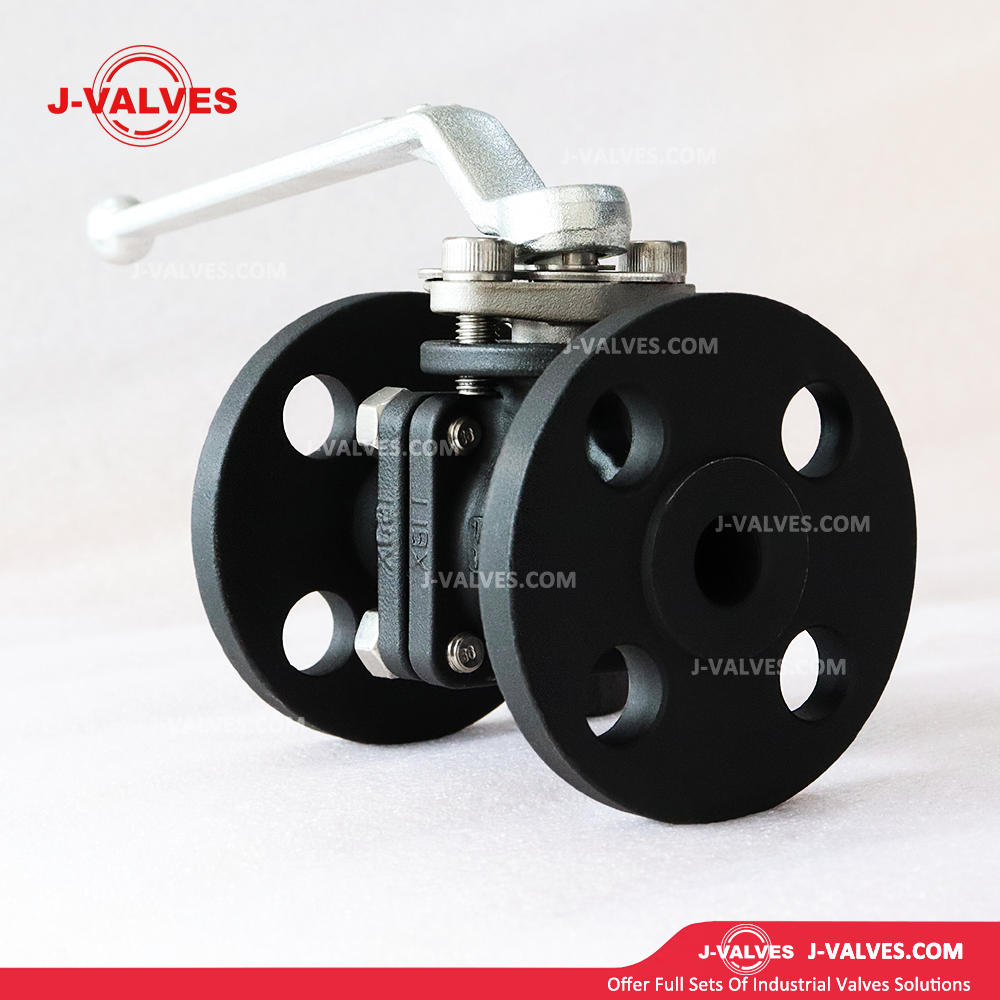

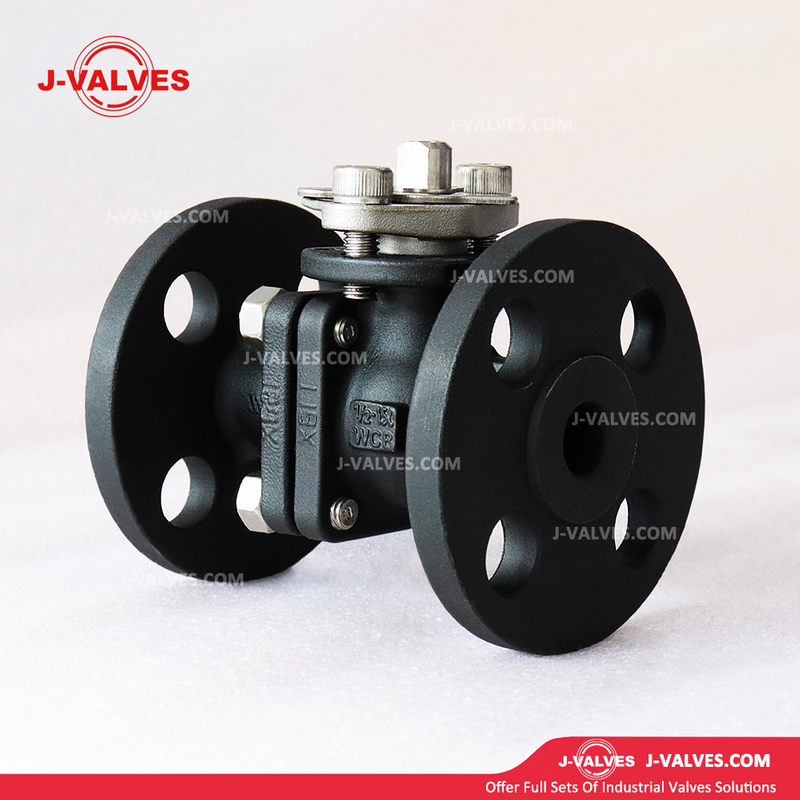

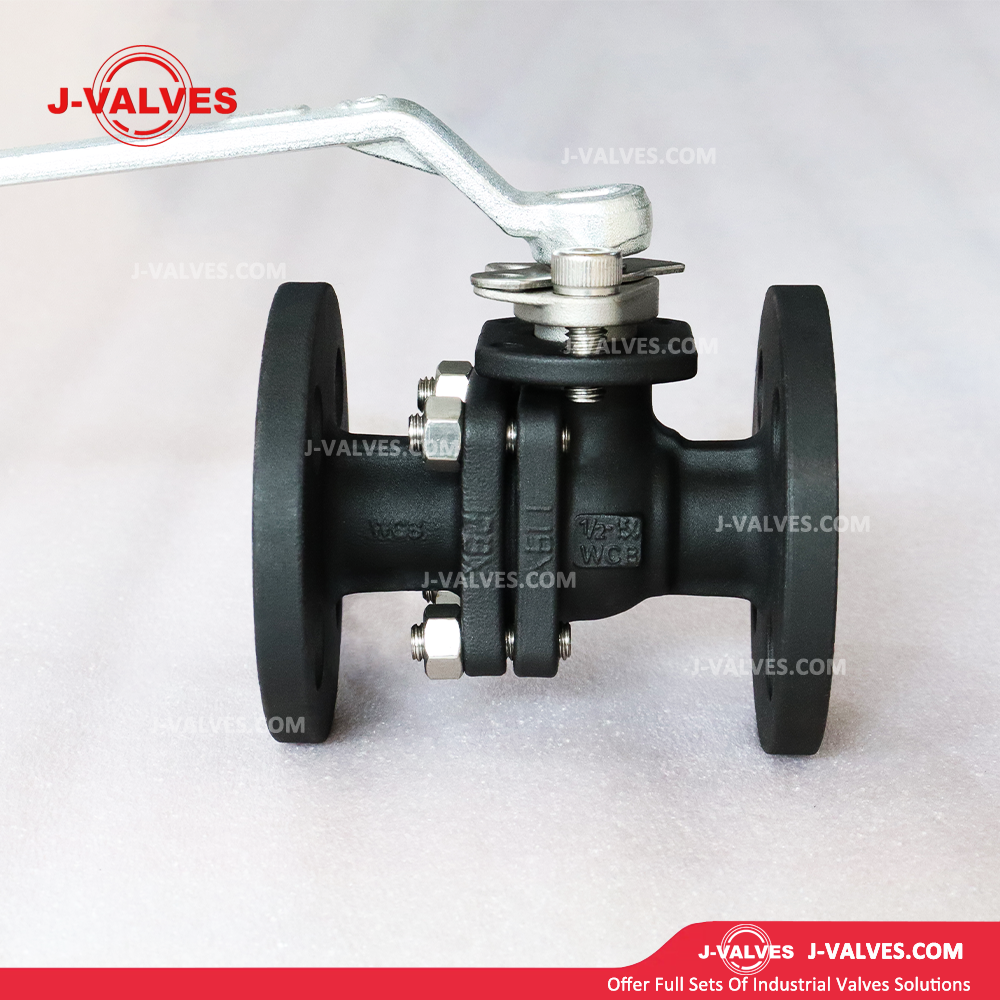

Porduct Name | J-Valves China Stainless/Carbon Steel Wcb 2PC Floating Full Port 150lb Manual/Electric, /Pneumatic Solenoid Valve Ball Valve |
Material | 304/316/B62/2207/2507/316ti/C95800, etc. |
Size | 2"-24"(DN100-DN600) |
Port | Full Port |
Working Pressure | 150LB/300LB |
Connection Ends | RF |
Working Temp. | -20ºC~200ºC |
Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
Operated | Manual, Worm Gear, Pneumatic actuator, Electric Actuator |
Features | Investment casting,Blow-out proof stem,Anti-static device(option) |
Design standard | API6D/API608/API607 |
Inspection&Testing | According to API598 |
Brand | J-VALVES |
Superior Material Construction:Made from high - quality stainless or carbon steel (WCB), these ball valves exhibit excellent corrosion resistance, ensuring long - term durability even in harsh chemical and environmental conditions. The use of such robust materials also enables them to withstand high - pressure applications, providing reliable performance over an extended service life.
Optimal Design:The two - piece (2PC) floating full - port design allows for unobstructed flow, minimizing pressure drop and maximizing flow efficiency. This design not only improves system performance but also reduces energy consumption. The full - port construction makes it suitable for applications where solids or large particles need to pass through the valve without clogging.
Versatile Operation:Available with manual, electric, or pneumatic solenoid valve operation, these ball valves offer flexibility to meet various operational requirements. Manual operation provides a simple and cost - effective solution for applications where immediate control is needed. Electric operation enables remote control and automation, enhancing system management and reducing labor costs. Pneumatic solenoid valve operation allows for fast and precise control, making it ideal for applications that require rapid response times.
Industrial Sector:In the oil and gas industry, these ball valves are used for pipeline isolation, flow control, and pressure regulation. Their corrosion resistance and high - pressure capabilities make them suitable for both onshore and offshore applications. In chemical plants, they are used to handle corrosive fluids, ensuring safe and efficient operation.
Water Treatment:They play a crucial role in water treatment plants, where they are used to control the flow of raw water, treated water, and chemicals. The full - port design allows for easy passage of debris, preventing blockages in the water treatment process.
Building Services:In commercial and residential buildings, these ball valves are used in heating, ventilation, and air - conditioning (HVAC) systems. They help regulate the flow of water and refrigerant, ensuring optimal system performance and energy efficiency.
Porduct Name | J-Valves China Stainless/Carbon Steel Wcb 2PC Floating Full Port 150lb Manual/Electric, /Pneumatic Solenoid Valve Ball Valve |
Material | 304/316/B62/2207/2507/316ti/C95800, etc. |
Size | 2"-24"(DN100-DN600) |
Port | Full Port |
Working Pressure | 150LB/300LB |
Connection Ends | RF |
Working Temp. | -20ºC~200ºC |
Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
Operated | Manual, Worm Gear, Pneumatic actuator, Electric Actuator |
Features | Investment casting,Blow-out proof stem,Anti-static device(option) |
Design standard | API6D/API608/API607 |
Inspection&Testing | According to API598 |
Brand | J-VALVES |
Superior Material Construction:Made from high - quality stainless or carbon steel (WCB), these ball valves exhibit excellent corrosion resistance, ensuring long - term durability even in harsh chemical and environmental conditions. The use of such robust materials also enables them to withstand high - pressure applications, providing reliable performance over an extended service life.
Optimal Design:The two - piece (2PC) floating full - port design allows for unobstructed flow, minimizing pressure drop and maximizing flow efficiency. This design not only improves system performance but also reduces energy consumption. The full - port construction makes it suitable for applications where solids or large particles need to pass through the valve without clogging.
Versatile Operation:Available with manual, electric, or pneumatic solenoid valve operation, these ball valves offer flexibility to meet various operational requirements. Manual operation provides a simple and cost - effective solution for applications where immediate control is needed. Electric operation enables remote control and automation, enhancing system management and reducing labor costs. Pneumatic solenoid valve operation allows for fast and precise control, making it ideal for applications that require rapid response times.
Industrial Sector:In the oil and gas industry, these ball valves are used for pipeline isolation, flow control, and pressure regulation. Their corrosion resistance and high - pressure capabilities make them suitable for both onshore and offshore applications. In chemical plants, they are used to handle corrosive fluids, ensuring safe and efficient operation.
Water Treatment:They play a crucial role in water treatment plants, where they are used to control the flow of raw water, treated water, and chemicals. The full - port design allows for easy passage of debris, preventing blockages in the water treatment process.
Building Services:In commercial and residential buildings, these ball valves are used in heating, ventilation, and air - conditioning (HVAC) systems. They help regulate the flow of water and refrigerant, ensuring optimal system performance and energy efficiency.
1.Design & Manufacture standard:API600
2.Pressure & Temperature standard:ASME B16.25
3.Face to face dimension standard: ASME B16.10
4.Ends Connection standard:ASME B16.5
5.Test & Inspect standard: API598
Design & Manufacture standard | ASME B16.34 |
Pressure & Temperature standard | ASME B16.34 |
Face to face dimension standard | MFG Standard |
Ends Connection standard | ASME B1.20.1 |
Test & Inspect standard | API 598 |
Testing Pressure(Mpa)
Pressure | 150LB | 300LB | 600LB | 900LB | 1500LB | 2500LB | |
Strength Testing | 3.0 | 7.5 | 15.4 | 23.0 | 37.5 | 63.0 | Mpa |
Seal Testing | 2.2 | 5.5 | 11.2 | 16.9 | 27.5 | 46.2 | |
Air Testing | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
Design & Manufacture standard | ASME B16.34 |
Pressure & Temperature standard | ASME B16.34 |
Face to face dimension standard | MFG Standard |
Ends Connection standard | ASME B1.20.1 |
Test & Inspect standard | API 598 |
Testing Pressure(Mpa)
Pressure | 150LB | 300LB | 600LB | 900LB | 1500LB | 2500LB | |
Strength Testing | 3.0 | 7.5 | 15.4 | 23.0 | 37.5 | 63.0 | Mpa |
Seal Testing | 2.2 | 5.5 | 11.2 | 16.9 | 27.5 | 46.2 | |
Air Testing | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
