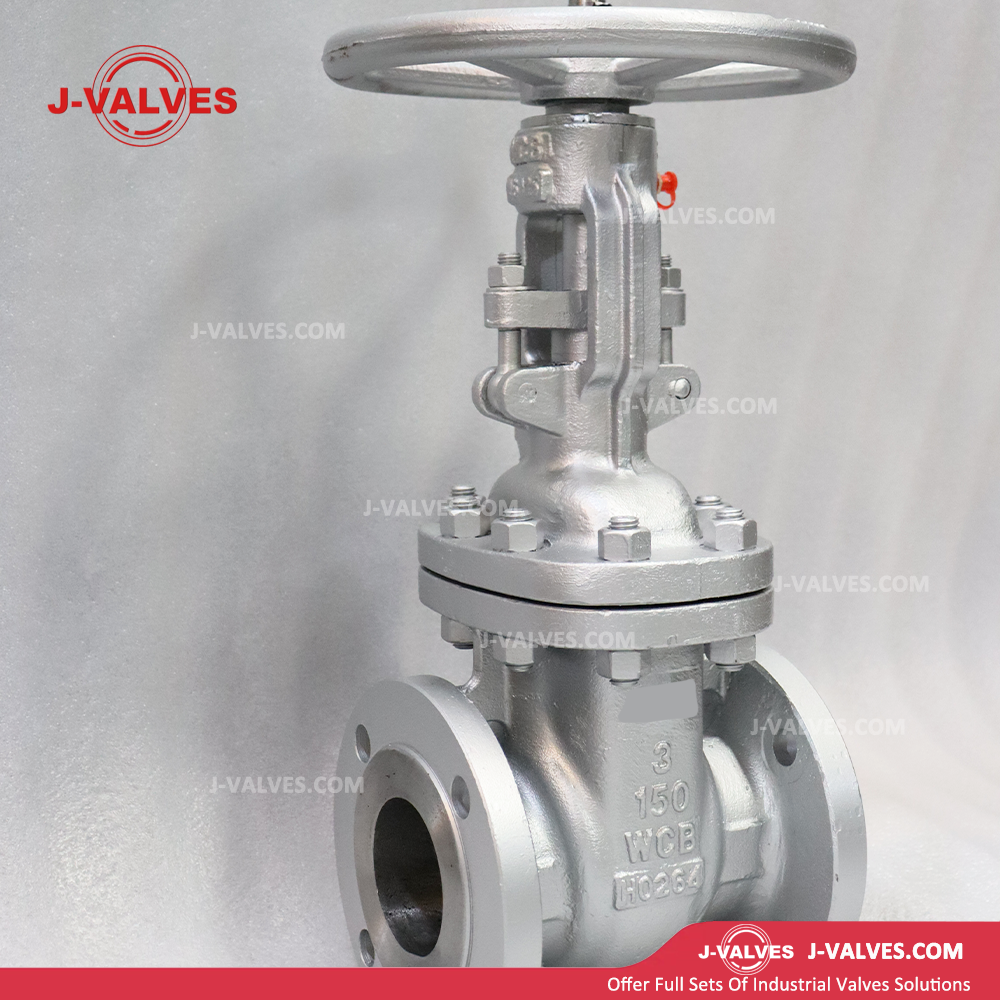

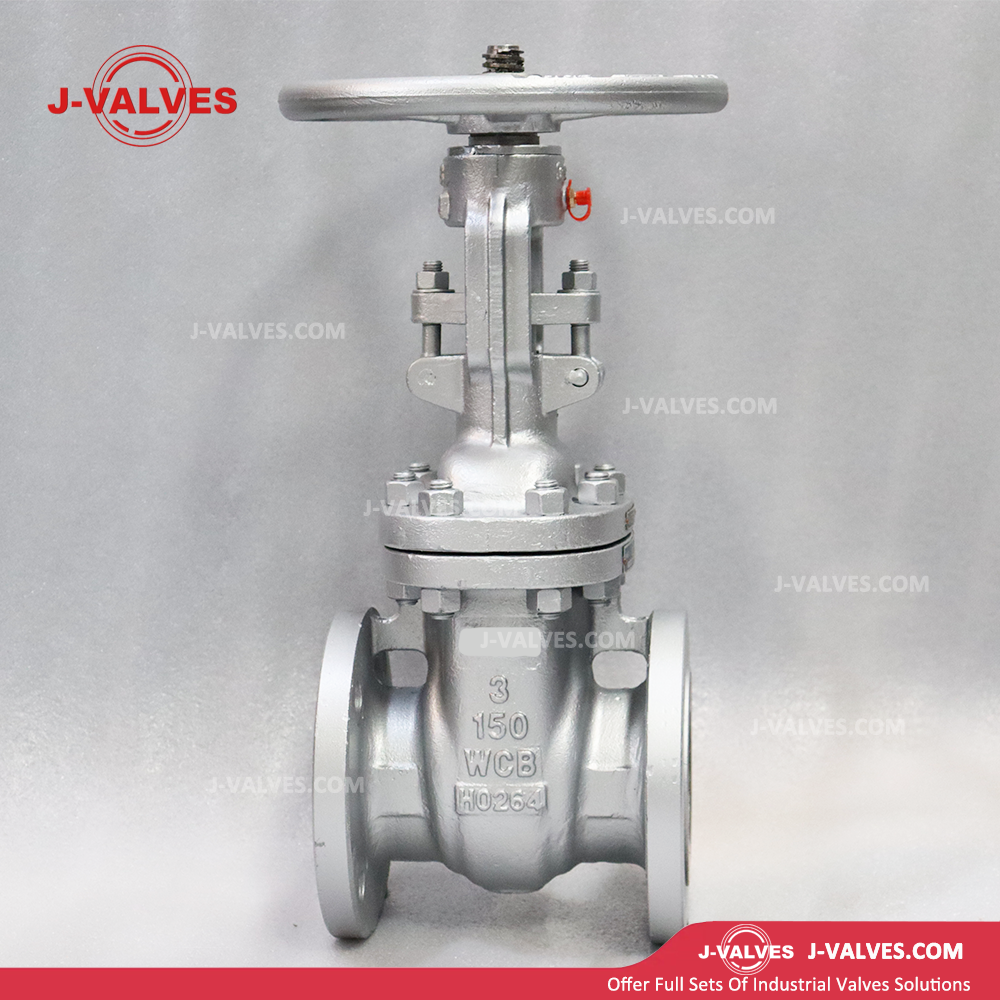

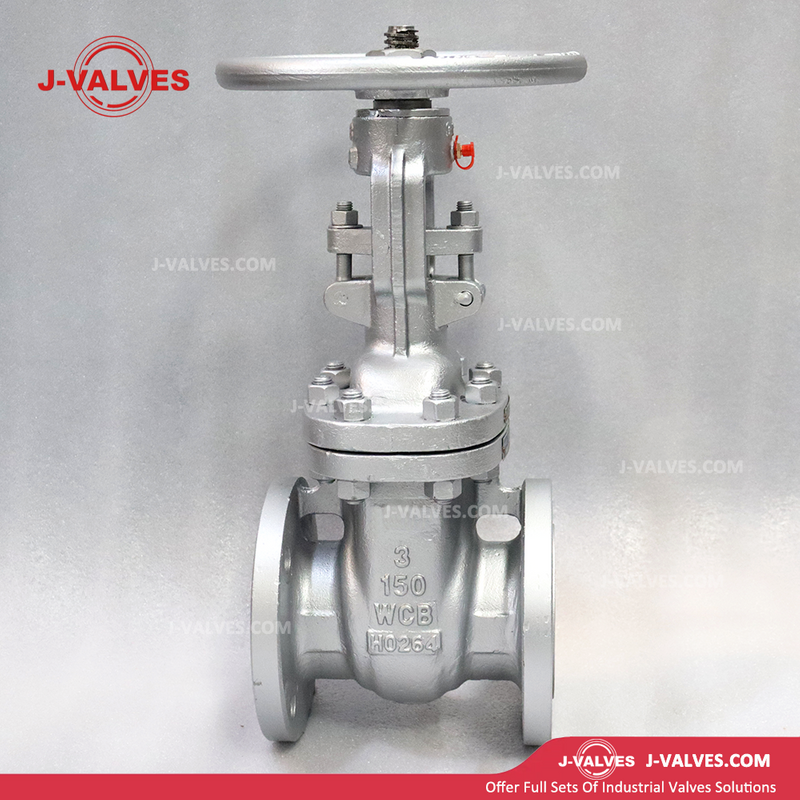

J-Valves China Flange End 150lb Casting Wcb Rising Stem Flange End Gate Valve

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Our J-Valves China Flange End 150lb Casting WCB Rising Stem Flange End Gate Valve is a top - tier industrial solution. Constructed from WCB castings, it exhibits excellent strength and durability, making it suitable for various demanding applications.

The 150lb rating meets international pressure standards. The rising stem design offers clear indication of the valve’s position, ensuring easy operation and precise flow control. With flange end connections, installation is straightforward, reducing downtime. Whether for water, gas, or other media transportation systems, this gate valve provides reliable performance, enhancing the efficiency and safety of your operations.
Availability:
Quantity:
  • J-VALVES-BV

  • J-VALVES

  • 8481804090

J-Valves China Flange End 150lb Casting Wcb Rising Stem Flange End Gate Valve

Porduct Name

J-Valves China Flange End 150lb Casting Wcb Rising Stem Flange End Gate Valve

Material 304/316/B62/2207/2507/316ti/C95800, etc.
Size 2"-24"(DN100-DN600)
Port Full Port
Working Pressure 150LB/300LB
Connection Ends RF
Working Temp. -20ºC~200ºC
Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
Operated Manual, Worm Gear, Pneumatic actuator, Electric Actuator
Features Investment casting,Blow-out proof stem,Anti-static device(option)
Design standard API6D/API608/API607
Inspection&Testing According to API598
Brand J-VALVES



Advantages



  1. Robust Construction:Constructed with a 150lb casting WCB body, the valve exhibits remarkable durability. WCB, a carbon steel alloy, offers high tensile strength, allowing the valve to withstand harsh operating conditions, including high pressures and temperatures.

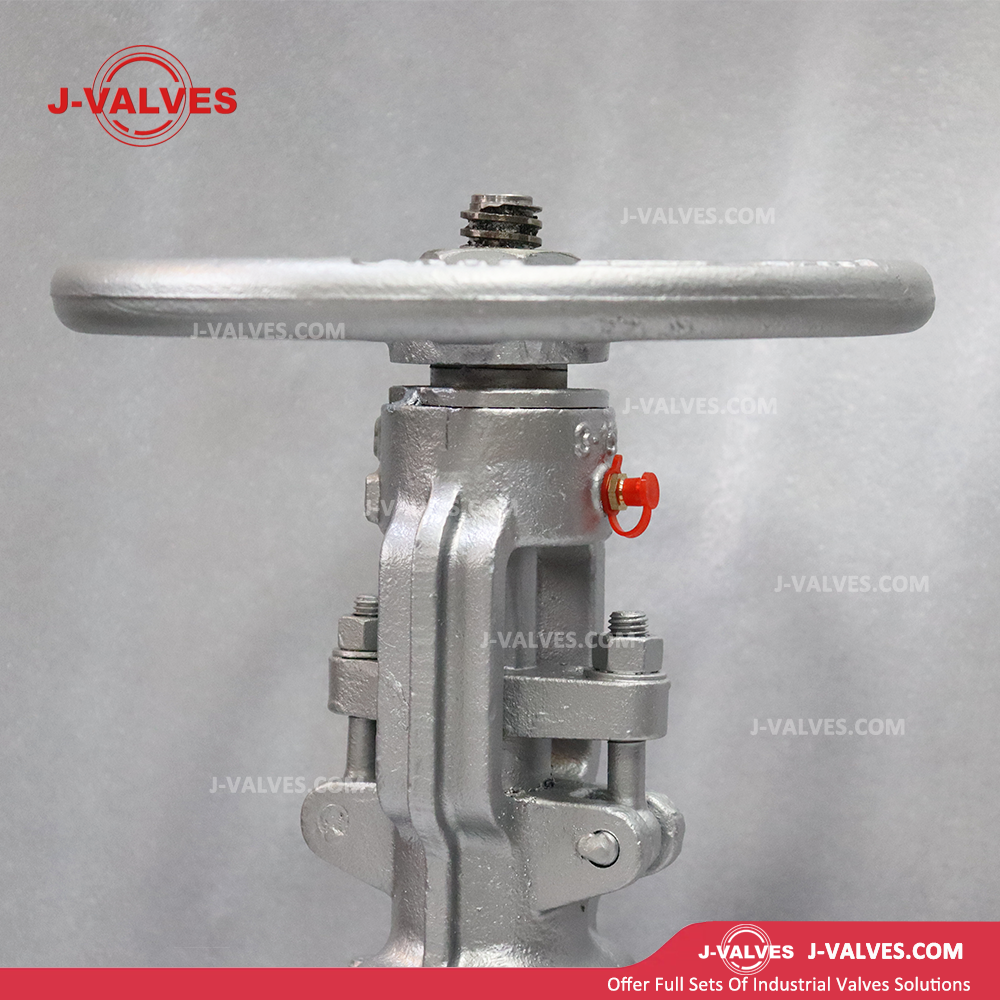

  2. Efficient Operation:The rising stem design provides operators with clear visual indication of the valve’s position—open or closed. This design also ensures smooth and precise operation, minimizing the effort required for valve adjustment.

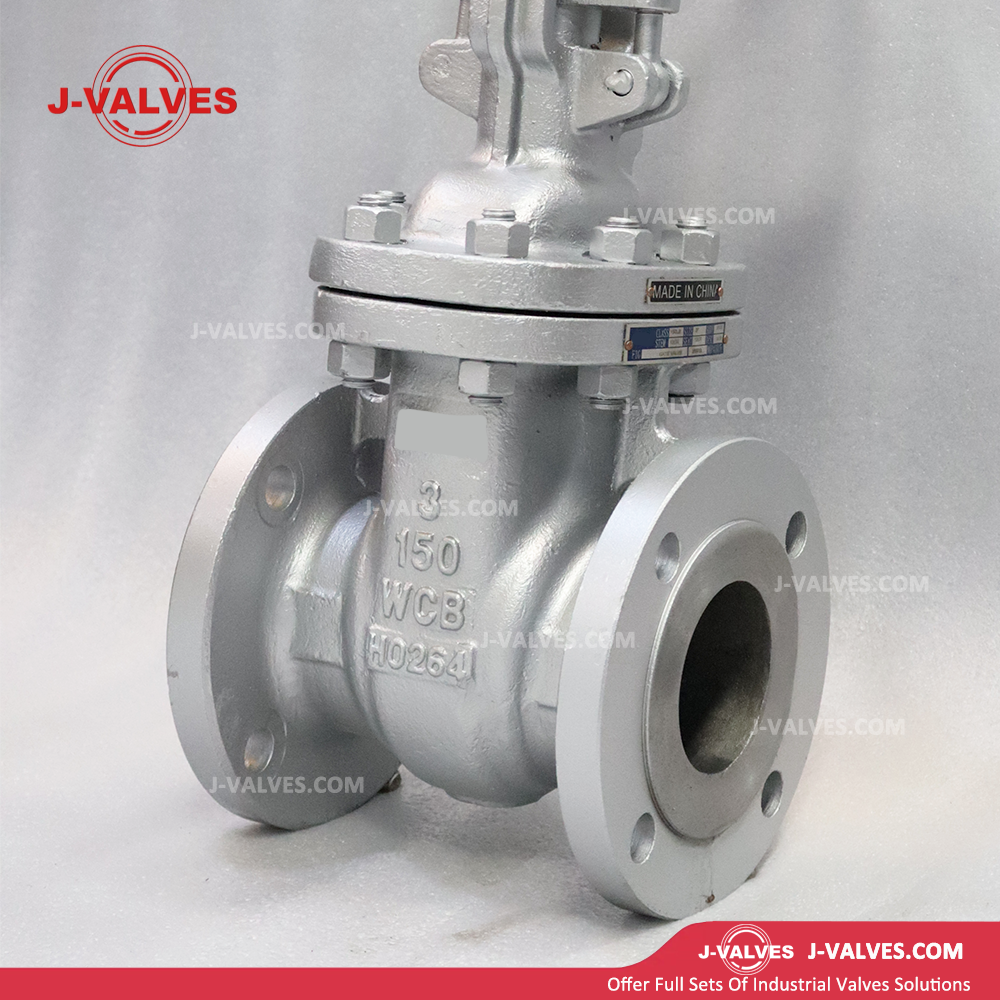

  3. Superior Sealing:The flange end connections create a tight seal, effectively preventing leaks. This not only enhances system efficiency but also reduces the risk of environmental hazards and product loss.

  4. Easy Maintenance:The valve's simple and modular design facilitates easy disassembly and reassembly, simplifying maintenance procedures. This helps to reduce downtime and maintenance costs.


Applications


  1. Oil and Gas Industry:These valves are widely used in oil refineries, gas processing plants, and pipelines. They regulate the flow of crude oil, natural gas, and various petroleum products, ensuring safe and efficient transportation.

  2. Water and Wastewater Treatment:In water treatment plants and sewage systems, the J-Valves play a crucial role in controlling the flow of water and wastewater. Their reliable performance helps maintain the integrity of the treatment process.

  3. Power Generation:Whether in coal - fired, gas - fired, or nuclear power plants, these valves are essential for regulating the flow of steam, water, and other working fluids, contributing to stable power generation.

  4. Industrial Manufacturing:Industries such as chemical, pharmaceutical, and food and beverage rely on these valves to control the flow of various substances during the manufacturing process, ensuring product quality and process safety.


Technical Standards

1.Design & Manufacture standard:API600
2.Pressure & Temperature standard:ASME B16.25
3.Face to face dimension standard: ASME B16.10
4.Ends Connection standard:ASME B16.5
5.Test & Inspect standard: API598


Design & Manufacture standard ASME B16.34
Pressure & Temperature standard ASME B16.34
Face to face dimension standard MFG Standard
Ends Connection standard ASME B1.20.1
Test & Inspect standard API 598


Testing Pressure(Mpa)


Pressure 150LB 300LB 600LB 900LB 1500LB 2500LB
Strength Testing 3.0 7.5 15.4 23.0 37.5 63.0 Mpa
Seal Testing 2.2 5.5 11.2 16.9 27.5 46.2
Air Testing 0.6 0.6 0.6 0.6 0.6 0.6


Advantages
Product display
In the field of industrial valves, high-pressure cast steel gearbox-operated self-sealing gate valves have performed well. The valve body made of high-pressure cast steel is solid and reliable, and can cope with high-pressure working conditions; the gearbox is easy to operate and precise, and the opening and closing can be easily controlled; the self-sealing technology prevents medium leakage and ensures production safety.
