Product Introduction

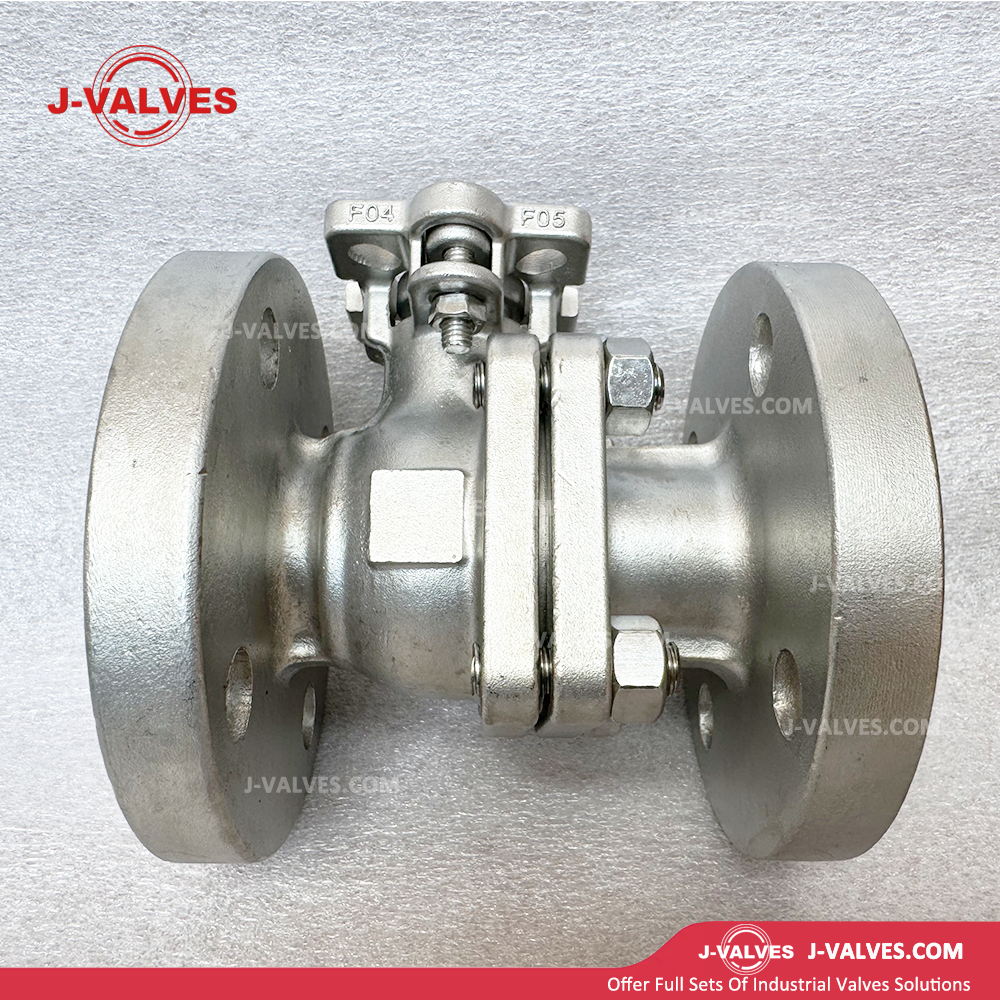

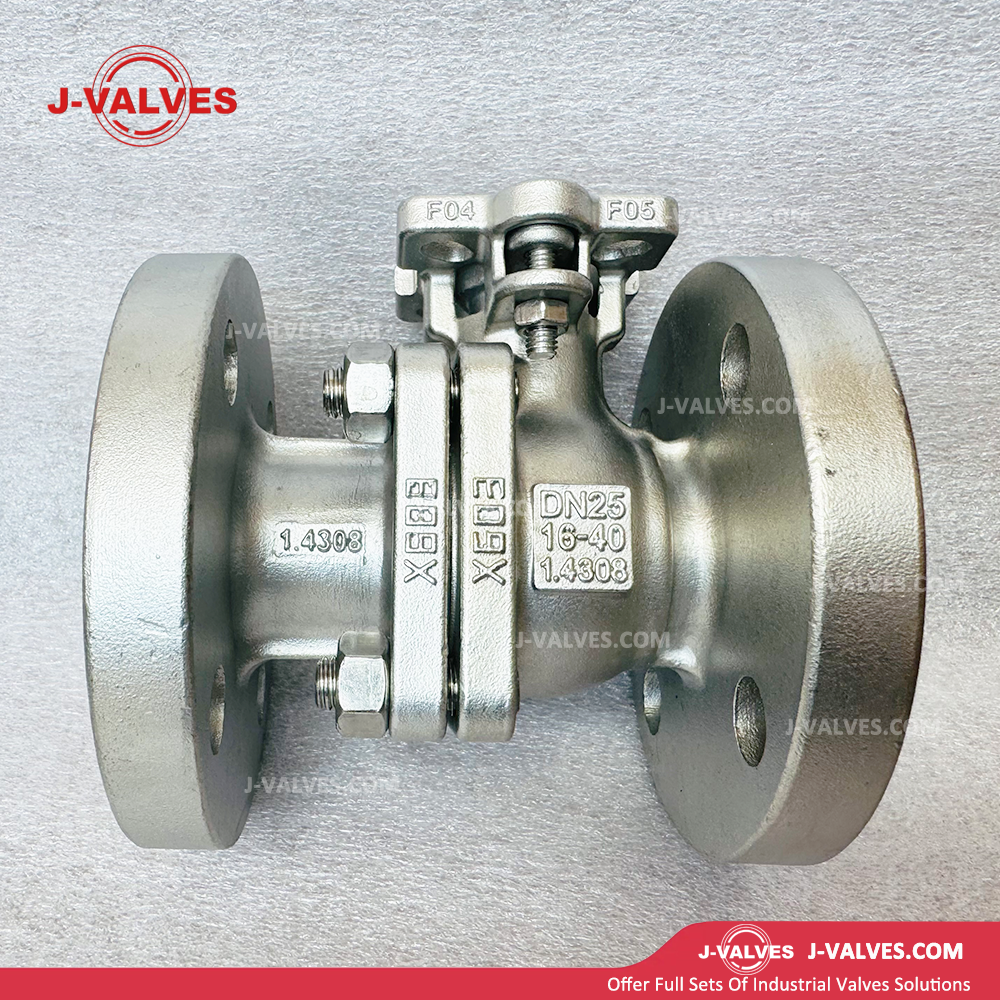

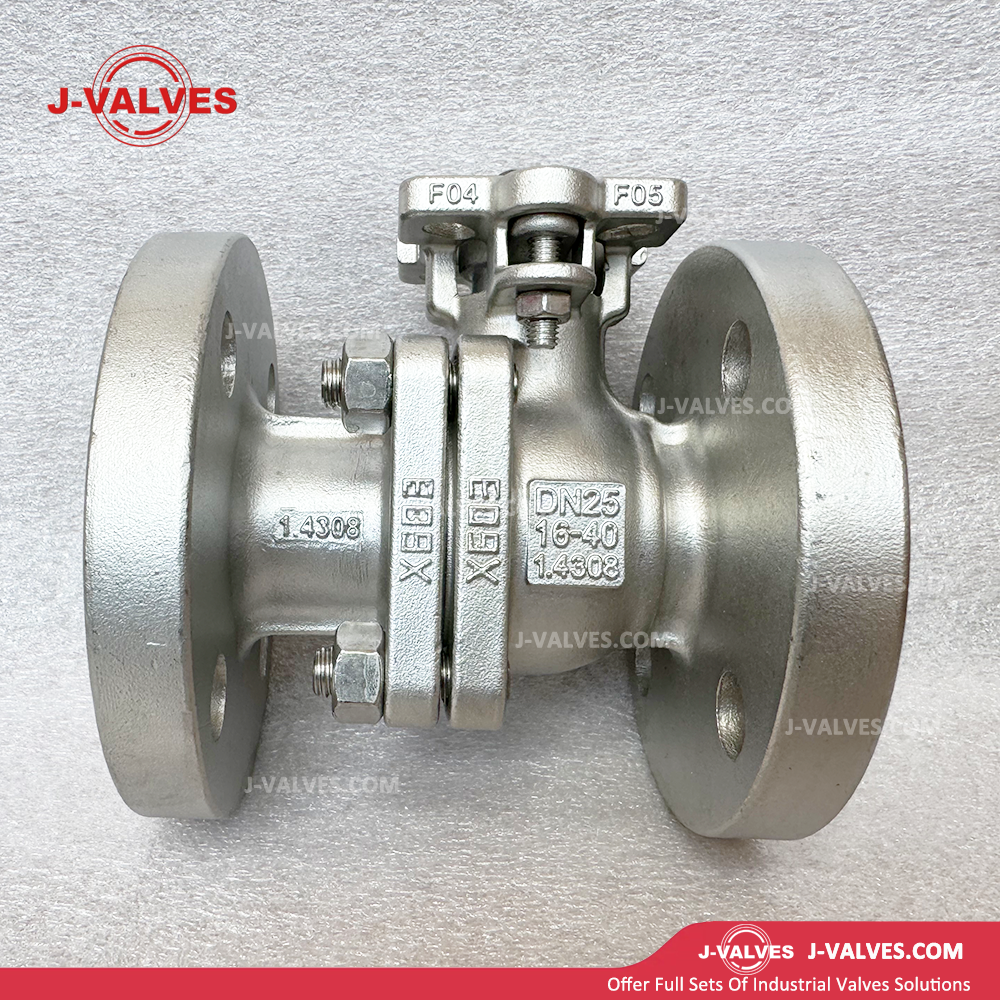

| Porduct Name | J-Valves China DIN 2PC Floating Flange End Pn16/25/40/64 Full Port Direct Mounting Pad Ball Valve |
| Material | 304/316/B62/2207/2507/316ti/C95800, etc. |
| Size | 2"-24"(DN100-DN600) |
| Port | Full Port |
| Working Pressure | 150LB/300LB |
| Connection Ends | RF |
| Working Temp. | -20ºC~200ºC |
| Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| Operated | Manual, Worm Gear, Pneumatic actuator, Electric Actuator |
| Features | Investment casting,Blow-out proof stem,Anti-static device(option) |
| Design standard | API6D/API608/API607 |
| Inspection&Testing | According to API598 |
| Brand | J-VALVES |
High Pressure Resistance: With pressure ratings of PN16/25/40/64, these ball valves can withstand high - pressure environments, ensuring reliable operation in various industrial applications where pressure differentials are significant. This makes them suitable for handling fluids under high - pressure conditions without the risk of leakage or damage.
Full Port Design: The full port feature allows for unrestricted flow of fluids. It minimizes pressure drop across the valve, which is crucial for maintaining efficient fluid transfer in pipelines. Whether it's for transporting water, oil, gas, or other media, the full port design ensures smooth and fast flow, reducing energy consumption and improving overall system performance.

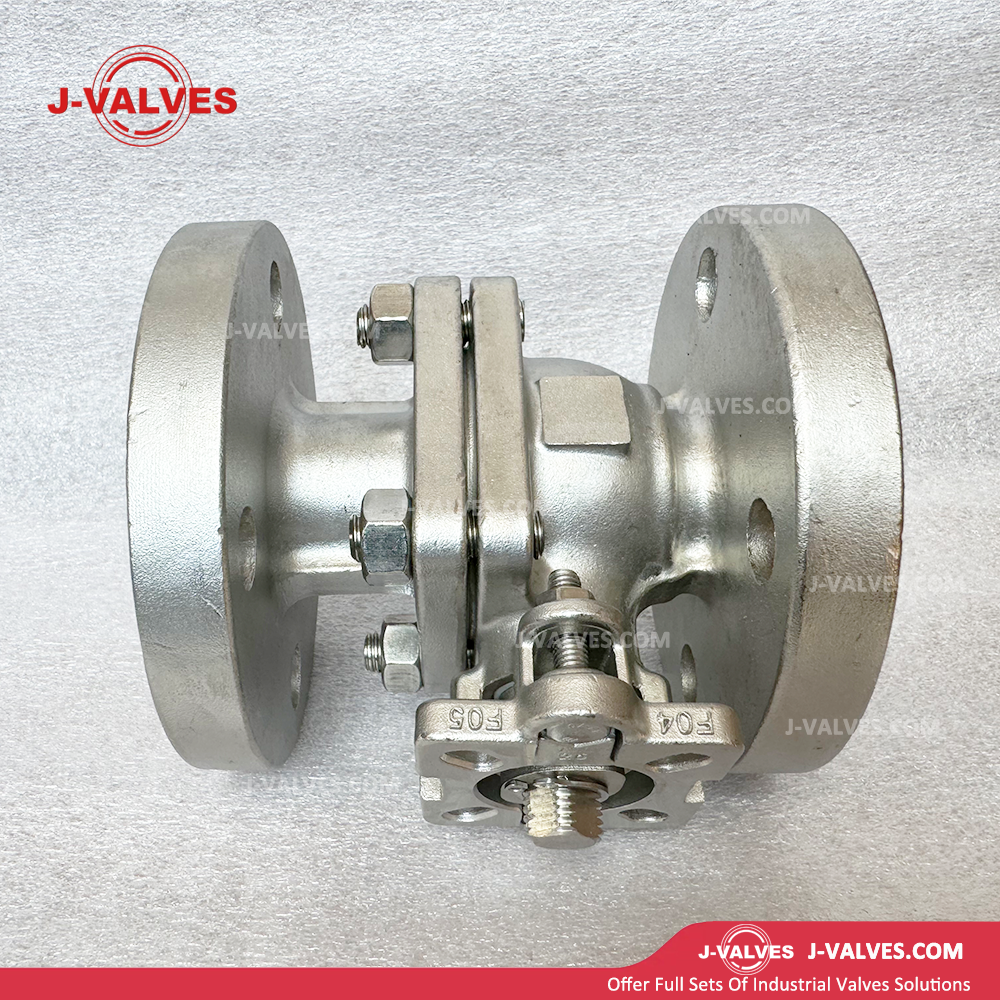

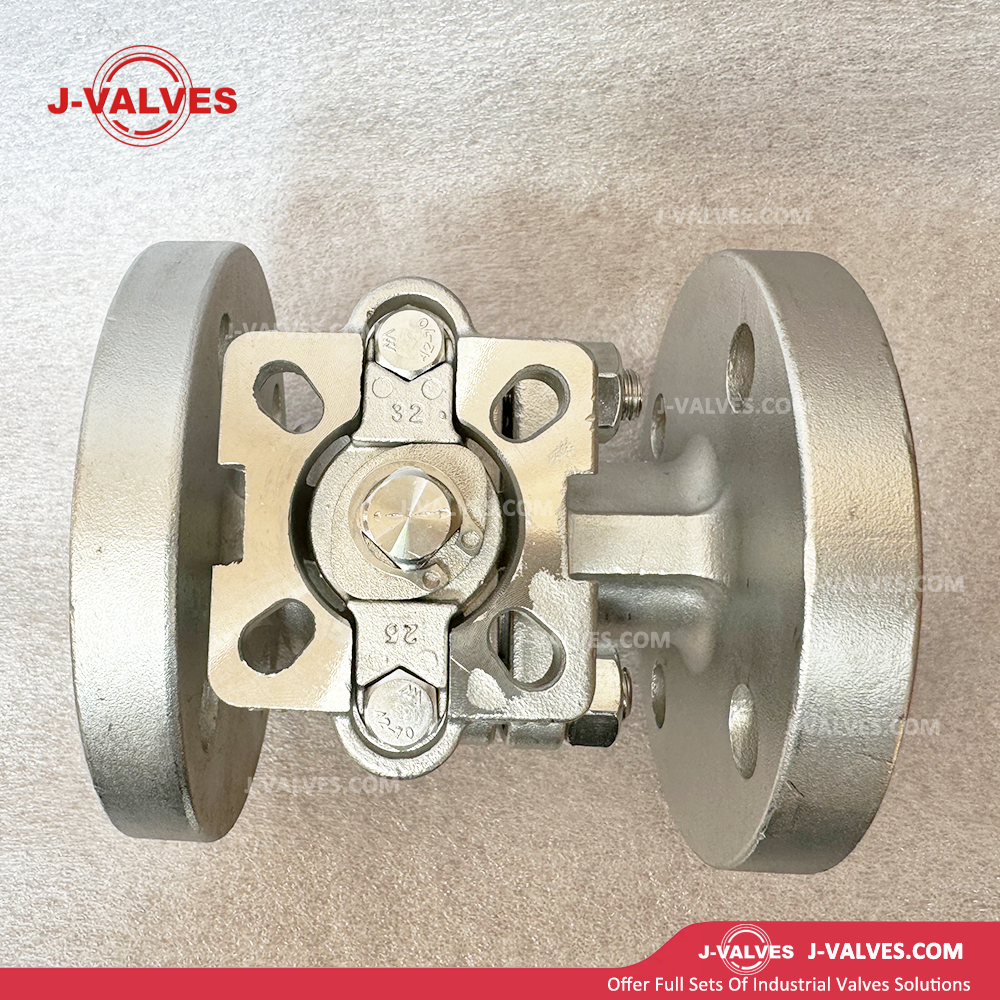

Direct Mounting Pad: The direct mounting pad simplifies the installation process. It enables easy attachment to pipeline flanges, saving installation time and labor costs. This design also provides a more stable and secure connection, reducing the likelihood of misalignment during installation, which could otherwise lead to leaks or operational issues.

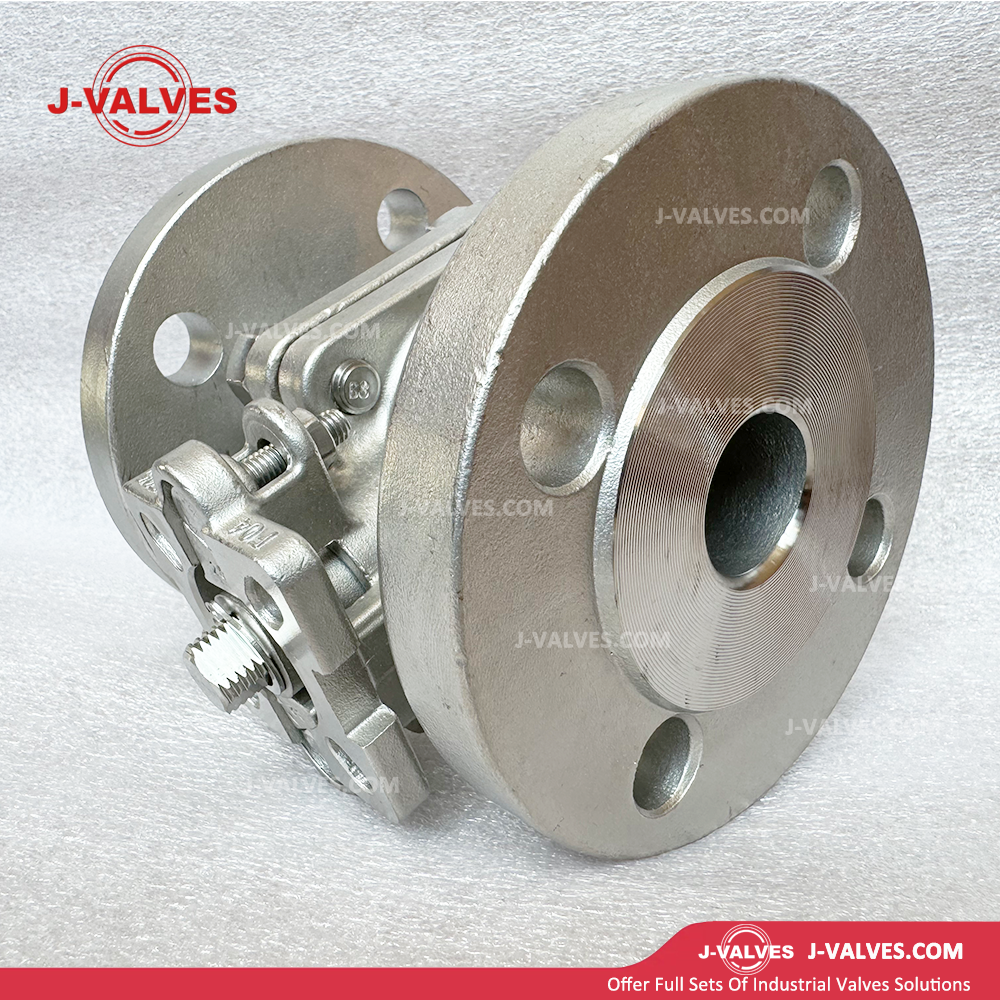

Floating Flange End: The floating flange end design offers enhanced sealing performance. As the valve is subjected to fluid pressure, the floating flange can adjust itself to ensure a tight seal against the mating flange. This design is particularly effective in preventing leaks at the flange connections, even in the presence of thermal expansion, vibration, or mechanical stress in the pipeline system.
Two - Piece Construction: The 2PC (two - piece) construction makes the valve easy to disassemble for maintenance and repair. In case of any internal component failure, such as the ball or seat, the valve can be quickly taken apart, and the damaged parts can be replaced. This reduces downtime and maintenance costs, as compared to valves with more complex or integrated designs.
Oil and Gas Industry: In oil and gas pipelines, these ball valves are used to control the flow of crude oil, refined products, and natural gas. Their high - pressure resistance and full - port design are essential for handling large volumes of these fluids over long distances. They can be installed at wellheads, refineries, and gas processing plants to regulate the flow, isolate sections of the pipeline for maintenance, and prevent backflow.
Water and Wastewater Treatment: For water supply systems, these valves are used to control the flow of potable water. Their reliable sealing and full - port design ensure efficient water distribution. In wastewater treatment plants, they are used to manage the flow of sewage and treated effluent. The ability to withstand different pressure levels makes them suitable for both high - pressure water supply mains and low - pressure wastewater pipelines.
Chemical Industry: In chemical plants, where various corrosive and high - pressure fluids are processed, these ball valves are used to control the flow of chemicals. Their corrosion - resistant materials (depending on the specific model) and high - pressure capabilities make them suitable for handling aggressive chemical substances. They can be used in processes such as chemical reactions, distillation, and storage tank filling and emptying.
Power Generation: In power plants, whether they are coal - fired, gas - fired, or nuclear, these valves are used in the cooling water systems, steam pipelines, and fuel supply lines. Their ability to handle high - pressure steam and hot water, along with their reliable flow control, is crucial for the safe and efficient operation of power generation equipment.
