J-VALVES-BV
J-VALVES
8481804090
Product Introduction

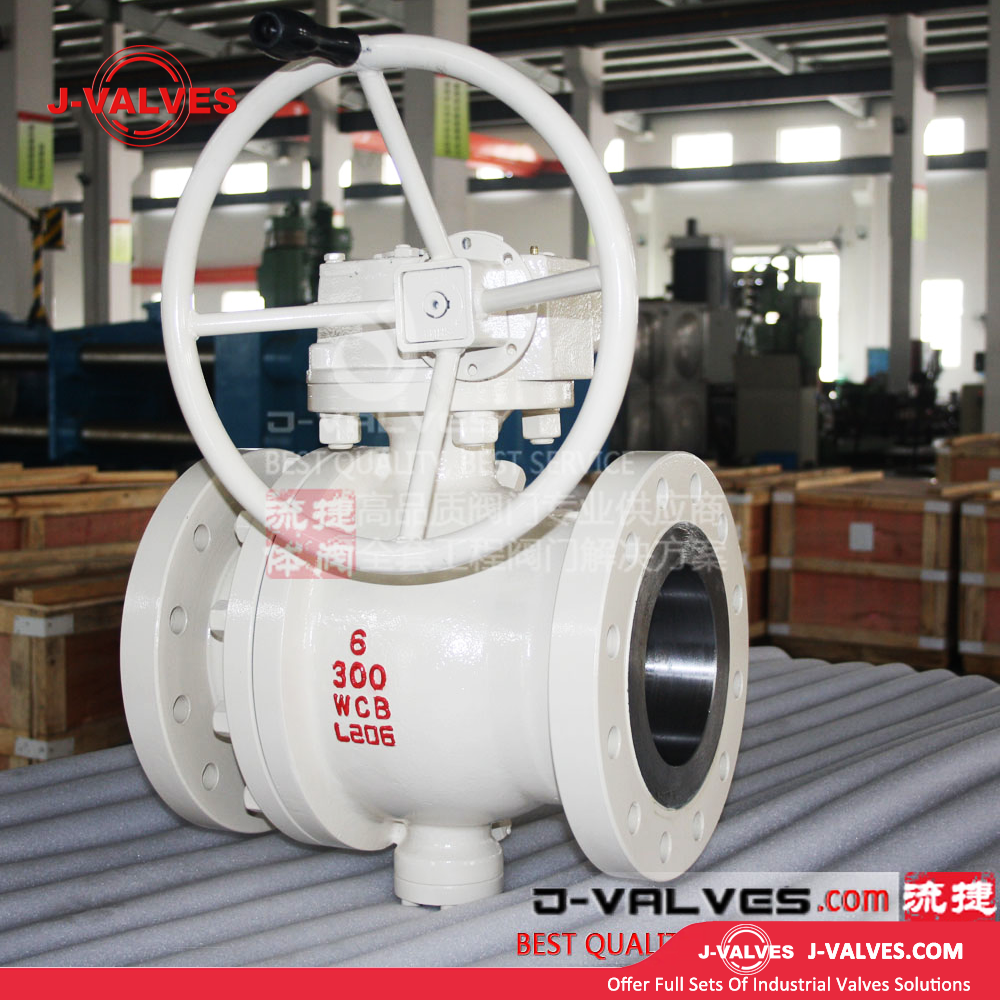

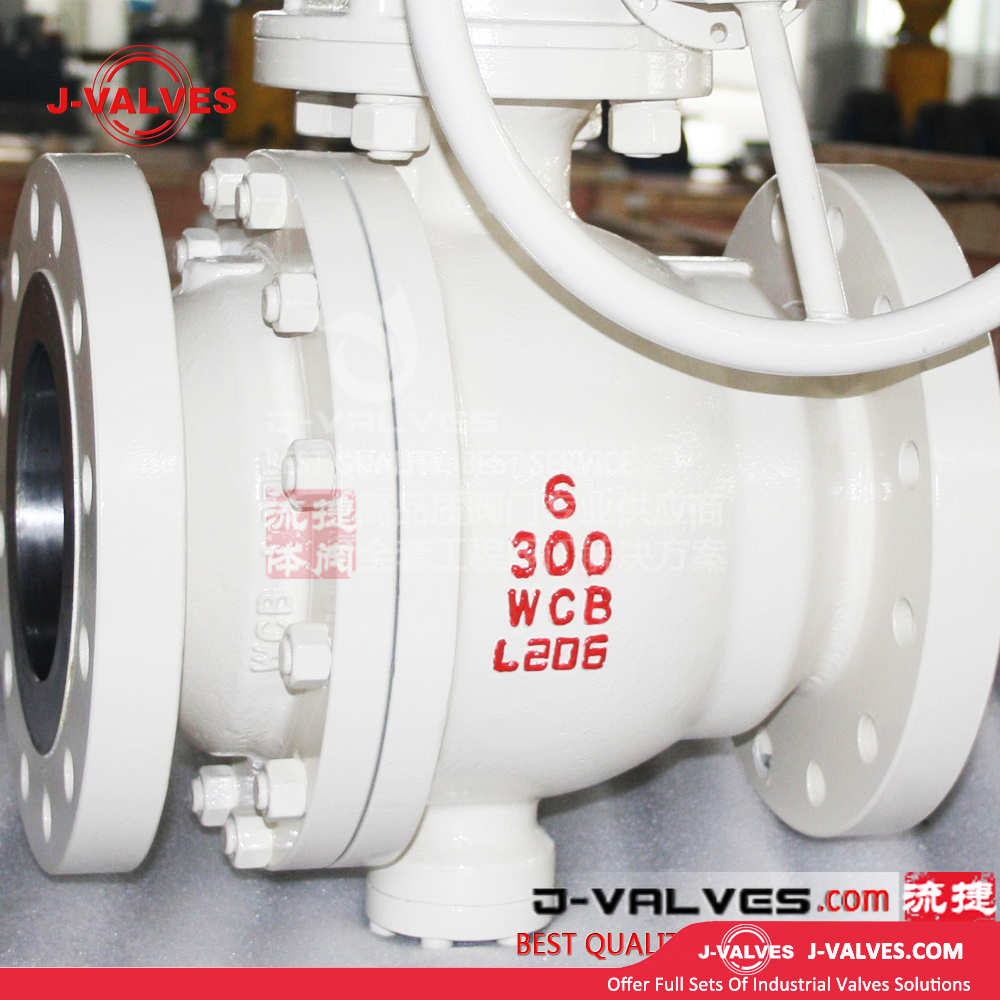

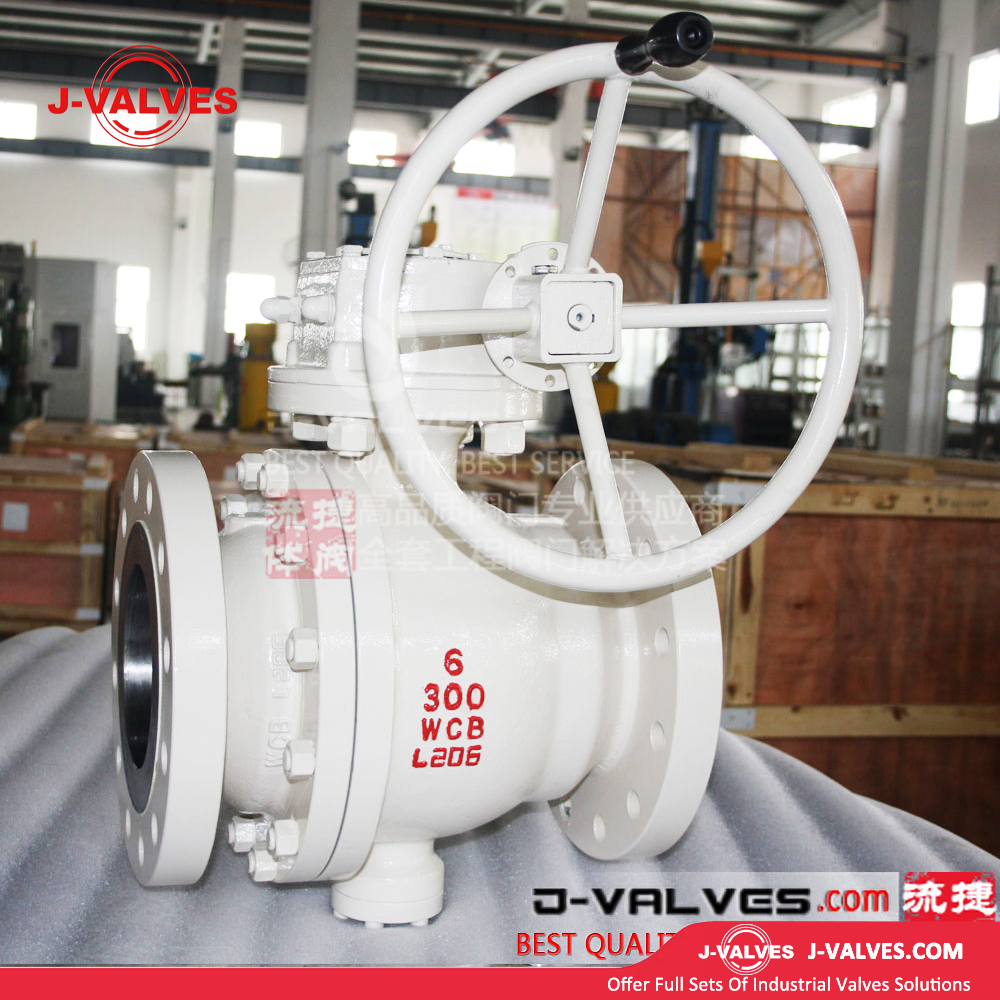

Introducing the J-Valves China API6d 6'' 2PC Ball Valve. Available in carbon, cast, or stainless steel, it features flange ends and is designed for industrial use. With Class-rated construction, it ensures reliable performance and durability. Ideal for various applications, it offers excellent sealing and easy operation, making it a top choice for industrial piping systems.
| Porduct Name | J-Valves Made in China 6‘ ’ Forged Steel 3PC Flange Trunnion Mounted Ball Valve |
| Material | 304/316/B62/2207/2507/316ti/C95800, etc. |
| Size | 2"-24"(DN100-DN600) |
| Port | Full Port |
| Working Pressure | 150LB/300LB |
| Connection Ends | RF |
| Working Temp. | -20ºC~200ºC |
| Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| Operated | Manual, Worm Gear, Pneumatic actuator, Electric Actuator |
| Features | Investment casting,Blow-out proof stem,Anti-static device(option) |
| Design standard | API6D/API608/API607 |
| Inspection&Testing | According to API598 |
| Brand | J-VALVES |
Advantages
High-Quality Materials
Constructed from carbon, cast, or stainless steel, these ball valves offer excellent durability. Carbon steel provides high strength and is cost - effective for general industrial applications. Cast steel, on the other hand, has good casting properties, allowing for complex shapes and enhanced structural integrity. Stainless steel variants are highly resistant to corrosion, making them suitable for harsh environments where chemical exposure or moisture is present.
API 6D Compliance
Meeting the API 6D standard ensures that these valves are designed, manufactured, and tested to the highest industry standards for pipeline valves. This compliance guarantees reliability in oil and gas pipeline systems, where safety and performance are critical. It also means that the valves can withstand high - pressure and high - temperature conditions typically found in such applications.
Two - Piece (2PC) Design
The two - piece design simplifies installation and maintenance. It allows for easy access to the internal components of the valve, such as the ball and seats. In case of wear or damage, individual parts can be replaced without having to remove the entire valve from the pipeline, reducing downtime and maintenance costs.

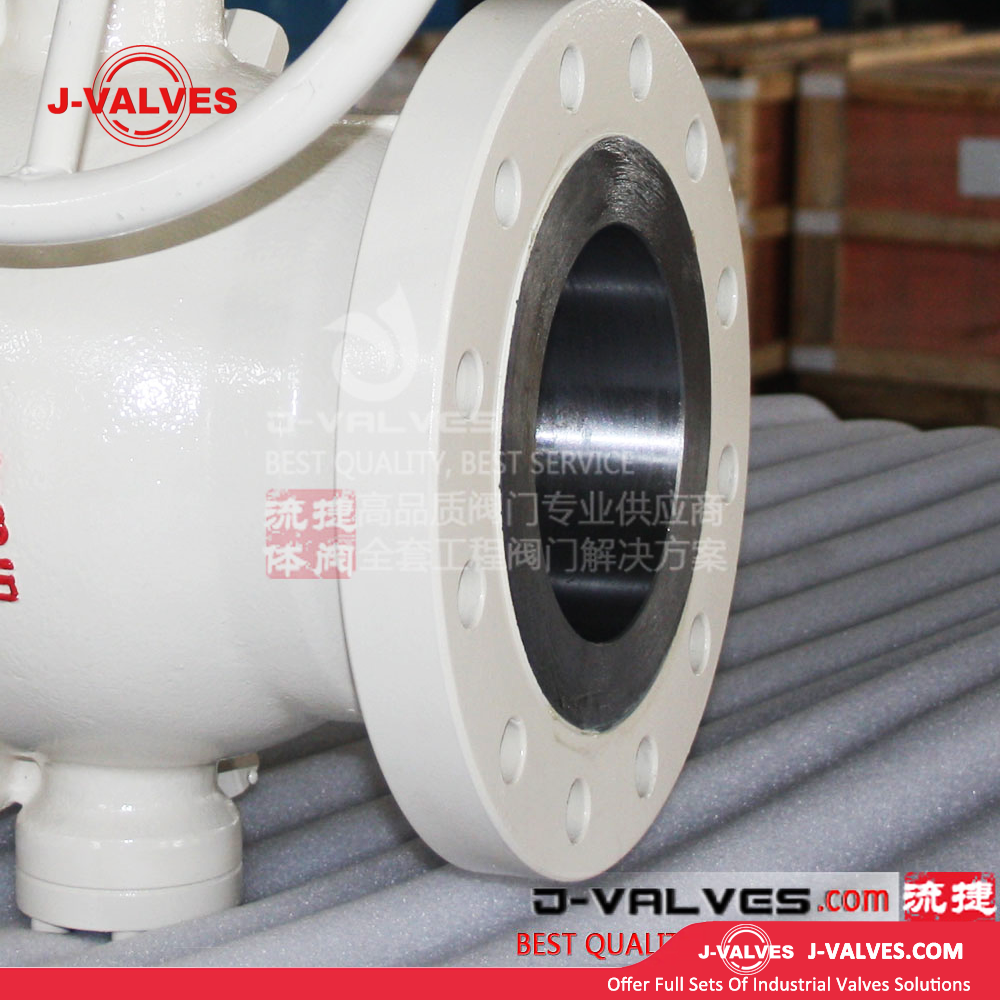

Flange End Connection
The flange end connection provides a secure and leak - tight joint. It is easy to align and bolt onto pipeline flanges, making the installation process straightforward. Flange connections are also suitable for high - pressure applications as they can withstand the forces exerted on the valve during operation.
Industrial - Grade Performance
These ball valves are engineered for industrial use, offering precise flow control. The ball - and - seat mechanism allows for quick and efficient on - off operation, as well as throttling capabilities. They can handle a wide range of fluids, including gases, liquids, and slurries, making them versatile for various industrial processes.
Applications
Oil and Gas Industry
In oil and gas pipelines, these valves are used for regulating the flow of crude oil, natural gas, and refined products. Their ability to withstand high pressures and resist corrosion makes them ideal for both onshore and offshore applications. They can be installed at wellheads, in refineries, and in transportation pipelines to control the flow of hydrocarbons.
Chemical Processing
For chemical plants, the stainless - steel versions of these ball valves are essential. They can handle aggressive chemicals without corroding, ensuring the safe and efficient transfer of chemicals between different processing units. Whether it's in the production of fertilizers, petrochemicals, or pharmaceuticals, these valves play a crucial role in controlling the flow of reactants and products.
Power Generation
In power plants, both fossil - fuel - fired and nuclear, these ball valves are used to control the flow of water, steam, and fuel. They are used in the cooling water systems, boiler feedwater lines, and fuel supply lines. Their reliable performance and ability to handle high - temperature and high - pressure fluids make them suitable for power generation applications.
Water and Wastewater Treatment
In water treatment plants, these valves are used to control the flow of raw water, treated water, and chemicals. They can be used in processes such as filtration, disinfection, and sludge handling. In wastewater treatment, they are used to manage the flow of sewage and effluent, ensuring the proper operation of treatment processes.
General Industrial Applications
They are also widely used in other industrial sectors such as food and beverage, pulp and paper, and mining. In the food and beverage industry, they can be used to control the flow of ingredients and finished products. In the pulp and paper industry, they are used in the processing of pulp and the transfer of chemicals. In mining, they are used to control the flow of slurry and other mining - related fluids.
