Availability: | |
---|---|
Quantity: | |
J-VALVES-BV
J-VALVES
8481804090

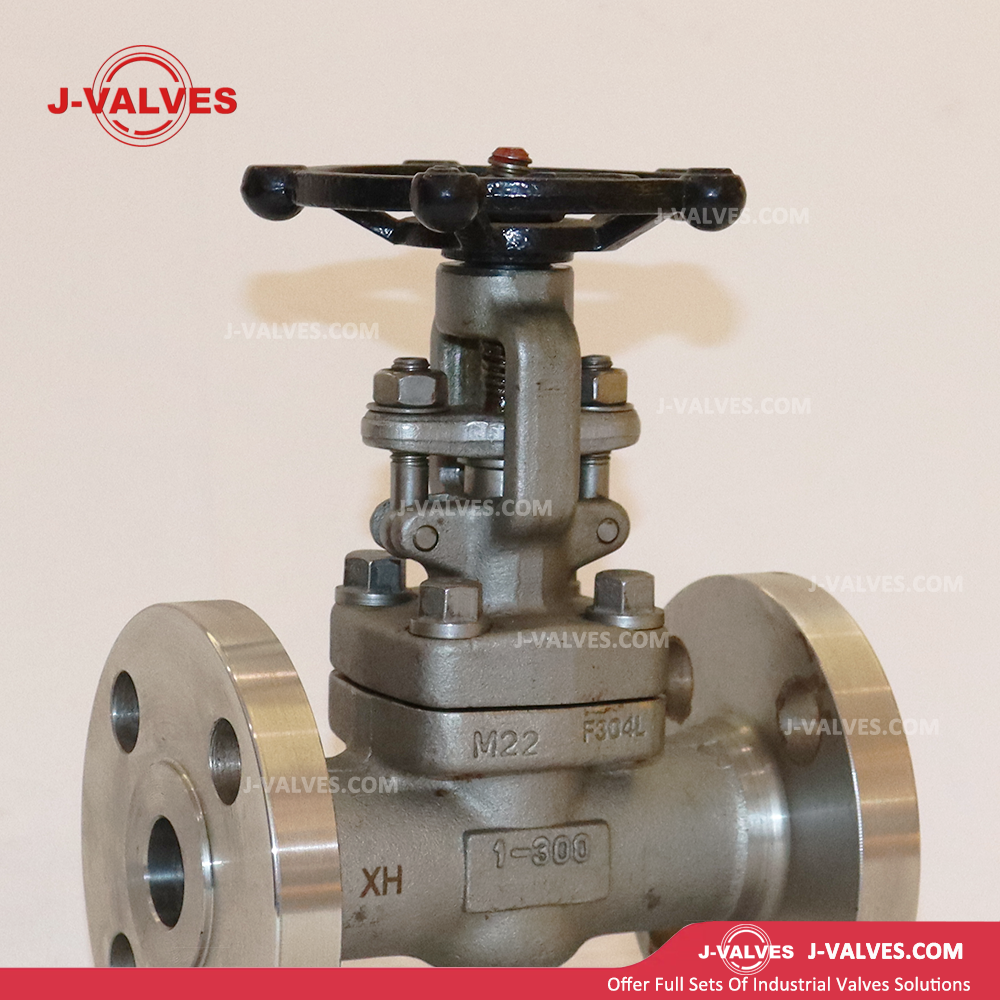

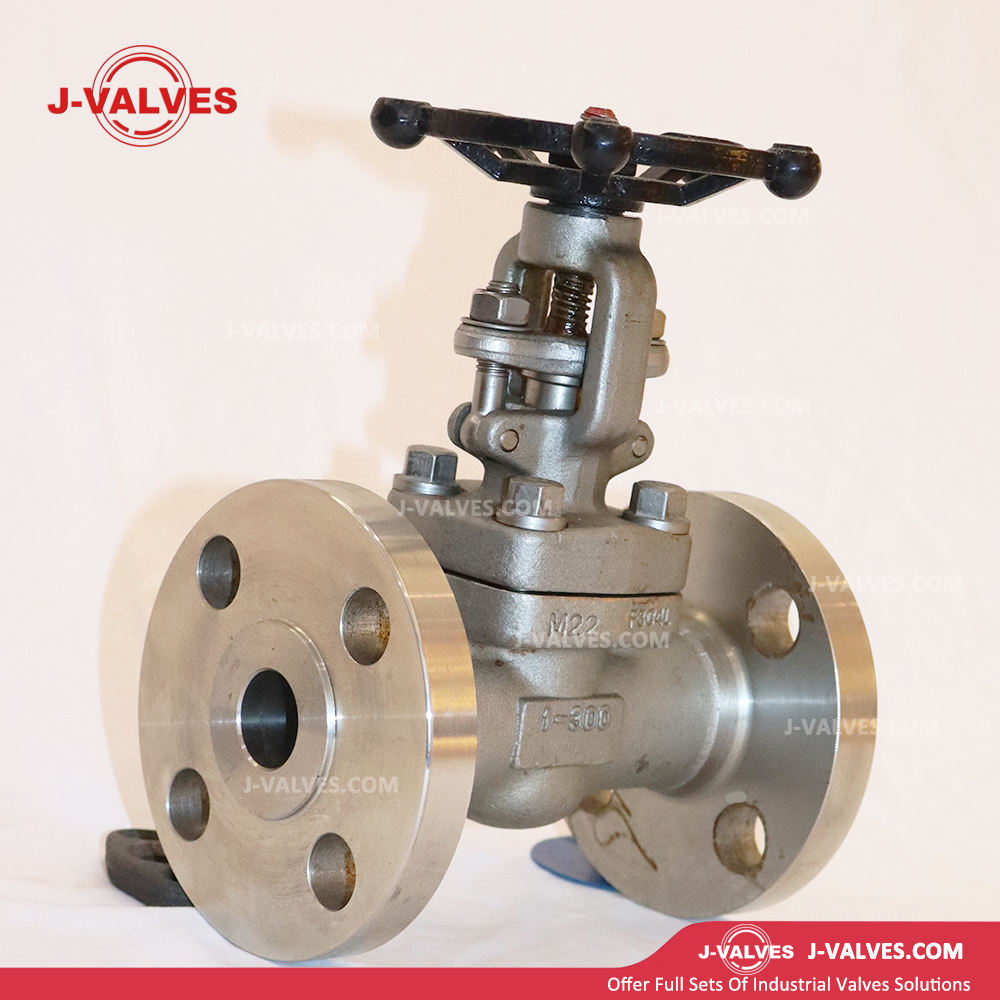

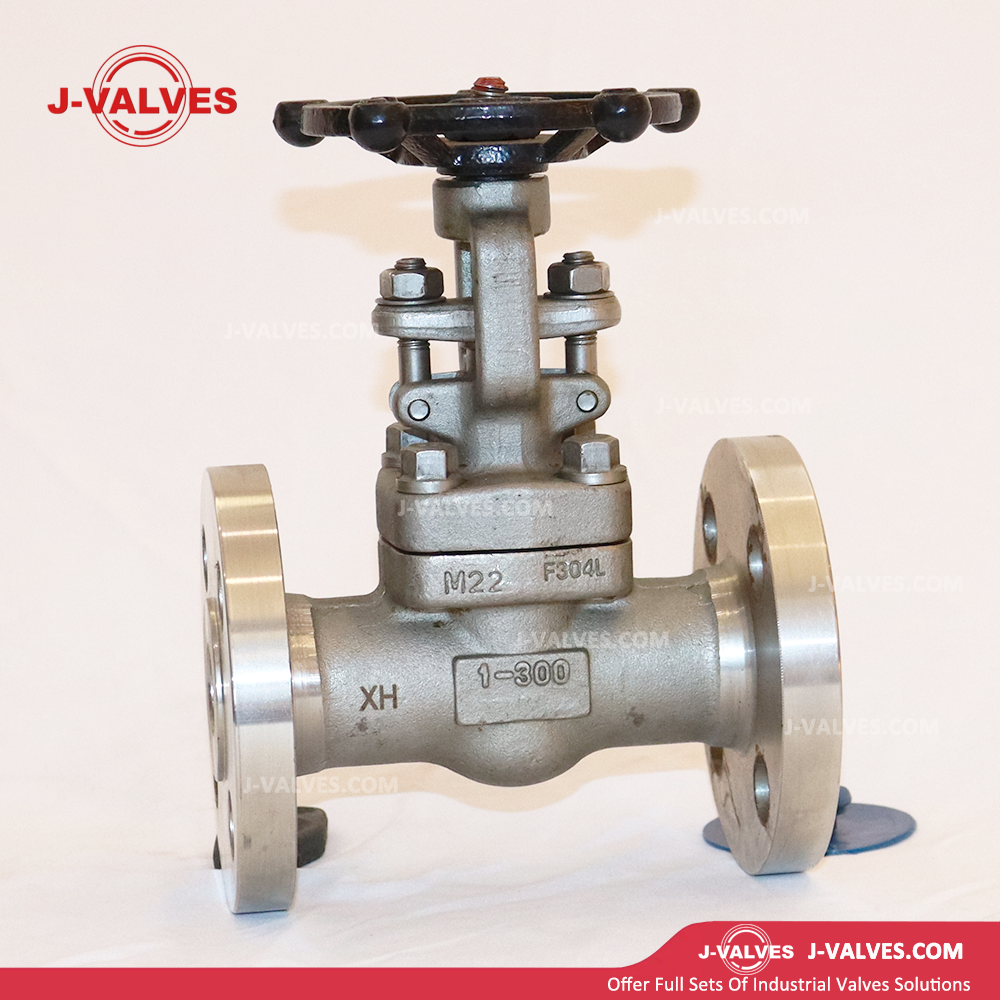

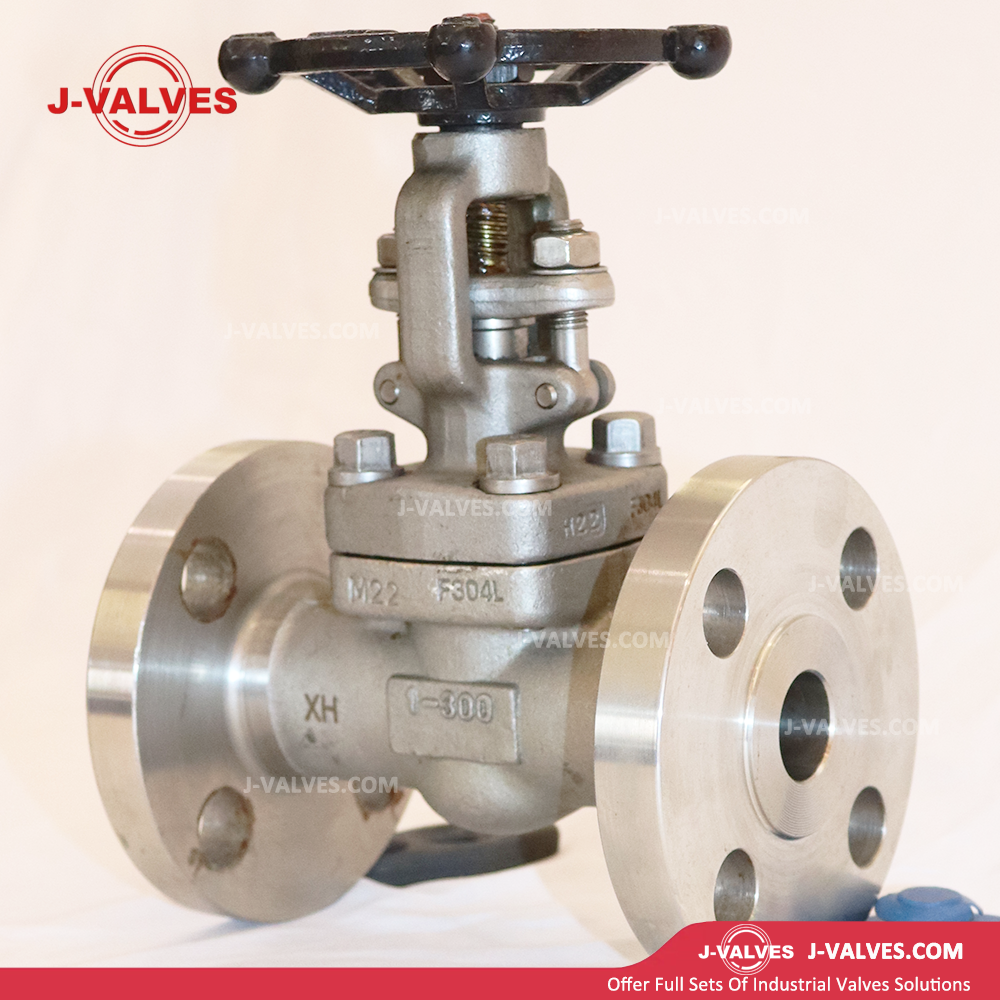

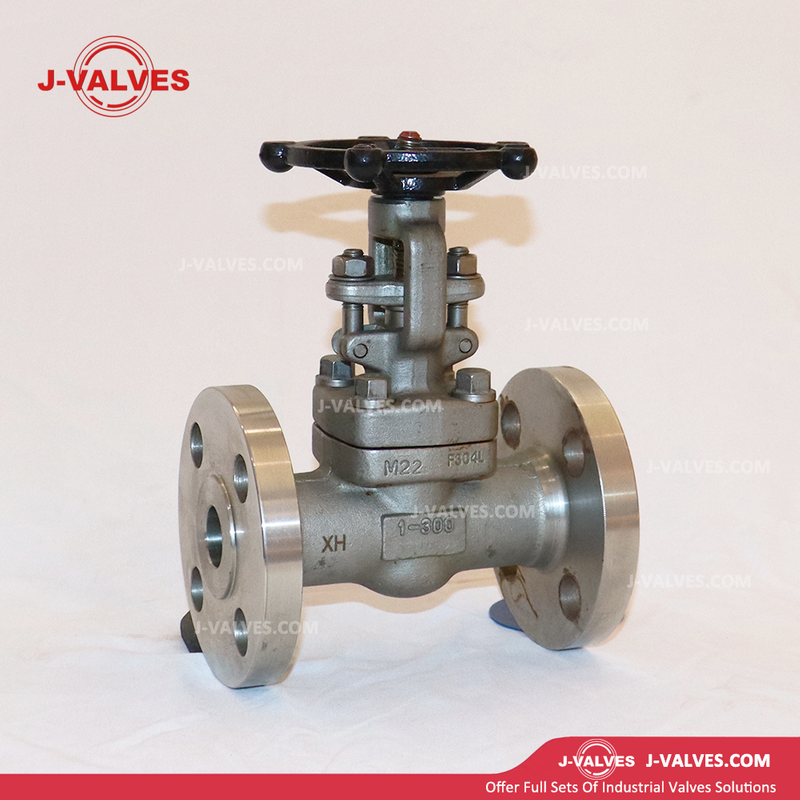

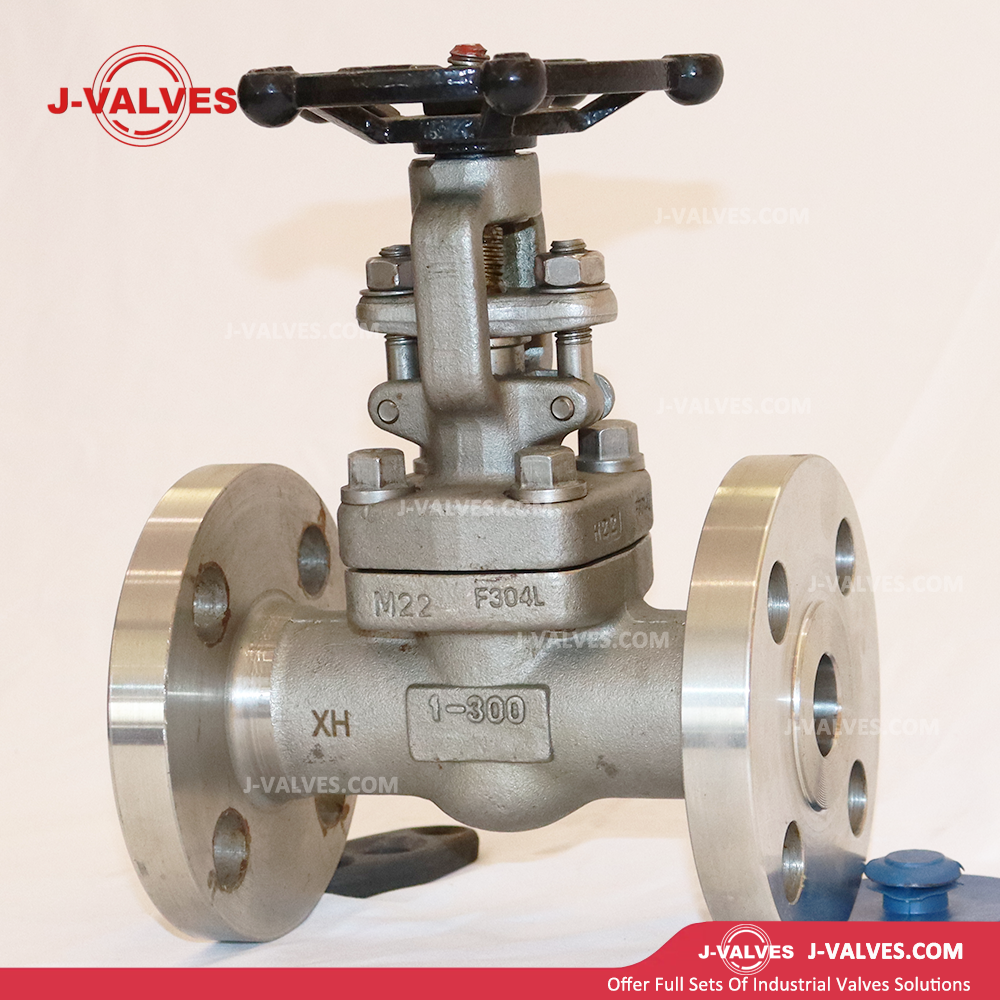

Porduct Name | J-Valves China ANSI Class 150/300 Forged Steel Flange End Gate Valve |
Material | 304/316/B62/2207/2507/316ti/C95800, etc. |
Size | 2"-24"(DN100-DN600) |
Port | Full Port |
Working Pressure | 150LB/300LB |
Connection Ends | RF |
Working Temp. | -20ºC~200ºC |
Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
Operated | Manual, Worm Gear, Pne umatic actuator, Electric Actuator |
Features | Investment casting,Blow-out proof stem,Anti-static device(option) |
Design standard | API6D/API608/API607 |
Inspection&Testing | According to API598 |
Brand | J-VALVES |
Advantages
Exceptional Durability
The valve is crafted from high - quality forged steel. Forged steel has excellent mechanical properties, which endows the valve with high strength and resistance to wear and tear. This makes it suitable for long - term use in various industrial environments, significantly reducing the frequency of valve replacements and maintenance costs.
Superior Sealing Performance
Equipped with advanced sealing mechanisms, the J - Valves gate valve can achieve a tight seal. Whether in high - pressure or low - pressure applications, it effectively prevents leakage of fluids or gases, ensuring the safe and efficient operation of the pipeline system. The reliable sealing also helps in maintaining the purity of the conveyed media, which is crucial in industries such as food and beverage, pharmaceuticals, and petrochemicals.
High - Temperature and High - Pressure Resistance
Designed to meet ANSI Class 150/300 standards, this gate valve can withstand relatively high pressures and temperatures. In industrial processes where high - temperature steam or high - pressure liquids are involved, such as power generation plants, refineries, and chemical plants, it can operate stably without deformation or failure, providing stable control over the flow of media.
Precise Flow Control
The gate valve's design allows for smooth and precise control of the flow rate. By gradually opening or closing the gate, operators can accurately adjust the amount of fluid or gas passing through the valve, meeting the specific requirements of different processes. This is beneficial in applications where a consistent and adjustable flow is necessary, like in water treatment plants and industrial cooling systems.
Easy Installation and Maintenance
With its flange - end design, the J - Valves gate valve is easy to install onto pipeline systems. The flange connections ensure a secure and leak - free joint. In terms of maintenance, the simple structure of the gate valve makes it accessible for inspection, repair, and replacement of parts. This reduces downtime during maintenance and improves the overall efficiency of the pipeline operation.
applications.
Oil and Gas Industry
In oil refineries, these gate valves are used to control the flow of crude oil, refined products, and various intermediate fluids. They are installed in pipelines that transport oil from storage tanks to processing units and also in pipelines for the distribution of finished products. In gas production and transportation, the valves regulate the flow of natural gas in gathering lines, transmission pipelines, and distribution networks.
Power Generation
In power plants, whether they are coal - fired, gas - fired, or nuclear power plants, the J - Valves gate valves are crucial components. They control the flow of steam in the steam turbine systems, which is essential for generating electricity. They are also used in the water - supply and cooling systems of power plants to manage the flow of water for boiler feedwater and cooling purposes.
Chemical Industry
Chemical plants deal with a wide variety of corrosive and non - corrosive fluids. The forged steel construction of the gate valve makes it suitable for handling these different media. It is used to control the flow of raw materials, intermediate products, and finished chemical products in pipelines within the plant. For example, in the production of fertilizers, petrochemicals, and specialty chemicals, these valves play a vital role in ensuring the proper flow and processing of chemicals.
Water and Wastewater Treatment
In water treatment plants, the gate valves are used to control the flow of raw water from sources such as rivers, lakes, or wells. They are also used in the distribution of treated water to the municipal water supply network. In wastewater treatment plants, the valves regulate the flow of sewage and effluent at different stages of the treatment process, from the initial intake to the final discharge after treatment.
Food and Beverage Industry
Due to its excellent sealing performance and the use of materials that meet hygiene standards, the J - Valves gate valve is used in the food and beverage industry. It controls the flow of ingredients such as water, milk, juice, and syrup in production lines. The valve's ability to prevent leakage and maintain the purity of the conveyed media is essential to ensure the quality and safety of food and beverage products.
Porduct Name | J-Valves China ANSI Class 150/300 Forged Steel Flange End Gate Valve |
Material | 304/316/B62/2207/2507/316ti/C95800, etc. |
Size | 2"-24"(DN100-DN600) |
Port | Full Port |
Working Pressure | 150LB/300LB |
Connection Ends | RF |
Working Temp. | -20ºC~200ºC |
Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
Operated | Manual, Worm Gear, Pne umatic actuator, Electric Actuator |
Features | Investment casting,Blow-out proof stem,Anti-static device(option) |
Design standard | API6D/API608/API607 |
Inspection&Testing | According to API598 |
Brand | J-VALVES |
Advantages
Exceptional Durability
The valve is crafted from high - quality forged steel. Forged steel has excellent mechanical properties, which endows the valve with high strength and resistance to wear and tear. This makes it suitable for long - term use in various industrial environments, significantly reducing the frequency of valve replacements and maintenance costs.
Superior Sealing Performance
Equipped with advanced sealing mechanisms, the J - Valves gate valve can achieve a tight seal. Whether in high - pressure or low - pressure applications, it effectively prevents leakage of fluids or gases, ensuring the safe and efficient operation of the pipeline system. The reliable sealing also helps in maintaining the purity of the conveyed media, which is crucial in industries such as food and beverage, pharmaceuticals, and petrochemicals.
High - Temperature and High - Pressure Resistance
Designed to meet ANSI Class 150/300 standards, this gate valve can withstand relatively high pressures and temperatures. In industrial processes where high - temperature steam or high - pressure liquids are involved, such as power generation plants, refineries, and chemical plants, it can operate stably without deformation or failure, providing stable control over the flow of media.
Precise Flow Control
The gate valve's design allows for smooth and precise control of the flow rate. By gradually opening or closing the gate, operators can accurately adjust the amount of fluid or gas passing through the valve, meeting the specific requirements of different processes. This is beneficial in applications where a consistent and adjustable flow is necessary, like in water treatment plants and industrial cooling systems.
Easy Installation and Maintenance
With its flange - end design, the J - Valves gate valve is easy to install onto pipeline systems. The flange connections ensure a secure and leak - free joint. In terms of maintenance, the simple structure of the gate valve makes it accessible for inspection, repair, and replacement of parts. This reduces downtime during maintenance and improves the overall efficiency of the pipeline operation.
applications.
Oil and Gas Industry
In oil refineries, these gate valves are used to control the flow of crude oil, refined products, and various intermediate fluids. They are installed in pipelines that transport oil from storage tanks to processing units and also in pipelines for the distribution of finished products. In gas production and transportation, the valves regulate the flow of natural gas in gathering lines, transmission pipelines, and distribution networks.
Power Generation
In power plants, whether they are coal - fired, gas - fired, or nuclear power plants, the J - Valves gate valves are crucial components. They control the flow of steam in the steam turbine systems, which is essential for generating electricity. They are also used in the water - supply and cooling systems of power plants to manage the flow of water for boiler feedwater and cooling purposes.
Chemical Industry
Chemical plants deal with a wide variety of corrosive and non - corrosive fluids. The forged steel construction of the gate valve makes it suitable for handling these different media. It is used to control the flow of raw materials, intermediate products, and finished chemical products in pipelines within the plant. For example, in the production of fertilizers, petrochemicals, and specialty chemicals, these valves play a vital role in ensuring the proper flow and processing of chemicals.
Water and Wastewater Treatment
In water treatment plants, the gate valves are used to control the flow of raw water from sources such as rivers, lakes, or wells. They are also used in the distribution of treated water to the municipal water supply network. In wastewater treatment plants, the valves regulate the flow of sewage and effluent at different stages of the treatment process, from the initial intake to the final discharge after treatment.
Food and Beverage Industry
Due to its excellent sealing performance and the use of materials that meet hygiene standards, the J - Valves gate valve is used in the food and beverage industry. It controls the flow of ingredients such as water, milk, juice, and syrup in production lines. The valve's ability to prevent leakage and maintain the purity of the conveyed media is essential to ensure the quality and safety of food and beverage products.
1.Design & Manufacture standard:API600
2.Pressure & Temperature standard:ASME B16.25
3.Face to face dimension standard: ASME B16.10
4.Ends Connection standard:ASME B16.5
5.Test & Inspect standard: API598
Design & Manufacture standard | ASME B16.34 |
Pressure & Temperature standard | ASME B16.34 |
Face to face dimension standard | MFG Standard |
Ends Connection standard | ASME B1.20.1 |
Test & Inspect standard | API 598 |
Testing Pressure(Mpa)
Pressure | 150LB | 300LB | 600LB | 900LB | 1500LB | 2500LB | |
Strength Testing | 3.0 | 7.5 | 15.4 | 23.0 | 37.5 | 63.0 | Mpa |
Seal Testing | 2.2 | 5.5 | 11.2 | 16.9 | 27.5 | 46.2 | |
Air Testing | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
Design & Manufacture standard | ASME B16.34 |
Pressure & Temperature standard | ASME B16.34 |
Face to face dimension standard | MFG Standard |
Ends Connection standard | ASME B1.20.1 |
Test & Inspect standard | API 598 |
Testing Pressure(Mpa)
Pressure | 150LB | 300LB | 600LB | 900LB | 1500LB | 2500LB | |
Strength Testing | 3.0 | 7.5 | 15.4 | 23.0 | 37.5 | 63.0 | Mpa |
Seal Testing | 2.2 | 5.5 | 11.2 | 16.9 | 27.5 | 46.2 | |
Air Testing | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
