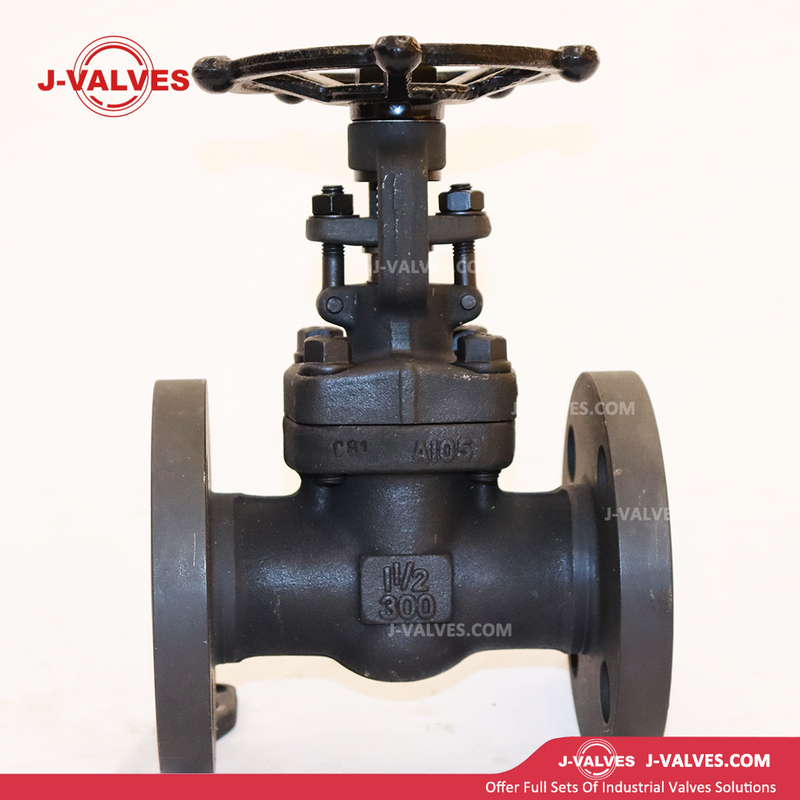

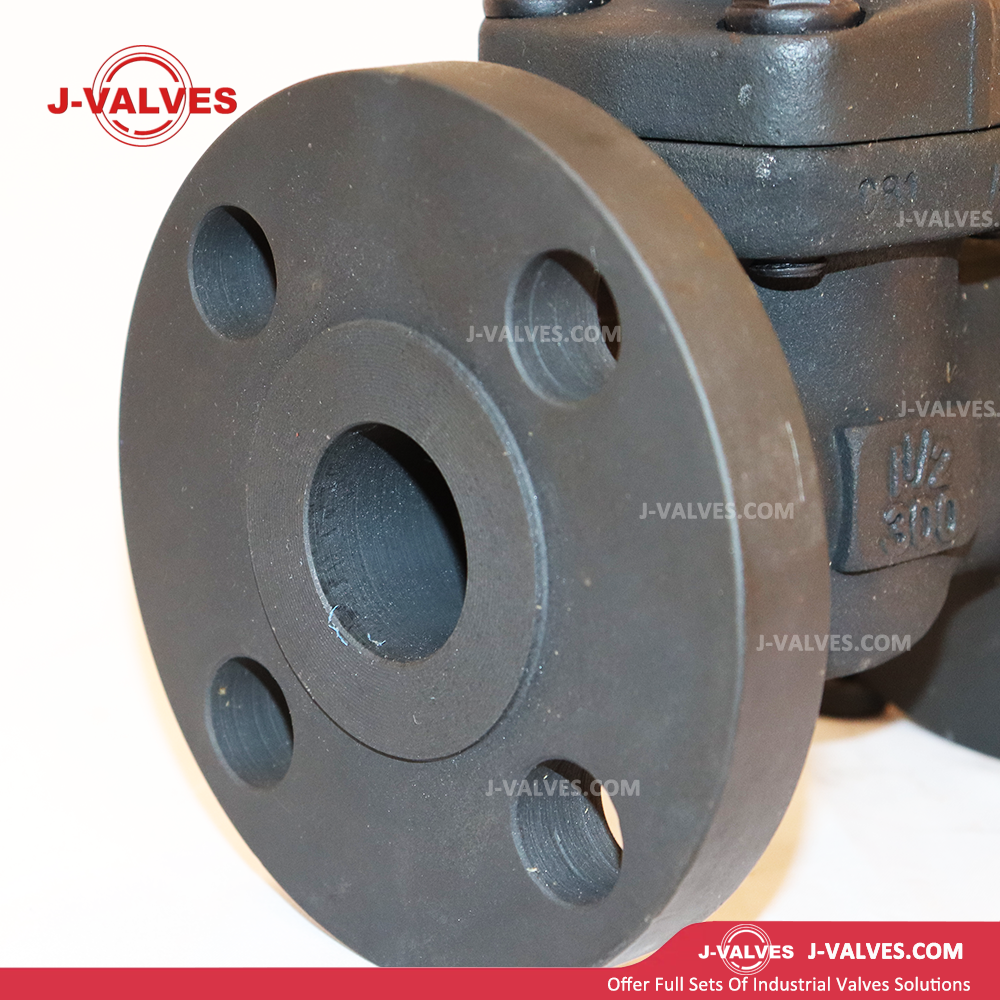

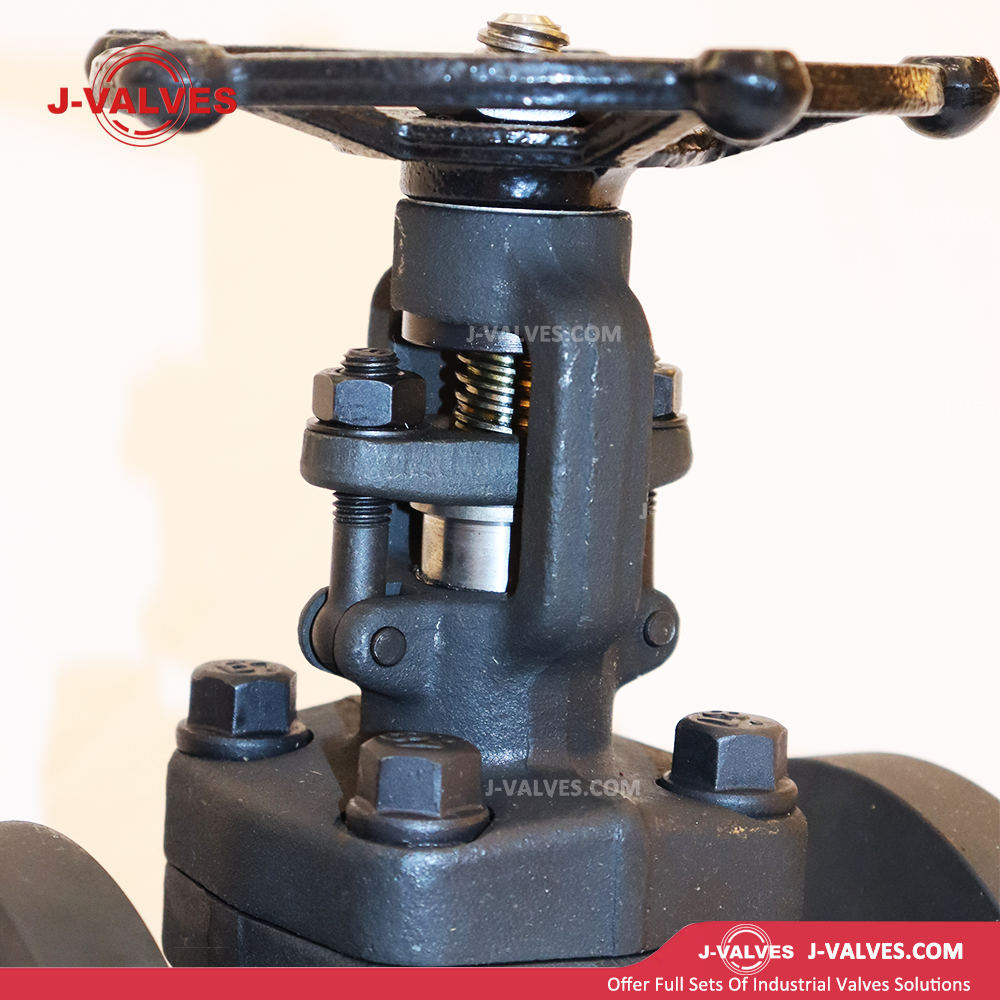

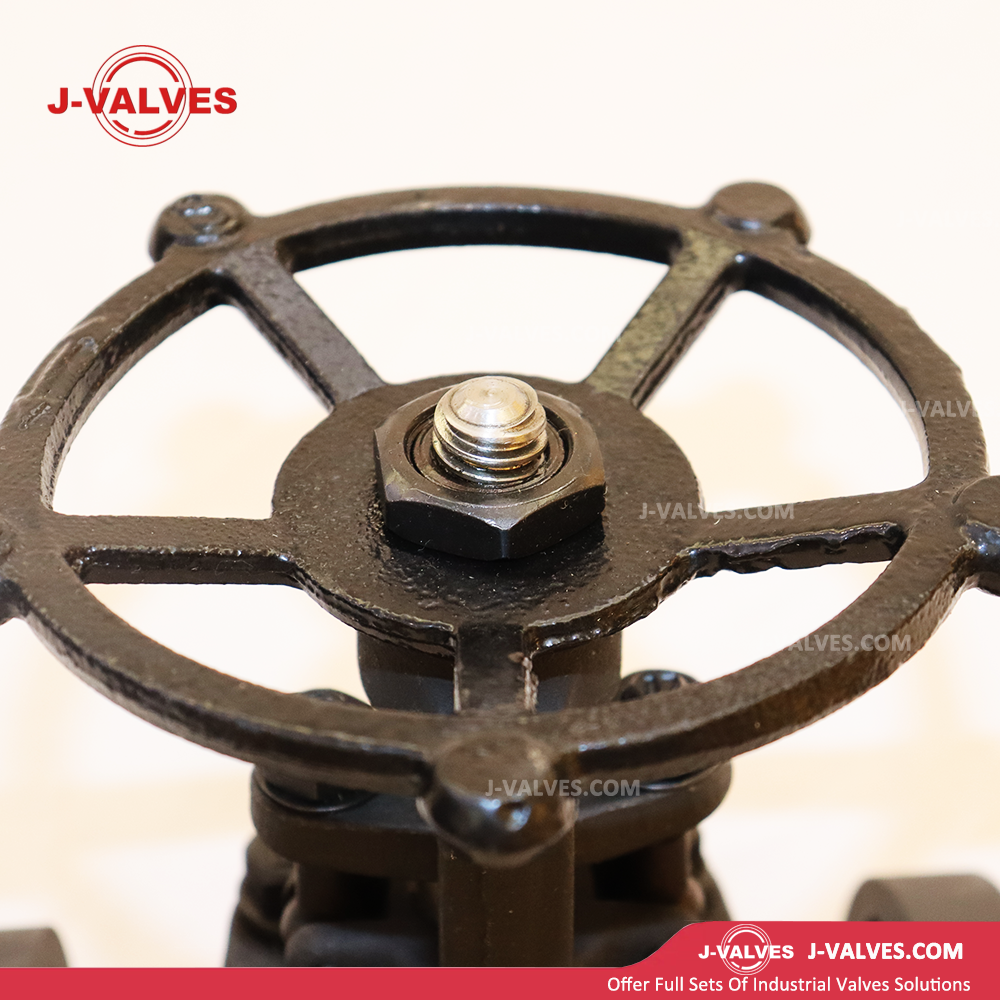

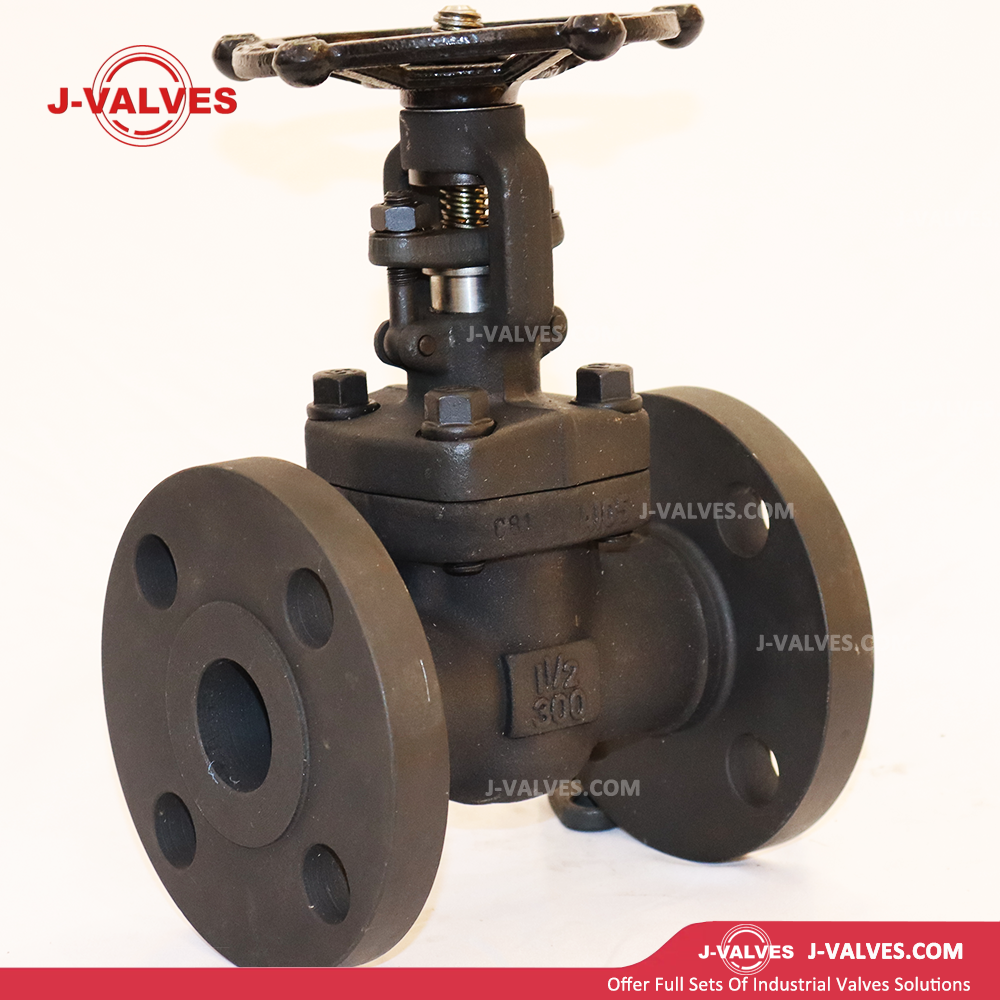

The J-Valves China 300lb Forged Steel Globe Valve is a top - tier industrial valve. Available in materials like A105n, F304, and F316, it features a welded flange and a rising stem.

Designed and manufactured following strict international standards, it ensures reliable performance. The forged steel construction offers high strength and durability. The rising stem design allows for easy operation and clear indication of the valve's open - close status. It is suitable for a wide range of media such as water, steam, oil, and gas in various industrial pipelines, providing excellent flow control and tight sealing.
Availability:
Quantity:
  • J-VALVES-BV

  • J-VALVES

  • 8481804090

J-Valves China 300lb Forged Steel A105n/F304/F316 Welded Flange Rising Stem Globe Valve

Porduct Name

J-Valves China 300lb Forged Steel A105n/F304/F316 Welded Flange Rising Stem Globe Valve

Material 304/316/B62/2207/2507/316ti/C95800, etc.
Size 2"-24"(DN100-DN600)
Port Full Port
Working Pressure 150LB/300LB
Connection Ends RF
Working Temp. -20ºC~200ºC
Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
Operated Manual, Worm Gear, Pneumatic actuator, Electric Actuator
Features Investment casting,Blow-out proof stem,Anti-static device(option)
Design standard API6D/API608/API607
Inspection&Testing According to API598
Brand J-VALVES




Advantages



  1. Superior Material Construction:The J-Valves China 300lb Forged Steel Rising Stem Globe Valve is crafted from high - quality A105N, F304, or F316 materials. A105N, a carbon steel, offers excellent strength and durability, making it suitable for high - pressure applications. F304 and F316 stainless steels provide outstanding corrosion resistance, ensuring long - term performance even in harsh chemical and marine environments.

  2. Precise Flow Control:Equipped with a rising stem design, this globe valve enables operators to have precise control over the flow rate. The stem's visible movement allows for easy monitoring of the valve's position, ensuring accurate regulation of fluid flow, whether it's for throttling, starting, or stopping the flow.

  3. Reliable Sealing Performance:The welded flange connection ensures a tight seal, minimizing the risk of leakage. This is crucial in applications where the containment of fluids is essential, preventing any potential hazards or losses.

  4. High - Pressure Rating:With a 300lb rating, the valve can withstand high - pressure conditions, making it suitable for a wide range of industrial applications where reliable performance under pressure is required.


Applications


  1. Oil and Gas Industry:In oil refineries and gas processing plants, the J-Valves China 300lb Forged Steel Rising Stem Globe Valve can be used to control the flow of crude oil, refined products, and natural gas. Its high - pressure resistance and corrosion - resistant materials make it ideal for handling these substances.

  2. Chemical Industry:For the transportation and processing of various chemicals, this valve is an excellent choice. The corrosion - resistant F304 and F316 materials can withstand the harsh chemical environment, ensuring safe and efficient operation.

  3. Power Generation:In power plants, whether it's coal - fired, gas - fired, or nuclear power plants, the valve can be used to control the flow of steam, water, and other working fluids. Its precise flow control capabilities are essential for maintaining the stable operation of power generation systems.

  4. Marine Applications:On ships and offshore platforms, the valve's corrosion - resistant properties make it suitable for controlling the flow of seawater, fuel, and other fluids. The welded flange connection also ensures a reliable seal in the high - vibration marine environment.

Technical Standards

1.Design & Manufacture standard:API600
2.Pressure & Temperature standard:ASME B16.25
3.Face to face dimension standard: ASME B16.10
4.Ends Connection standard:ASME B16.5
5.Test & Inspect standard: API598


Design & Manufacture standard ASME B16.34
Pressure & Temperature standard ASME B16.34
Face to face dimension standard MFG Standard
Ends Connection standard ASME B1.20.1
Test & Inspect standard API 598


Testing Pressure(Mpa)


Pressure 150LB 300LB 600LB 900LB 1500LB 2500LB
Strength Testing 3.0 7.5 15.4 23.0 37.5 63.0 Mpa
Seal Testing 2.2 5.5 11.2 16.9 27.5 46.2
Air Testing 0.6 0.6 0.6 0.6 0.6 0.6


Advantages
Product display
In the field of industrial valves, high-pressure cast steel gearbox-operated self-sealing gate valves have performed well. The valve body made of high-pressure cast steel is solid and reliable, and can cope with high-pressure working conditions; the gearbox is easy to operate and precise, and the opening and closing can be easily controlled; the self-sealing technology prevents medium leakage and ensures production safety.
