J-VALVES-BV
J-VALVES
8481804090
Product Introduction

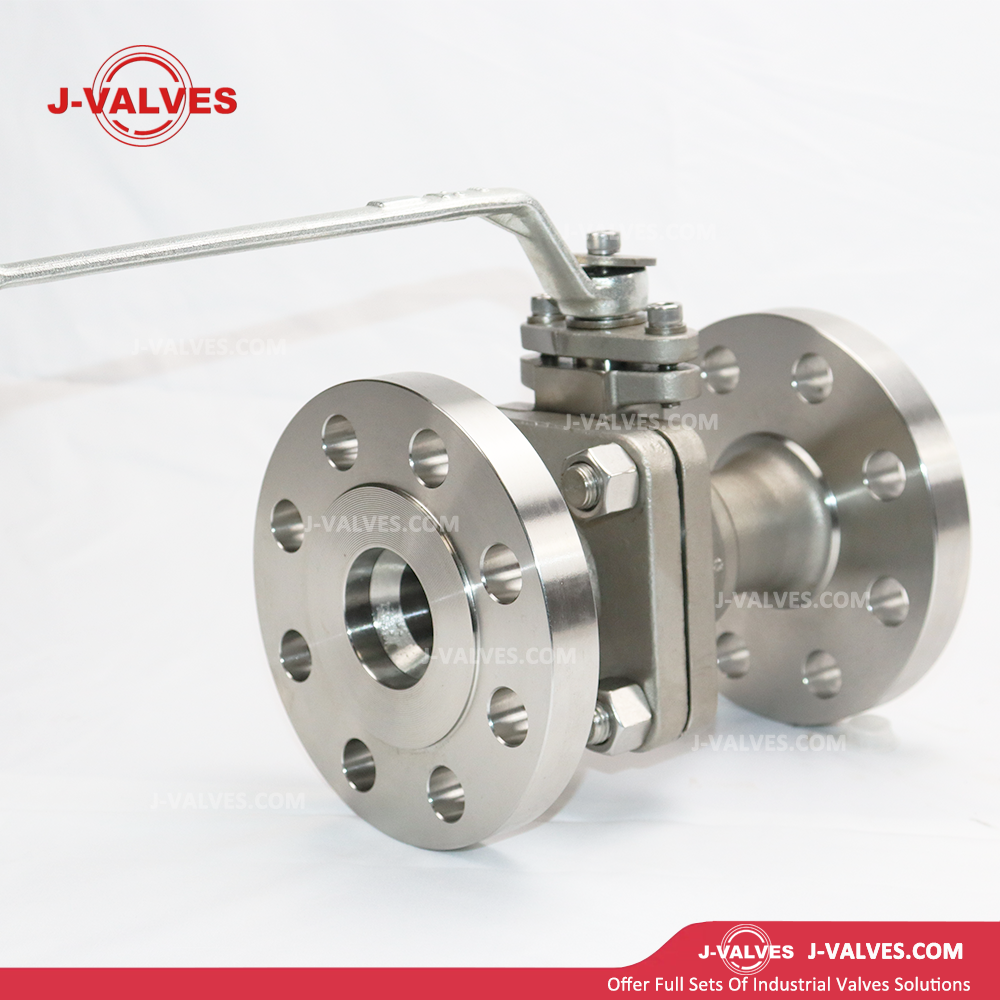

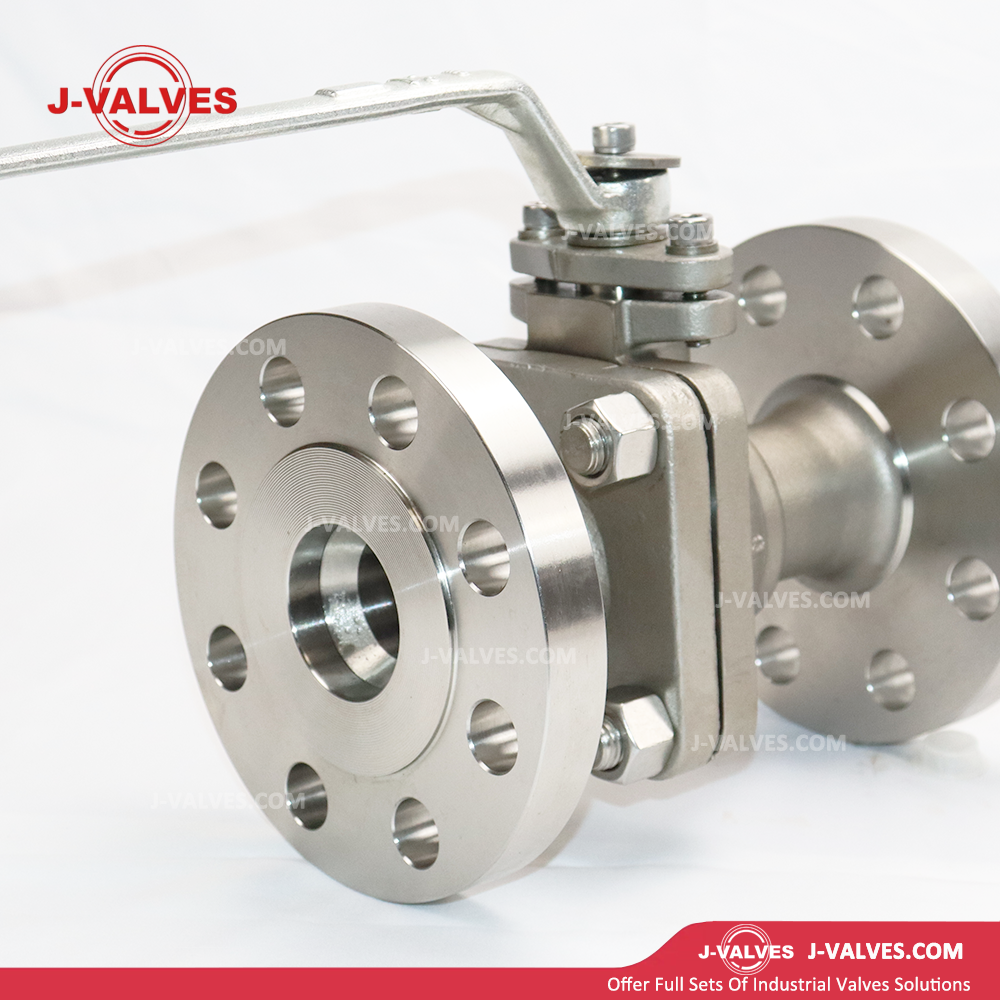

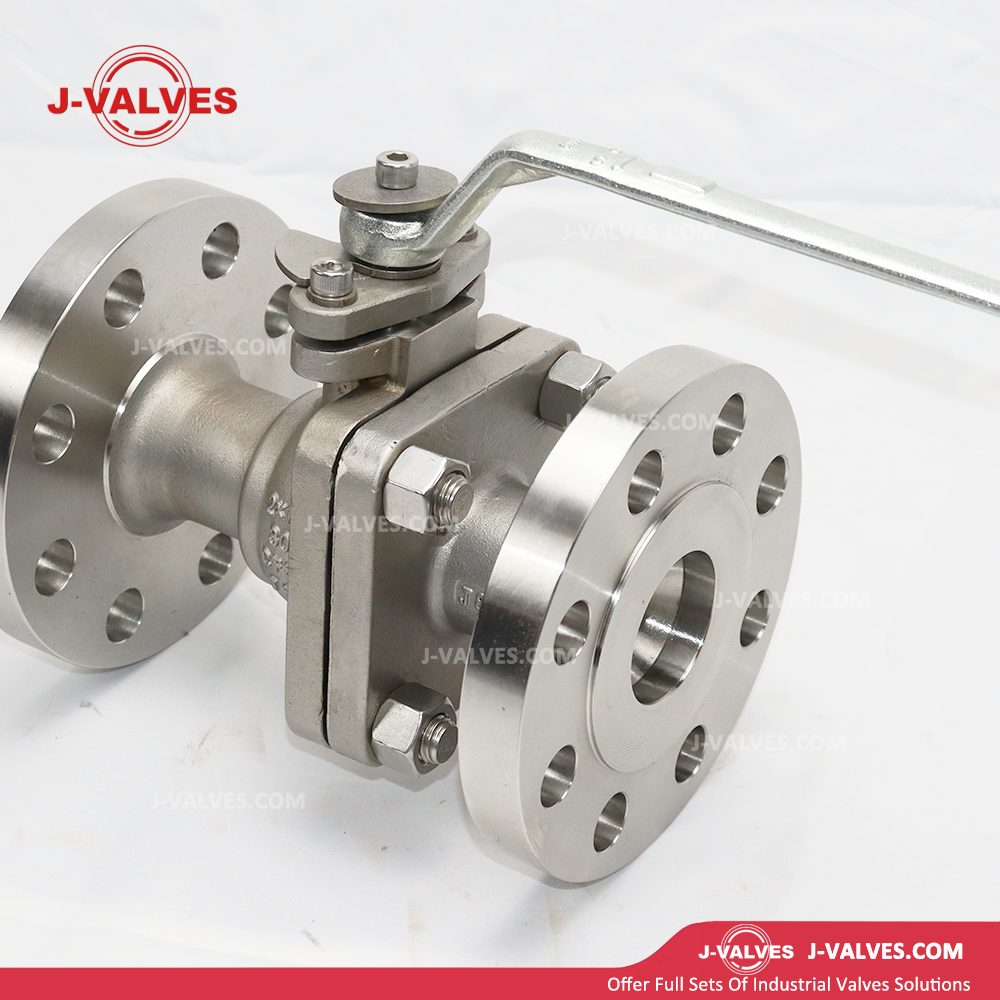

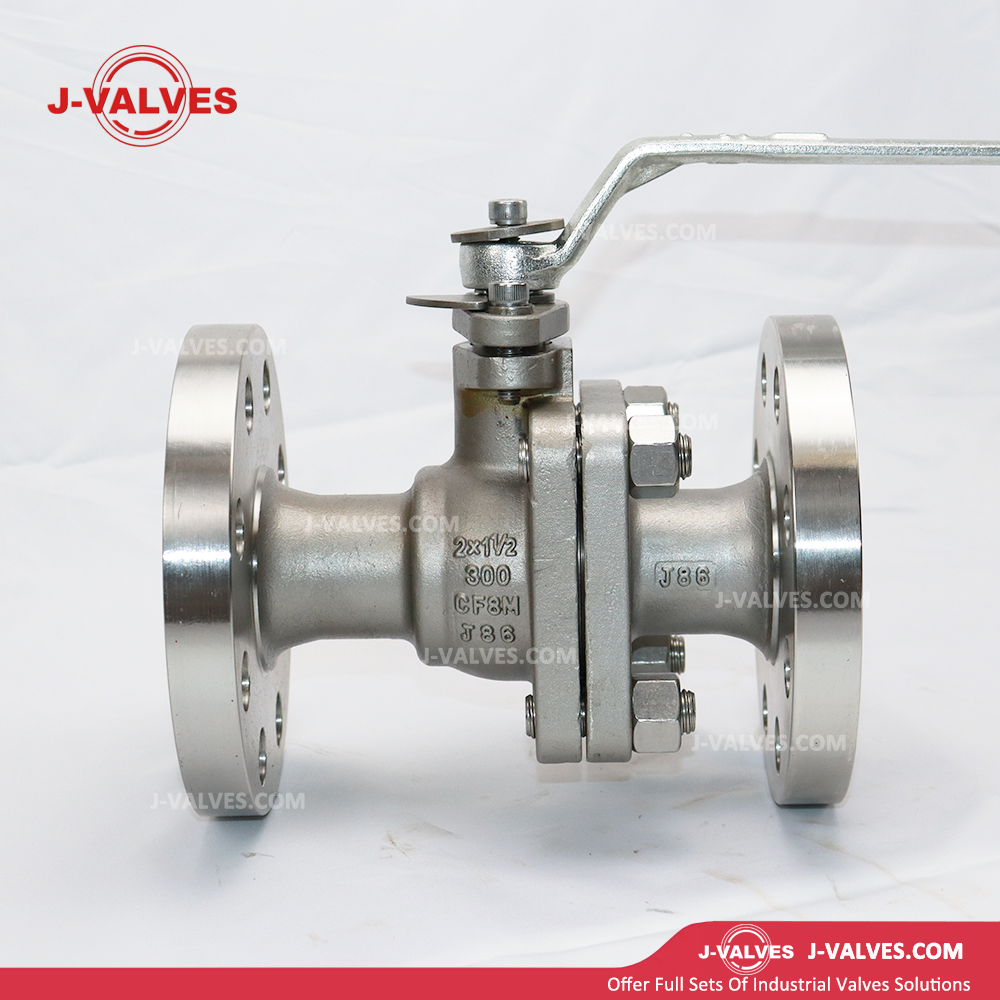

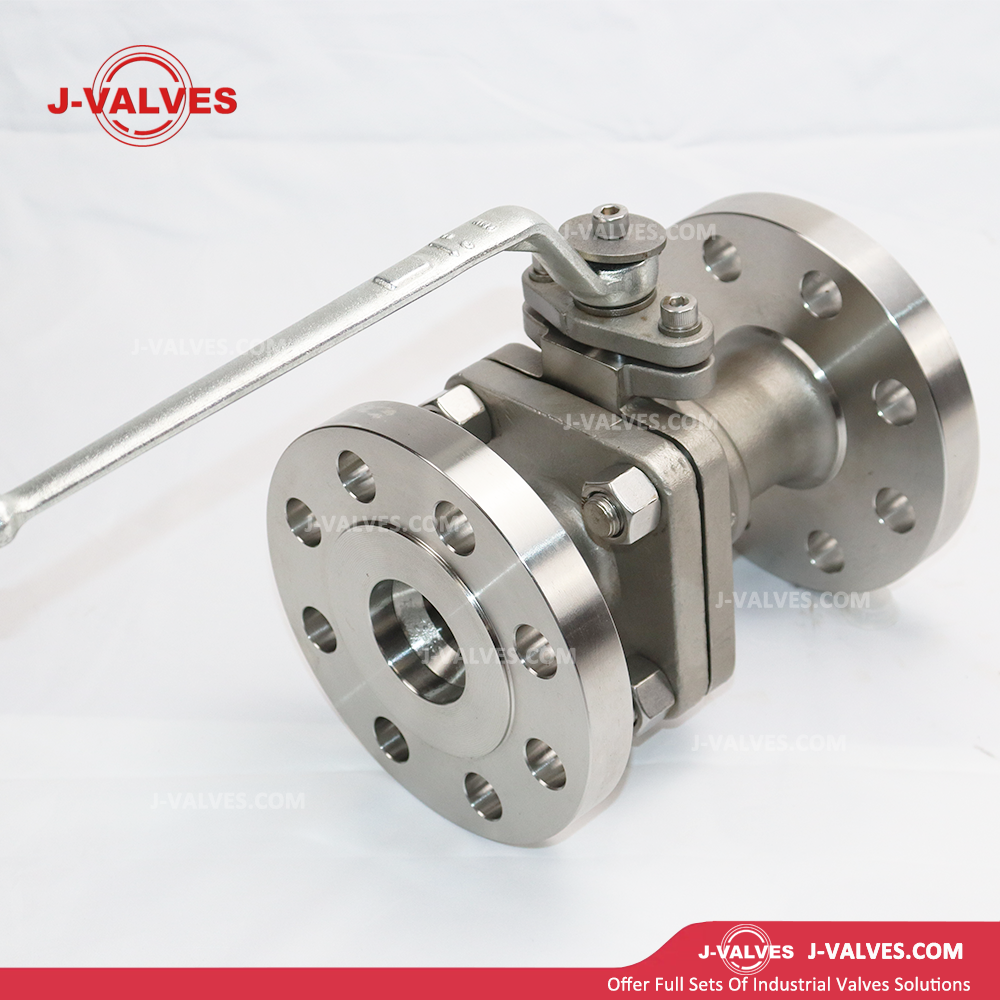

| Porduct Name | J-Valves China 2PC Flange End Stainless Steel CF8/CF8m/CF3/CF3m Reduce Bore Floating Ball Valve |
| Material | 304/316/B62/2207/2507/316ti/C95800, etc. |
| Size | 2"-24"(DN100-DN600) |
| Port | Full Port |
| Working Pressure | 150LB/300LB |
| Connection Ends | RF |
| Working Temp. | -20ºC~200ºC |
| Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| Operated | Manual, Worm Gear, Pneumatic actuator, Electric Actuator |
| Features | Investment casting,Blow-out proof stem,Anti-static device(option) |
| Design standard | API6D/API608/API607 |
| Inspection&Testing | According to API598 |
| Brand | J-VALVES |
Advantages
High-Quality Materials
J-Valves China API/ISO/CE ball valves are crafted from Wcb, 304, and 316 materials. The use of 304 and 316 stainless steel ensures excellent corrosion resistance, making them suitable for a wide range of harsh environments, including those with chemical substances and high humidity. Wcb, on the other hand, provides high strength and durability, ensuring the long - term performance of the valves.
International Standards Compliance
Meeting API, ISO, and CE standards, these ball valves guarantee reliability and safety. API (American Petroleum Institute) compliance indicates that the valves are suitable for use in the oil and gas industry, meeting strict industry - specific requirements for performance and safety. ISO (International Organization for Standardization) standards ensure global compatibility and quality consistency. CE marking shows compliance with European safety, health, and environmental protection regulations, allowing for seamless use in international markets.
Versatile Pressure Ratings
With pressure ratings of 150lb and 300lb, these ball valves can be used in various applications with different pressure requirements. The 150lb rating is suitable for general - purpose applications where the pressure is relatively low, such as in some water supply and low - pressure chemical pipelines. The 300lb rating can handle higher pressures, making it ideal for more demanding industrial processes, like those in the petrochemical and power generation industries.
Flexible Design Options
The availability of floating and fixed - type designs offers versatility. Floating ball valves are simple in structure and suitable for low - to medium - pressure applications. They rely on the pressure of the fluid to seal the ball against the seats, providing efficient sealing. Fixed - type ball valves, on the other hand, are better suited for high - pressure applications. They have a more stable structure as the ball is fixed in place, and the sealing force is applied by external mechanisms, ensuring reliable sealing under high - pressure conditions.
Full Bore Design
The full - bore design of these ball valves minimizes flow resistance. This allows for smooth and unrestricted flow of fluids, reducing energy consumption in the pipeline system. It is especially beneficial for applications where maintaining high flow rates is crucial, such as in large - scale industrial pipelines transporting gases, liquids, or slurries.
Convenient Mounting and Operation
Equipped with an ISO5211 high - mounting pad and lever - operated mechanism, these ball valves are easy to install and operate. The ISO5211 standard mounting pad ensures compatibility with a wide range of actuators, providing flexibility in automation. The lever - operated design allows for quick and easy manual operation, enabling operators to open and close the valve with minimal effort, which is useful for both routine maintenance and emergency shut - off situations.
Applications
Oil and Gas Industry
In oil and gas production, transportation, and refining processes, these ball valves are used for controlling the flow of crude oil, natural gas, and various refined products. Their corrosion - resistant materials (304/316 stainless steel) can withstand the harsh chemical environment of oil and gas, and the high - pressure ratings (150lb/300lb) are suitable for the high - pressure pipelines in this industry. The full - bore design ensures efficient flow of viscous fluids like crude oil, reducing the risk of blockages.
Chemical Industry
Chemical plants use these valves to control the flow of a wide variety of chemicals. The corrosion resistance of 304 and 316 stainless steel is essential as chemicals can be highly corrosive. Whether it's in the production of fertilizers, pharmaceuticals, or petrochemicals, the ball valves' ability to handle different chemical substances and pressures makes them a reliable choice for regulating the flow of reactants and products in chemical pipelines.
Power Generation
In power plants, these ball valves are used in both water and steam systems. For water supply and cooling systems, the corrosion - resistant materials prevent rust and scale formation, ensuring a consistent water flow. In steam systems, the high - pressure - rated valves (300lb) can handle the high - temperature and high - pressure steam, controlling its flow for power generation processes. The full - bore design helps in maintaining the high - velocity steam flow required for efficient turbine operation.
Water Treatment Plants
Water treatment plants use these valves to control the flow of water during different treatment processes, such as filtration, disinfection, and distribution. The corrosion - resistant materials are important as the water may contain various chemicals for treatment. The floating - type design can be used for low - pressure water pipelines in the plant, while the fixed - type design may be required for high - pressure sections, such as in the pumping stations. The lever - operated mechanism allows for easy operation during routine maintenance and system adjustments.
Marine Industry
On ships and offshore platforms, these ball valves are used in various systems, including seawater intake and discharge systems, fuel lines, and hydraulic systems. The corrosion - resistant stainless steel materials are crucial in the salt - water environment of the marine industry. The valves' ability to handle different pressure ratings and their full - bore design make them suitable for ensuring the proper flow of seawater for cooling and other purposes, as well as for controlling the flow of fuel and hydraulic fluids.
