Integral forged Pressure Seal Forged Steel A105 Globe Valve

Share to:
  • Forged Steel Globe Valve
  • J-VALVES

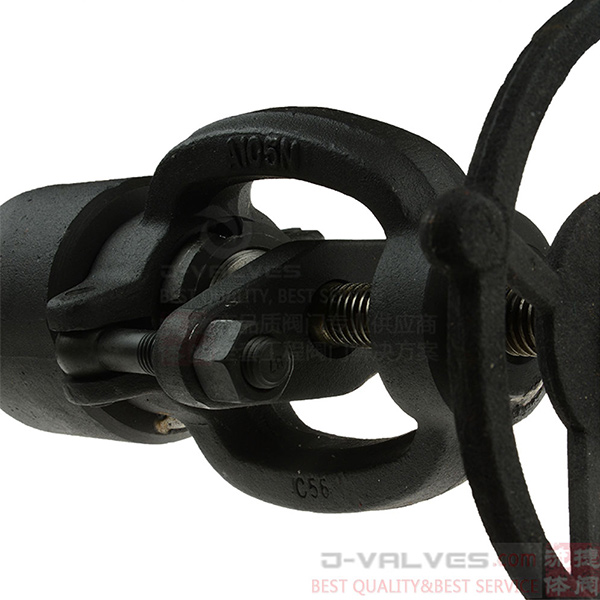

Integral forged Pressure Seal Forged Steel A105 Globe Valve


● Valve alias:A105 Material Forged Welding Flange Globe Valve

Quick Detail:

● Size: 1/2''-2''(DN15~DN50)

● Pressure Rating: 150LB-2500LB/PN16~PN160/10K~60K)

● Material:A105,LF2, LF3, F11, F22,F5,304(L),316(L), F347;F321; F51,Monel,Alloy.

● Suitable Temperature: -29ºC~425ºC.

● Suitable Medium: Water, Steam, Oil and natural gas etc.

Description:

● Design and manufacture conformto:API602,BS5352,ANSI B16.34

● Socket welded dimension conform to ANSI B16.11,JB/T1751

● Screw ends dimension conform to ANSI B1.20.1,JB/T7306

● Butt-welded conform to ANSI B16.25,JB/T12224

● Flange ends conform to ANSI B16.5,JB79

● Test and inspection conform to:API598,GB/T13927,JB/T9092

● With sealing design, it is more safe and convenient to replace packing( Seat seal material could be decided by customer's request or according to valve's medium & temp. condition).

● Operation: Hand wheel, Gear,Pneumatic actuator & Electric Actuator.

Applications:

Industrial forged steel 0.5inch flange end globe valve is used industrial and Oil/Gas piping applications requiring the higher flow capacity and lower pressure drop of full port internal flow-ways, and those applications where ease of repairability is desired.

Competitive Advantage:

● On Samples Buyer bear the air fee, but this fee will be reduced from order directly

● On After Sales Free replacement if there is any quality problem

● On Delivery Never delay delivery time

● On Materials Ensure material pure

● Ensure material pure


412


NO

Part name

A105/F6a

A105/F6aHFS

LF2/304

F11/F6aHF

F304(L)/304(L)

F316(L)/316(L)

F91/410HF

1

Body

A105

A105+HF

LF2

F11+HF

F304(L)

F316(L)

F91+HF

3

Disc

410

410

304

410

304(L)

316(L)

410+HF

4

Stem

410

410

304

410

304(L)

F316(L)

410

6

Bonnet

A105

A105

LF2

F11

F304(L)

316(L)

F91

8

Pin

410

410

410

410

304

304

410

9

Gland

410

410

304

410

304

316

410

10

Gland eyebolt

B7

B7

L7

B16

B8(M)

B8(M)

B8

11

Gland flange

A105

A105

LF2

F11

F304

F304

F91

12

Hex nut

2H

2H

2H

2H

8(M)

8(M)

8

13

Stem nut

410

410

410

410

410

410

410

14

Locking nut

35

35

35

35

35

35

35

15

Nameplate

AL

AL

AL

AL

AL

AL

AL

16

Handwheel

A197

A197

A197

A197

A197

A197

A197

18

packing

Graphite

Graphite

Graphite

Graphite

Graphite

Graphite

Graphite

21

Stem pad

420

420

420

420

316SH

316SH

420

22

Disc nut

410

410

410

410

304(L)

316(L)

410

23

Seal gasket

420

420

304

304

304(L)

316(L)

316(L)

24

P.S.ring

304

304

304

304

304

316

304

25

P.S. seat

420

420

304

304

304(L)

316(L)

F91

26

Nut pad

410

410

410

410

410

410

410

27

Draw-in stud

Gast steel

Gast steel

Gast steel

Gast steel

Stainless   steel

Stainless   steel

Gast steel
