Integral Forged A105N 600LB RTJ Flange Gate Valve

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Indutrial Integral Forged A105N 600LB RTJ Flange Gate Valve,Mainly serve the fields of chemical industry, petroleum, natural gas, power station, metallurgy, water conservancy engineering, pharmaceutical and other fields
Size:
Availability:
Quantity:
  • Forged Steel Gate Valve

  • J-VALVES

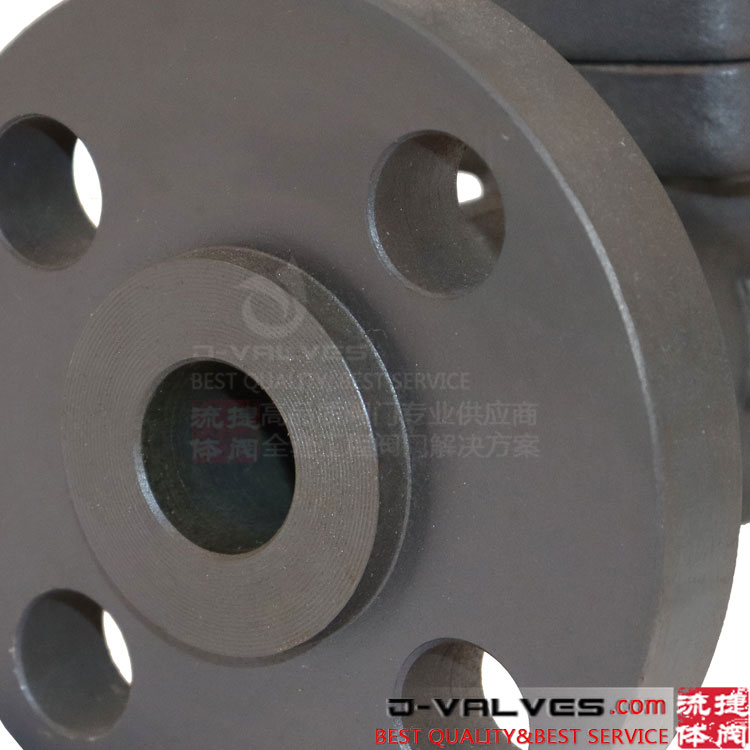

Integral Forged A105N 600LB RTJ Flange Gate Valve


● Valve alias: Integral Forged A105N 600LB RTJ Flange Gate Valve

Quick Detail:

●Size: 1/2''-2''(DN15~DN50)

● Pressure Rating: 150LB-2500LB/PN16~PN160/10K~60K)

●Material:A105,LF2, LF3, F11, F22,F5,304(L),316(L), F347;F321; F51,Monel,Alloy.

●Suitable Temperature: -29ºC~425ºC.

●Suitable Medium: Water, Steam, Oil and natural gas etc.

Description:

●Design and manufacture conformto:API602,BS5352,ANSI B16.34

●Socket welded dimension conform to ANSI B16.11,JB/T1751

● Screw ends dimension conform to ANSI B1.20.1,JB/T7306

●Butt-welded conform to ANSI B16.25,JB/T12224

●Flange ends conform to ANSI B16.5,JB79

●Test and inspection conform to:API598,GB/T13927,JB/T9092

● With sealing design, it is more safe and convenient to replace packing( Seat seal material could be decided by customer's request or according to valve's medium & temp. condition).

●Operation: Hand wheel, Gear,Pneumatic actuator & Electric Actuator.

Applications:

Integral forged A105N 600LB RTJ flange gate valve is used industrial and Oil/Gas piping applications requiring the higher flow capacity and lower pressure drop of full port internal flow-ways, and those applications where ease of repairability is desired.

Competitive Advantage:

● On Samples Buyer bear the air fee, but this fee will be reduced from order directly

● On After Sales Free replacement if there is any quality problem

● On Delivery Never delay delivery time

●On Materials Ensure material pure

● Ensure material pure


NPS

L

H

W

d

D

D1

D2

P

E

F

b

n-Ød

1/2"

165

165

95

15

95

66.7

51.0

34.14

5.54

7.14

14.3

4-Ø16

3/4″

190

190

100

20

115

82.6

63.5

42.88

6.35

8.74

15.9

4-Ø19

1″

216

216

120

25

125

88.9

70.0

50.8

6.35

8.74

17.5

4-Ø19

11/4"

229

229

140

32

135

98.4

79.0

60.33

6.35

8.74

20.7

4-Ø19

11/2″

241

241

250

40

155

114.3

90.5

68.27

6.35

8.74

22.3

4-Ø22

2″

292

292

250

49

165

127

108

82.55

7.92

11.91

25.4

8-Ø19
