Industrial PN25 DIN Standard A105 Flange Globe Valve

Share to:
The product customers produce according to the different needs of customers. The materials that can be produced include: A105;F22;F304;F304L;F316;F316L;F51;F11;LF2 and other materials, the pressure is 150LB~2500LB.
Size:
Availability:
Quantity:
  • Forged Steel Globe Valve
  • J-VALVES

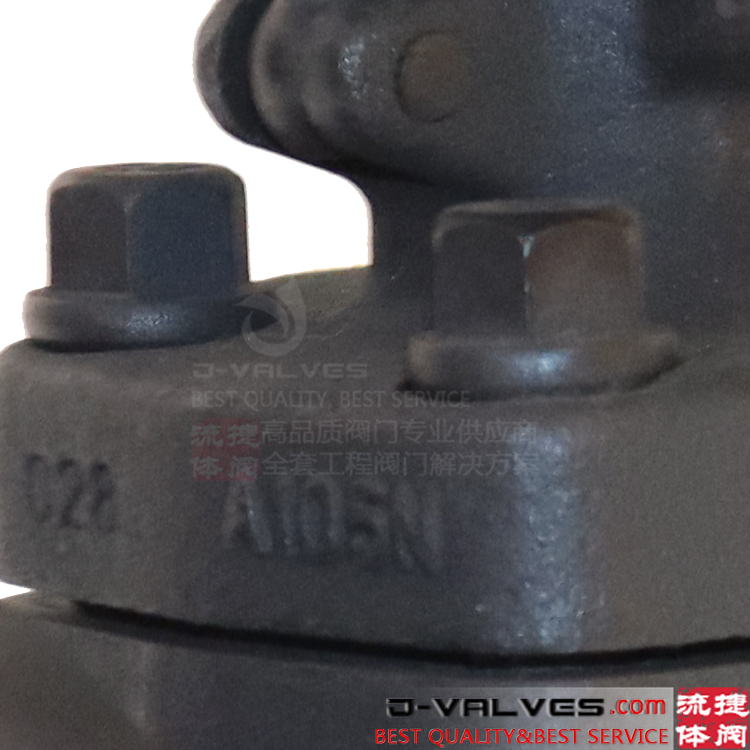

Industrial PN25 DIN Standard A105 Flange Globe Valve


● Valve alias: Industrial PN25 DIN Standard A105 Flange Globe Valve

Quick Detail:

● Size: 1/2''-2''(DN15~DN50)

● Pressure Rating: 150LB-2500LB/PN16~PN160/10K~60K)

● Material:A105,LF2, LF3, F11, F22,F5,304(L),316(L), F347;F321; F51,Monel,Alloy.

● Suitable Temperature: -29ºC~425ºC.

● Suitable Medium: Water, Steam, Oil and natural gas etc.

Description:

● Design and manufacture conformto:API602,BS5352,ANSI B16.34

● Socket welded dimension conform to ANSI B16.11,JB/T1751

● Screw ends dimension conform to ANSI B1.20.1,JB/T7306

● Butt-welded conform to ANSI B16.25,JB/T12224

● Flange ends conform to ANSI B16.5,JB79

● Test and inspection conform to:API598,GB/T13927,JB/T9092

● With sealing design, it is more safe and convenient to replace packing( Seat seal material could be decided by customer's request or according to valve's medium & temp. condition).

● Operation: Hand wheel, Gear,Pneumatic actuator & Electric Actuator.

Applications:

Industrial forged steel 0.5inch flange end globe valve is used industrial and Oil/Gas piping applications requiring the higher flow capacity and lower pressure drop of full port internal flow-ways, and those applications where ease of repairability is desired.

Competitive Advantage:

● On Samples Buyer bear the air fee, but this fee will be reduced from order directly

● On After Sales Free replacement if there is any quality problem

● On Delivery Never delay delivery time

● On Materials Ensure material pure

● Ensure material pure


Pre

in

DN

d1

L

A

C

G

T

f

Nx(p

H

W

150LB

1/2

15

11

108

89

60.5

35.1

11.2

1.6

4x16

180

100

3/4

20

13

117.3

98.6

69.9

42.9

12.7

4x16

182

100

1

25

17

127

108

79.2

50.8

14.2

4x16

213

125

1-1/4

32

22

139.7

117.3

88.9

63.5

15.7

4x16

226

160

1-1/2

40

28

165.1

127

98.6

73.2

17.5

4x16

252

160

2

50

33

203.2

152.4

120.7

91.9

19.1

8x19

287

180
