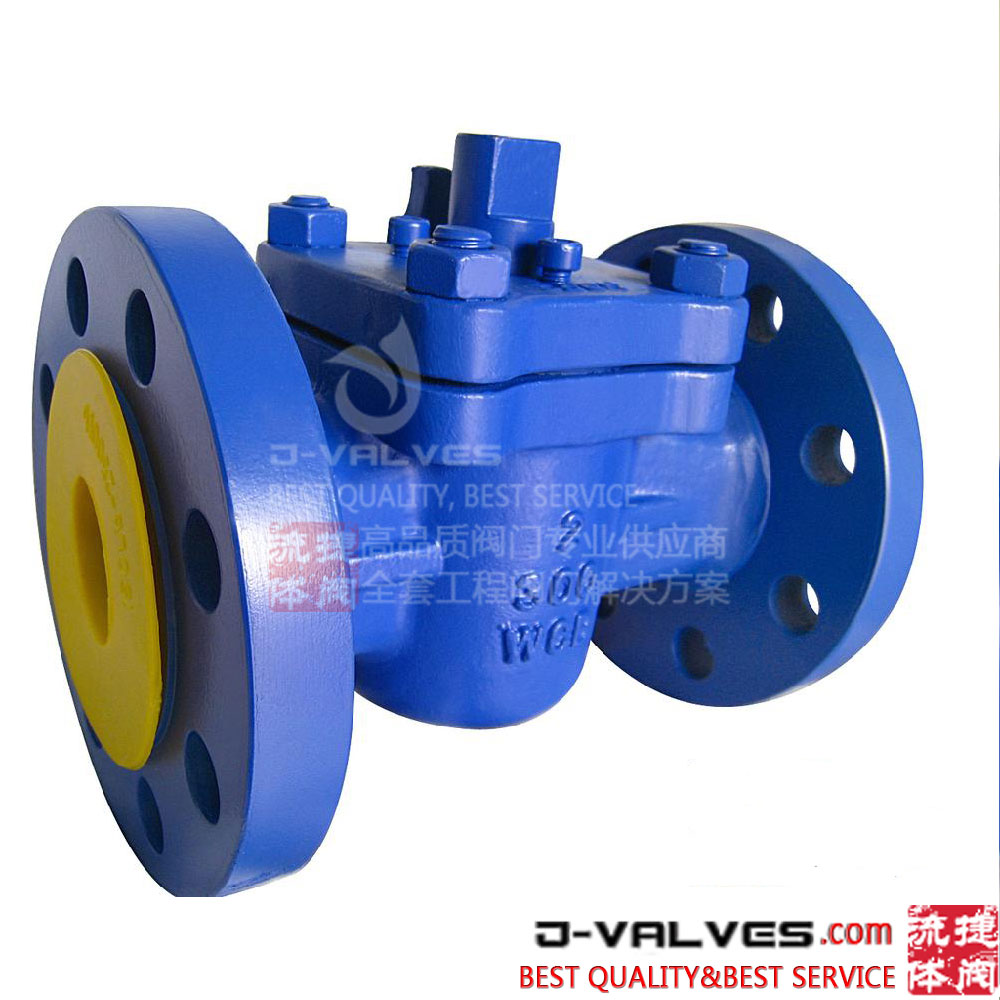

High Pressure RPTFE Sleeve Plug Valve
1. High Pressure RPTFE Sleeve Plug Valve Standard compliance:
1)Design and manufacture: API599 ,JIS B2074 2084
2)Test and inspection: API598
3)Face to face dimensions: ANSI B16.10, JIS B2002
4)Flanged end: ANSI B16.5,JIS B2212 2214
5)Butt-welding end: ANSI B16.25
6)Socket weld end: ANSI B16.11
7)Screwed end: ANSI B1.20.1
2.High Pressure RPTFE Sleeve Plug Valve Specifications:
1)Size: 1/2" to 12"
2)Class: 150LB/300LB/600LB/900LB,10K/20K
3)Type: Lubricated taper plug valve, inverted pressure balance lubricated plug valve(venturi pattern, regular pattern), sleeve type soft sealing plug valve
4)Material: WCB, WCC, WC6, WC9, C5, C12, CF8, CF8M, CF3, CF3M, CN7M, LCB, LCC, ALLOY 20, CAST IRON etc.
5)Operation: Lever, gear, pneumatic and electric actuator
3.High Pressure RPTFE Sleeve Plug Valve Main parts and materials list:
| Serial number | Part Name | Grey cast iron | Cast Steel | stainless steel |
| Z | C | P | ||
| 1 | Valve body, bonnet | HT250 | WCB | CF8 |
| 2 | Valve seat, ferrule | PTFE(F4) | ||
| 3 | plug | O22Cr25Ni7Mo4N-Mo5N CF8 CF3 | ||
| 4 | Adjustment gasket | RPTFE | ||
| 5 | O-ring | FPM | ||
| NPS (inch) | DN (mm) | L | D | D1 | D2 | f | b | Z-Фd | W(kg) |
| Class 150 Lb | |||||||||
| 1/2" | 15 | 108 | 90 | 60.3 | 35 | 3 | 16.7 | 4-Ф15.9 | 2 |
| 3/4" | 20 | 117 | 100 | 69.9 | 43 | 3 | 13.2 | 4-Ф15.9 | 3 |
| 1" | 25 | 127 | 110 | 79.5 | 51 | 3.5 | 14.7 | 4-Ф15.9 | 4.5 |
| 11/4" | 32 | 140 | 115 | 89 | 64 | 3.5 | 16.3 | 4-Ф15.9 | 5.2 |
| 11/2" | 40 | 165 | 125 | 98.5 | 73 | 3.5 | 17.5 | 4-Ф15.9 | 7.5 |
| 2" | 50 | 178 | 150 | 120.5 | 92 | 4 | 19.5 | 4-Ф19 | 11 |
| 21/2" | 65 | 190 | 180 | 139.5 | 105 | 4 | 24.3 | 4-Ф19 | 12.5 |
| 3" | 80 | 203 | 190 | 152.5 | 127 | 4 | 24.3 | 4-Ф19 | 18 |
| 4" | 100 | 229 | 230 | 190.5 | 157 | 4.5 | 24.3 | 8-Ф19 | 23 |
| 5" | 125 | 254 | 255 | 215.9 | 186 | 4.5 | 24.3 | 8-Ф22.2 | 32 |
| 6" | 150 | 267 | 280 | 241.5 | 216 | 4.5 | 25.9 | 8-Ф22.2 | 52 |
| 8" | 200 | 292 | 345 | 298.5 | 270 | 5 | 29 | 8-Ф22.2 | 115 |
| 10" | 250 | 330 | 405 | 362 | 324 | 5 | 30.6 | 8-Ф25.4 | 195 |
| NPS (inch) | DN (mm) | L | D | D1 | D2 | f | b | Z-Фd | W(kg) |
| Class 300Lb | |||||||||
| 1/2" | 15 | 140 | 95 | 66.5 | 35 | 3 | 14.7 | 4-Ф15.9 | 2.5 |
| 3/4" | 20 | 152 | 115 | 82.5 | 43 | 3 | 16.3 | 4-Ф15.9 | 4 |
| 1" | 25 | 165 | 125 | 89 | 51 | 3.5 | 17.9 | 4-Ф15.9 | 5 |
| 11/4" | 32 | 178 | 135 | 98.5 | 64 | 3.5 | 19.5 | 4-Ф15.9 | 6 |
| 11/2" | 40 | 190 | 155 | 114.5 | 73 | 3.5 | 21.1 | 4-Ф15.9 | 8.5 |
| 2" | 50 | 216 | 165 | 127 | 92 | 4 | 22.7 | 4-Ф19 | 13 |
| 21/2" | 65 | 241 | 190 | 149 | 105 | 4 | 25.9 | 4-Ф19 | 15 |
| 3" | 80 | 283 | 210 | 168.5 | 127 | 4 | 29 | 4-Ф19 | 24 |
| 4" | 100 | 305 | 255 | 200 | 157 | 4.5 | 32.2 | 8-Ф19 | 27 |
| 5" | 125 | 381 | 280 | 235 | 186 | 4.5 | 35.4 | 8-Ф22.2 | 40 |
| 6" | 150 | 403 | 320 | 270 | 216 | 4.5 | 37 | 8-Ф22.2 | 65 |
| 8" | 200 | 419 | 380 | 330 | 270 | 5 | 41.7 | 8-Ф22.2 | 145 |
| 10" | 250 | 457 | 445 | 387.5 | 324 | 5 | 48.1 | 8-Ф25.4 | 255 |
High Pressure RPTFE Sleeve Plug Valve can be operated by pneumatic actuator,electric actuator,intelligent control head and manual operation.There are a variety of standards provided to customers,such as,DIN,API,ANSI,and so on
Tips:
We also manufacture other type valves, as butterfly valve, check valve, globe valve, Y strainer, sanitary butterfly valve, sanitary ball and so on.
