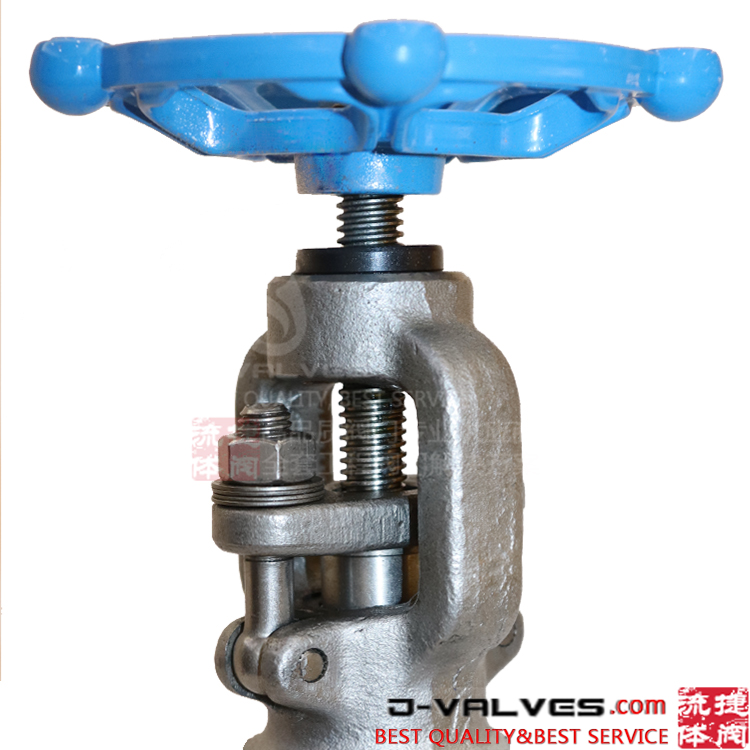

Forged Stainless Steel F304L Extended Stem RF Globe Valve

Share to:
Qualified F304L Forged Stainless Steel Extended Stem RF Flanged Globe Valve solutions of China supplier for international and nearby trade business enterprise. Getting the very best items of our factory, our F304L Forged Stainless Steel Extended Stem RF Flanged Globe Valve products series have been tested and won us specialist authority certifications. For much more parameters and solution list information, please click the button to obtain additional information.
Size:
Availability:
Quantity:
  • Forged Steel Globe Valve
  • J-VALVES

Forged Stainless Steel F304L Extended Stem RF Globe Valve


● Valve alias:Forged Stainless Steel F304L Extended Stem RF Globe Valve

Quick Detail:

● Size: 1/2''-2''(DN15~DN50)

● Pressure Rating: 150LB-2500LB/PN16~PN160/10K~60K)

● Material:A105,LF2, LF3, F11, F22,F5,304(L),316(L), F347;F321; F51,Monel,Alloy.

● Suitable Temperature: -29ºC~425ºC.

● Suitable Medium: Water, Steam, Oil and natural gas etc.

Description:

● Design and manufacture conformto:API602,BS5352,ANSI B16.34

● Socket welded dimension conform to ANSI B16.11,JB/T1751

● Screw ends dimension conform to ANSI B1.20.1,JB/T7306

● Butt-welded conform to ANSI B16.25,JB/T12224

● Flange ends conform to ANSI B16.5,JB79

● Test and inspection conform to:API598,GB/T13927,JB/T9092

● With sealing design, it is more safe and convenient to replace packing( Seat seal material could be decided by customer's request or according to valve's medium & temp. condition).

● Operation: Hand wheel, Gear,Pneumatic actuator & Electric Actuator.

Applications:

F304L forged stainless steel extended stem RF flanged globe valve is used industrial and Oil/Gas piping applications requiring the higher flow capacity and lower pressure drop of full port internal flow-ways, and those applications where ease of repairability is desired.

Competitive Advantage:

● On Samples Buyer bear the air fee, but this fee will be reduced from order directly

● On After Sales Free replacement if there is any quality problem

● On Delivery Never delay delivery time

● On Materials Ensure material pure

● Ensure material pure


NPS

L

d

D

D1

D2

C

f

n-Ø

1/2"

165

10

95

66.7

34.9

14.3

7

4-16

3/4"

190

13.5

115

82.6

42.9

15.9

7

4-19

1"

216

18

125

88.9

50.8

17.5

7

4-19

1-1/4"

229

24

135

98.4

63.5

20.7

7

4-19

1-1/2"

241

29

155

114.3

73

22.3

7

4-22

2"

292

36.5

165

127

92.1

25.4

7

8-19

2-1/2"

330

45

190

149.2

104.8

28.6

7

8-22
