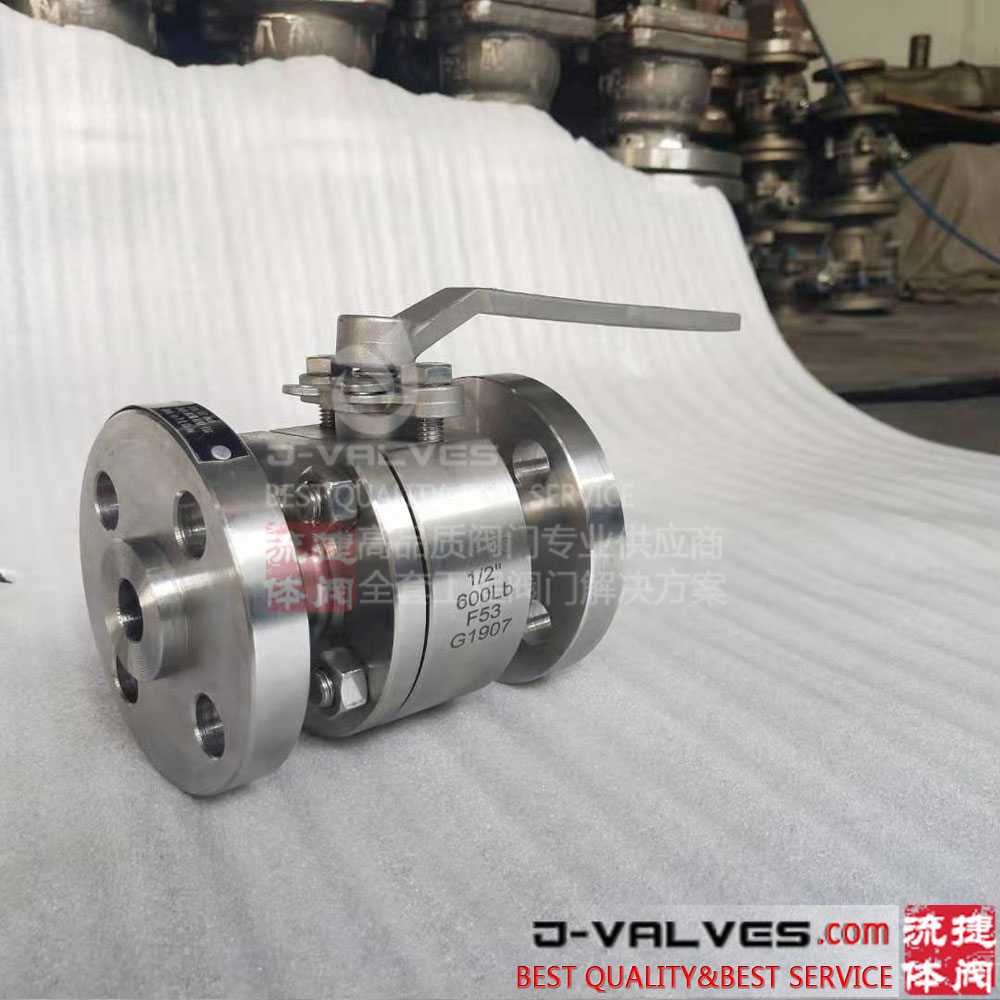

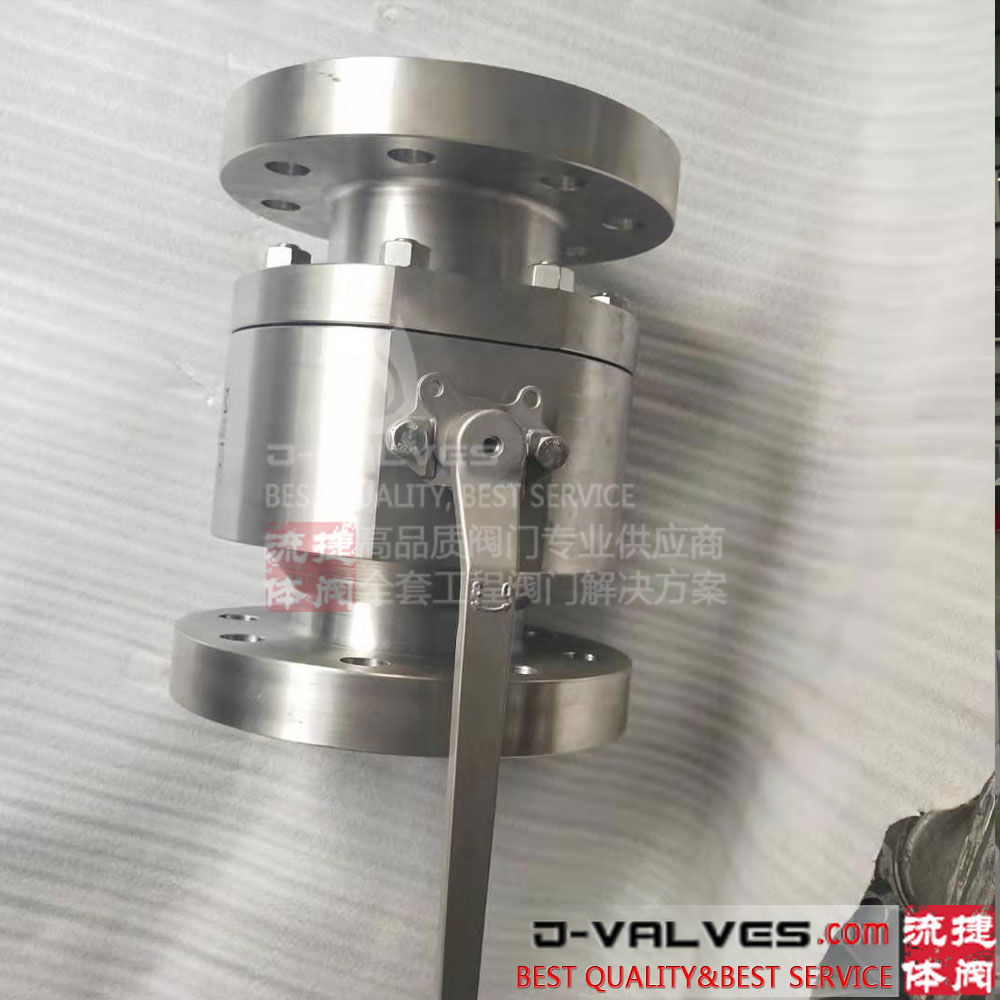

Forged ASTM A182 F53 Stainless Steel Floating Ball Valve
1.Forged ASTM A182 F53 Stainless Steel Floating Ball Valve Product Specification:
Size: 1/2''-10''(DN15~DN250)
Pressure Rating: 150LB-600LB/PN16~PN100/10K~60K)
Material: A351 CF8M/CF8/CF3, A216 WCB, A352 LCB/LCC
Suitable Temperature: -196ºC~450ºC( Different temperature choose different materials).
Suitable Medium: Water, Steam, Oil and natural gas etc.
2.Forged ASTM A182 F53 Stainless Steel Floating Ball Valve Technical Specification:
Design & Manufacture standard: API 6D, API 608, BS 5351/DIN3357/JIS B2071
Pressure & Temperature standard: ASME B16.34/DIN3230
Face to face dimension standard: ASME B16.10/DIN3202/JIS B2002
Flange standard: ASME B16.5, ASME B16.47/DIN2543-2545-2501/JIS B2220
Test & Inspect standard: API 598, API 6D/DIN2401/JIS B2003.
3.Forged ASTM A182 F53 Stainless Steel Floating Ball Valve Product Feature:
Floating ball, full bore or reduce bore.
ISO5211 mounting pad for option.
Blow-out proof stem design.
PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. condition).
Anti-static design and API 607 Fire Safe Design available
Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
Note: All the data should be confirmed with the approved drawings of manufacturer.
