Forge Steel Reduce Bore 3PC Floating Ball Valve

Share to:
Forge steel reduce bore 3PC floating ball valve, Split-Body full port flanged end ball valves employ forged, all produced from ASTM grade materials that are properly heat treated and chemically finished. All wall thicknesses comply with ASME B16.34 as do bolting stress levels.
Quantity:
  • 1/2“-10”
  • J-VALVES

Forge Steel Reduce Bore 3PC Floating Ball Valve



       Forge steel reduce bore 3PC floating ball valve.The J-VALVES Style Split-Body full port flanged end ball valves employ forged, all produced from ASTM grade materials that are properly heat treated and chemically finished. All wall thicknesses comply with ASME B16.34 as do bolting stress levels.

Industrial and Oil/Gas piping applications requiring the higher flow capacity and lower pressure drop of full port internal flow-ways, and those applications where ease of repairability is desired.

Forge steel reduce bore floating ball valve,3PC floating ball valves are designed, constructed, and tested according to API and ASME/ANSI Standards. Other international standards including BS and DIN are also available upon request.


1. Forge Steel Reduce Bore 3PC Floating Ball Valve Technical specifications:

3-Piece Bolted Body, Full Port Construction

Fully Compliant to ASME B16.34

Fully Compliant to API 608

API 607 6th Edition Fire-Safe

All Models are NACE MR0175 Compliant

Submerged Packing System & Direct Mount Actuation

Standard ISO Actuator Mounting Pads on All Sizes

Standard Locking Stainless Steel Handles

Second Generation PTFE Seats Provide Higher Operating Temperatures

Standard Electrically Grounded Ball & Stem



2. Forge Steel Reduce Bore 3PC Floating Ball Valve Product Specification:

Size: 1/2''-10''(DN15~DN250)

Pressure Rating: 150LB-600LB/PN16~PN100/10K~60K)

Material: A351 CF8M/CF8/CF3/CF3M, A216 WCB, A352 LCB/LCC,F51/F53

Suitable Temperature: -196ºC~450ºC( Different temperature choose different materials).

Suitable Medium: Water, Steam, Oil and natural gas etc.



3.Forge Steel Reduce Bore 3PC Floating Ball Valve Product Feature:

Floating ball, full bore or reduce bore.

ISO5211 mounting pad for option.

Blow-out proof stem design.

PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. condition).

Anti-static design and API 607 Fire Safe Design available

Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.


4. Forge Steel Reduce Bore 3PC Floating Ball Valve Product Drawing:

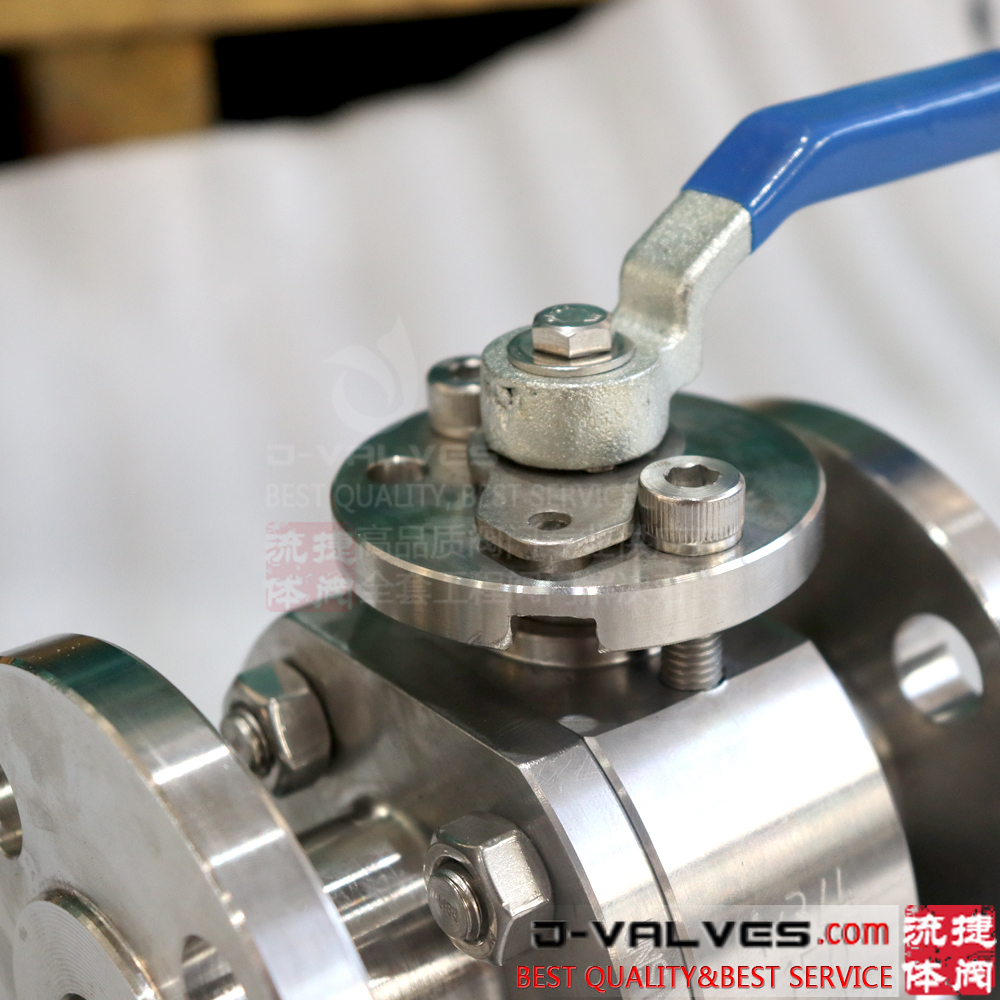

 3PC forged stainless steel reduce bore floating ball valve flanged type handle operation 150LB

Note: All the data should be confirmed with the approved drawings of manufacturer.
