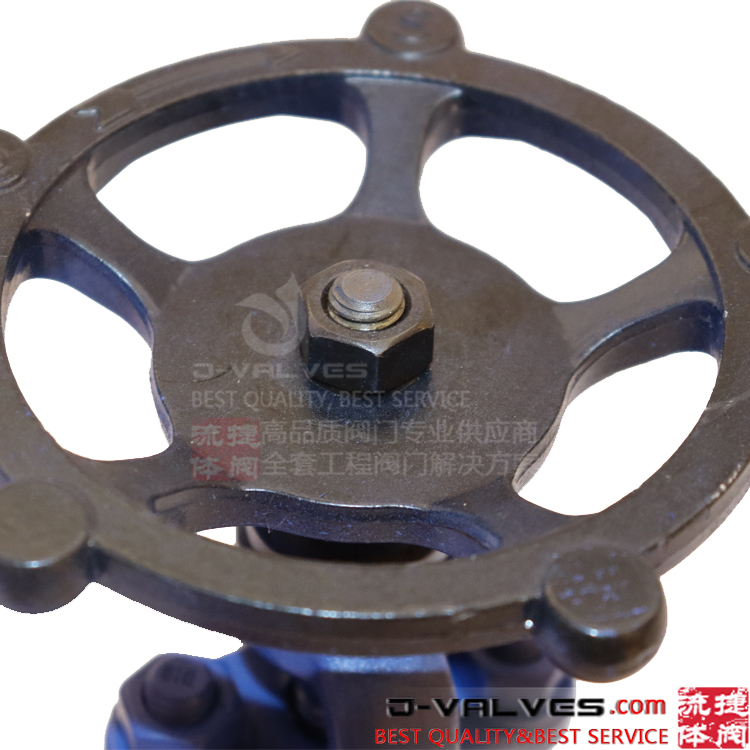

F91 1500LB Anti-corrosion Forged Stainless Steel F-NPT Globe Valve

Share to:
We are one of the biggest manufactures in High Temperature 1500LB Forged F91 Socket Welded SW globe valve industry. We have many certifications to meet our global clients needs, and we have long term and stable business partnership with many branded companies. With more years experience in High Temperature 1500LB Forged F91 Socket Welded SW globe valve industry, we can provide most professional and cost effective product to our clients.We look forward to serving you for all your needs.
Size:
Availability:
Quantity:
  • Forged Steel Globe Valve
  • J-VALVES

F91 1500LB Anti-corrosion Forged Stainless Steel F-NPT Globe Valve


● Valve alias: F91 1500LB Anti-corrosion Forged Stainless Steel F-NPT Globe Valve

Quick Detail:

● Size: 1/2''-2''(DN15~DN50)

● Pressure Rating: 150LB-2500LB/PN16~PN160/10K~60K)

● Material:A105,LF2, LF3, F11, F22,F5,304(L),316(L), F347;F321; F51,Monel,Alloy.

● Suitable Temperature: -29ºC~425ºC.

● Suitable Medium: Water, Steam, Oil and natural gas etc.

Description:

● Design and manufacture conformto:API602,BS5352,ANSI B16.34

● Socket welded dimension conform to ANSI B16.11,JB/T1751

● Screw ends dimension conform to ANSI B1.20.1,JB/T7306

● Butt-welded conform to ANSI B16.25,JB/T12224

● Flange ends conform to ANSI B16.5,JB79

● Test and inspection conform to:API598,GB/T13927,JB/T9092

● With sealing design, it is more safe and convenient to replace packing( Seat seal material could be decided by customer's request or according to valve's medium & temp. condition).

● Operation: Hand wheel, Gear,Pneumatic actuator & Electric Actuator.

Applications:

High temperature 1500LB forged F321 socket welded sw globe valve is used industrial and Oil/Gas piping applications requiring the higher flow capacity and lower pressure drop of full port internal flow-ways, and those applications where ease of repairability is desired.

Competitive Advantage:

● On Samples Buyer bear the air fee, but this fee will be reduced from order directly

● On After Sales Free replacement if there is any quality problem

● On Delivery Never delay delivery time

● On Materials Ensure material pure

● Ensure material pure


NPS

L

A

B

H

W

d

1/2″

111

21.3

15.8

207

100

9

3/4″

111

26.7

25.0

207

125

12

1″

120

33.4

26.6

240

160

15

1-1/4"

152

42.2

35.1

258

160

23

1-1/2"

172

48.3

41.0

330

180

30

2"

200

60.3

52.5

355

200

35
