Forged Steel Globe Valve
J-VALVES

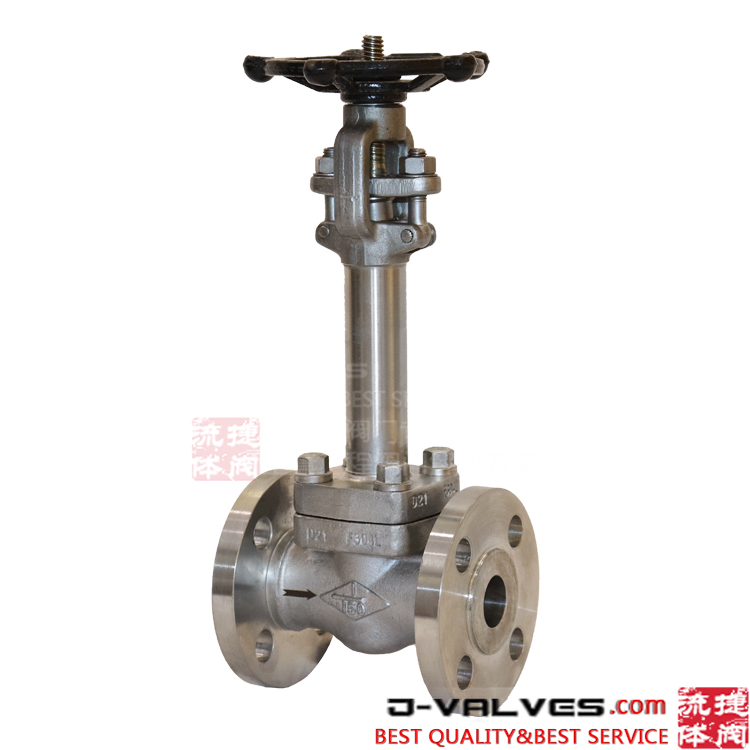

F304L Forged Stainless Steel Low Temperature RF Globe Valve
● Valve alias:F304L Forged Stainless Steel Low Temperature RF Globe Valve
Quick Detail:
● Size: 1/2''-2''(DN15~DN50)
● Pressure Rating: 150LB-2500LB/PN16~PN160/10K~60K)
● Material:A105,LF2, LF3, F11, F22,F5,304(L),316(L), F347;F321; F51,Monel,Alloy.
● Suitable Temperature: -29ºC~425ºC.
● Suitable Medium: Water, Steam, Oil and natural gas etc.
Description:
● Design and manufacture conformto:API602,BS5352,ANSI B16.34
● Socket welded dimension conform to ANSI B16.11,JB/T1751
● Screw ends dimension conform to ANSI B1.20.1,JB/T7306
● Butt-welded conform to ANSI B16.25,JB/T12224
● Flange ends conform to ANSI B16.5,JB79
● Test and inspection conform to:API598,GB/T13927,JB/T9092
● With sealing design, it is more safe and convenient to replace packing( Seat seal material could be decided by customer's request or according to valve's medium & temp. condition).
● Operation: Hand wheel, Gear,Pneumatic actuator & Electric Actuator.
Applications:
F304L forged stainless steel extended stem RF flanged globe valve is used industrial and Oil/Gas piping applications requiring the higher flow capacity and lower pressure drop of full port internal flow-ways, and those applications where ease of repairability is desired.
Competitive Advantage:
● On Samples Buyer bear the air fee, but this fee will be reduced from order directly
● On After Sales Free replacement if there is any quality problem
● On Delivery Never delay delivery time
● On Materials Ensure material pure
● Ensure material pure
NPS | L | d | D | D1 | D2 | C | f | n-Ø |
1/2" | 165 | 10 | 95 | 66.7 | 34.9 | 14.3 | 7 | 4-16 |
3/4" | 190 | 13.5 | 115 | 82.6 | 42.9 | 15.9 | 7 | 4-19 |
1" | 216 | 18 | 125 | 88.9 | 50.8 | 17.5 | 7 | 4-19 |
1-1/4" | 229 | 24 | 135 | 98.4 | 63.5 | 20.7 | 7 | 4-19 |
1-1/2" | 241 | 29 | 155 | 114.3 | 73 | 22.3 | 7 | 4-22 |
2" | 292 | 36.5 | 165 | 127 | 92.1 | 25.4 | 7 | 8-19 |
2-1/2" | 330 | 45 | 190 | 149.2 | 104.8 | 28.6 | 7 | 8-22 |
