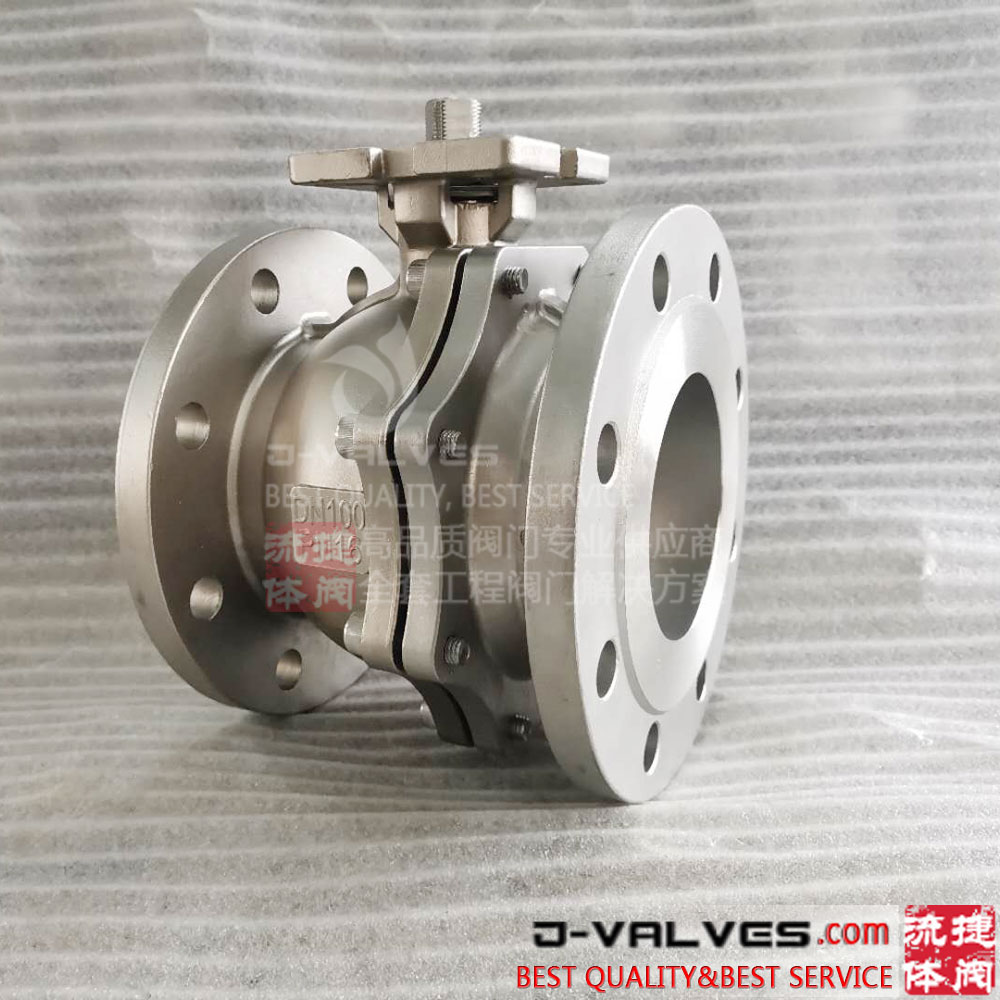

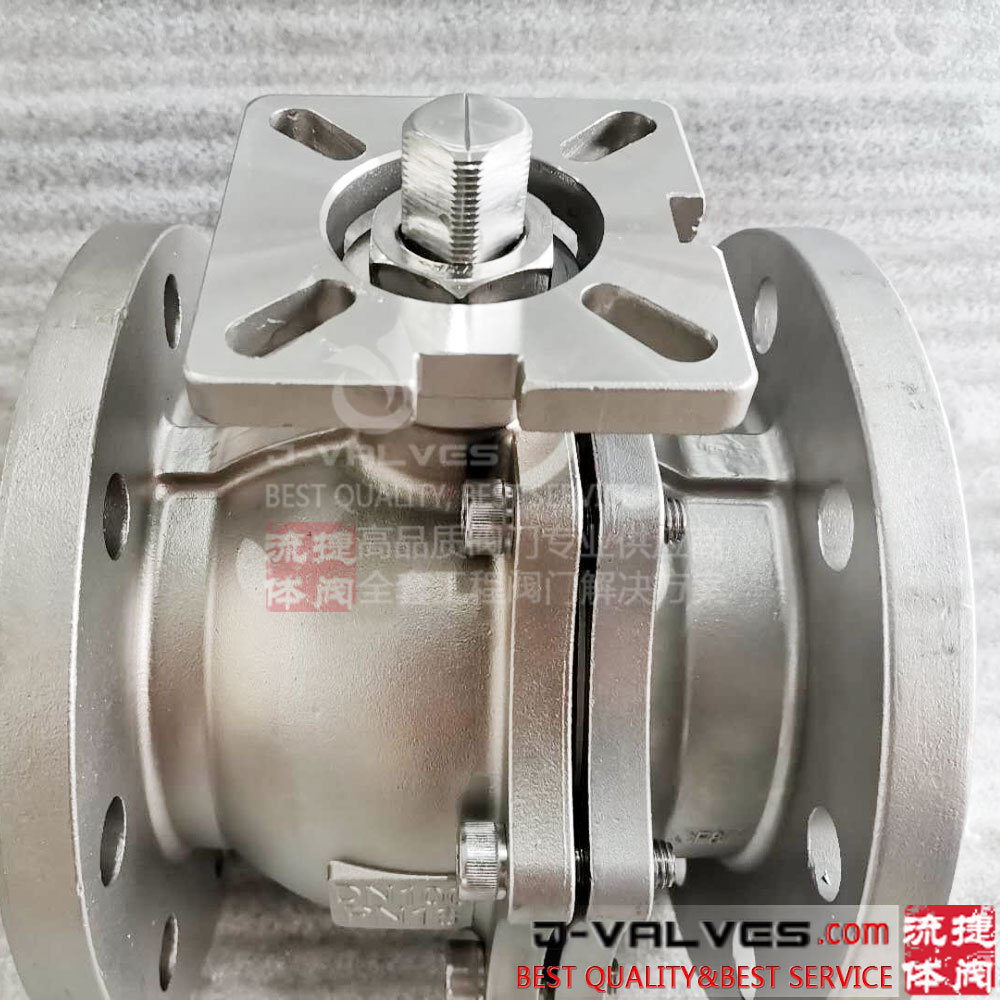

DIN Flange Floating CF8 Ball Valve with ISO5211 Mounting Pad
1. DIN Flange Floating CF8 Ball Valve with ISO5211 Mounting PadTechnical specifications:
l 2-Piece Bolted Body, Full Port Construction
l Fully Compliant to DIN 2401
l Fully Compliant to DIN 3357
l Submerged Packing System & Direct Mount Actuation
l Standard ISO Actuator Mounting Pads on All Sizes
l Standard Locking Stainless Steel Handles
l Second Generation PTFE Seats Provide Higher Operating Temperatures
l Standard Electrically Grounded Ball & Stem
2. DIN Flange Floating CF8 Ball Valve with ISO5211 Mounting Pad Product Specification:
l Size: 1/2''-10''(DN15~DN250)
l Pressure Rating: 150LB-600LB/PN16~PN100/10K~60K)
l Material: A351 CF8M/CF8/CF3/CF3M, A216 WCB, A352 LCB/LCC,F51/F53/C95800
l Suitable Temperature: -196ºC~450ºC( Different temperature choose different materials).
l Suitable Medium: Water, Steam, Oil and natural gas etc.
3. DIN Flange Floating CF8 Ball Valve with ISO5211 Mounting Pad Product Feature:
l Floating ball, full bore or reduce bore.
l ISO5211 mounting pad for option.
l Blow-out proof stem design.
l PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. condition).
l Anti-static design and API 607 Fire Safe Design available
l Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
4. DIN Flange Floating CF8 Ball Valve with ISO5211 Mounting Pad Product Drawing:
Note: All the data should be confirmed with the approved drawings of manufacturer.
Tips:
We also manufacture other type valves, as butterfly valve, check valve, globe valve, Y strainer, sanitary butterfly valve, sanitary ball and so on.
Any item meets your interest, anything confused you, pls keep me posted, let's talk more.
J-VALVES Service：
l On Samples Buyer bear the air fee, but this fee will be reduced from order directly
l On After Sales Free replacement if there is any quality problem
l On Delivery Never delay delivery time
l On Materials Ensure material pure
l Ensure material pure
