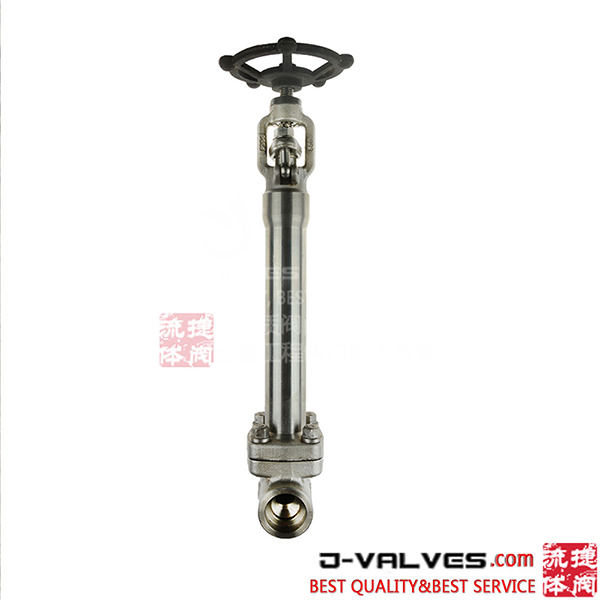

Cryopenic Forged Steel F304 Butt Welded Ends Globe Valve

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
● Valve alias: Low temperature Globe Valve
Quick Detail:
● Size: 1/2''-2''(DN15~DN50)
● Pressure Rating: 150LB-2500LB/PN16~PN160/10K~60K)
● Material:A105,LF2, LF3, F11, F22,F5,304(L),316(L), F347;F321; F51,Monel,Alloy.
Size:
Availability:
Quantity:
  • Forged Steel Globe Valve

  • J-VALVES

● Valve alias: Low temperature Globe Valve

Quick Detail:
● Size: 1/2''-2''(DN15~DN50)
● Pressure Rating: 150LB-2500LB/PN16~PN160/10K~60K)
● Material:A105,LF2, LF3, F11, F22,F5,304(L),316(L), F347;F321; F51,Monel,Alloy.
● Suitable Temperature: -29ºC~425ºC.
● Suitable Medium: Water, Steam, Oil and natural gas etc.

Description:
● Design and manufacture conformto:API602,BS5352,ANSI B16.34
● Socket welded dimension conform to ANSI B16.11,JB/T1751
● Screw ends dimension conform to ANSI B1.20.1,JB/T7306
● Butt-welded conform to ANSI B16.25,JB/T12224
● Flange ends conform to ANSI B16.5,JB79
● Test and inspection conform to:API598,GB/T13927,JB/T9092
● With sealing design, it is more safe and convenient to replace packing( Seat seal material could be decided by customer's request or according to valve's medium & temp. condition).
● Operation: Hand wheel, Gear,Pneumatic actuator & Electric Actuator.

Applications:
Cryogenic globe valve is used industrial and Oil/Gas piping applications requiring the higher flow capacity and lower pressure drop of full port internal flow-ways, and those applications where ease of repairability is desired.

Competitive Advantage:
● On Samples    Buyer bear the air fee, but this fee will be reduced from order directly
● On After Sales    Free replacement if there is any quality problem
● On Delivery    Never delay delivery time
● On Materials    Ensure material pure
● Ensure material pure

7

NO Part name A105/F6a A105/F6aHFS LF2/304 LF3/304 F304(L)/304(L) F316(L)/316(L) F51/F51
1
Body - - LF2 LF3 F304(L) F316(L) F51
2
Seat - - 304 304 304(L) 316(L) F51
3
Wedge - - F304 F304 F304(L) F316(L) F51
4
Stem - - 304 F304 304(L) 316(L) F51
5
Gasket - - Flexible graphite Flexible graphite Flexible graphite Flexible graphite Flexible graphite
6
Bonnet - - LF2 LF3 F304(L) F316(L) F51
7
Bolt - - L7 L7 B8 B8 B8
8
Pin - - 410 410 304 304 304
9
Gland - - 304 304 304 316 F51
10
Gland eyebolt - - L7 L7 B8(M) B8(M) B8(M)
11
Gland flange - - LF2 LF3 F304 F304 F304
12
Hexnut
- - 2H 2H 8(M) 8(M) 8M
13
Stem nut - - 410 410 410 410 410
14
Locking nut - - 35 35 35 35 35
15
Nameplate - - AL AL AL AL AL
16
Handwheel - - A197 A197 A197 A197 A197
17
Lubricating gasket - - 410 410 410 410 410
18
packing - - Graphite Graphite Graphite Graphite Graphite
