J-VALVES-GV-121701
J-VALVES
8481804090
Product Introduction

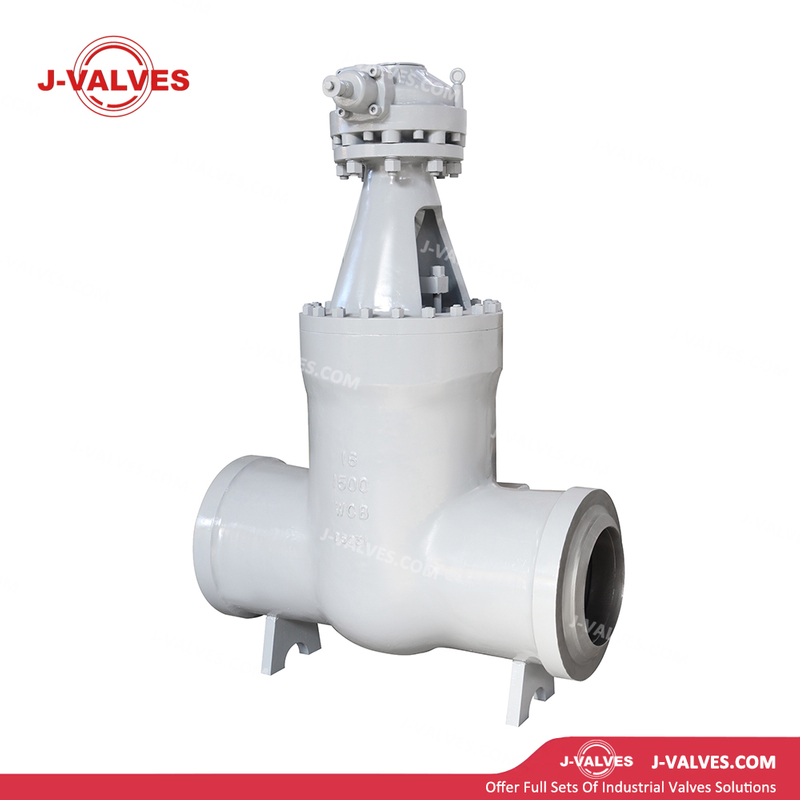

In the crucial realm of industrial fluid control, the China-Made J-VALVES 16" 1500LB BW High-Pressure Cast Carbon Steel Self-Sealing Gate Valve, equipped with a bevel gear operation mechanism, emerges as a game-changer, bringing outstanding performance and excellent craftsmanship to power global industrial scenarios.
| Product Name | 16" 1500LB WCB Pressure Sealing Gate Valve Gear Operated |
| Material | WCB/CF8/CF8M/LCC/LCB/WC6/WC9 |
| Pressure | 150LB/300LB/600LB/900LB/1500LB/2500LB |
| Size | 2 inch~ 60 inch（DN50~DN1500) |
| End Connection | RF/RTJ/BW/SW |
| Working Temp | -196ºC~400ºC. |
| Mode of operation | Handwheel (2"~12") & Bevel Gear (14"&above) |
| Suitable Medium | Water,Natural Gas,Oil and some corrosive liquid |
| Features | Rising stem,OS&Y,Bolted Bonnet or Pressure Sealed,non-rising stem option |
This gate valve is meticulously crafted from high-pressure cast carbon steel. Through multiple sophisticated casting processes, the internal structure of the material is dense and uniform. Such material endows the valve with not only a remarkable compressive capacity to effortlessly withstand the high pressure rating of 1500LB, making it adaptable to the demanding conditions of high-pressure piping systems, but also inherent corrosion resistance. It effectively fends off the attacks of various corrosive media, be it acidic or alkaline fluids in chemical pipelines or complex-component media in oil and gas transportation, ensuring the valve's stable operation over an extended period and significantly reducing maintenance costs and downtime losses caused by frequent replacements.
The innovative pressure-sealing structure stands as one of the core advantages of this gate valve. When the valve closes, the gate plate mates tightly with the valve seat. Under the pressure of the medium, the specially designed sealing elements automatically exert just the right amount of compressive force on the sealing surfaces, forming a reliable bi-directional seal. Compared to traditional sealing methods,it eliminates the risk of internal leakage, and its sealing performance becomes even more excellent as the pressure rises. It strictly controls the flow direction of the medium and safeguards the piping system, performing outstandingly in critical processes such as petrochemical refining and power generation where high sealing requirements are essential, minimizing the risks of medium leakage and potential environmental pollution.
The valve is equipped with a bevel gear operation device, which brings convenience and precision to valve control. Thanks to a rational gear ratio design, operators only need to apply a relatively small torque to smoothly drive the 16-inch large-diameter gate valve for opening and closing operations. The operation feels smooth, and the positioning is accurate. Whether it's in response to commands from a remote control room or on-site manual emergency operations, it can respond quickly and precisely, significantly enhancing the adjustment efficiency of industrial processes. It is particularly suitable for emergency shut-off or frequently started and stopped operation scenarios, ensuring the smooth progress of production rhythms.
From the inspection of raw materials upon entry into the factory, random inspections during the production process, to comprehensive performance tests before finished products leave the factory, the China-Made J-VALVES strictly adheres to international advanced standards and stringent industry norms. Endurance tests simulating extreme working conditions such as high temperature, high pressure, and high corrosion ensure that each gate valve can operate stably and reliably in different regions around the world and complex industrial environments. Backed by solid data and a commitment to quality, it provides customers worldwide with a reliable quality guarantee, demonstrating the high-end quality and craftsmanship spirit of Made in China.
Opt for the J-VALVES 16" 1500LB BW High-Pressure Cast Carbon Steel Self-Sealing Gate Valve and embrace a high-performance, highly reliable solution for industrial fluid control, and stride into a new era of efficient and safe industry hand in hand.
