API6D Mounting Trunnion Ball Valve

Share to:
API6D Mounting Trunnion Ball Valve is used to cut off or connect the media in various of Class150~Class2500. The valves made of different materials are suitable for various media such as water, steam, oil, liquefied gas, natural gas, coal gas, nitric acid, oxidizer, urea and etc. The driving modes include manual operation and electric operation. The connection ends can be flange or butt welding.
Quantity:
  • 2“-56”
  • J-VALVES

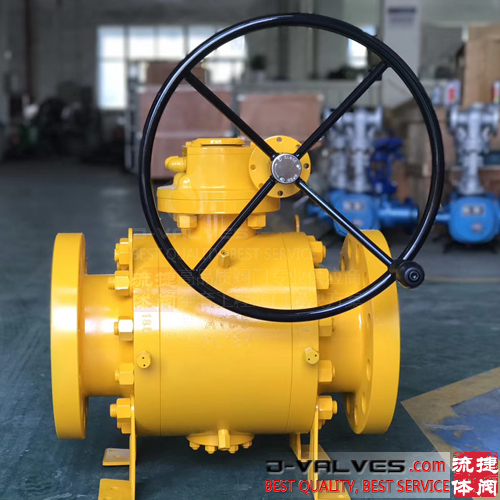

API6D Mounting Trunnion Ball Valve With Gear Operation


The J-VALVES Style API6D Mounting Trunnion Ball Valve employ investment or shell cast bodies & tailpieces, all produced from ASTM grade materials that are properly heat treated and chemically finished. All wall thicknesses comply with ASME B16.34 as do bolting stress levels.

Industrial and Oil/Gas piping applications requiring the higher flow capacity and lower pressure drop of full port internal flow-ways, and those applications where ease of repairability is desired.

API6D Mounting Trunnion Ball Valve, constructed, and tested according to API and ASME/ANSI Standards. Other international standards including BS and DIN are also available upon request.


1. API6D Mounting Trunnion Ball Valve Technical specifications:

3-Piece Bolted Body, Full Port Construction

Fully Compliant to ASME B16.34

Fully Compliant to API 6D

API 607 6th Edition Fire-Safe

Submerged Packing System & Direct Mount Actuation

Second Generation PTFE Seats Provide Higher Operating Temperatures

Standard Electrically Grounded Ball & Stem



2. API6D Mounting Trunnion Ball Valve Product Specification:

Size: 2''-56''(DN50~DN1400)

Pressure Rating: 150LB-900LB/PN16~PN100/10K~60K)

Material: A351 CF8M/CF8/CF3/CF3M, A216 WCB, A352 LCB/LCC,F51/F53/C95800

Suitable Temperature: -196ºC~450ºC( Different temperature choose different materials).

Suitable Medium: Water, Steam, Oil and natural gas etc.



3.API6D Mounting Trunnion Ball Valve Product Feature:

Fixed ball, full bore or reduce bore.

Mounting trunnion Ball valve

l    Blow-out proof stem design.

PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. condition).

Anti-static design and API 607 Fire Safe Design available

Operation: Hand wheel, Worm wheel,Gear, Pneumatic actuator & Electric Actuator.



4. API6D Mounting Trunnion Ball Valve Product Drawing:

微信图片_20200714110502


5. API6D Mounting Trunnion Ball Valve Low Operating Torque:

The trunnion pipeline ball valve adopts the trunnion ball structure and floating valve seat, so as to achieve lower torque under operating pressure. It uses self-lubricating PTFE and sliding bearing to reduce the friction coefficient to the lowest in conjunction with the high intensity and high fineness stem.


6. API6D Mounting Trunnion Ball Valve Emergency Sealing Device:

The ball valves with the diameter more than or equal to 6″(DN150) are all designed with sealant injection device on stem and seat. When the seat ring or stem O ring is damaged due to accident, the corresponding sealant can be injected by the sealant injection device to avoid medium leakage on seat ring and stem. If necessary, the auxiliary sealing system can be used for washing and lubricating the seat to maintain its cleanliness.

Note: All the data should be confirmed with the approved drawings of manufacturer.
