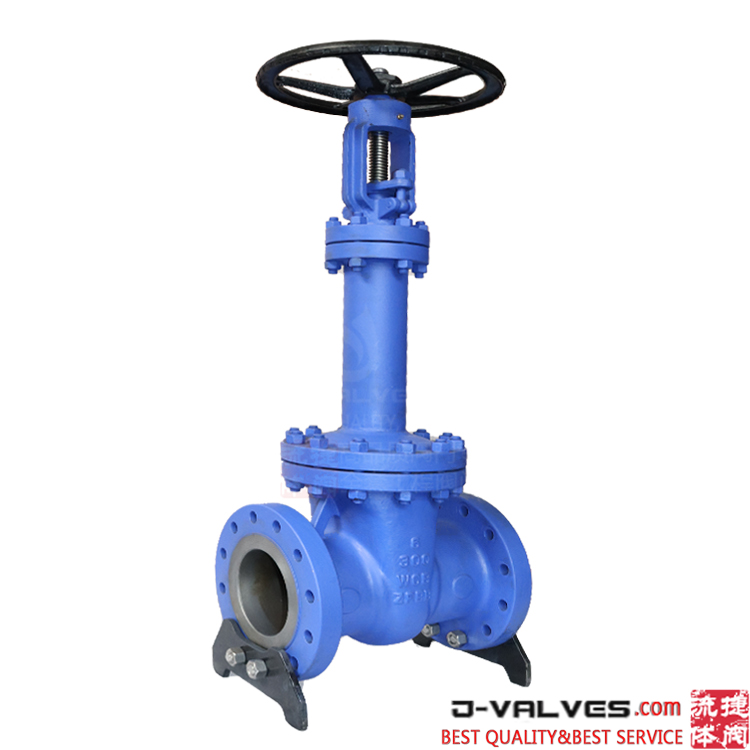

API600 Bellows Seal Gate Valve

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
API600 bellows seal gate valve is used industrial and Oil/Gas piping applications requiring the higher flow capacity and lower pressure drop of full port internal flow-ways, and those applications where ease of repairability is desired.
Availability:
Quantity:
  • 2“-48”

  • J-VALVES

API600 Bellows Seal Gate Valve


API600 Bellows Seal Gate Valve  Quick Detail:



● Size: 2''-48''(DN50~DN1200)

● Pressure Rating: 150LB-2500LB/PN16~PN160/10K~60K)

● Material:A351CF8M/CF8/CF3/CF3M,A216WCB,A105,A352LCB/LCC,F304,F316,F51/F53,F11,C3,C5,C95800

● Suitable Temperature: -196ºC~150ºC( Different temperature choose different materials).

● Suitable Medium: Water, Steam, Oil and natural gas etc.



API600 Bellows Seal Gate Valve Description:

● Bolted Body, Full Port Construction

● Fully Compliant to ASME B16.34 API6D API600

● Fully Compliant to API 598 API6D API598

● Flange Fully Compliant to ASME B16.5/ASME B16.47

● Submerged Packing System & Direct Mount Actuation

● CNC machine tool processing, high precision, good sealing .

● With sealing design, it is more safe and convenient to replace packing( Seat seal material could be decided by customer's request or according to valve's medium & temp. condition).

● Operation: Hand wheel, Gear,Pneumatic actuator & Electric Actuator.


API600 Bellows Seal Gate Valve Specifications:







J-VALVES Competitive Advantage:



● On Samples Buyer bear the air fee, but this fee will be reduced from order directly

● On After Sales Free replacement if there is any quality problem

● On Delivery Never delay delivery time

● On Materials Ensure material pure

● Ensure material pure
