2PC Cast Steel Soft Seated Flanged Bal Valve with Lever

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
2PC cast steel soft seated flanged bal valve with lever,Split-Body full port flanged end ball valves employ investment or shell cast bodies & tailpieces, all produced from ASTM grade materials that are properly heat treated and chemically finished. All wall thicknesses comply with ASME B16.34 as do bolting stress levels.
Availability:
Quantity:
  • 1/2“-10”

  • J-VALVES

2PC Cast Steel Soft Seated Flanged Bal Valve with Lever


2PC cast steel soft seated flanged bal valve with lever.The J-VALVES Style Split-Body full port flanged end ball valves employ investment or shell cast bodies & tailpieces, all produced from ASTM grade materials that are properly heat treated and chemically finished. All wall thicknesses comply with ASME B16.34 as do bolting stress levels.

Industrial and Oil/Gas piping applications requiring the higher flow capacity and lower pressure drop of full port internal flow-ways, and those applications where ease of repairability is desired.

2PC cast steel soft seated flanged bal valve with lever,floating Ball Valves are designed, constructed, and tested according to API and ASME/ANSI Standards. Other international standards including BS and DIN are also available upon request.


1. 2PC Cast Steel Soft Seated Flanged Bal Valve with Lever Technical specifications:

l. 2-Piece Bolted Body, Full Port Construction

Fully Compliant to ASME B16.34

Fully Compliant to API 608

API 607 6th Edition Fire-Safe

All Models are NACE MR0175 Compliant

Submerged Packing System & Direct Mount Actuation

Standard ISO Actuator Mounting Pads on All Sizes

Standard Locking Stainless Steel Handles

Second Generation PTFE Seats Provide Higher Operating Temperatures

Standard Electrically Grounded Ball & Stem



2.2PC Cast Steel Soft Seated Flanged Bal Valve with Lever Product Specification:

Size: 1/2''-10''(DN15~DN250)

Pressure Rating: 150LB-600LB/PN16~PN100/10K~60K)

Material: A351 CF8M/CF8/CF3/CF3M, A216 WCB, A352 LCB/LCC,F51/F53

Suitable Temperature: -196ºC~450ºC( Different temperature choose different materials).

Suitable Medium: Water, Steam, Oil and natural gas etc.



3.2PC Cast Steel Soft Seated Flanged Bal Valve with Lever Product Feature:

Floating ball, full bore or reduce bore.

ISO5211 mounting pad for option.

Blow-out proof stem design.

PTFE/RPTFE/PEEK seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. condition).

Anti-static design and API 607 Fire Safe Design available

Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.


4. 2PC Cast Steel Soft Seated Flanged Bal Valve with Lever Product Drawing:

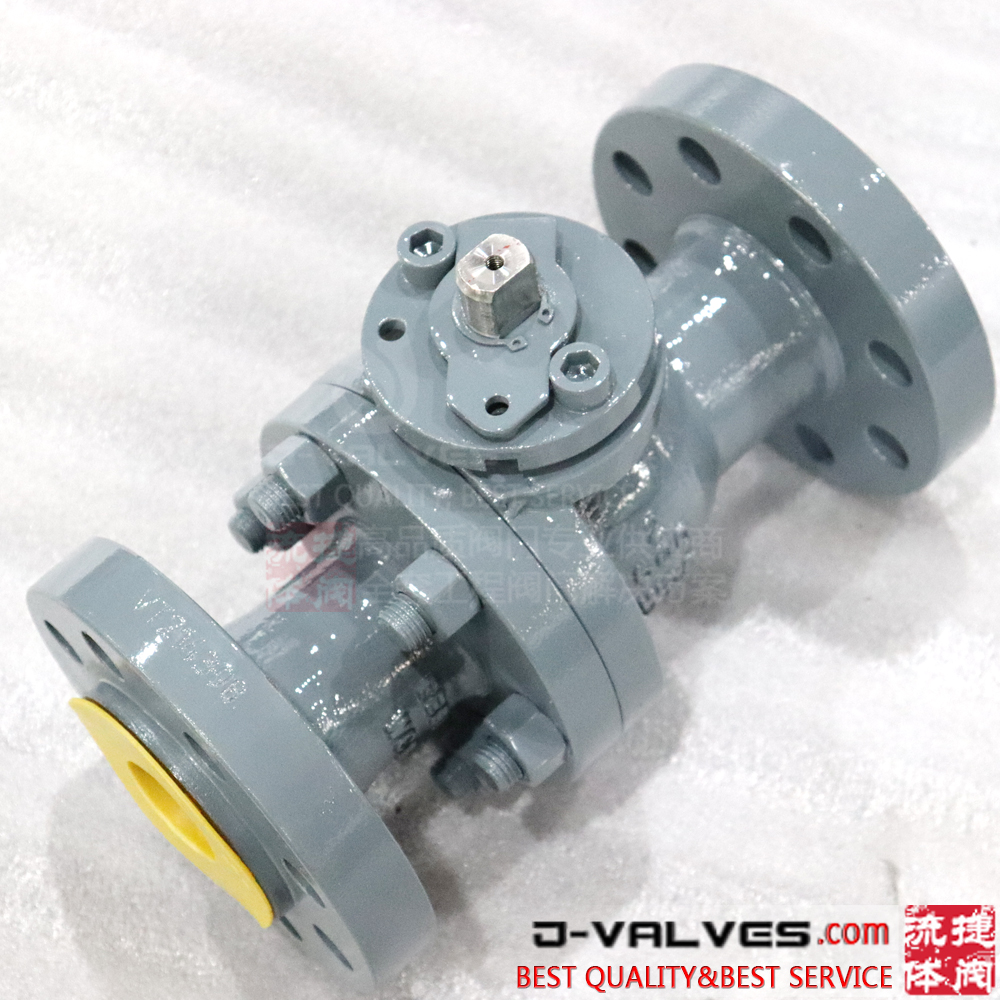

 600LB Cast Steel Flange Ball Valve with Handle Operation

Note: All the data should be confirmed with the approved drawings of manufacturer.



Tips:

     We also manufacture other type valves, as butterfly valve, check valve, globe valve, Y strainer, sanitary butterfly valve, sanitary ball and so on.

     Any item meets your interest, anything confused you, pls keep me posted, let's talk more.



J-VALVES Service

On Samples Buyer bear the air fee, but this fee will be reduced from order directly

On After Sales Free replacement if there is any quality problem

On Delivery Never delay delivery time

On Materials Ensure material pure

Ensure material pure
