Structural Features

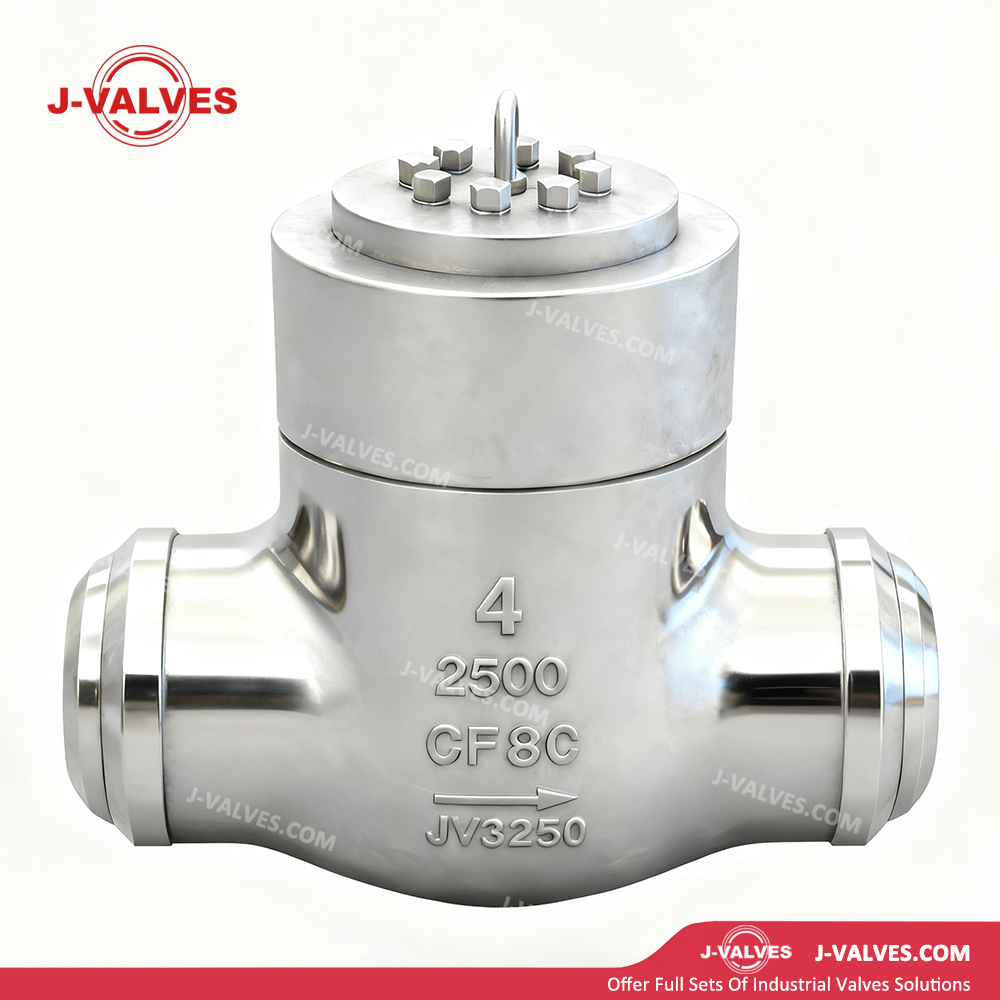

CF8C Stainless Steel Material: The valve body is made of CF8C stainless steel, which offers high strength and good corrosion resistance, allowing long-term stable operation in harsh chemical environments.
Pressure Sealed Design: The unique pressure-sealed structure enhances sealing performance as the system pressure increases, effectively preventing medium leakage.
Swing-Type Structure: The swing check valve design ensures smooth opening and closing, reducing the impact of the medium on the valve and extending its service life.
Compact Design: The overall compact structure saves space, making it particularly suitable for installation environments with limited space.
Fire-Safe Design:Compliant with API 607 standards, the valve maintains sealing performance even in case of fire, preventing medium leakage.
Anti-Static Device: A built-in anti-static device effectively prevents static accumulation, reducing the risk of fire and explosion.
Stem Blowout Prevention Design: The stem adopts a blowout prevention design to ensure operational safety and prevent the stem from being blown out due to medium pressure.
Butt-Weld Connection: Uses a butt-weld connection method, which provides a firm connection with the pipeline system and excellent sealing performance, suitable for high-pressure and high-temperature working conditions.
Technical Parameters
Size: 4" (DN100)
Pressure Class: 2500LB (PN420)
Temperature Range: -20℃ to +200℃
Materials:
Valve Body: CF8C stainless steel
Disc: CF8C stainless steel
Stem: CF8C stainless steel
Sealing Material: PTFE, RPTFE
Connection Type: Butt-weld connection (BW, compliant with ASME B16.25)
Operation Mode: Manual (handwheel operation), pneumatic
Design Standards: ASME B16.34, API 6D
Testing Standards: API 598, ISO 5208
Face-to-Face Dimension: Compliant with ASME B16.10 standards
Application Fields
Oil and Gas Industry: Used in oil and gas field exploitation, gathering, and processing systems to ensure reliable isolation and control of media.
Chemical Industry: Suitable for conveying and reaction systems of various chemical media, preventing medium leakage and ensuring production safety.
Power Generation Industry: Applied in steam systems and cooling water systems of power plants to ensure efficient operation and safety of the system.
General Industrial Applications: Suitable for controlling and isolating media such as water, oil, and gas, meeting the needs of various industrial scenarios.
Advantages and Value
High Reliability: CF8C stainless steel material and pressure-sealed design ensure stable operation of the valve in high-pressure environments, reducing maintenance frequency and downtime.
High Safety: Fire-safe and anti-static designs, along with reliable sealing performance, effectively reduce leakage risks and protect personnel and equipment safety.
Easy Operation: Manual or pneumatic operating mechanisms are suitable for various working conditions, enabling labor-saving and precise operation to ensure reliable opening and closing of the valve.
Easy Installation and Maintenance: The flange connection (note: the technical parameters mention butt-weld connection; here it is corrected to align with parameters: butt-weld connection) simplifies the installation process and facilitates maintenance and repair.
Wide Applicability: Multiple material options and a broad range of pressure and temperature ranges enable it to adapt to various complex working conditions and medium characteristics.
Cost-Effectiveness: By integrating multiple functions, it reduces installation costs and the complexity of the pipeline system, while improving the overall safety of the system.
