J-VALVES-BV-3600
J-VALVES
8481804090
Engineered specifically for gas control, this ball valve features a 3 - way design enabling precise diversion or mixing of gas streams. The stainless - steel body withstands harsh gas environments, preventing corrosion. The high - platform mechanism provides better access for operation, and flanged ends simplify installation in complex gas distribution networks.

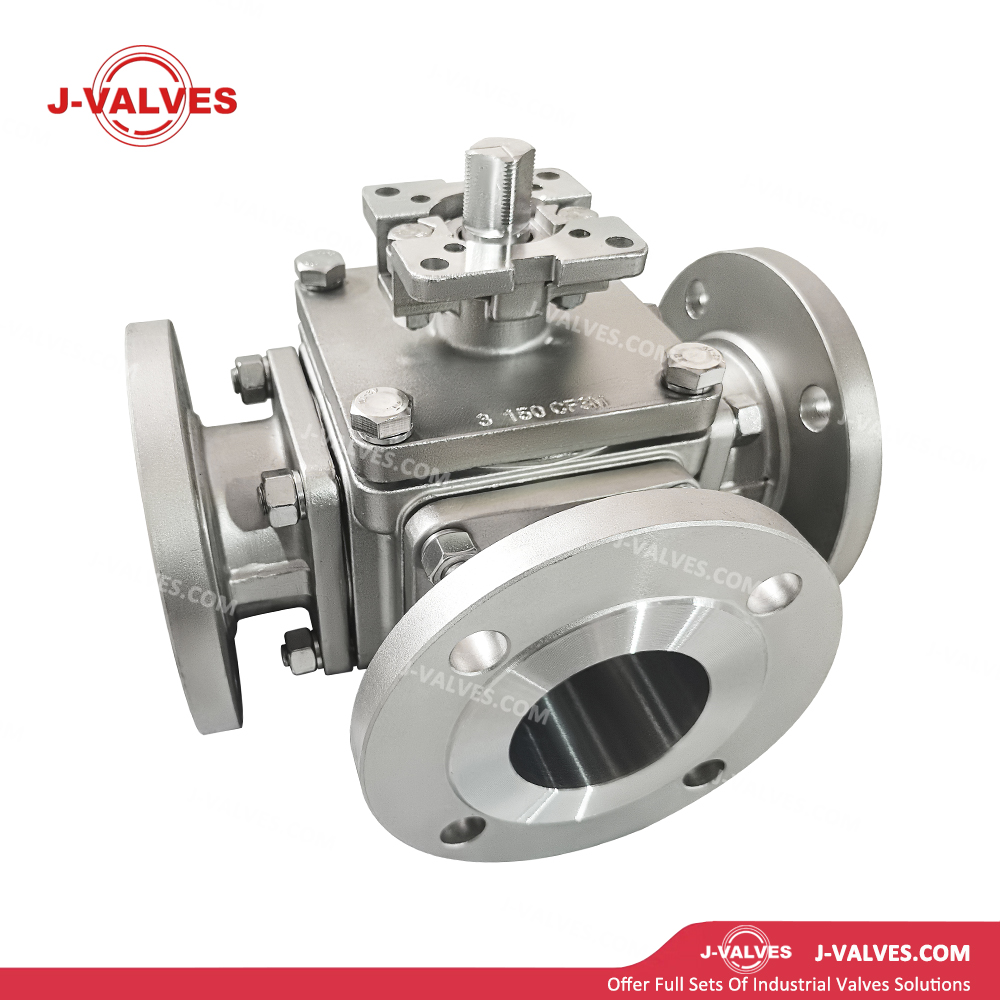

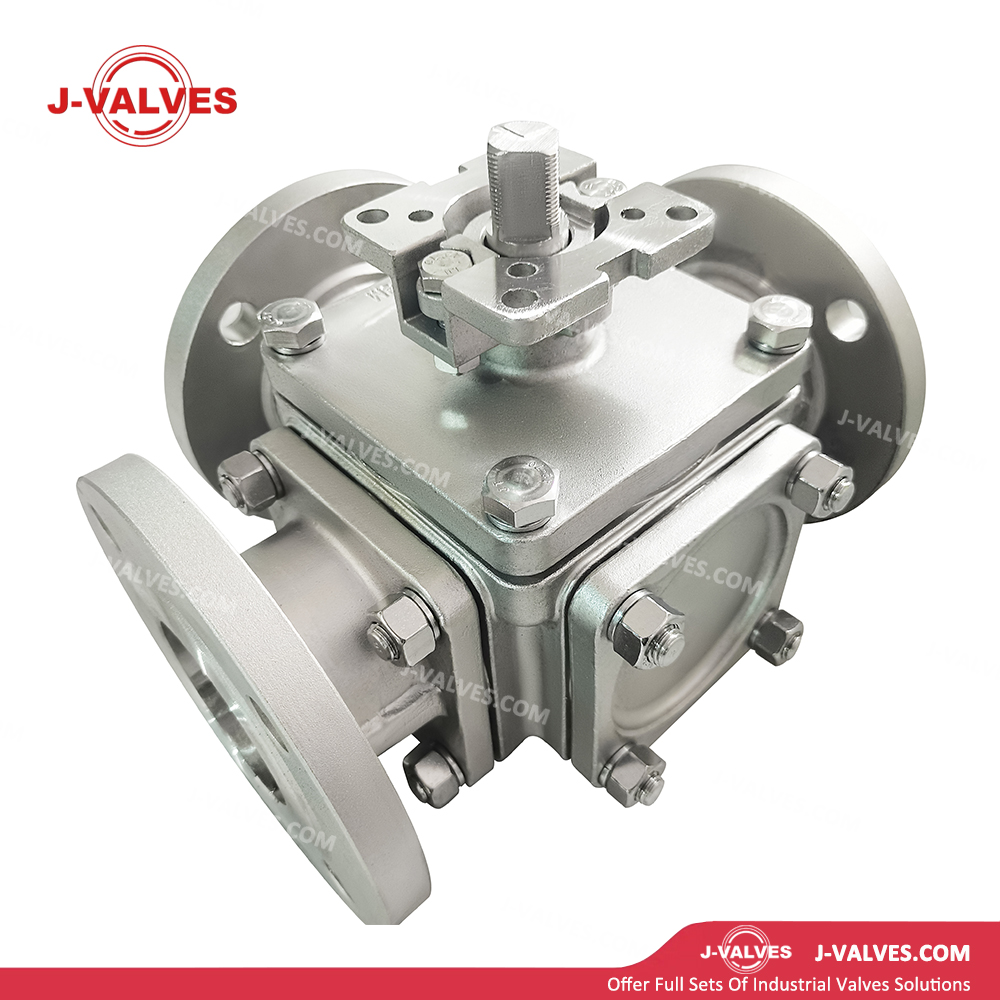

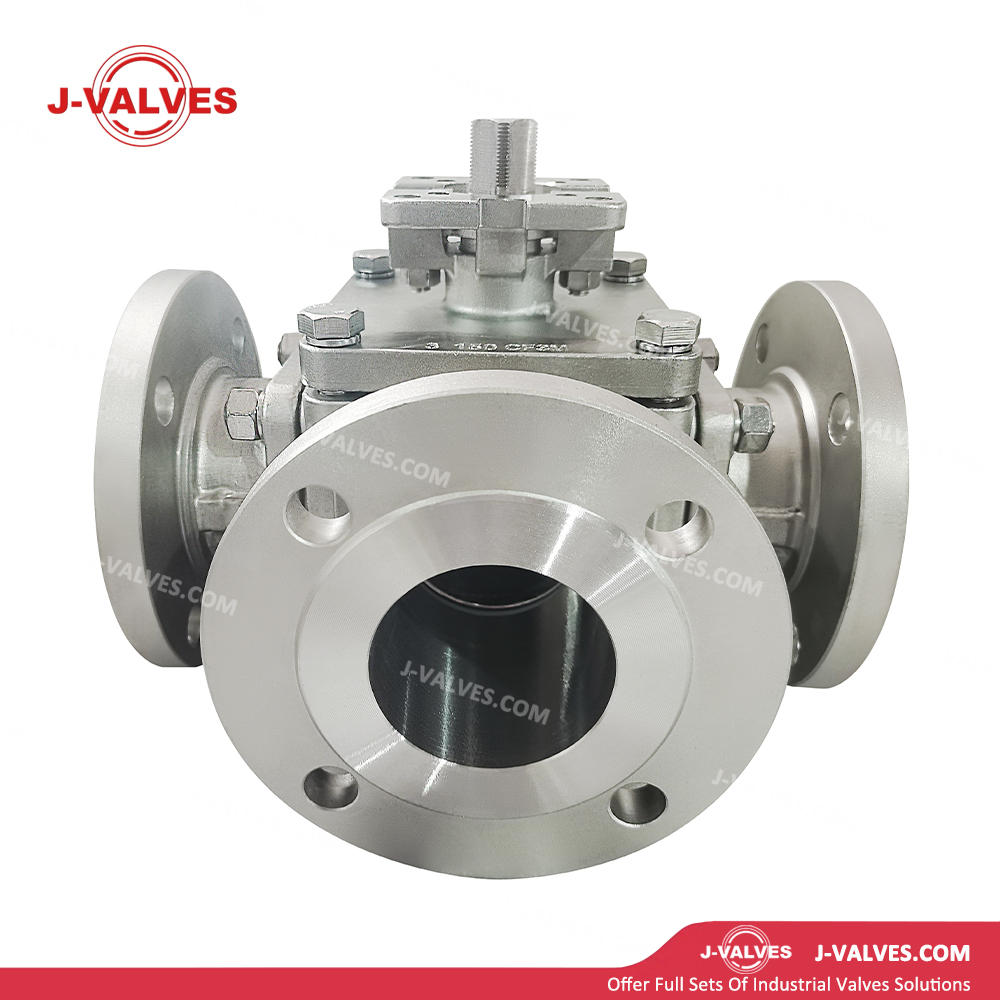

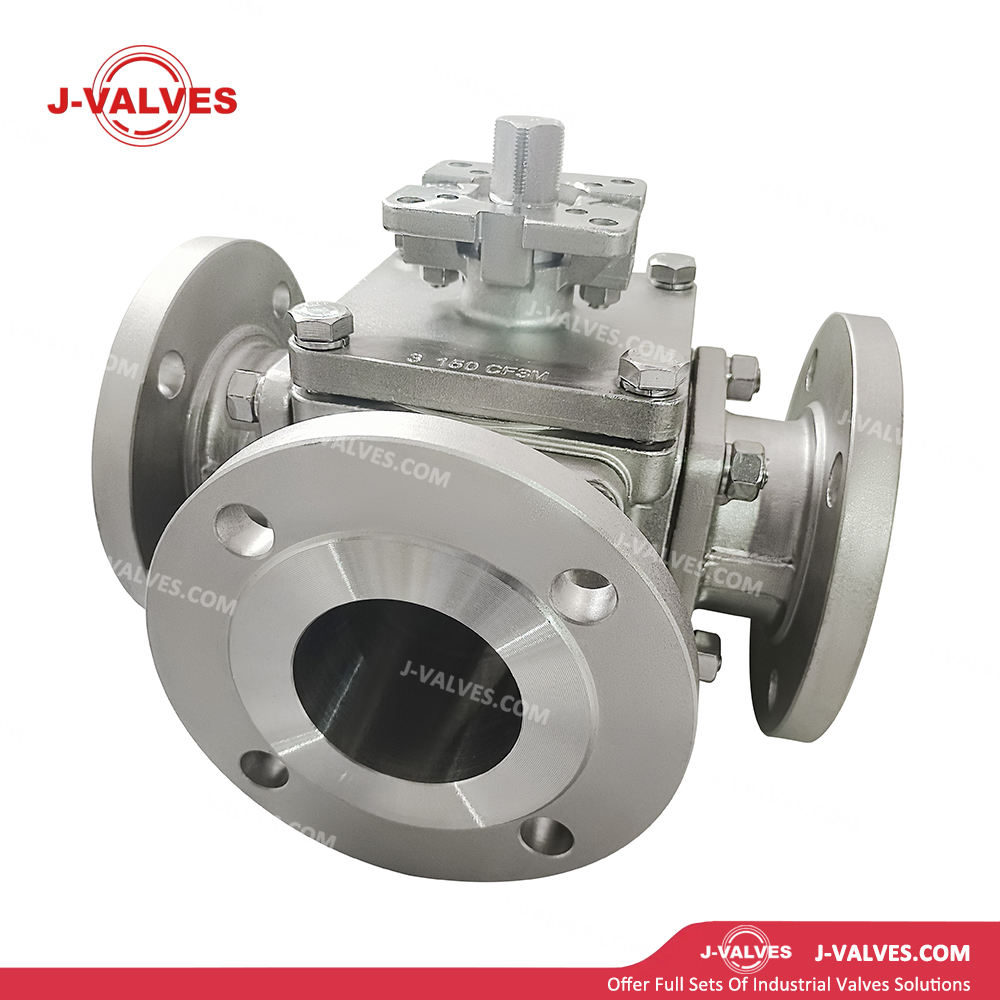

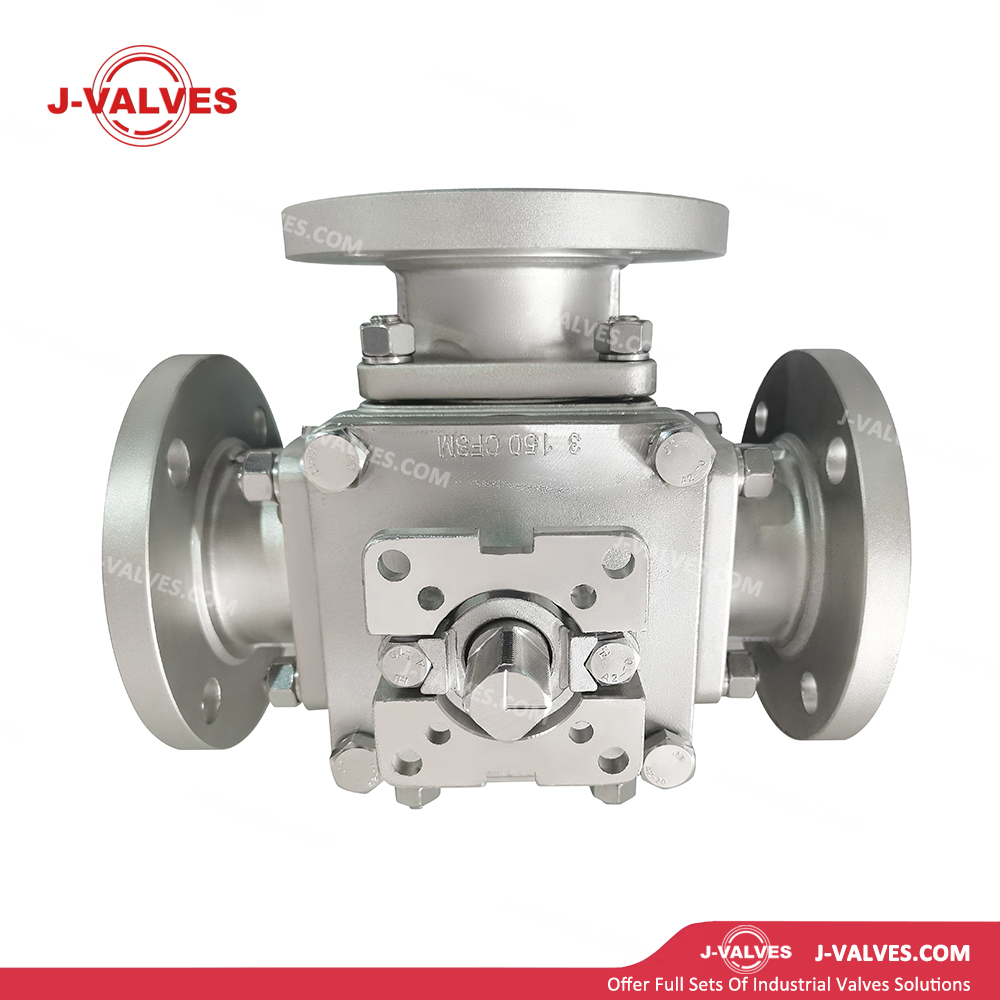

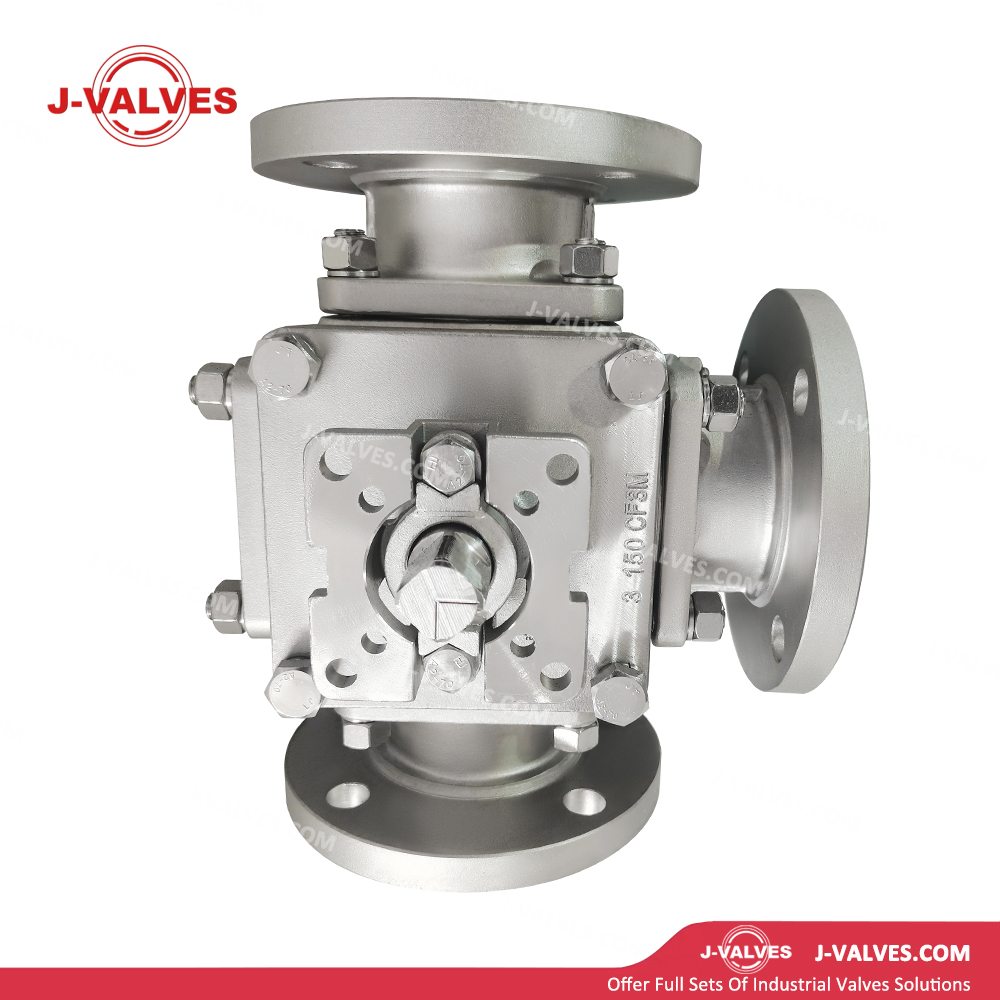

Product Name | Control Gas Stainless Steel 600LB 3 Way High-Platform Flanged Ball Valve |
Material | Stainless Steel/Duplex steel/Aluminium Bronze/Nickel-aluminum Bronze/Titanium Alloy, etc. |
Pressure | 150LB~2500LB |
Size | 1/2 inch~ 24 inch（DN15~DN600) |
End Connection | RF/RTJ/BW/SW |
Working Temp | -196ºC~400ºC option. |
Mode of operation | Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator. |
Suitable Medium | Water,Natural Gas,Oil and some corrosive liquid |
Features | Anti-blow out stem, Anti-statstic, Fire safe |
Versatile 3 - Way Flow Configuration
The 3 - way design of this ball valve offers unparalleled flexibility in gas flow management. In petrochemical plants, it can be used to direct gas from a main pipeline to different processing units or to mix gases in specific ratios. For example, in a refinery's cracking process, the valve can route unprocessed gas to the cracking unit and simultaneously direct the by - products to the appropriate separation or storage facilities. This versatility reduces the need for multiple valves and complex piping arrangements, streamlining the gas handling process.
Superior Corrosion Resistance
Constructed from high - grade stainless steel, the valve is highly resistant to corrosion, which is crucial in gas applications. In gas pipelines that transport corrosive gases such as hydrogen sulfide or in coastal areas where the gas is exposed to moisture and salt - laden air, the stainless - steel body ensures long - term durability. It significantly reduces the risk of valve failure due to corrosion, minimizing maintenance and replacement costs. This makes it a reliable choice for gas industries operating in harsh environments.
High - Platform Design for Easier Operation
The high - platform design of the valve provides operators with better access and visibility. In industrial plants where the valve may be installed in hard - to - reach locations or in areas with limited space, the elevated platform allows for easier operation. In a multi - level gas processing facility, operators can easily reach and turn the valve handle without having to navigate around other equipment. This design also reduces the risk of accidental valve operation and improves the accuracy of flow control adjustments.
Precise Flow Control
This ball valve is engineered to provide precise control over gas flow rates. In gas - fired power generation plants, where the exact amount of gas supplied to the burners affects power output and combustion efficiency, the valve can be adjusted with great precision. The smooth - moving ball and well - designed seat ensure that the gas flow can be regulated in small increments, optimizing the performance of the power - generation equipment and reducing fuel wastage.
Secure and Quick Installation with Flanged Connections
The flanged connections of the valve simplify installation in high - pressure gas pipelines. In large - scale gas distribution projects, the flanges can be quickly bolted together, ensuring a secure and leak - free connection. This reduces installation time compared to other connection methods such as welding. In the construction of a new natural gas transmission network, the use of flanged valves allows for rapid assembly, getting the pipeline up and running in a shorter time frame and minimizing disruptions to gas supply.
Compatibility with High - Pressure Gas Systems
Rated at 600LB, this valve is well - equipped to handle high - pressure gas applications. In gas compression stations, where gas is pressurized for long - distance transportation, the valve can withstand the extreme pressures without any compromise in performance. Its robust construction and reliable sealing mechanism ensure that it can maintain the integrity of the gas flow under high - pressure conditions, making it a suitable choice for critical gas infrastructure.
Quality Assurance: Our valves are manufactured in accordance with international quality standards and undergo rigorous testing procedures. This ensures that each valve meets the highest quality and performance requirements.
Technical Support: We provide comprehensive technical support to our customers. Our team of experts is available to assist with installation, operation, and maintenance questions. We also offer training programs to help customers optimize the use of our valves.
Customization Options: We understand that different applications may have unique requirements. Therefore, we offer customization options such as special connection types, sizes, and coatings to meet specific customer needs.
