J-VALVES-BV
J-VALVES
8481804090

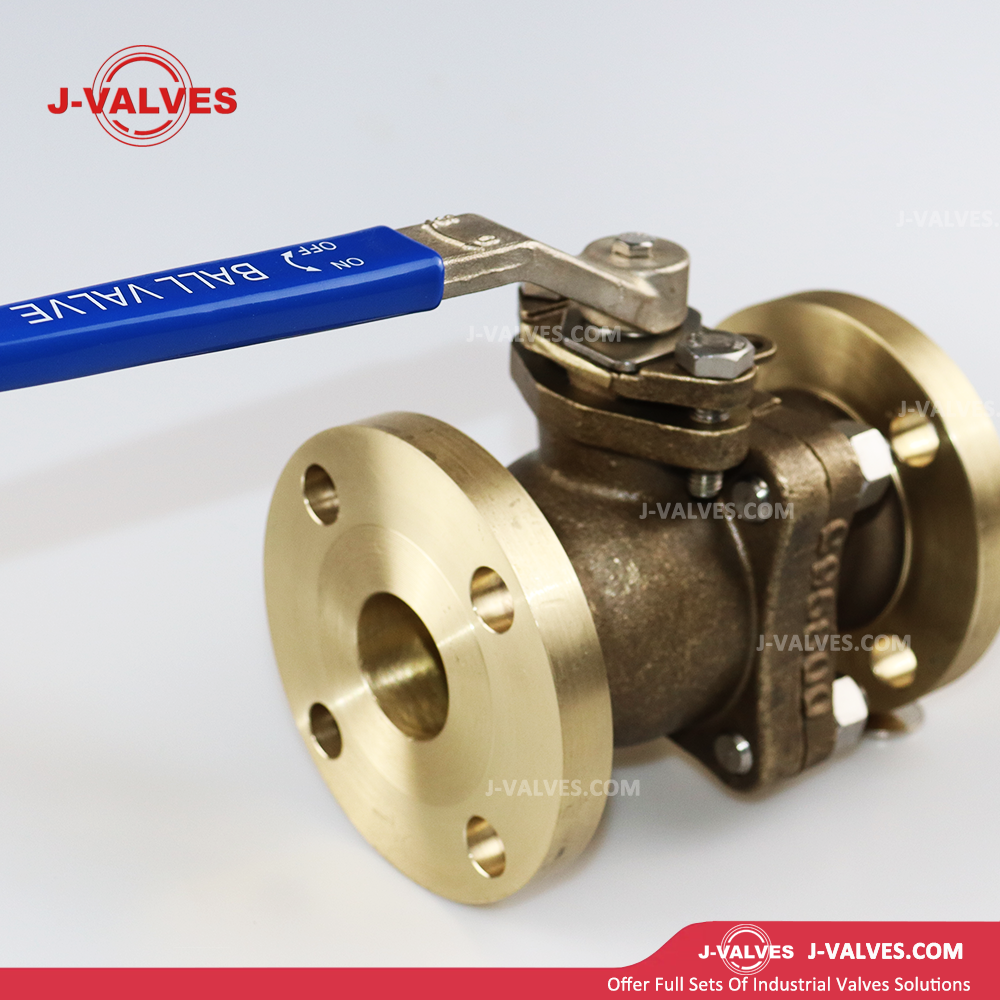

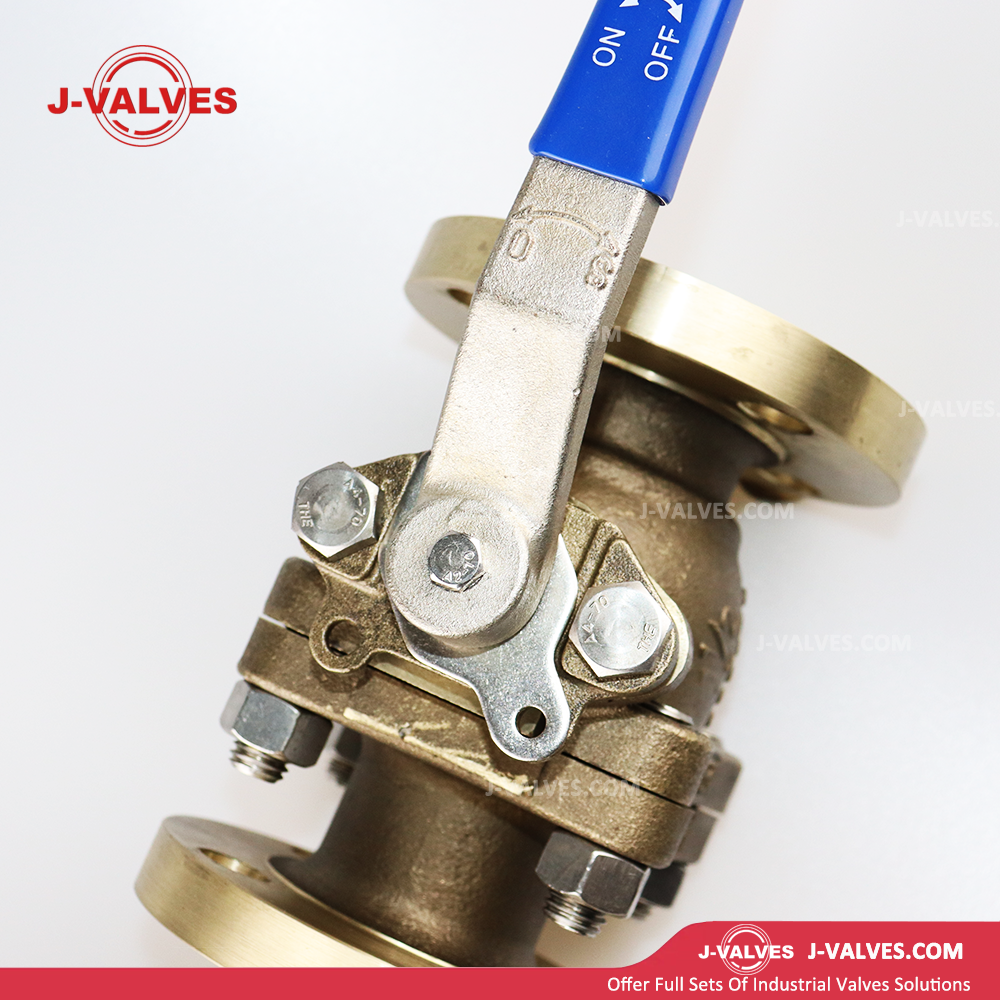

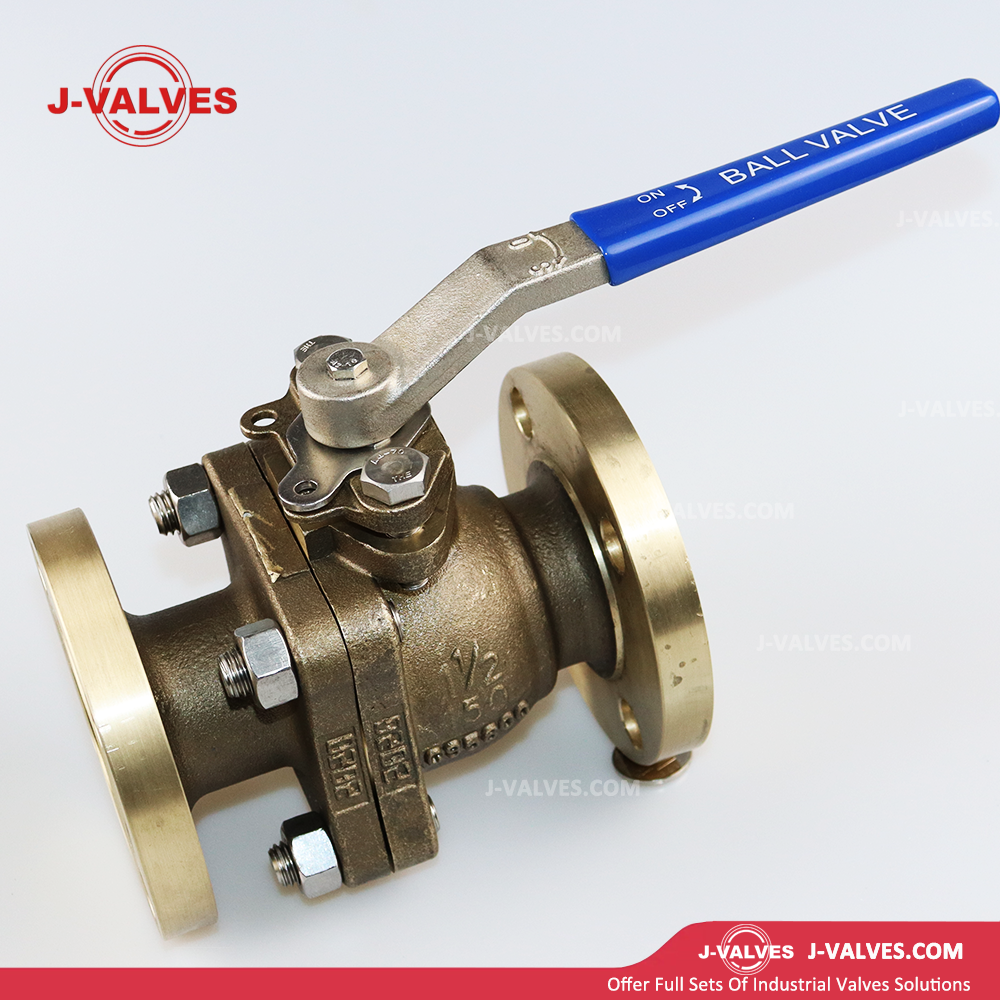

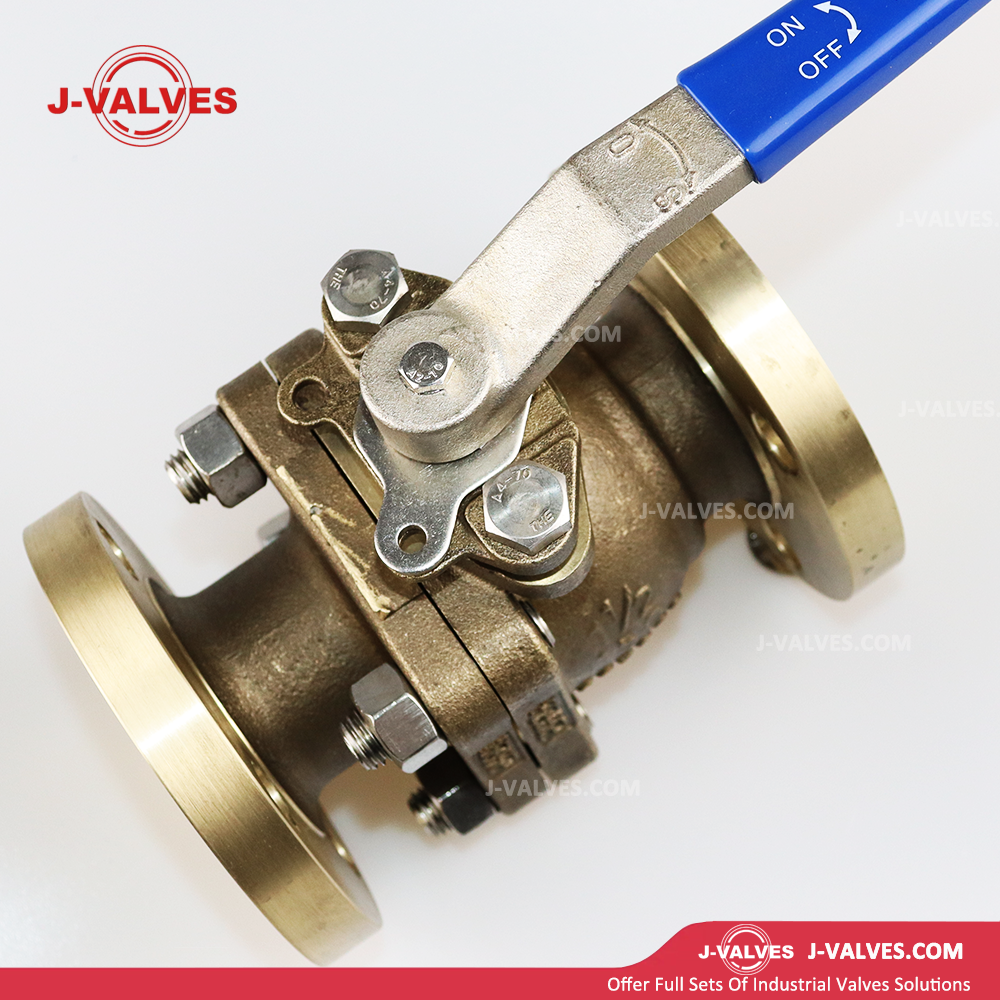

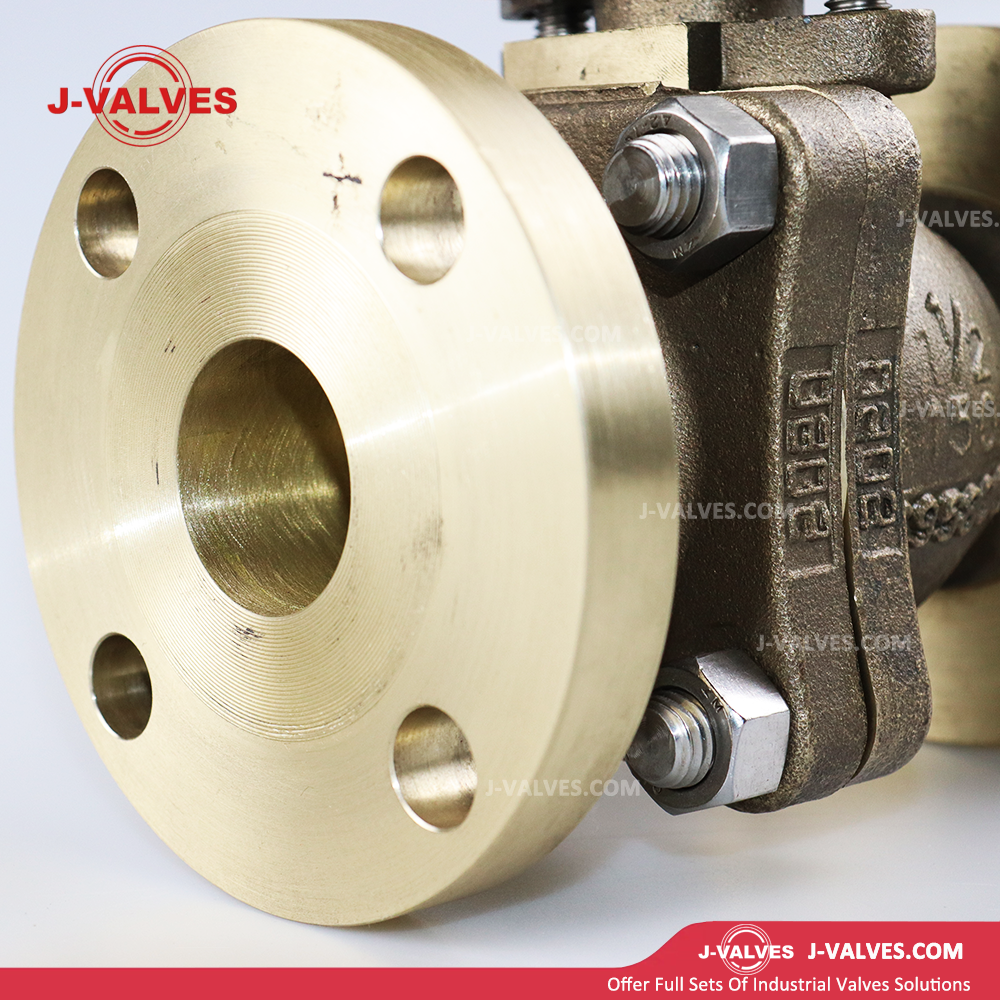

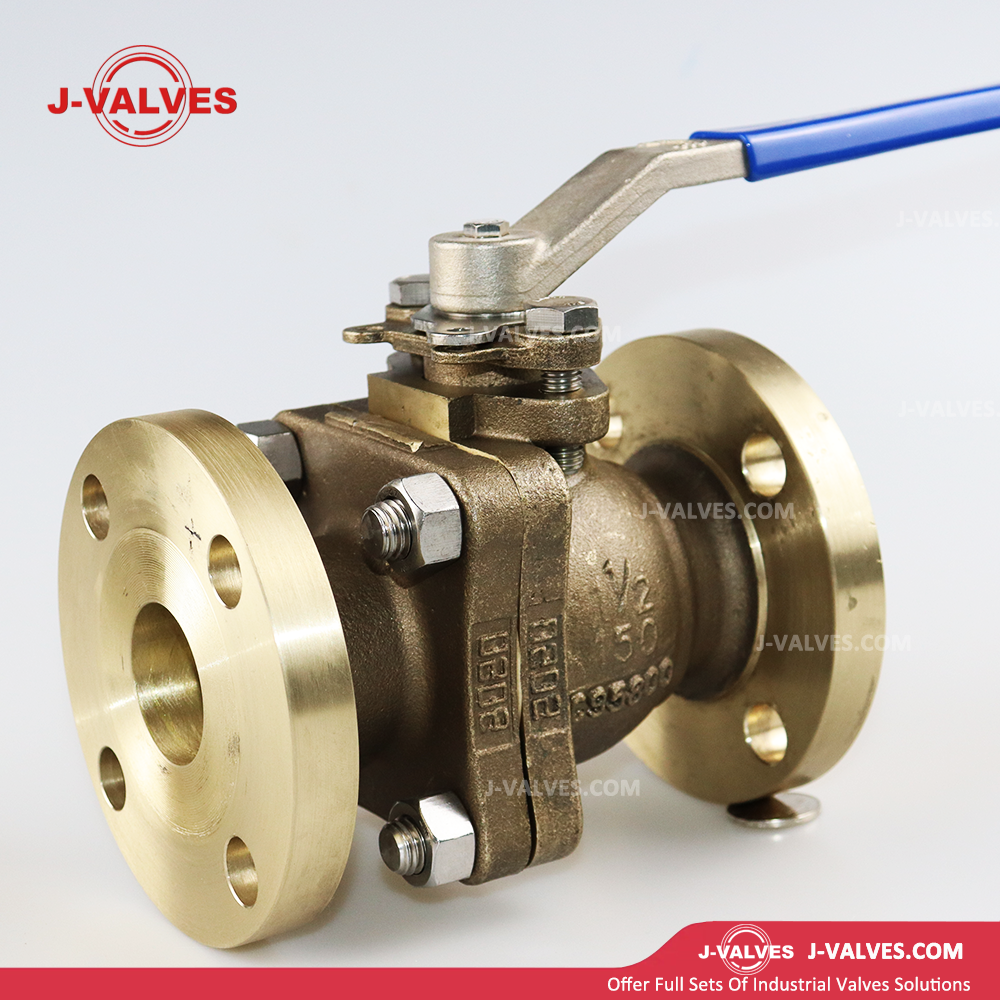

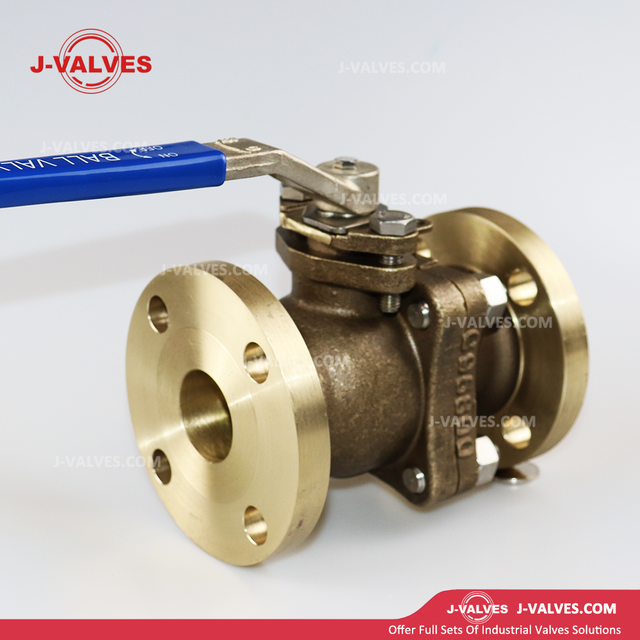

Porduct Name | J-Valves China 150lb Precision Casting Bronze C95800 ANSI Floating Flange End Manual 2PC Ball Valve |
Material | 304/316/B62/2207/2507/316ti/C95800, etc. |
Size | 2"-24"(DN100-DN600) |
Port | Full Port |
Working Pressure | 150LB/300LB |
Connection Ends | RF |
Working Temp. | -20ºC~200ºC |
Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
Operated | Manual, Worm Gear, Pneumatic actuator, Electric Actuator |
Features | Investment casting,Blow-out proof stem,Anti-static device(option) |
Design standard | API6D/API608/API607 |
Inspection&Testing | According to API598 |
Brand | J-VALVES |
High-Quality Material:The use of C95800 bronze in precision casting offers excellent corrosion resistance. Bronze is known for its durability in various environments, including those with moisture and certain chemicals. This ensures a long service life for the valve, reducing the need for frequent replacements and maintenance costs.
ANSI Standard Compliance:Meeting ANSI standards, this ball valve guarantees reliable performance and compatibility with a wide range of piping systems in North America and other regions following ANSI guidelines. It provides assurance of quality, safety, and proper fit in industrial applications.
Floating Flange Design:The floating flange design allows for easy installation and connection to pipelines. It can adapt to minor misalignments in the piping, providing a more flexible and leak - tight connection. This design also simplifies the disassembly process for inspection or repair.
Manual Operation:The manual operation feature offers direct control to the operator. It is simple to use, requiring no external power source, making it suitable for applications where quick on - off control is needed and in areas with limited access to electricity or automated systems.
Two - Piece Construction:The two - piece construction of the ball valve makes it easier to access and maintain the internal components such as the ball and seats. In case of wear or damage, these parts can be more readily replaced without having to replace the entire valve assembly, saving time and cost.
Water Supply Systems:Due to its corrosion - resistant bronze material and reliable shut - off capabilities, it is ideal for use in water supply pipelines, both in residential and commercial buildings. It can control the flow of potable water, ensuring a clean and safe water supply.
Industrial Processes:In industries such as chemical, food and beverage, and pharmaceuticals, where the quality of the fluid being transported is crucial, this ball valve can be used to control the flow of various liquids and gases. Its corrosion resistance makes it suitable for handling corrosive chemicals, while its compliance with ANSI standards ensures safety and reliability in industrial settings.
HVAC Systems:For heating, ventilation, and air - conditioning systems, the valve can regulate the flow of water or refrigerant. The manual operation allows for easy adjustment of flow rates to optimize the performance of the HVAC system, and the floating flange design simplifies installation within the complex piping networks of HVAC systems.
Marine Applications:The corrosion resistance of the C95800 bronze makes this valve highly suitable for marine environments. It can be used in shipboard piping systems for seawater intake, freshwater supply, and other applications where exposure to saltwater and harsh marine conditions is expected.
Porduct Name | J-Valves China 150lb Precision Casting Bronze C95800 ANSI Floating Flange End Manual 2PC Ball Valve |
Material | 304/316/B62/2207/2507/316ti/C95800, etc. |
Size | 2"-24"(DN100-DN600) |
Port | Full Port |
Working Pressure | 150LB/300LB |
Connection Ends | RF |
Working Temp. | -20ºC~200ºC |
Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
Operated | Manual, Worm Gear, Pneumatic actuator, Electric Actuator |
Features | Investment casting,Blow-out proof stem,Anti-static device(option) |
Design standard | API6D/API608/API607 |
Inspection&Testing | According to API598 |
Brand | J-VALVES |
High-Quality Material:The use of C95800 bronze in precision casting offers excellent corrosion resistance. Bronze is known for its durability in various environments, including those with moisture and certain chemicals. This ensures a long service life for the valve, reducing the need for frequent replacements and maintenance costs.
ANSI Standard Compliance:Meeting ANSI standards, this ball valve guarantees reliable performance and compatibility with a wide range of piping systems in North America and other regions following ANSI guidelines. It provides assurance of quality, safety, and proper fit in industrial applications.
Floating Flange Design:The floating flange design allows for easy installation and connection to pipelines. It can adapt to minor misalignments in the piping, providing a more flexible and leak - tight connection. This design also simplifies the disassembly process for inspection or repair.
Manual Operation:The manual operation feature offers direct control to the operator. It is simple to use, requiring no external power source, making it suitable for applications where quick on - off control is needed and in areas with limited access to electricity or automated systems.
Two - Piece Construction:The two - piece construction of the ball valve makes it easier to access and maintain the internal components such as the ball and seats. In case of wear or damage, these parts can be more readily replaced without having to replace the entire valve assembly, saving time and cost.
Water Supply Systems:Due to its corrosion - resistant bronze material and reliable shut - off capabilities, it is ideal for use in water supply pipelines, both in residential and commercial buildings. It can control the flow of potable water, ensuring a clean and safe water supply.
Industrial Processes:In industries such as chemical, food and beverage, and pharmaceuticals, where the quality of the fluid being transported is crucial, this ball valve can be used to control the flow of various liquids and gases. Its corrosion resistance makes it suitable for handling corrosive chemicals, while its compliance with ANSI standards ensures safety and reliability in industrial settings.
HVAC Systems:For heating, ventilation, and air - conditioning systems, the valve can regulate the flow of water or refrigerant. The manual operation allows for easy adjustment of flow rates to optimize the performance of the HVAC system, and the floating flange design simplifies installation within the complex piping networks of HVAC systems.
Marine Applications:The corrosion resistance of the C95800 bronze makes this valve highly suitable for marine environments. It can be used in shipboard piping systems for seawater intake, freshwater supply, and other applications where exposure to saltwater and harsh marine conditions is expected.
1.Design & Manufacture standard:API600
2.Pressure & Temperature standard:ASME B16.25
3.Face to face dimension standard: ASME B16.10
4.Ends Connection standard:ASME B16.5
5.Test & Inspect standard: API598
Design & Manufacture standard | ASME B16.34 |
Pressure & Temperature standard | ASME B16.34 |
Face to face dimension standard | MFG Standard |
Ends Connection standard | ASME B1.20.1 |
Test & Inspect standard | API 598 |
Testing Pressure(Mpa)
Pressure | 150LB | 300LB | 600LB | 900LB | 1500LB | 2500LB | |
Strength Testing | 3.0 | 7.5 | 15.4 | 23.0 | 37.5 | 63.0 | Mpa |
Seal Testing | 2.2 | 5.5 | 11.2 | 16.9 | 27.5 | 46.2 | |
Air Testing | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
Design & Manufacture standard | ASME B16.34 |
Pressure & Temperature standard | ASME B16.34 |
Face to face dimension standard | MFG Standard |
Ends Connection standard | ASME B1.20.1 |
Test & Inspect standard | API 598 |
Testing Pressure(Mpa)
Pressure | 150LB | 300LB | 600LB | 900LB | 1500LB | 2500LB | |
Strength Testing | 3.0 | 7.5 | 15.4 | 23.0 | 37.5 | 63.0 | Mpa |
Seal Testing | 2.2 | 5.5 | 11.2 | 16.9 | 27.5 | 46.2 | |
Air Testing | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
