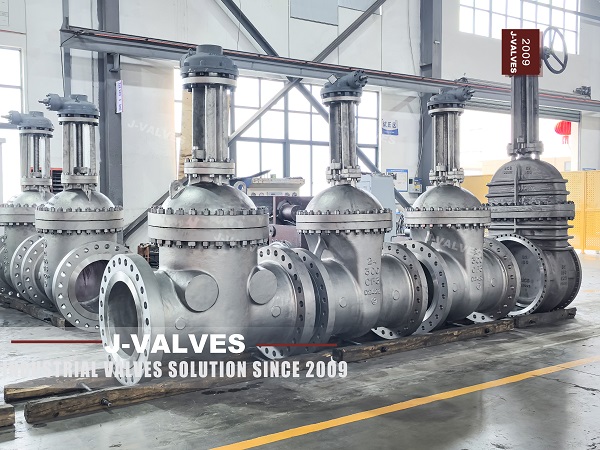

A bolted bonnet gate valve in stainless steel can be ordered to API 600 or to API 603, and on the outside the two valves look identical. API 600 was written for carbon and low alloy steel in refinery and pipeline service, where the body has to lose metal to corrosion for twenty years and still hold pressure. API 603 was written for corrosion resistant alloys, where the alloy itself resists the attack and an extra wall has nothing to do. That difference in purpose drives every other difference between the documents, and it is the one most enquiries never mention.
API 600 carries its own minimum wall table, heavier than the ASME B16.34 minimum for the same size and class, and the surplus metal is the corrosion allowance. API 603 points back at the ASME B16.34 minimum instead, on the reasoning that a CF8M body does not rust away and does not need an allowance. The consequence is a lighter casting: for the same size and class an API 603 body carries noticeably less steel, and the minimum stem diameter follows the same logic. Weight, price, heat treatment time and flange bolt loading all move with that wall.
API 603 runs from NPS 1/2 to NPS 24, in ASME Class 150, 300 and 600 only. It describes a bolted bonnet, outside screw and yoke, rising stem gate valve, with flanged ends to ASME B16.5 or butt welding ends to ASME B16.25, and face to face dimensions to ASME B16.10. There is no Class 900 or 1500 API 603 valve and no pressure seal bonnet version. The moment a project moves to Class 900 in a corrosive line, this standard stops applying and the buyer is back in API 600 territory, with a CRA body poured to a carbon steel wall table.
| Item | API 600 | API 603 |
|---|---|---|
| Written for | Carbon and low alloy steel bodies | Corrosion resistant alloy bodies |
| Size range | NPS 2 and larger | NPS 1/2 to NPS 24 |
| Pressure classes | Class 150 to 2500 | Class 150, 300 and 600 only |
| Wall thickness basis | Own table, above B16.34 minimum | ASME B16.34 minimum |
| Typical body alloys | WCB, WCC, WC6, WC9, LCC | CF8, CF8M, CF3M, duplex 4A and 5A |
| Bonnet | Bolted bonnet, pressure seal at high class | Bolted bonnet only |
| Test standard | API 598 | API 598 |
| Typical service | Refining, power, pipeline, high pressure | Chemical, pharma, desalination, food |
Stainless steel is not an alloy callout. CF8 and CF8M to ASTM A351 differ only in molybdenum, and that difference decides whether a line handles dilute chloride for a decade or fails in a year. CF3M drops carbon to 0.03 percent maximum, which matters as soon as the body is welded or runs hot enough for sensitisation. Duplex bodies, such as the A890 grade 5A duplex gate valve we cast, trade some austenitic toughness for yield strength and chloride stress corrosion resistance, and bring their own testing burden. An enquiry that says API 603 and stops there has specified a shape, not a material.
A CRA body is only as good as its paperwork. Positive material identification on the finished casting confirms that the heat poured is the heat ordered, and it catches mix-ups a chemistry certificate never will. Austenitic grades get an intergranular corrosion test to ASTM A262 Practice E where the service involves welded joints or elevated temperature. Duplex grades get ASTM A923 or A800 testing for intermetallic phase and ferrite balance, because a slow cool through the wrong range turns a tough alloy brittle. Whatever the body standard, the valve still gets the API 598 shell test at 1.5 times rated pressure, the seat test at 1.1 times, and a backseat test.
The failures repeat in predictable shapes. A carbon steel API 600 valve with stainless trim is ordered into a chloride line because the trim was read as the wetted material, and the body rusts from the inside out. An API 600 stainless valve is ordered for a Class 150 chemical line and arrives heavy and expensive, and thick section CF8M is harder to solution anneal evenly, so sensitised grain boundaries are more likely. A Class 900 line specifies API 603 because an earlier project used it, the supplier ships API 600, and the face to face dimension and weight change enough to invalidate the pipe support drawings. Each is a document error, not a manufacturing error.
Thinner is not automatically better. An API 603 body has less section stiffness against pipe bending, water hammer and unsupported spans, and the shortfall appears at the seat as distortion long before it appears as a burst. On a long header with the valve at the end of an unsupported run, or downstream of a fast closing isolation valve, the wall that saved weight can be the wall that weeps. The question is not whether API 603 is lighter, but whether anyone analysed the piping for a lighter body.
Five lines settle it: the design standard with its edition, size and class, body and trim alloys with UNS numbers, the test standard plus any additional non destructive examination, and the certification package. Add whether radiography of the body casting is required, and whether the duty is cryogenic or high temperature, because those change the bonnet length and the impact testing rather than the wall. J-VALVES builds gate valves from 1/2 to 56 inch in ASME Class 150 to 2500, bolted bonnet and pressure seal, in carbon steel, CF8, CF8M and duplex bodies, shell tested at 1.5 times and seat tested at 1.1 times rated pressure, with EN 10204 3.1 certificates; bronze bodies raise a separate question of alloy callout.
Can an API 603 valve be replaced by an API 600 valve? Mechanically yes, within the same size and class, and the replacement is heavier and usually dearer. The traps are dimensional: the face to face distance may still match ASME B16.10, but weight, stem diameter and bonnet height change, and pipe supports, insulation and operator clearance are designed around the original. Where the class is above 600 the replacement is the only option, because API 603 does not reach that pressure.
What is the highest class covered by API 603? Class 600. API 603 covers Class 150, 300 and 600 in sizes NPS 1/2 to NPS 24. Above Class 600, a corrosion resistant gate valve has to be built to API 600 or directly to ASME B16.34, which means a heavier wall, a larger stem and normally a pressure seal bonnet.
Does API 603 change the pressure test? No. Both standards refer testing to API 598, so the shell test runs at 1.5 times the rated pressure at 38 degrees Celsius and the seat test at 1.1 times, plus a backseat test. What changes is the wall that has to contain that pressure, not the pressure it is tested at.
