A 5A gate valve may be specified for industrial piping systems where mechanical strength, corrosion resistance and reliable shutoff are important. When manufactured from ASTM A890 Grade 5A cast duplex stainless steel, the valve uses a material designed to combine characteristics of ferritic and austenitic stainless steels.

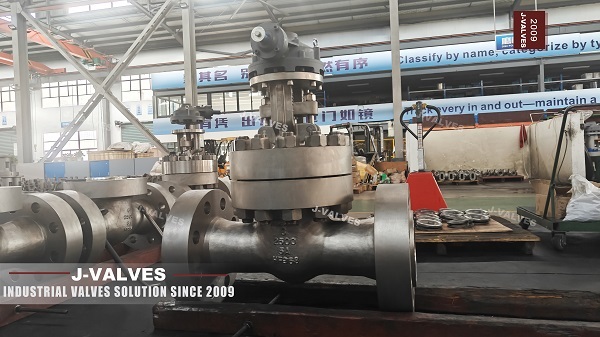

The valve shown in the supplied photograph appears to have a flanged body, a bolted bonnet assembly and a top-mounted operating mechanism. The visible markings include “2500” and “5A”; however, the exact material specification, pressure rating and design standard should be confirmed using the manufacturer's datasheet and material certificates.
ASTM A890 Grade 5A is a cast duplex stainless steel grade. Its balanced microstructure can provide a combination of strength and resistance to certain forms of corrosion. Actual performance depends on the material chemistry, heat treatment, casting quality and operating environment.
Grade 5A may be considered for selected industrial services involving corrosive process media, but it is not universally suitable for every chemical, chloride concentration or temperature. Engineers should evaluate the medium composition, temperature, pressure, flow conditions and applicable corrosion requirements before specifying the valve.
Material verification is especially important for pressure-retaining components. Buyers should request material test reports and confirm that the delivered grade meets the purchase specification.
A typical gate valve includes a body, bonnet, gate, stem, seats, packing and an operating mechanism. During operation, the gate moves away from or into the flow path to open or close the valve.
When fully open, a suitably designed gate valve can provide a relatively unobstructed flow path. Gate valves are primarily intended for isolation rather than continuous throttling, because prolonged operation in a partially open position may cause vibration, erosion or damage to the seating surfaces.
The bonnet joint, stem packing and seat arrangement are important to pressure containment and shutoff performance. Their design and materials should match the valve's specified pressure, temperature and service conditions.
A Class 2500 valve requires careful engineering of the pressure-retaining body, bonnet connection, bolting, stem sealing and end connections. The pressure-temperature rating must be checked against the applicable standard and the manufacturer's technical documentation.
The visible marking alone is not enough to establish the valve's allowable operating pressure. Before installation, confirm the nameplate, design standard, nominal size, material grade and pressure-temperature limits.
Depending on its verified material and pressure-temperature ratings, a 5A duplex stainless steel gate valve may be considered for selected chemical processing, offshore, marine or other industrial services where corrosion resistance is required.
The correct selection depends on the actual process medium, chloride content, operating temperature, pressure, required shutoff performance and maintenance conditions. For demanding service, engineers should also consider corrosion mechanisms, erosion risk and the compatibility of all wetted components.
The body alloy alone does not determine overall valve suitability. The gate, seats, stem, packing, bolting and any coating or hard-facing materials should be reviewed as part of the complete specification.
For industrial valve projects, J-VALVES can coordinate product requirements such as material grade, nominal size, pressure class, end connection, operating method and inspection documentation.
Before ordering a 5A gate valve, buyers should confirm the approved drawing, material certificates, pressure-temperature rating, applicable design standard, shell and seat test requirements, and any project-specific inspection plan. Where Class 2500 is specified, the pressure class and material designation should be verified against the final technical documents.
Providing complete service conditions helps align valve selection with the intended application and reduces specification discrepancies.
A 5A duplex stainless steel gate valve may offer a useful combination of strength and corrosion resistance for selected industrial services. Its suitability depends on verified material quality, pressure-retaining design, sealing configuration and compatibility with the process medium.
For high-pressure applications, the pressure class should never be interpreted in isolation. J-VALVES supports industrial valve projects by coordinating technical specifications and quality requirements so that the selected valve can be evaluated against the actual service conditions.
What does 5A mean on a gate valve?
In this article, 5A refers to ASTM A890 Grade 5A cast duplex stainless steel. The marking should be verified against the product drawing and material certificate before procurement.
Is a 5A gate valve suitable for corrosive service?
It may be suitable for selected corrosive environments, but performance depends on the exact medium, temperature, concentration and operating conditions.
Does Class 2500 mean the valve can always operate at 2500 psi?
No. ASME Class 2500 is a pressure class designation, not a universal working-pressure value. The permitted pressure must be determined from the applicable pressure-temperature rating.
What should buyers check before ordering?
Confirm the material standard and grade, nominal size, pressure class, design standard, temperature range, end connection, seat and trim materials, and required inspection and test records.
