C95800, C95500 and C63200 are all nickel aluminum bronze, and on a datasheet they look like close relatives. The first difference that matters is not chemistry but process. C95800 and C95500 are casting alloys covered by ASTM B148, poured into flanged bodies, wedges and discs. C63200 is a wrought alloy covered by ASTM B150 for rod and bar, ASTM B124 for forging stock and ASTM B283 for die forgings, so it arrives as mill product rather than as a casting. That single fact decides which of the three can become a valve body and which can only become the parts inside it.
ASTM B148 C95800, CuAl9Fe4Ni4Mn2, holds copper at 79 percent minimum with 8.5 to 9.5 percent aluminum, 3.5 to 4.5 percent iron, 4 to 5 percent nickel and 0.8 to 1.5 percent manganese. That balance gives a mostly alpha matrix with iron and nickel rich kappa particles, which is why it casts pressure tight, machines predictably and keeps useful toughness. It is the alloy most seawater and brine valve bodies are poured in, and the one behind our C95800 wedge gate and swing check valves. Aluminum at 9 percent is also why it tolerates moving seawater better than any tin bronze.
ASTM B148 C95500 pushes aluminum to 10 to 11.5 percent, allows manganese to 3.5 percent maximum and holds copper at 78 percent minimum. Extra aluminum buys tensile strength and hardness, and it also pushes the microstructure toward beta phase, which is stronger and less ductile. A C95500 casting is therefore normally solution treated and tempered before it goes into service, and that heat treatment belongs in the specification rather than in a footnote. The alloy earns its place where abrasion, cavitation or coarse slurry would eat a softer bronze: pump casings, seat rings, and trim in dredging and desalination duty.
| Item | C95800 | C95500 | C63200 |
|---|---|---|---|
| Standard and process | ASTM B148, cast | ASTM B148, cast | ASTM B150 bar and rod, B124 forgings |
| Aluminum | 8.5 to 9.5 percent | 10.0 to 11.5 percent | 8.7 to 9.5 percent |
| Nickel | 4.0 to 5.0 percent | 3.0 to 5.5 percent | 4.0 to 4.8 percent |
| Iron | 3.5 to 4.5 percent | 3.0 to 5.0 percent | 3.5 to 4.3 percent |
| Manganese | 0.8 to 1.5 percent | 3.5 percent maximum | 1.2 to 2.0 percent |
| Copper | 79 percent minimum | 78 percent minimum | Remainder |

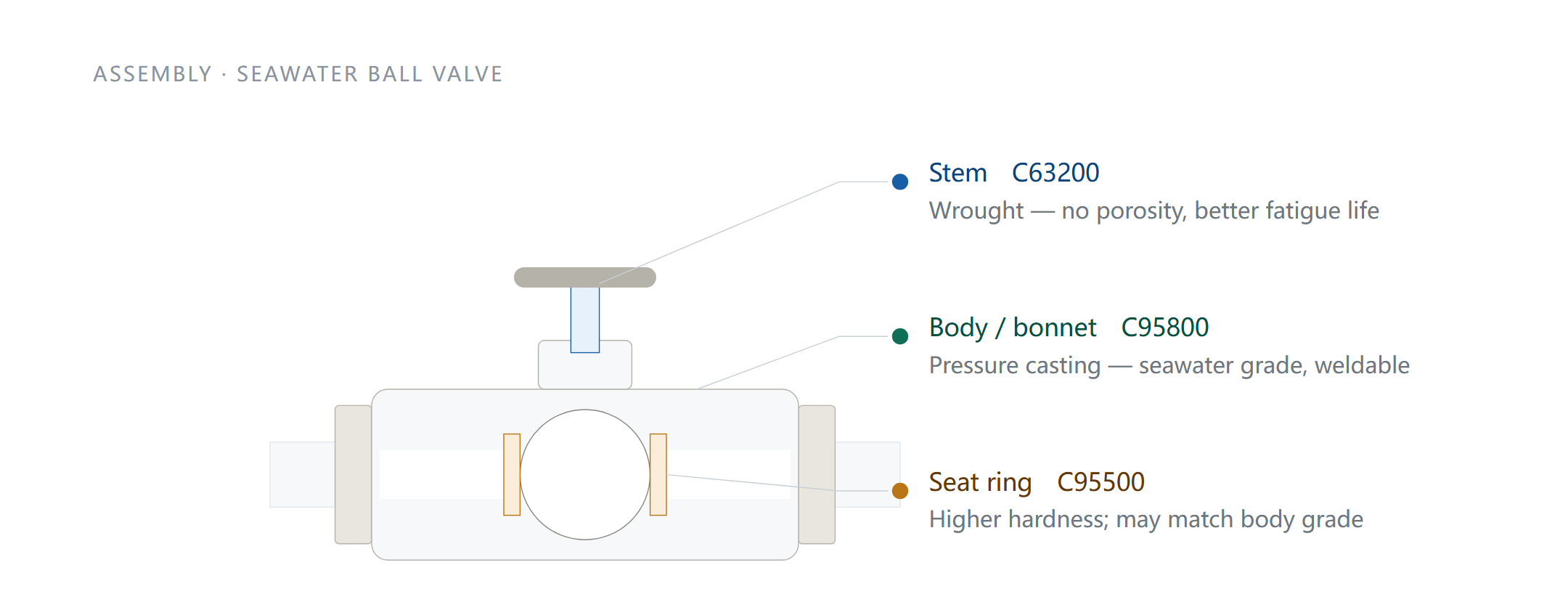

| Valve form | Cast body, wedge, disc | Heavy duty body, seat ring | Stem, disc, forging, fastener |
| Trade-off | Workhorse, easy to cast | Strongest, needs heat treatment | Tough and weldable, cannot be cast |
ASTM B150 C63200 keeps aluminum at 8.7 to 9.5 percent, tightens nickel to 4.0 to 4.8 percent and sets manganese at 1.2 to 2.0 percent, with lead capped at 0.02 percent and silicon at 0.1 percent. Those tighter limits exist because the alloy is worked rather than cast: forged, rolled or extruded, and the mill product has to be clean and consistent. It offers high strength with better toughness than a beta rich casting, low magnetic permeability, and gas shielded arc welding that is genuinely practical. What it cannot do is become a complex flanged body, because there is no casting route for it.
Aluminum is the strength lever and the ductility cost. Moving from 9 to 11 percent aluminum raises tensile strength and hardness and reduces elongation, which is why C95500 resists cavitation damage better and cracks more readily under impact or restraint. Nickel stabilises the structure and improves chloride resistance, iron refines grain and forms the hard kappa particles that resist erosion, and manganese improves castability and, in C63200, helps the wrought product keep its toughness. None of that is a small adjustment: the three alloys are not interchangeable at the drawing stage even though they share a family name.
All three rely on the same protective mechanism, a thin aluminum oxide film that reforms after damage, and all three are therefore chosen for seawater cooling, ballast, fire main and desalination duty where a tin bronze would erode away. The differences show up in the aggressive corners. Under cavitation the harder C95500 lasts longer; under shock and bending the tougher C63200 or C95800 is the safer choice; in a high velocity line carrying sand, no aluminum bronze substitutes for removing the sand. Castings also carry a risk the wrought alloy does not, in shrinkage porosity that appears as a weep only after machining.
B148 castings are routinely weld repaired, and the procedure matters more than the filler brand. Gas tungsten arc welding with a matching nickel aluminum bronze filler, a qualified procedure and controlled preheat is the normal route; C95500, with its beta content, is the least forgiving of the three and needs post weld heat treatment to avoid cracking under restraint. C63200 welds easily, but welding a wrought part locally destroys its temper, so a repair that passes inspection can still leave a soft spot in a stem. A supplier who cannot show a weld repair procedure, and where repairs were made, is telling you something.
Name the UNS number, the standard and the process, because C63200 ordered to B148 will come back as a question or, worse, as a substitute. Add the heat treatment condition for C95500, the acceptance tests, and the certification: chemistry and mechanical reports to the casting or mill standard and an EN 10204 3.1 certificate tying the heat to the valve. J-VALVES casts bronze valves in ASTM B148 C95800, covering wedge gate, globe, swing check, Y strainer and butterfly patterns in Class 150 and 300, flanged and threaded, with 3.1 certification and hydrostatic shell and seat testing to the order. Where the body is stainless instead, the wall question belongs to a different standard.
Is C63200 the same as C95800? No. They are the same family with almost the same aluminum level, but the process and the standard differ: C63200 is wrought to ASTM B150 and B124, C95800 is cast to ASTM B148. C63200 cannot be cast into a complex flanged body, so it appears as stems, discs, forgings and fasteners rather than as the body of a valve. The UNS number, not the family name, is what settles the choice.
Which is stronger, C95500 or C95800? C95500, because aluminum runs 10 to 11.5 percent against 8.5 to 9.5 percent, and the extra aluminum raises tensile strength and hardness while reducing elongation. That also means the casting needs solution treatment and tempering, and it is the less tolerant of the two when weld repair is needed.
Can aluminum bronze valve bodies be welded? Yes, B148 castings are commonly repaired by gas tungsten arc welding with a matching nickel aluminum bronze filler under a qualified procedure, and C95500 needs post weld heat treatment because of its beta content. Wrought C63200 welds readily, but local heating alters its temper, so weld repair on a stem is a decision about strength, not only about sealing.
