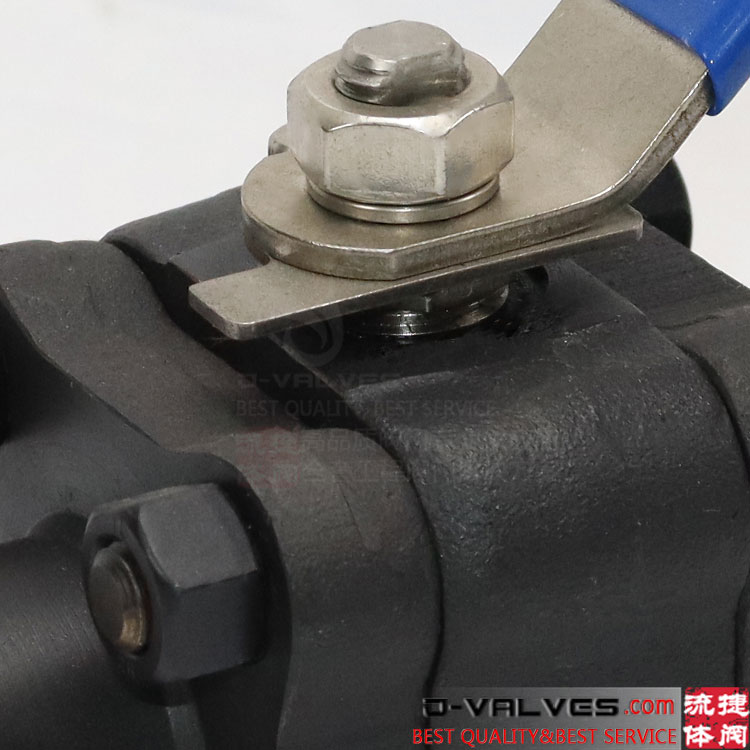

Forged A105 carbon steel NPT thread 3PC ball valve

Share to:
REDUCED/ FULL BORE (1000 PSI)

Threaded: BSP. NPT. PT. DIN 259, 2999

Materials: CF8M (SS316), CF8 (SS304)

DIN 1.4408, SCS 14, WCB 1.0619 Available
Size:
Availability:
Quantity:
  • Q11F
  • J-VALVES

Stainless Steel BSP NPT PT Thread 2PC Ball Valve


SIZE:1/4"~4"


REDUCED/ FULL BORE (1000 PSI)

Threaded: BSP. NPT. PT. DIN 259, 2999

Materials: CF8M (SS316), CF8 (SS304)

DIN 1.4408, SCS 14, WCB 1.0619 Available





Stainless Steel BSP NPT PT Thread 2PC Ball Valve Features:

l Investment casting body and cap.

l Working pressure 800/1000 psi for W.O.G.

l Adjustable stem packing

l Pure Teflon seals and seats

l Temperature range: -60 to 450 °F

l Blow-out proof stem, ball are made of ss316 or customer request

l 100% leakage tested at 100 psi air under water

l Hydrostatic test pressure: 1500psi

l Locking device (option)



 Stainless Steel BSP NPT PT Thread 2PC Ball Valve

1. Full Bore

2. Size: 1/4’’-4’’(DN6-DN100)

3. Working Pressure: 1000/2000PSI(6.4/12.8MPa)

4. DIN M3,PN63

2PC Screwed Ball Valve

1) Full Bore

2) Size: 1/4’’-4’’(DN6-DN100)

3) Material: CF8(SS304), CF8M(SS316), WCB, DIN1.4408/1.4308/1.0619

4) Threaded: BSP, NPT, PT, DIN259/2999

5) Working Pressure: 1000/2000PSI(6.4/12.8MPa)

6) Suitable Temp.: -20~200℃~350℃

7) Suitable Medium: Water, Natural Gas, Oil and some corrosive liquid


Stainless Steel BSP NPT PT Thread 2PC Ball Valve Features:

1. Investment casting body

2. Working pressure 1000/2000 psi for W.O.G.

3. Adjustable stem packing

4. Pure Teflon seals and seats

5. Temperature range: -20~200℃~350℃( -60 to 450 °F)

6. Blow-out proof stem, ball are made of ss316 or customer request

7. 100% leakage tested at 100 psi air under water

8. Hydrostatic test pressure: 1500/3000PSI

9. Locking device (option)

10. Lever Operated

J-VALVE Note: All the data should be confirmed with the approved drawings of manufacturer.
