J-VALVES-CV
J-VALVES
8481804090

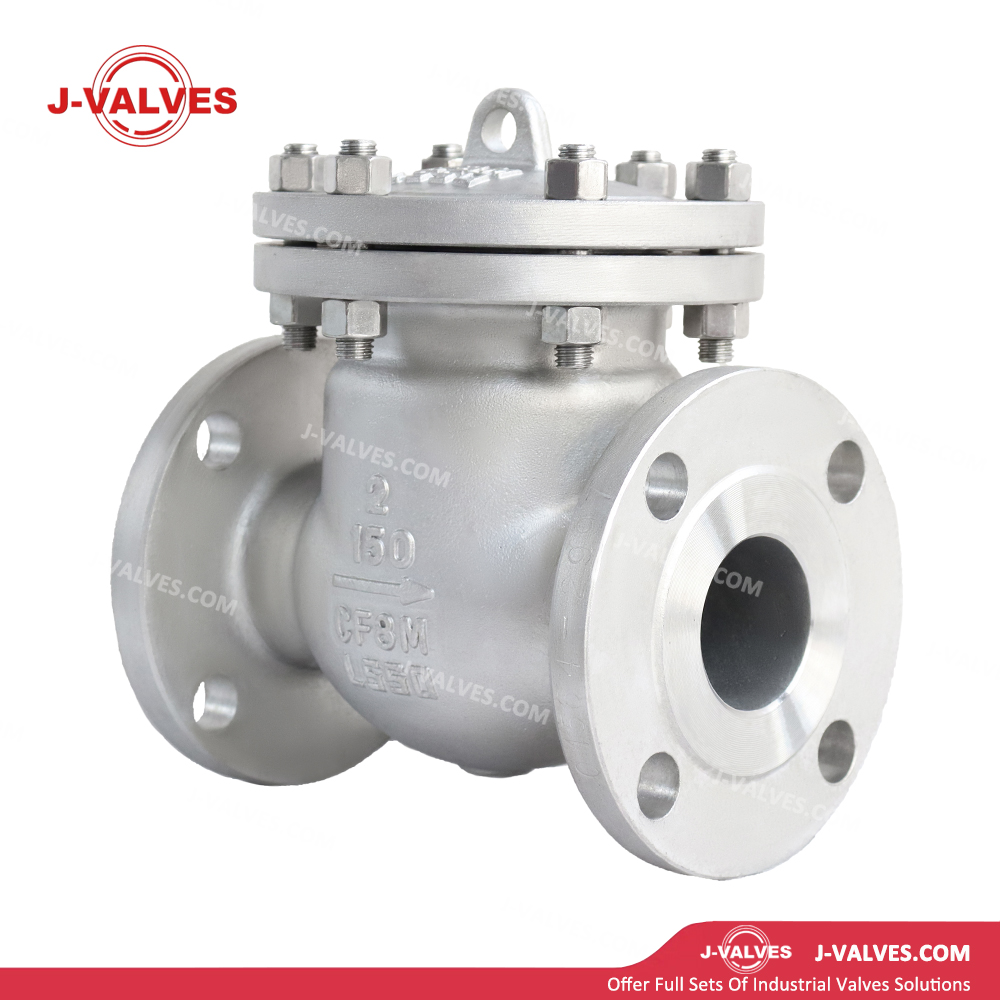

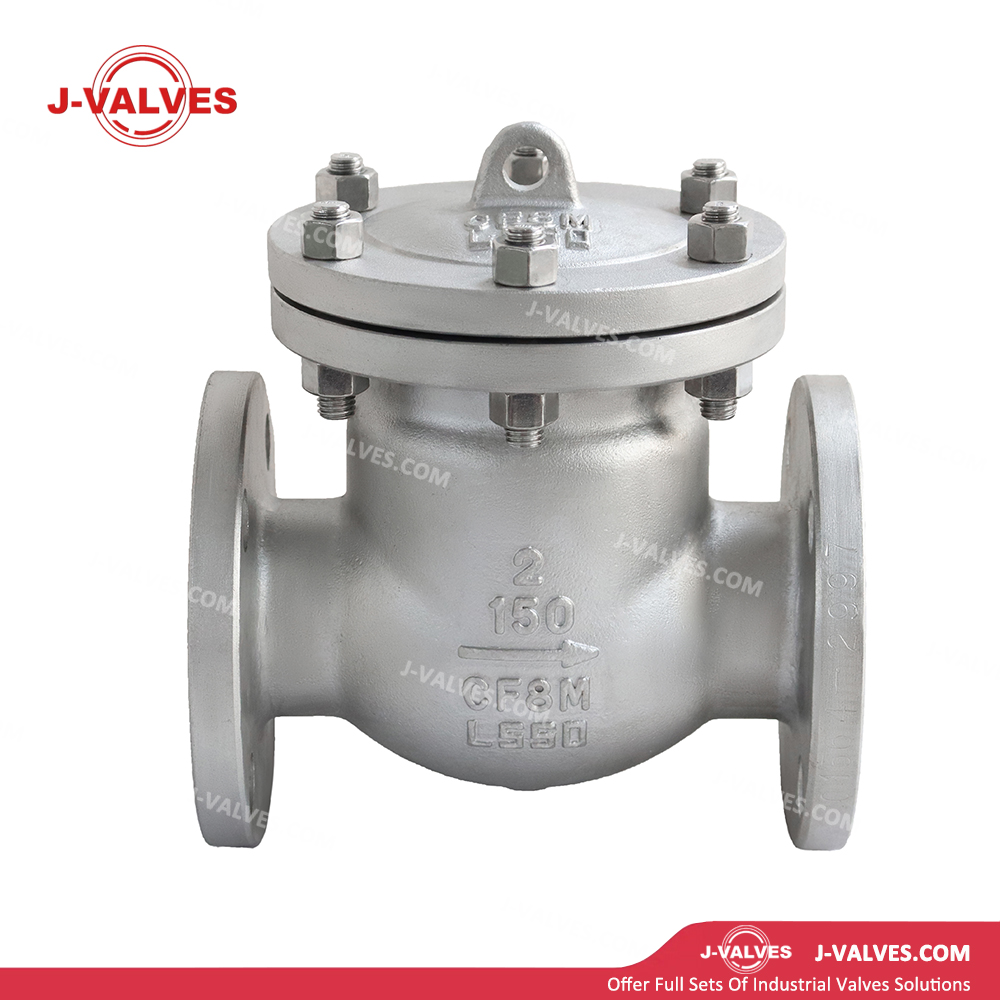

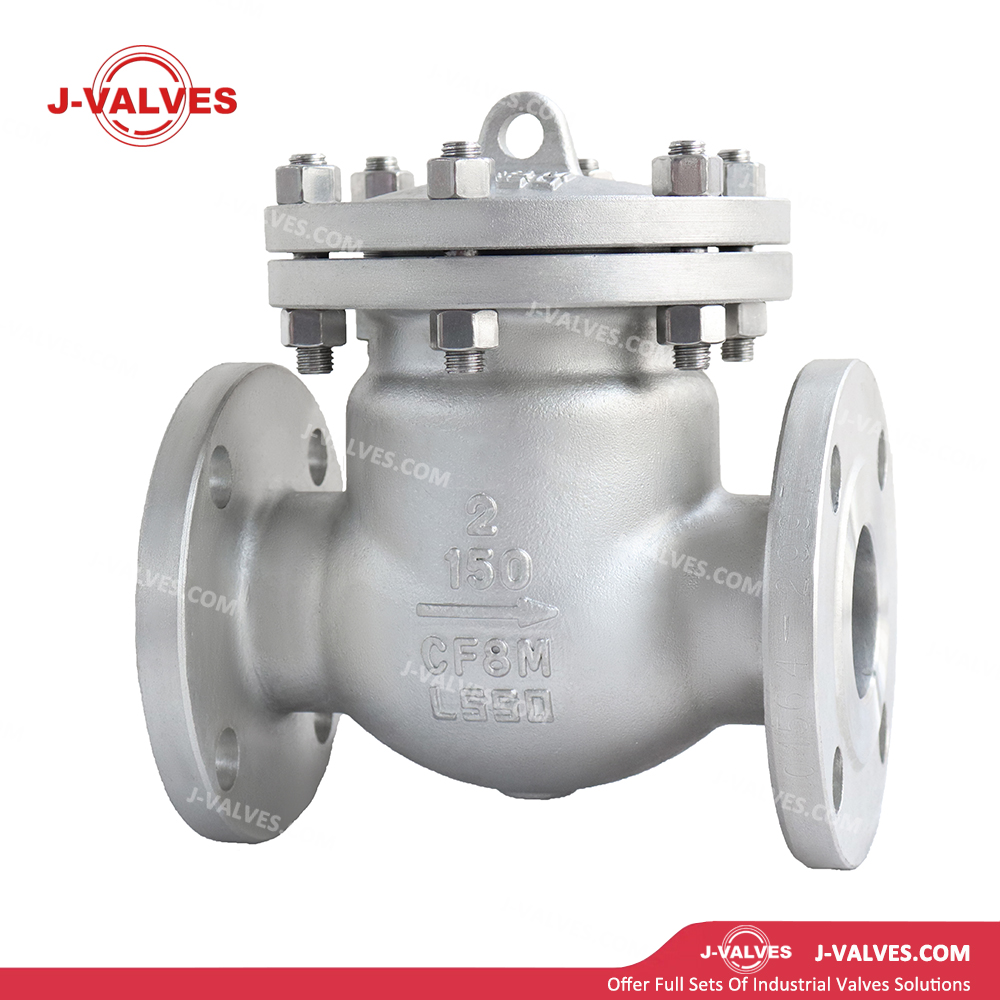

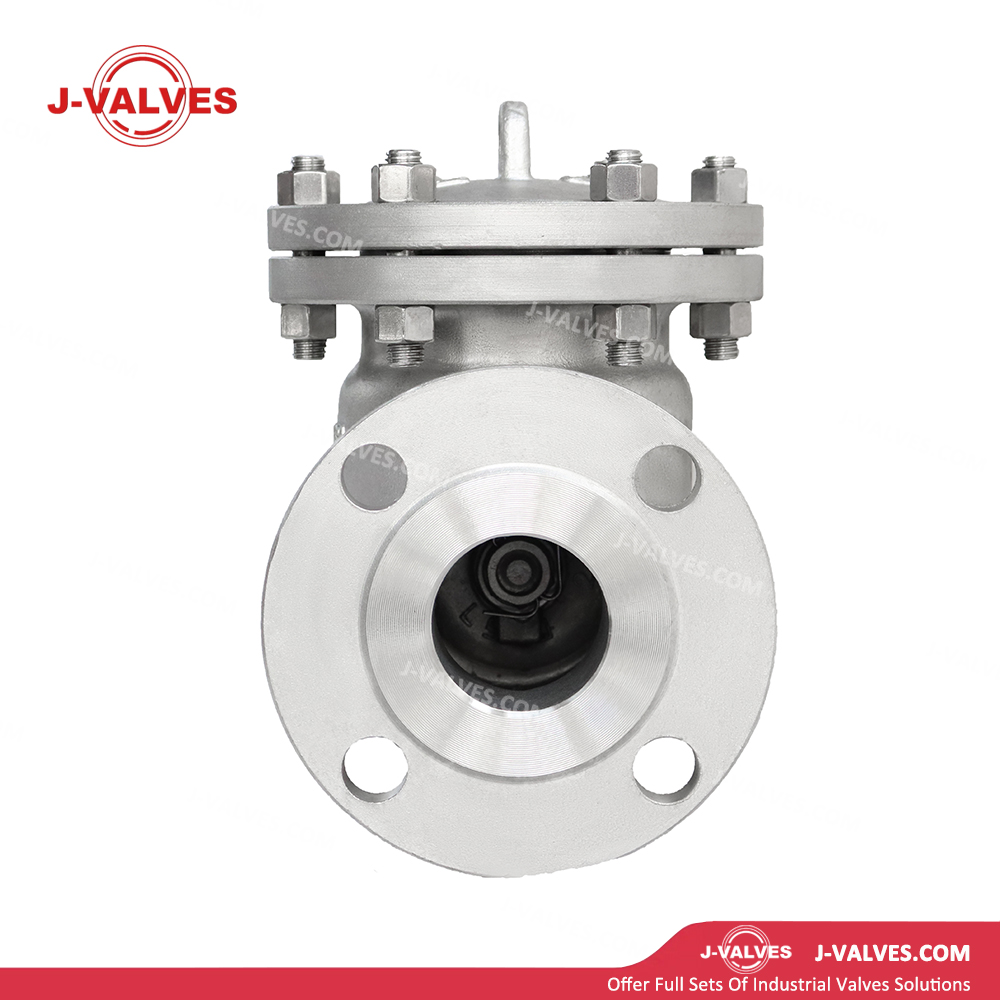

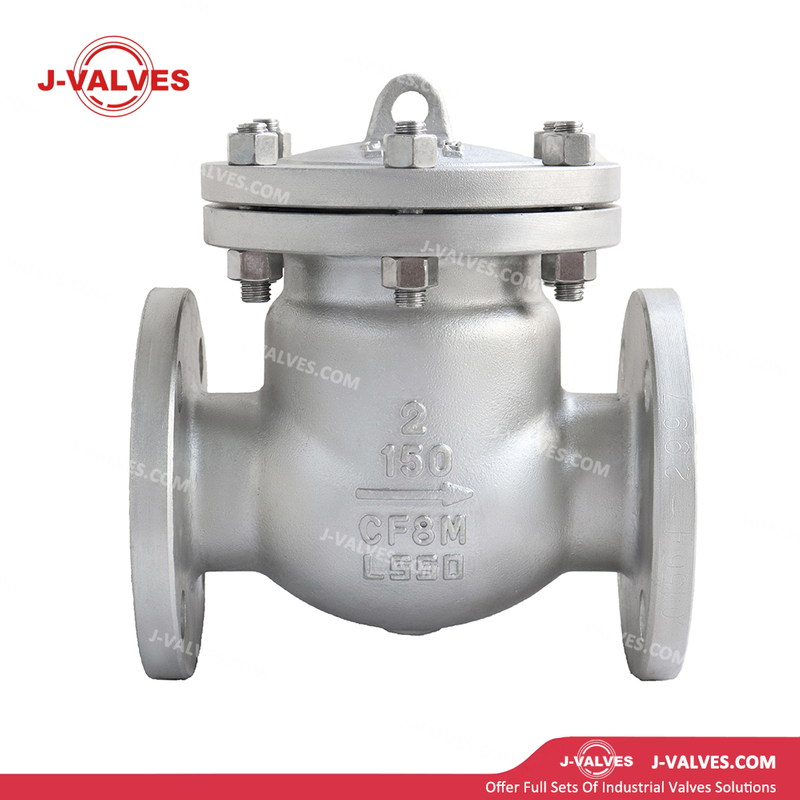

This swing check valve is a reliable solution for industrial fluid control. The CF8M stainless - steel construction not only resists rust and chemical corrosion but also offers long - term durability. The RF - faced flange connection simplifies installation and maintenance. Its swing - check design enables efficient operation, automatically preventing backflow and ensuring the normal flow direction of media in pipelines.
Product Name | 150LB 2'' Stainless Steel CF8M Flange End RF Swing Check Valve |
Material | SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, WCC, LCB,LCC,WC6,WC9, C5,C12, etc. |
Pressure | 150LB-2500LB |
Size | 1-1/2"-48"(DN40-DN1200) |
End Connection | RF/RTJ/BW/SW |
Working Temp | -196ºC~400ºC option. |
Suitable Medium | Water,Natural Gas,Oil and some corrosive liquid |
Features | Integral Forging,Unidirectional Flow,Prevent Backflow,Piston or Spring |
CF8M Stainless Steel Material Properties
CF8M stainless steel exhibits outstanding corrosion resistance, enabling it to endure various corrosive media. Additionally, it can maintain its mechanical strength under extreme temperature variations, ensuring long - term stability and integrity of the valve in demanding industrial environments.
Optimized Interior Flow Path Design
The interior of the swing - check valve is precisely engineered. Its smooth - surfaced flow passage effectively reduces fluid turbulence. This design allows for rapid and efficient fluid transfer while minimizing energy losses during the flow process.
High - Sensitivity Backflow Prevention Mechanism
The valve is equipped with a highly sensitive backflow - detection mechanism. Once reverse flow is detected, it can close instantaneously. This feature effectively protects the entire pipeline system from potential damage caused by back - surges, ensuring the normal operation of the system.
Modular Structural Design for Maintenance
Featuring a modular structural design, the valve enables easy and convenient maintenance. Individual components can be quickly replaced, which significantly reduces maintenance time and costs, and minimizes system downtime.
Broad Chemical Compatibility
Due to the chemically - inert nature of its material and its versatile design, the valve can handle a wide spectrum of aggressive and non - aggressive fluids. It is suitable for use in both high - purity pharmaceutical production and harsh petrochemical processing environments.
Thermal Stability and Durability
The CF8M stainless - steel construction endows the valve with excellent thermal stability. It can maintain its performance and mechanical properties over a wide temperature range, ensuring long - term durability and reliability in different industrial applications.
Installation: The valve is designed for easy installation. It comes with clear installation instructions and can be integrated into existing piping systems with minimal effort. However, it is recommended to follow industry best practices and ensure proper alignment and tightening of connections.
Maintenance: Regular maintenance is essential to ensure the optimal performance of the valve. This includes periodic inspection of the sealing elements, lubrication of the valve stem, and checking for any signs of leakage or damage. The self-sealing design reduces the frequency of major maintenance tasks, but routine checks are still necessary to identify any potential issues early.
Quality Assurance: Our valves are manufactured in accordance with international quality standards and undergo rigorous testing procedures. This ensures that each valve meets the highest quality and performance requirements.
Technical Support: We provide comprehensive technical support to our customers. Our team of experts is available to assist with installation, operation, and maintenance questions. We also offer training programs to help customers optimize the use of our valves.
Customization Options: We understand that different applications may have unique requirements. Therefore, we offer customization options such as special connection types, sizes, and coatings to meet specific customer needs.
