Understanding Y-Type and Basket Strainers
Y-type strainers are named for their Y-shaped design, which includes a cylindrical body and a strainer basket. They are typically used for coarse filtration to remove larger particles from fluid streams.
• Structure and Function: The strainer basket, made of perforated metal or mesh, allows fluid to pass through while trapping solid particles. This design ensures efficient filtration and minimal pressure drop.
• Applications: Y-type strainers are commonly used in applications where the removal of larger particles is necessary, such as in the initial stages of chemical processing.

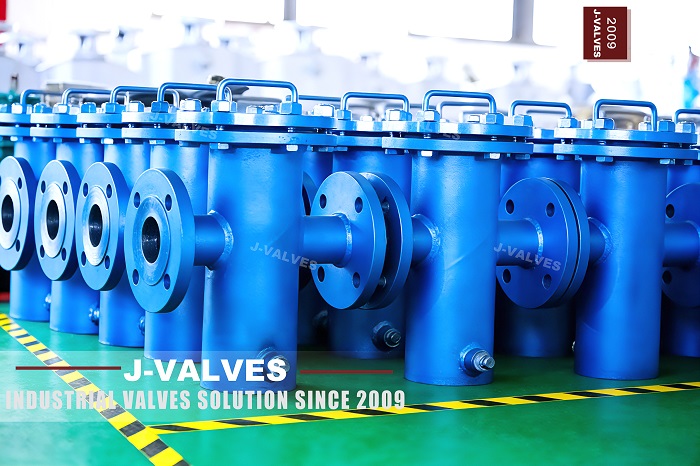

Basket strainers, on the other hand, are designed for finer filtration and are often used in more critical stages of chemical processing.
• Structure and Function: Basket strainers have a larger strainer basket, allowing for finer filtration. They are typically used to remove smaller particles and ensure higher purity levels.
• Applications: Basket strainers are used in applications where high filtration efficiency is required, such as in the final stages of chemical processing or in sensitive operations like pharmaceutical production.
Applications in Fine Chemical Processing
Y-type strainers are ideal for coarse filtration in the initial stages of chemical processing. They are used to remove larger particles that could potentially damage downstream equipment or affect the quality of the final product.
• Removal of Large Particles: Y-type strainers effectively remove particles larger than 100 micrometers, ensuring that the fluid stream is free from large impurities.
• Protection of Downstream Equipment: By removing larger particles, Y-type strainers protect critical equipment such as pumps, valves, and heat exchangers from damage caused by solid particles.
Basket strainers are designed for fine filtration and are used in the later stages of chemical processing to ensure high purity levels.
• High Filtration Efficiency: Basket strainers can remove particles as small as 10 micrometers, ensuring that the final product meets stringent purity requirements.
• Critical Applications: Basket strainers are often used in sensitive operations such as pharmaceutical production, where high purity levels are essential.
Advantages and Considerations
• Efficient Coarse Filtration: Y-type strainers are highly effective in removing larger particles, ensuring that the fluid stream is free from significant impurities.
• Minimal Pressure Drop: The design of Y-type strainers ensures minimal pressure drop, making them suitable for applications where maintaining fluid flow is crucial.
• Ease of Maintenance: Y-type strainers are relatively easy to clean and maintain, reducing downtime and maintenance costs.
• Limited Filtration Efficiency: Y-type strainers are not suitable for fine filtration applications where the removal of smaller particles is necessary.
• Potential for Clogging: In applications with high levels of solid particles, Y-type strainers may require frequent cleaning to prevent clogging.
• High Filtration Efficiency: Basket strainers provide high filtration efficiency, removing smaller particles and ensuring high purity levels.
• Versatility: Basket strainers can be used in a wide range of applications, from general chemical processing to sensitive operations like pharmaceutical production.
• Durability: Basket strainers are designed to withstand high pressures and temperatures, making them suitable for demanding applications.
• Higher Pressure Drop: Fine filtration typically results in a higher pressure drop across the filter, which may require additional energy to maintain fluid flow.
• Increased Maintenance: Due to their fine filtration capabilities, basket strainers may require more frequent cleaning and maintenance to ensure optimal performance.
