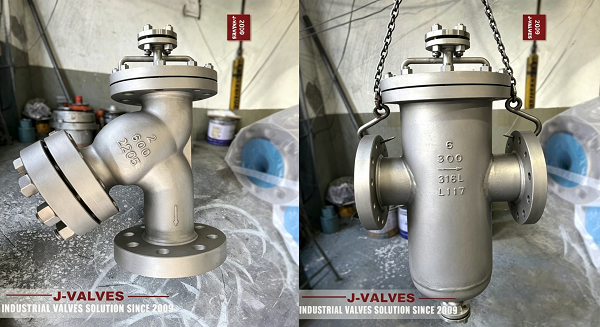

Strainers are essential components in industrial piping systems, designed to protect pumps, valves, and downstream equipment from debris and particulate contamination. Among the most commonly used strainers are Y-strainers and basket strainers. While both perform filtration, their structural design, flow characteristics, maintenance requirements, and operational advantages differ significantly. Understanding these differences is crucial for engineers to select the optimal strainer for specific applications.
Body Design: Compact Y-shaped body, ideal for installations with limited space.
Filter Element: Perforated or mesh screen located diagonally to the pipeline, removable for cleaning.
Installation Flexibility: Can be installed horizontally or vertically, depending on flow direction.
Flow Path: Slightly angled through the strainer, which may increase pressure drop under high debris load.
Body Design: Larger T-shaped or straight body accommodating a basket-type screen.
Filter Element: Removable basket with a large filtration area, reducing clogging and pressure loss.
Installation: Typically installed horizontally for ease of basket removal.
Flow Path: Straight-through design, allowing smooth flow and minimal turbulence.
Y-Strainers: Compact design results in moderate pressure drop, suitable for small- to medium-sized pipelines.
Basket Strainers: Large filtration area reduces flow resistance and minimizes pressure drop, particularly in high-flow systems.
Y-Strainers: Smaller screens clog faster, requiring more frequent maintenance, but are easier to clean in tight spaces.
Basket Strainers: Larger baskets allow less frequent cleaning, ensuring continuous operation with minimal downtime.
Y-Strainers: Suitable for low to moderate particulate loads.
Basket Strainers: Can handle high debris loads, making them ideal for industrial fluids, oil pipelines, and chemical processes.
Y-Strainers: Can be used in both horizontal and vertical pipelines.
Basket Strainers: Typically require horizontal installation due to basket removal considerations.
Feature | Y-Strainer | Basket Strainer |
|---|---|---|
Filtration Area | Small | Large |
Pressure Drop | Moderate | Low |
Maintenance Frequency | High | Low |
Flow Path | Angled | Straight-through |
Debris Capacity | Low to Moderate | High |
Installation | Horizontal/Vertical | Mostly Horizontal |
Ideal Applications | Small pipelines, HVAC, water treatment | High-flow industrial, oil & gas, chemical pipelines |
Y-Strainers: Suitable for smaller pipelines, moderate flow rates, and space-limited installations. Ideal for protecting sensitive equipment in HVAC, water treatment, and low-flow oil systems.
Basket Strainers: Recommended for high-capacity pipelines, high debris content fluids, and industrial applications where energy efficiency and maintenance intervals are critical.
Pressure Drop Impact: Basket strainers typically offer lower energy loss, reducing pump workload in large-scale systems.
Flow Continuity: Larger filtration area in basket strainers maintains steady flow, preventing turbulence-related wear.
Maintenance Downtime: Reduced cleaning frequency improves system uptime and operational efficiency.
Both Y-strainers and basket strainers provide essential filtration in industrial systems, but their structural and operational advantages differ.
Y-Strainers: Compact, flexible, and cost-effective for low-to-medium flow and particulate loads.
Basket Strainers: Larger capacity, lower pressure drop, and ideal for high-flow, debris-heavy pipelines, offering improved energy efficiency and maintenance intervals.
Understanding these differences ensures optimal strainer selection, enhancing system reliability, energy efficiency, and long-term operational performance.
