When designing or maintaining an industrial fluid system, ensuring that the fluid flow remains free from debris and contaminants is essential for the longevity and efficiency of equipment. Y-strainer filters are commonly used to remove unwanted particles from liquid or gas flows, ensuring system reliability and protecting downstream equipment from damage. However, selecting and sizing a Y-strainer filter correctly is vital for optimal performance.

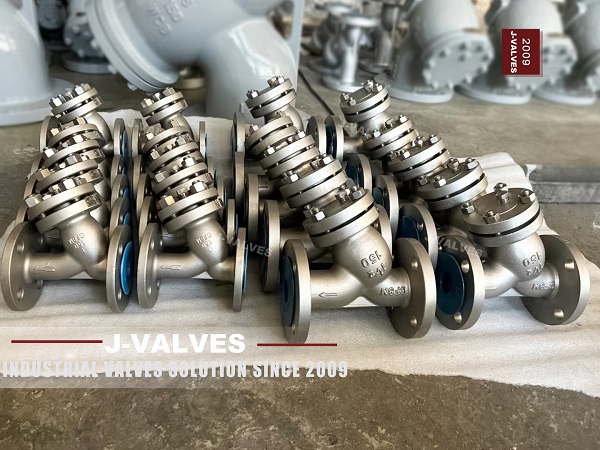

A Y-strainer filter is a type of filtration device commonly used in industrial piping systems to protect pumps, valves, and other sensitive equipment from debris and particles. The filter is shaped like the letter "Y," which gives it its name. The strainer consists of a mesh or perforated screen that traps contaminants in the fluid, allowing clean fluid to pass through the system.
Y-strainers are typically used in applications where the fluid being processed has the potential to carry particles that could clog or damage equipment. They are most commonly found in industries such as oil and gas, chemical processing, water treatment, power generation, and HVAC systems.
Proper sizing of a Y-strainer filter is essential to maintain optimal flow while ensuring adequate filtration and preventing excessive pressure drop across the system. The following factors are crucial when selecting the correct size for your Y-strainer:
The flow rate of the fluid passing through the Y-strainer is one of the most important factors in determining the proper strainer size. If the filter is undersized, it may result in excessive pressure drop, which could reduce the efficiency of the system. If it is oversized, the filtration process may become unnecessarily slow or inefficient.
GPM (Gallons per Minute): The flow rate is typically measured in gallons per minute (GPM) for liquid systems. For gas systems, flow rates are usually measured in standard cubic feet per minute (SCFM).
Maximum Flow: Be sure to select a Y-strainer with a flow rating that exceeds the maximum expected flow rate of your system to ensure efficient filtration and prevent clogging.
The size of the pipe through which the fluid flows determines the size of the Y-strainer filter. Generally, the Y-strainer should match the diameter of the pipeline to ensure smooth and uninterrupted flow.
Strainer Size vs. Pipe Size: The strainer's size should match or be slightly larger than the diameter of the pipe. For instance, if you have a 4-inch pipe, you would typically choose a 4-inch Y-strainer. However, make sure the flow rate and pressure conditions are considered in the final selection.
The mesh or perforation size refers to the size of the openings in the strainer's screen. Choosing the correct mesh size is critical to ensuring that the Y-strainer effectively filters out unwanted particles without impeding the flow too much.
Mesh Size: The mesh size is typically specified in terms of the number of openings per inch (mesh). For example, a 20 mesh filter has 20 openings per inch. The higher the mesh number, the finer the filtration.
Particle Size: The mesh size should be chosen based on the size of the particles you want to filter out. For example, if you are filtering out large debris, you may choose a coarser mesh with fewer openings. For more precise filtration, a finer mesh will be required.
The pressure drop is the difference in pressure across the filter and is an important factor in selecting the right Y-strainer. A pressure drop that is too high can lead to inefficient system operation, while too low of a pressure drop might result in insufficient filtration.
Acceptable Pressure Drop: Ensure the pressure drop across the strainer is within acceptable limits for your system. This can be calculated using the Kv value (flow coefficient) of the strainer, which indicates how much pressure drop occurs for a given flow rate.
Flow Velocity: The flow velocity through the strainer also impacts the pressure drop. High-velocity flows can create excessive pressure drop and strain the system. Ideally, the velocity should be between 2-5 feet per second.
The material of the Y-strainer must be compatible with both the fluid being filtered and the operating environment. The wrong material can lead to corrosion, erosion, or damage to the strainer, reducing its lifespan and performance.
Corrosion Resistance: For systems handling corrosive fluids, stainless steel or other corrosion-resistant alloys are preferred for the strainer body and mesh.
High Temperature Resistance: If the fluid is heated or if the system operates in extreme temperatures, ensure that the material selected can withstand these conditions. Common materials for high-temperature applications include carbon steel, bronze, and special alloys.
The type of fluid passing through the Y-strainer significantly affects the sizing process. Different fluids, such as liquids, gases, slurries, or steam, have unique flow characteristics that impact the efficiency and performance of the strainer.
Viscosity: Viscous fluids (such as oils or slurries) require more robust filtration, and the Y-strainer may need to be larger to prevent clogging and ensure smooth flow.
Gas vs. Liquid: For gas systems, Y-strainers must be sized differently from liquid systems. Gas systems often require a larger surface area for filtration to reduce pressure loss due to the lower density of gases.
Follow these steps to properly size a Y-strainer for your system:
Identify the maximum flow rate (in GPM or SCFM) for the system. This can be determined by the design specifications of the process or system.
Choose a Y-strainer size that corresponds to the pipeline diameter. Ensure that the strainer's diameter is equal to or slightly larger than the pipe size for optimal flow.
Based on the type of debris you need to filter, select the appropriate mesh size. For coarse filtration, choose a larger mesh (e.g., 10-20 mesh), and for fine filtration, select a smaller mesh (e.g., 60-100 mesh).
Using flow rate and pipe size, calculate the expected pressure drop across the strainer. Make sure it aligns with the system’s operating parameters to prevent unnecessary loss of pressure or flow efficiency.
Choose materials that are compatible with the fluid being filtered and ensure they can handle the system's operating conditions, including temperature and pressure.
Always refer to the manufacturer's sizing charts and guidelines. Many manufacturers provide calculation tools or data sheets to help you select the correct strainer based on flow rates, pressure, and mesh size.
Y-strainers are used in a variety of applications, including:
Oil and Gas: Protecting pumps, compressors, and valves from debris in pipelines.
Water Treatment: Filtering particulates from water in treatment plants and distribution systems.
HVAC Systems: Protecting cooling and heating systems from particulates in the flow.
Chemical Processing: Filtering out contaminants from chemical process lines.
Power Generation: Protecting equipment in power plants from scale or other debris in water cooling systems.
Properly sizing a Y-strainer filter is crucial for maintaining the efficiency and longevity of industrial systems. By carefully considering factors such as flow rate, pipe size, mesh size, pressure drop, and material compatibility, you can ensure that the Y-strainer will provide optimal filtration performance. This process helps maintain system reliability, prevent damage to equipment, and ensure safe and efficient operation.
