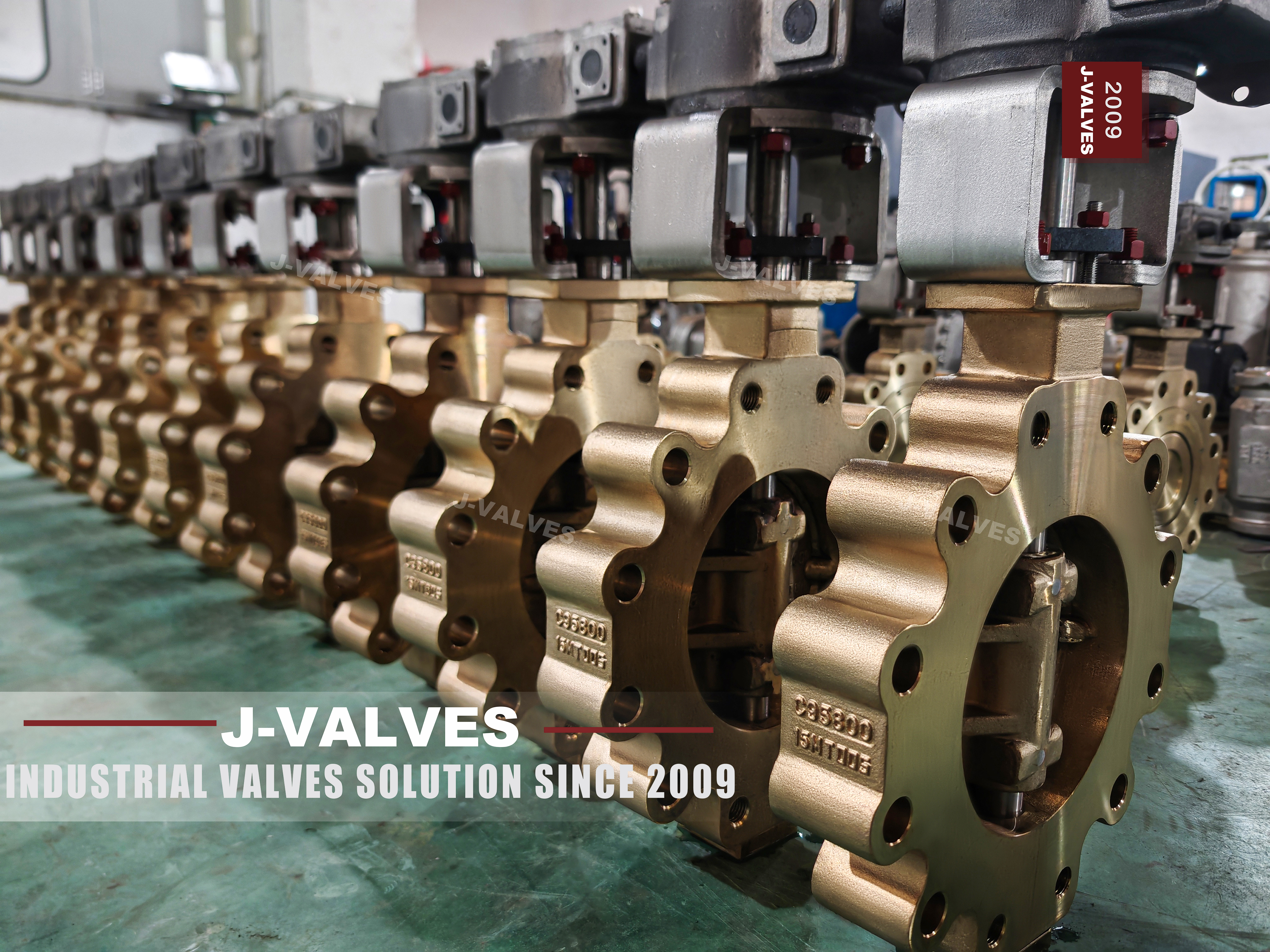

The Material Secrets of Bronze Butterfly Valves: How J-VALVES Stands Out in The Market with Unique Materials

I. Common Material Types and Performance Parameters of Bronze Butterfly Valves

The common material types of BRONZE BUTTERFLY VALVES mainly include nickel-aluminum bronze, aluminum bronze, and cast iron, etc. Among them, nickel-aluminum bronze is a relatively common choice due to its excellent corrosion resistance, especially suitable for seawater environments. Aluminum bronze is also widely used in the industrial field because of its good corrosion resistance and wear resistance.

In terms of performance parameters, bronze butterfly valves usually have the following characteristics:

· Corrosion Resistance: Nickel-aluminum bronze contains about 10% aluminum, 5% nickel, and 5% iron, enabling it to perform excellently in seawater and corrosive media.

· Sealing Performance: Common sealing materials include PTFE, RPTFE, NBR, and EPDM, which can achieve a combination of soft and hard seals to ensure zero leakage.

· Structural Design: Mostly adopting the triple eccentric design, it has good sealing performance and operational flexibility.

· Pressure Range: Applicable to medium and low-pressure environments, such as from 150LB to 600LB.

· Temperature Range: Generally applicable to environments from normal temperature to high temperature, and some models can reach +150°C.

· Connection Methods: Including flange type, lug type, and wafer type, etc.

II. The Core Material Formula of J-VALVES Bronze Butterfly Valves

The core material formula of J-VALVES bronze butterfly valves mainly includes the following materials:

· Valve Body: Usually made of gray cast iron (such as GGG40) or ductile iron (such as QT450-10). These materials have good mechanical properties and corrosion resistance and are suitable for a variety of media and environments.

· Disc: Mainly using aluminum alloy bronze (such as A135 CF8M/CF8/CF3/CF8M) or nickel-aluminum bronze (such as ASTM B148 C95800). These materials have high strength, corrosion resistance, and pitting resistance, and are especially suitable for seawater, corrosive media, and high-pressure working conditions.

· Sealing Ring: Usually adopting NBR (nitrile rubber), EPDM (ethylene-propylene-diene monomer rubber), or PTFE (polytetrafluoroethylene). These materials have excellent sealing performance and chemical resistance and can meet the needs of different working conditions.

· Valve Stem: Generally made of stainless steel (such as AISI 316L or AISI 304) or aluminum alloy bronze to ensure strength and corrosion resistance.

· Connecting Parts: Such as bolts and nuts, usually made of stainless steel or aluminum alloy bronze to improve overall durability and corrosion resistance.

III. The Measured Data of J-VALVES in Corrosive Environments

According to the existing information, the measured data of J-VALVES in corrosive environments are as follows:

The JIS 10K 20K SS304 flange swing check valve is applicable to corrosive media such as water, oil, and natural gas. Its materials are A351 CF8/CF3/CF3M, A216 WCB, A352 LCB, A269 WC6/WC7, and its working temperature range is from -196ºC to 450ºC, indicating its good tolerance in a variety of corrosive media.

The J41H forged steel gate valve conforms to API602 and CL900 standards, is applicable to water, natural gas, oil, and some corrosive liquids, and its working pressure range is from 150LB to 1500LB, indicating its stable application performance in corrosive environments.

The Class600# flange cast iron ball valve is applicable to a variety of corrosive liquids, and its working temperature range is from -29°C to 425°C. It conforms to API598 standard, further proving its reliability in corrosive environments.

TheC95800 NICKEL-ALUMINUM BRONZE BALL VALVE is especially suitable for high-corrosion seawater control. Compared with other cast steel ball valves and stainless steel ball valves, it has a longer service life, indicating its superior performance in extremely corrosive environments.

In conclusion, the products of J-VALVES show good tolerance and reliability in a variety of corrosive media and are suitable for various industrial scenarios such as chemical plants, refineries, and gas purification plants.

In conclusion, the C95800 NICKEL-ALUMINUM BRONZE BALL VALVE is applicable to a variety of corrosive media, including seawater, sulfate solutions, chloride solutions, and acidic environments, and performs excellently especially in 3.5 wt% NaCl solution.

IV. Key Demand Indicators for Butterfly Valve Materials in the Industrial Field

The key demand indicators for butterfly valve materials in the industrial field mainly include the following aspects:

· Corrosion Resistance: When butterfly valves are used in different media environments, corrosion resistance is a key requirement. For example, stainless steel materials (such as 304, 316L) are suitable for complex environments such as acid-base solutions, high temperature and high pressure due to their excellent corrosion resistance.

· Sealing Performance: Sealing performance is an important indicator for measuring the quality of butterfly valves. High-quality butterfly valves usually adopt EPDM or PTFE as sealing materials to ensure reliable sealing under various working conditions.

· Mechanical Properties: Butterfly valves need to have high strength and toughness to cope with high pressure differences and frequent operations. For example, ductile iron (QT450-10) and stainless steel (such as SUS304) are widely used in industrial pipeline systems due to their good mechanical properties.

· Applicable Temperature and Pressure Range: Butterfly valves need to meet the temperature and pressure requirements under specific working conditions. For example, stainless steel butterfly valves are suitable for ultra-high temperature, ultra-low temperature, and high-pressure environments, while cast iron butterfly valves are suitable for general water systems.

· Durability and Maintenance Cost: Durability directly affects the service life and maintenance cost of butterfly valves. High-quality butterfly valves usually adopt high-quality materials and optimized designs to extend the service life and reduce maintenance requirements.

· Standards and Specifications: The selection of butterfly valve materials needs to comply with international and national standards, such as ISO 5004, API 609, GB/T 12240, etc., to ensure their performance and safety.

V. J-VALVES Market Share and Customer Feedback Report

The report on J-VALVES' market share and customer feedback can be summarized as follows:

1. Market Share:

· J-VALVES is a company focusing on the manufacturing of industrial valves. Its product line includes various types such as ball valves, gate valves, globe valves, check valves, and butterfly valves, which are widely used in industries such as water treatment, natural gas, and petroleum.

· Founded in 2018, it has now become a large enterprise integrating factory export and trade, with customers in many countries and regions around the world, including Spain, Italy, the United States, Malaysia, etc.

· In 2023, J-VALVES' sales reached 12 million US dollars, demonstrating its significant presence in the industrial valve market.

2. Customer Feedback:

· The products of J-VALVES are reliable in quality, and the after-sales service is perfect, including replying to customer inquiries within 48 hours and providing inspection reports.

· The company emphasizes the purity of materials and promises free replacement after sales to ensure customer satisfaction.

· J-VALVES also provides a variety of customized services, such as different types of driving methods like handwheels, worms, and gears, as well as multiple material options to meet the diverse needs of customers.

3. Competitive Advantages:

· J-VALVES has passed multiple international certifications such as ISO9001 and API607 to ensure that its product quality meets high standards.

· The company has an experienced team of engineers and provides services such as process design, mechanical manufacturing, installation, and technical training, further enhancing its market competitiveness.

J-VALVES has occupied a certain share in the global industrial valve market and has been highly recognized by customers by virtue of its diversified product line, reliable quality, and perfect after-sales service.
