Ball Valves Vs. Gate Valves: A Comparative Analysis of Actuation Methods

Manual Actuation

Ball Valves

• Design and Operation: Manual ball valves typically feature a lever or handle that allows the operator to rotate the ball 90 degrees to open or close the valve. This quarter-turn operation is quick and straightforward.

Advantages

• Cost-Effective: Manual actuation is generally the most cost-effective option, requiring no external power source.

• Simple Design: The simple design of manual ball valves makes them easy to install and maintain.

• Quick Operation: The quarter-turn mechanism allows for rapid opening and closing, which is beneficial in applications requiring quick shutoff.

Gate Valves

• Design and Operation: Manual gate valves use a handwheel or lever to raise or lower the gate, allowing for precise control over fluid flow. This linear motion requires multiple turns to fully open or close the valve.

Advantages

• Cost-Effective: Similar to ball valves, manual gate valves are cost-effective and require no external power source.

• Precise Control: The multi-turn mechanism allows for precise control over fluid flow, making it suitable for applications requiring gradual flow adjustments.

Electric Actuation

Ball Valves

• Design and Operation: Electrically actuated ball valves use an electric motor to rotate the ball, providing precise control over valve operation. These valves can be integrated with automated control systems for remote operation.

Advantages

• Precise Control: Electric actuators provide precise control over valve position, allowing for accurate flow control.

• Remote Operation: Integration with control systems enables remote operation and monitoring, reducing the need for manual intervention.

• Automation: Electric actuators can be easily integrated with PLCs (Programmable Logic Controllers) and SCADA (Supervisory Control and Data Acquisition) systems for automated control.

Gate Valves

• Design and Operation: Electrically actuated gate valves use an electric motor to raise or lower the gate, providing precise control over fluid flow. These valves can be integrated with automated control systems for remote operation.

Advantages

• Precise Control: Electric actuators provide precise control over valve position, allowing for accurate flow control.

• Remote Operation: Integration with control systems enables remote operation and monitoring, reducing the need for manual intervention.

• Automation: Electric actuators can be easily integrated with PLCs and SCADA systems for automated control.

Pneumatic Actuation

Ball Valves

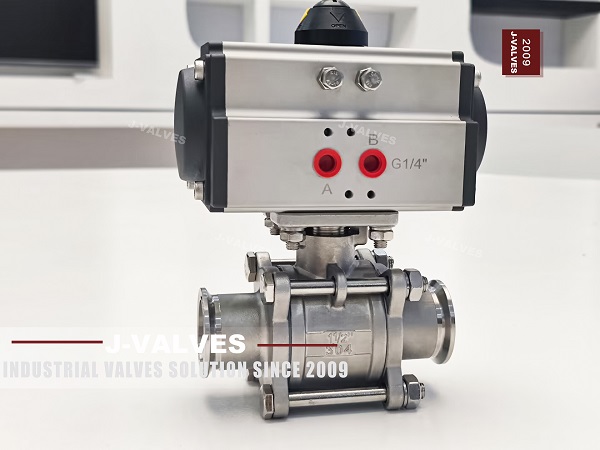

• Design and Operation: Pneumatically actuated ball valves use compressed air to rotate the ball, providing quick and reliable operation. These valves can be equipped with positioners for precise control.

Advantages

• Quick Operation: Pneumatic actuators provide rapid opening and closing, which is beneficial in applications requiring quick shutoff.

• Reliability: Pneumatic actuators are generally more reliable than electric actuators, requiring less maintenance.

• Cost-Effective: Pneumatic actuators are often less expensive than electric actuators and require simpler installation.

Gate Valves

• Design and Operation: Pneumatically actuated gate valves use compressed air to raise or lower the gate, providing reliable operation. These valves can be equipped with positioners for precise control.

Advantages

• Quick Operation: Pneumatic actuators provide rapid opening and closing, which is beneficial in applications requiring quick shutoff.

• Reliability: Pneumatic actuators are generally more reliable than electric actuators, requiring less maintenance.

• Cost-Effective: Pneumatic actuators are often less expensive than electric actuators and require simpler installation.

Comparative Analysis

Key Differences
