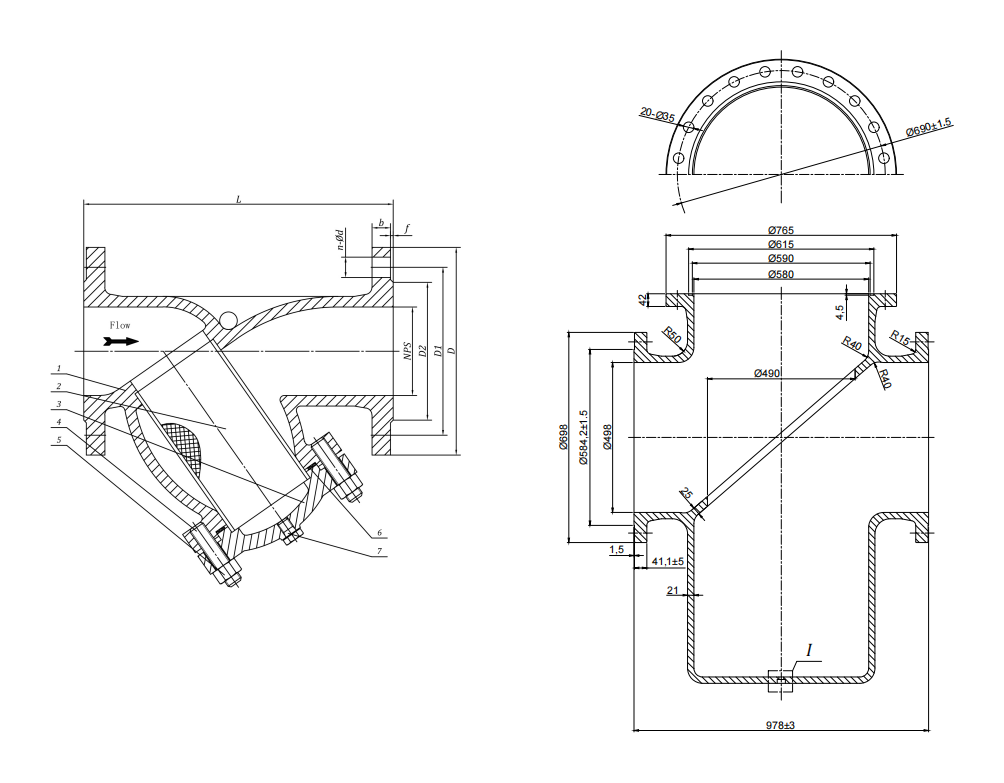

A Y-type strainer and a basket strainer use the same stainless screen, so the difference is geometry. In a Y-type the flow turns into a pocket set at about 45 degrees to the run, passes a small screen, and turns back. In a basket the flow enters a vertical basket through its side wall and leaves through the top, so the screen is a large cylinder with a closed bottom: same mesh, several times the surface.
That geometry drives pressure drop, cleaning interval, orientation and the services that destroy the strainer. A DN50 Y-type with a 40 mesh screen ahead of a steam trap is sensible. The same strainer on cooling water carrying silt blinds in days, and the pump cavitates before anyone reads the gauge.
Open area ratio is the screen free area divided by the cross section of the inlet bore. It separates a strainer that works from one cleaned every week, because a 3:1 screen still has twice the pipe area free when it is half blocked.
The arithmetic explains the geometry. A DN150 bore of about 154 mm has a section of roughly 186 cm2. At 3:1 the screen needs about 559 cm2 free, and a 40 mesh screen that is 40 percent open needs roughly 1400 cm2 of gross surface. A Y pocket cannot offer that; a basket 154 mm in diameter and 400 mm tall carries about 1930 cm2 of wall. A datasheet quoting only line size and mesh has said nothing about open area ratio, the number that sets the cleaning interval.
Specify the opening in micron, not the mesh count alone. 20 mesh is about 840 micron at 46 percent open area, 40 mesh about 420 micron, 100 mesh about 149 micron at 30 percent open, and 200 mesh about 74 micron. Perforated plate runs from 0.8 to 6.4 mm, is stronger and easier to clean, and suits pipe scale, weld slag and gravel.
| Type | Open area ratio | Dirt capacity | Cleaning | Where it belongs | How it fails |
|---|---|---|---|---|---|
| Y-type | 1:1 to 3:1 | Low | Blowdown or screen removal | Steam, gas, light debris, small lines | Blinds fast on fine mesh or silt |
| Basket | 4:1 to 6:1 | High | Lift the basket | Dirty liquids, pump suction | Condensate and water hammer on steam |
| Duplex basket | Two baskets in parallel | Very high | Changeover while running | Continuous process | Diverting valve leakage passes debris |
Two rules follow. In a liquid line that needs 80 mesh or finer, the screen belongs in a basket, and in a duplex if the line cannot stop. On steam it belongs in a Y-type whatever the mesh, with a Dutch weave such as 30 x 160 that tolerates a high differential before it bursts.
A correctly sized Y-type adds 2 to 5 psi (0.14 to 0.35 bar) clean at rated flow; a basket of the same size and mesh runs at a third to a half of that because face velocity is lower. Those are clean figures, and clean figures mislead. At half its dirt capacity a Y-type sits at three to four times its clean value.
Set the cleaning alarm at 5 to 10 psi (0.35 to 0.7 bar) and treat 15 psi (1 bar) as a hard limit, above which the screen deforms and a collapsed 200 mesh screen dumps its entire load downstream. A differential gauge or transmitter across the strainer is the only way to know whether a screen sits at 20 or 80 percent of capacity.
Steam on a basket. A vertical basket holds condensate against the screen, and on steam that pocket becomes a water slug that produces water hammer and cracked baskets. The bolted cover also expands at a different rate from the body, so the gasket weeps within a few hundred cycles. A Y-type drains its pocket to the trap through the blowdown connection.
Fine mesh on a Y-type. Below about 80 mesh the screen area in a Y pocket cannot carry a liquid line's dirt load, and the strainer blinds within days. If the duty needs 100 mesh or finer in a liquid, use a basket.
A third failure is quieter. A Y-type in a vertical line with upward flow has its pocket opening downward, so captured debris falls straight back into the stream.
On a Y-type the pocket points down on a horizontal line, or on a vertical line only with flow running into it. Leave clearance below equal to the body length and fit a blowdown valve. On a basket: horizontal line only, clearance above the cover equal to the basket length plus lifting room, and a support once the size passes roughly DN200. Isolation valves on both sides turn a two hour shutdown into a fifteen minute change.
Six lines settle the selection: line size and rating, medium and temperature, required opening in micron, open area ratio target, allowable clean differential at design flow, and cleaning method. Add the connection standard, because a strainer with the wrong facing does not fit. The same discipline applies to the valve itself, and the boundary between forged and cast bodies is set out in our comparison of API 602 and API 600 forged versus cast steel valves.
J-VALVES builds Y-type, basket and T-type strainers from DN15 to DN350 (1/2 to 14 inch) in Class 150 through 2500, in A216 WCB, A217 WC6, A351 CF8 and CF8M, A352 LCB and C95800 aluminium bronze, with 20 to 200 mesh stainless screens or 0.8 to 6.4 mm perforated plate. Bodies are tested to API 598 at 1.5 times rating for shell and 1.1 times for seat, flanges are machined to ASME B16.5 with RF or RTJ facing, and EN 10204 3.1 certificates are issued for body and screen material. 40 mesh is the standard stock screen for water duty.
Is a Y-type strainer or a basket strainer better for steam? A Y-type. A vertical basket holds condensate against the screen, and on steam that pocket becomes a water slug that produces water hammer and cracked baskets; the large bolted cover also weeps at the gasket after thermal cycling. A Y-type drains its pocket to the steam trap through the blowdown connection.
What open area ratio should I specify for a strainer? At least 3:1 for a Y-type and 4:1 to 6:1 for a basket. Open area ratio is screen free area divided by pipe cross section, and it sets both clean pressure drop and the interval between cleanings. A 3:1 screen still has twice the pipe area free at 50 percent blockage.
Can aY-type strainer be installed in a vertical line? Only when flow runs downward into the pocket. With upward flow the pocket opens downward and captured debris falls back into the stream, which defeats the strainer and passes the load downstream. On a vertical run with upward flow, relocate the strainer to a horizontal line.
