Introduction
Y Type Strainers are widely used in industrial piping systems to remove solid particles and protect pumps, valves, heat exchangers, and other downstream equipment. For oil and gas, petrochemical, marine, and process applications, proper consideration of pressure rating, materials, connections, inspection, and testing is essential.
When specifying an API Y Strainer, engineers should evaluate the applicable API, ASME, and project-specific requirements rather than assuming that one standard applies to every Y-type strainer.
1. Y Type Strainer Design

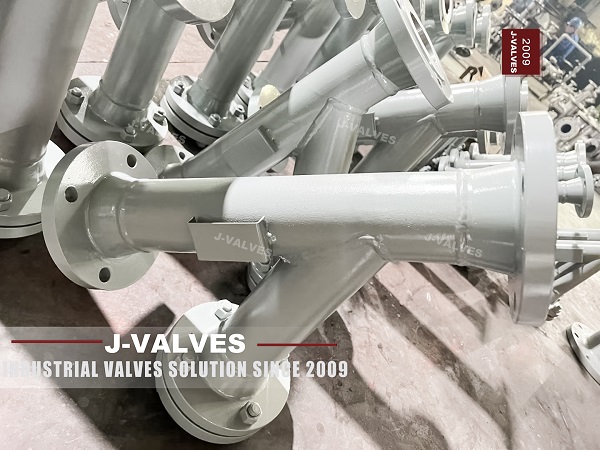

A typical Y-type strainer consists of a pressure-containing body, removable filter screen, cover, gasket, and optional drain connection.
The working principle is simple:
Inlet → Filter Screen → Particle Retention → Clean Outlet
The filter screen captures solid contaminants while allowing the process medium to continue downstream.
Key design parameters include:
Valve/strainer size
Pressure class
Screen opening
Flow rate
Body material
Connection standard
Allowable pressure drop
2. API and ASME Requirements
API standards are commonly referenced in oil and gas projects, while ASME standards provide important requirements related to piping, flanges, pressure-temperature ratings, and materials.
For example, ASME B16.5 is commonly used when determining dimensions and pressure-temperature ratings for flanged connections. ASME B31.3 may be relevant when the Y strainer is installed within a process piping system.
The exact standards applicable to an API Y Strainer should be confirmed according to the product design, service conditions, and project specification.
3. Material and Screen Selection
Material selection should consider pressure, temperature, fluid composition, and corrosion conditions.
Common materials include:
Carbon steel
Stainless steel
Alloy steel
Nickel Aluminum Bronze
For marine and seawater applications, C95800 Nickel Aluminum Bronze can be considered where its properties are suitable for the service.
The filter screen should also be selected according to particle size, flow rate, open-area ratio, and allowable differential pressure. An excessively fine screen may increase pressure drop and cleaning frequency.
4. Testing and Quality Control
Industrial Y-type strainers may require different inspection and testing procedures depending on the applicable standards and customer specifications.
Typical quality checks include:
These controls help confirm pressure integrity and manufacturing consistency.
5. J-VALVES Advantages
J-VALVES provides customized Y-type strainer solutions based on actual operating requirements.
Professional Engineering: Pressure, temperature, flow rate, medium, and filtration requirements are considered during product selection.
Flexible Materials: Carbon steel, stainless steel, C95800 Nickel Aluminum Bronze, and other materials can be selected according to service conditions.
Precision Manufacturing: Accurate machining of the body, cover, screen support, and connections helps maintain dimensional consistency.
Customized Design: Size, pressure class, flange standard, screen opening, drain configuration, and materials can be customized.
Quality Control: Material verification, dimensional inspection, pressure testing, and sealing checks support reliable product quality.
Conclusion
The selection of an API Y Strainer requires consideration of the complete application, including pressure rating, materials, flange dimensions, filtration requirements, and testing procedures. API and ASME requirements can be combined with project specifications to achieve a suitable engineering solution.
With professional engineering, precision manufacturing, flexible material selection, customized filtration configurations, and strict quality control, J-VALVES provides Y-type strainer solutions for oil and gas, petrochemical, marine, offshore, and industrial piping systems.
