In industrial pipeline systems, filtration equipment plays an important role in protecting pumps, valves, meters, and other critical components from solid contaminants. Selecting the right strainer design can directly affect system efficiency, pressure loss, maintenance frequency, and long-term operation reliability.
The comparison of T Strainer vs Y Strainer is a common topic when engineers select pipeline filtration solutions. Although both strainers are designed to remove unwanted particles from fluids, they have different advantages in terms of flow capacity, pressure drop characteristics, and installation requirements.
As a professional industrial valve and filtration equipment manufacturer, J-VALVES provides high-quality Y Strainer solutions designed for oil & gas, chemical, marine, power generation, and industrial pipeline applications.

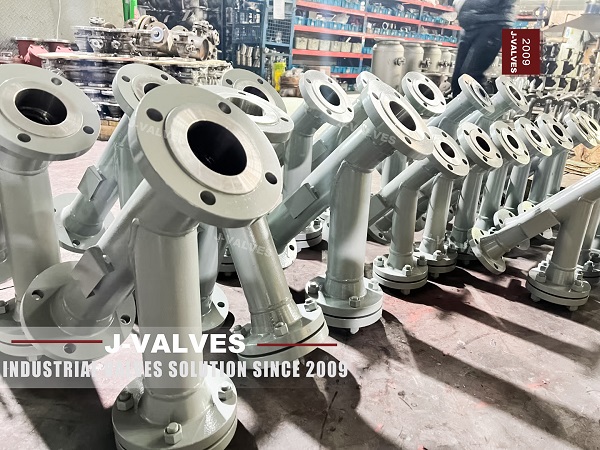

A Y Strainer is one of the most widely used pipeline filtration devices. It features a Y-shaped body design with an inclined filter chamber that collects solid particles from the flowing medium.
During operation:
Fluid enters through the inlet connection.
The flow passes through the filter screen.
Solid particles are trapped inside the strainer basket.
Clean fluid continues through the pipeline.
The compact design makes Y strainers suitable for various industrial applications where space and maintenance efficiency are important.
A T Strainer is a larger filtration device with a straight-through body configuration. The filter element is usually installed perpendicular to the pipeline flow direction.
Compared with Y strainers, T strainers generally provide:
Larger filtration capacity
Higher dirt-holding volume
Lower flow restriction for large systems
T strainers are often used in applications requiring high flow rates and continuous filtration performance.
The Industrial Y Strainer provides excellent flow performance for general industrial pipelines.
Advantages include:
Suitable for small and medium pipeline sizes
Efficient particle removal
Stable flow characteristics
Compact installation design
Y strainers are commonly installed in:
Pump inlet pipelines
Steam systems
Water pipelines
Process equipment protection lines
For most industrial applications, Y strainers provide a good balance between filtration efficiency and system performance.
T strainers are typically selected for applications requiring higher flow capacity.
Their larger internal filtration area allows:
Higher dirt collection capacity
Reduced cleaning frequency
Better performance in high-flow systems
Typical applications include:
Large water circulation systems
Marine cooling systems
High-capacity industrial pipelines
However, the larger structure requires more installation space compared with Y strainers.
One of the important advantages of Y strainers is their optimized flow path.
The angled filter chamber helps maintain smooth fluid movement, resulting in:
Moderate pressure loss
Stable pipeline flow
Efficient operation
When properly sized, a Y strainer can provide effective filtration without significantly affecting system pressure.
Due to their larger filtration area, T strainers can achieve relatively low pressure drop in high-flow applications.
Advantages include:
Lower flow resistance
Better performance under high flow conditions
Longer operation before cleaning
However, the actual pressure drop depends on:
Filter mesh size
Flow rate
Media viscosity
Particle concentration
The compact structure is one of the biggest advantages of Y strainers.
Benefits include:
Requires less installation space
Easy integration into existing pipelines
Flexible installation direction
Suitable for limited-space environments
This makes Y strainers especially popular in industrial facilities where pipeline layout space is restricted.
T strainers normally require more space because of their larger filtration chamber.
Advantages:
Suitable for large pipeline systems
Easier access for high-capacity filtration
However, engineers need to consider:
Additional installation space
Maintenance access
Supporting structures
The choice between T Strainer vs Y Strainer depends on the specific operating requirements.
A Y Strainer is usually the better choice when:
Installation space is limited
Medium flow rates are required
Simple maintenance is preferred
Cost-effective filtration is needed
A T Strainer is more suitable when:
Very high flow capacity is required
Large amounts of contaminants are expected
Filtration capacity is the priority
For most industrial pipeline protection applications, Y strainers provide an excellent combination of compact design, reliable filtration, and easy maintenance.
Y strainers are widely used for:
Pump protection
Pipeline filtration
Equipment protection systems
Process fluid cleaning
They help prevent solid particles from damaging critical equipment.
Industrial Y strainers are commonly applied in:
Chemical circulation systems
Cooling pipelines
Process equipment protection
Different materials can be selected according to media characteristics.
Due to their compact structure and reliable performance, Y strainers are often installed in:
Cooling water systems
Auxiliary pipelines
Industrial circulation systems
J-VALVES provides customized Industrial Y Strainer solutions according to:
Pipeline size
Pressure rating
Temperature requirements
Filtration accuracy
Operating media
This ensures the strainer matches actual project requirements.
J-VALVES offers different material options, including:
Carbon steel
Stainless steel
Duplex stainless steel
Special alloy materials
Material selection is optimized according to corrosion conditions and operating environment.
Each Y strainer is manufactured with professional inspection procedures, including:
Material verification
Dimensional inspection
Pressure testing
Welding quality inspection
Final performance checking
These processes ensure reliable operation in industrial systems.
J-VALVES can provide:
Flanged Y strainers
High-pressure Y strainers
Stainless steel Y strainers
Customized filtration solutions
Products can be designed according to international standards and customer requirements.
When comparing T Strainer vs Y Strainer, both designs provide effective filtration solutions for industrial pipeline systems. T strainers offer advantages in high-flow applications, while Y strainers provide a more compact, flexible, and cost-effective solution for general industrial use.
With its compact structure, reliable filtration performance, easy maintenance, and wide application range, the Industrial Y Strainer remains one of the most popular choices for protecting industrial equipment.
With professional engineering experience, advanced manufacturing technology, and strict quality management, J-VALVES delivers reliable Y Strainer solutions for oil & gas, chemical, marine, power, and industrial pipeline applications worldwide.
