How To Solve Pipeline Blockage Problems Using Y Type Strainers

Introduction

Pipeline blockage is one of the most common operational challenges in industrial fluid transport systems. Solid particles such as rust, sand, welding slag, and debris can accumulate inside pipelines, causing reduced flow efficiency, equipment damage, and unexpected shutdowns.

A properly designed Y Type Strainer provides an effective and reliable solution to prevent and control pipeline blockage. J-VALVES Y Type Strainers, manufactured in accordance with API 598 and ASME B16.34 standards, are widely used in oil & gas, petrochemical, power generation, and marine systems to maintain clean and stable flow conditions.

What Causes Pipeline Blockage?

Pipeline blockage typically occurs due to:

• Solid contaminants in process media

• Internal pipe corrosion and scale formation

• Poor installation or welding residues

• Biological or sediment accumulation in water systems

• Lack of upstream filtration protection

If not controlled, these issues can lead to:

• Pump failure

• Valve malfunction

• Pressure drop increase

• System shutdown

• High maintenance costs

How Y Type Strainers Solve Pipeline Blockage Problems

1. Early Removal of Solid Particles

J-VALVES Y Type Strainers are installed at key pipeline entry points to capture debris before it enters sensitive equipment.

They effectively filter:

• Rust and corrosion particles

• Sand and sediment

• Welding slag

• Scale and solid impurities

This prevents accumulation inside pipelines and avoids blockage formation.

2. Continuous Flow with Minimal Interruption

Unlike full filtration systems that require shutdown, Y strainers allow:

• Continuous fluid flow

• Low pressure drop operation

• Stable system performance

This ensures that blockage prevention does not interrupt production processes.

3. Protection of Downstream Equipment

By removing harmful particles, Y strainers protect:

• Pumps from impeller damage

• Control valves from seat wear

• Flow meters from clogging

• Heat exchangers from fouling

This significantly reduces the risk of system failure caused by blockages.

4. Easy Cleaning and Maintenance

J-VALVES Y Type Strainers are designed for simple maintenance:

• Removable strainer screen

• Quick debris cleaning

• Minimal downtime during maintenance

Regular cleaning prevents buildup and ensures long-term blockage control.

5. Stable Long-Term Flow Efficiency

By preventing internal obstruction, Y strainers help maintain:

• Consistent flow rate

• Stable pressure levels

• Improved system energy efficiency

This is especially important in continuous industrial operations.

API and ASME Compliance

J-VALVES Y Type Strainers are engineered and tested according to international standards:

• API 598 – Pressure testing and inspection

• ASME B16.34 – Design and pressure rating

• ASME B16.5 – Flange connection standards

These standards ensure structural reliability and safe operation in industrial environments.

J-VALVES Engineering Advantages

1. Optimized Filtration Design

The internal structure is engineered to reduce turbulence and improve debris capture efficiency.

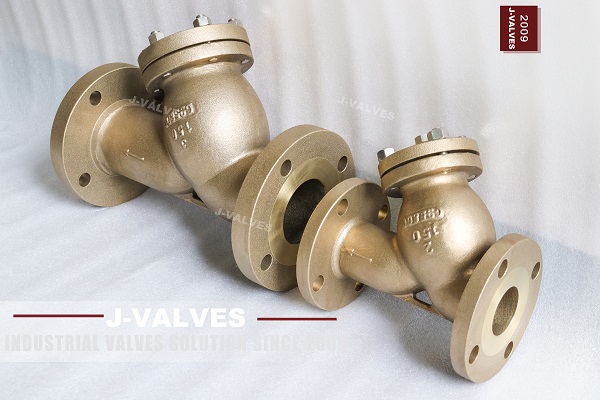

2. High-Strength Material Options

Available materials include:

• Carbon steel (WCB/WCC)

• Stainless steel (304/316)

• C95800 Nickel Aluminum Bronze for seawater service

3. Custom Engineering Solutions

J-VALVES offers flexible configurations:

• Different mesh sizes

• Pressure classes from 150 to 2500 LB

• Flanged, threaded, or welded connections

4. Strict Quality Control

Each unit undergoes:

• Hydrostatic testing

• Leakage testing

• Dimensional inspection

• Material certification verification

Industrial Applications

J-VALVES Y Type Strainers are widely used in:

Oil & Gas Pipelines

• Preventing pipeline blockage in crude oil and gas systems

Petrochemical Plants

• Protecting process lines from contamination buildup

Power Generation

• Cooling water and boiler feedwater systems

Marine & Offshore Systems

• Seawater intake filtration and blockage prevention

Water Treatment Plants

• Pump station and distribution pipeline protection

J-VALVES Project Experience

Offshore Seawater System

Y strainers were installed to prevent marine debris blockage, improving system reliability and reducing maintenance frequency.

Refinery Pipeline Network

Used to eliminate solid contaminants and ensure stable hydrocarbon flow.

Power Plant Cooling System

Helped maintain continuous circulation by preventing clogging in cooling water pipelines.

Conclusion

Pipeline blockage can significantly impact industrial system performance and safety. Y Type Strainers provide an effective and practical solution by removing solid particles before they accumulate inside pipelines.

With advanced engineering design, high-quality materials, and full compliance with API and ASME standards, J-VALVES Y Type Strainers deliver reliable blockage prevention and long-term pipeline protection for oil & gas, petrochemical, marine, and power generation industries.

By integrating J-VALVES filtration solutions, operators can achieve improved flow efficiency, reduced downtime, and enhanced system reliability.
