Key Design Features of Industrial Y-Strainers

Industrial Y-strainers play a crucial role in protecting pumps, valves, flow meters, heat exchangers, and other critical equipment from debris in pipelines. By effectively removing rust, scale, welding slag, and other particulate matter, Y-strainers help maintain system efficiency, reduce maintenance costs, and prevent unplanned downtime.

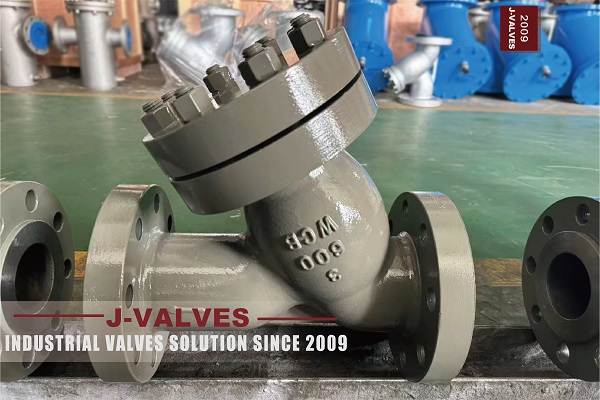

Y-Shaped Body Design

The defining feature of a Y-strainer is its angled, Y-shaped body. This design directs debris into a removable filtration screen while allowing the fluid to flow with minimal turbulence. Key advantages include:

• Compact installation in both horizontal and vertical pipelines

• Reduced pressure drop compared to other filtration solutions

• Easy access for maintenance and inspection

The streamlined flow path ensures that industrial systems can operate efficiently even in high-flow applications.

Durable Construction Materials

Y-strainers are manufactured from a variety of materials to suit different operating conditions:

• Cast Iron & Ductile Iron: Ideal for low to medium pressure systems

• Carbon Steel: Suitable for higher-pressure industrial applications

• Stainless Steel & Duplex Stainless Steel: Resistant to corrosion and chemical attack

• Aluminum Bronze & Bronze Alloys: Excellent for seawater and marine environments

Material selection depends on operating temperature, pressure rating, and media compatibility to ensure long-term reliability.

Filtration Screens

The filtration screen is the core of a Y-strainer, capturing solid particles while maintaining flow. Available screen options include:

• Perforated metal screens

• Wire mesh screens with customizable mesh sizes

Many industrial Y-strainers also feature a blow-off connection for cleaning accumulated debris without removing the unit, reducing maintenance downtime and extending screen life.

Connection Types

Y-strainers are available with multiple connection options to suit various pipeline systems:

• Flanged: Easy installation and removal; suitable for large pipelines and routine maintenance

• Threaded: Compact, economical, and ideal for small-diameter pipelines

• Welded: Permanent connection for critical applications, offering strong leak-free performance

Choosing the right connection type depends on pipeline size, pressure requirements, and maintenance preferences.

Low Pressure Drop

A well-designed Y-strainer minimizes resistance in the pipeline. Optimized screen area and flow path reduce pressure loss while maintaining effective filtration, ensuring smooth operation across a wide range of industrial processes.

Maintenance-Friendly Features

Industrial Y-strainers are designed for easy serviceability:

• Removable screens for cleaning or replacement

• Accessible covers or caps

• Reduced downtime for inspection and maintenance

These features make Y-strainers a reliable choice for industries requiring continuous operation.

Common Industrial Applications

Y-strainers are versatile and widely used across industries:

• Oil & Gas and Petrochemical Plants: Protect pumps and control valves from debris

• Water Treatment & HVAC Systems: Ensure clean media for reliable operation

• Marine & Offshore Systems: Resist corrosion from seawater and saline environments

• Industrial Manufacturing: Prevent particulate contamination in process lines

By protecting sensitive equipment, Y-strainers help extend service life and maintain system efficiency.

Conclusion

Industrial Y-strainers combine durable construction, efficient filtration, low pressure drop, and maintenance-friendly design. Their Y-shaped body, removable screens, and versatile connection types make them an essential component for safeguarding industrial pipelines. Proper selection and installation of Y-strainers improve equipment reliability, reduce operational costs, and support uninterrupted process performance across a wide range of industries.
