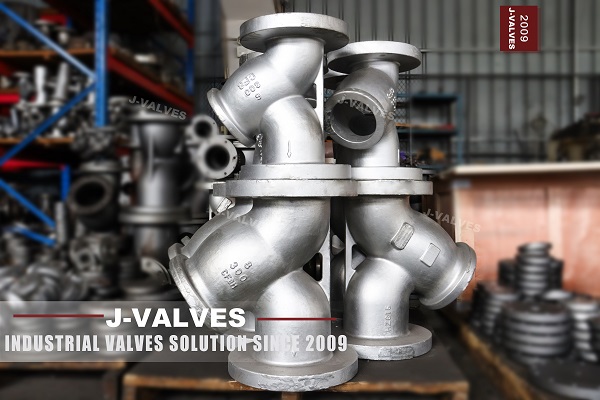

Y-strainers are critical components in industrial piping systems, designed to remove debris and protect pumps, valves, and other equipment. While much attention is often given to the strainer body and mesh, the gasket material is equally important for ensuring leak-free performance, chemical compatibility, and long-term durability. Choosing the right gasket material—PTFE, rubber, or graphite—can significantly impact system reliability and maintenance requirements.
Gaskets provide a tight seal between the strainer body and cover, preventing fluid leakage under operating pressure and temperature conditions. The gasket must accommodate:
Pressure fluctuations
Thermal expansion
Chemical exposure
Vibration and mechanical stress
Failure to select an appropriate gasket can lead to leaks, downtime, or even equipment damage.
Exceptional chemical resistance to acids, bases, and solvents.
High temperature tolerance, typically up to 260°C.
Low friction and non-stick surface.
Ideal for corrosive fluid applications, such as chemical processing or pharmaceutical systems.
Non-reactive, preventing contamination of sensitive fluids.
Excellent sealing performance under moderate pressures.
Limited elasticity compared to rubber, requiring precise flange alignment.
Not ideal for high-pressure systems where gasket creep may occur.
Chemical plants handling aggressive fluids
Food and beverage processes requiring sanitary sealing
Pharmaceutical pipelines
Made from materials such as EPDM, NBR, or Viton, each offering unique chemical and temperature resistance.
Excellent elasticity, allowing the gasket to conform to flange irregularities.
Effective vibration damping.
Provides tight sealing under moderate pressures.
Easy to install and replace.
Cost-effective for standard industrial applications.
Limited chemical and temperature resistance compared to PTFE and graphite.
Can degrade over time when exposed to harsh chemicals or UV light.
Water treatment plants
HVAC systems
Low-pressure oil and gas pipelines
Excellent thermal resistance, up to 500°C.
Can withstand high pressure applications.
Compatible with many chemicals, though careful selection is necessary for strong oxidizers.
Maintains structural integrity under extreme conditions.
Good for steam, high-temperature oil, and aggressive fluid systems.
Compressible and resilient, providing reliable sealing over long periods.
More expensive than rubber and PTFE.
Requires careful handling during installation to avoid damage.
Steam systems and boilers
Petrochemical and oil refining plants
High-temperature process fluid pipelines
When choosing a gasket for a Y-strainer, consider the following:
Operating temperature – PTFE up to 260°C, graphite up to 500°C, rubber typically 100–200°C depending on type.
Fluid compatibility – Check chemical resistance charts for each material.
Pressure rating – Graphite and PTFE handle higher pressures than most rubber gaskets.
Maintenance frequency – Rubber is easier to replace, while graphite and PTFE last longer in demanding conditions.
System criticality – High-value systems may benefit from PTFE or graphite gaskets to reduce risk of leaks.
Selecting the proper gasket material for Y-strainers is not just a matter of compatibility—it directly affects system safety, efficiency, and maintenance costs.
PTFE gaskets excel in chemical resistance and purity-sensitive applications.
Rubber gaskets offer flexibility, cost-effectiveness, and ease of installation.
Graphite gaskets provide durability under high-temperature and high-pressure conditions.
By evaluating operating conditions and fluid properties, engineers can ensure reliable sealing and extend the service life of Y-strainers, ultimately protecting the entire fluid system.
