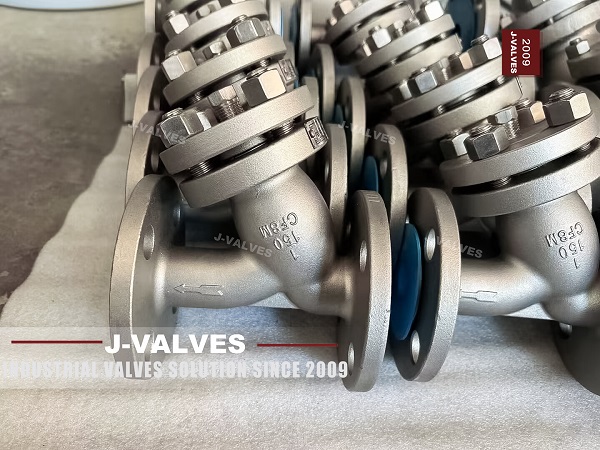

Y-strainers are a critical component in industrial fluid systems, providing effective filtration to protect pumps, valves, and other downstream equipment from debris and particulate contamination. To ensure optimal system performance, engineers must carefully consider both the pressure rating of the Y-strainer and its impact on flow characteristics.
The pressure rating of a Y-strainer indicates the maximum system pressure the strainer can safely handle without compromising structural integrity. Selecting a Y-strainer with the appropriate pressure rating is crucial for avoiding leakage, deformation, or catastrophic failure in industrial piping systems.
Body Material: Common materials include stainless steel, carbon steel, bronze, and ductile iron. Each material has specific pressure-temperature limitations.
Design Standard: ANSI B16.34, ASME B31.3, and API standards define pressure ratings for different materials and connection types.
Operating Temperature: Elevated temperatures reduce material strength, necessitating derating of pressure capacity.
Connection Type: Flanged, threaded, and welded Y-strainers have different pressure tolerances.
Example: A carbon steel Y-strainer with a Class 300 flanged connection can typically withstand 740 psi at 100°F but requires derating at higher temperatures according to ANSI standards.
While pressure rating ensures safety, flow optimization is essential for maintaining system efficiency. Improper strainer selection can cause excessive pressure drop, reduce pump efficiency, or create turbulent flow that damages downstream equipment.
Correct sizing ensures minimal pressure drop while effectively capturing debris.
Oversized strainers may cause unnecessary turbulence, while undersized strainers can clog quickly, increasing maintenance frequency.
Sizing is based on flow rate (GPM) and pipe diameter, following manufacturer recommendations and industry standards.
Coarse Mesh (10–40 mesh): Suitable for large particles and low-pressure drop systems.
Fine Mesh (100–400 mesh): Captures smaller debris but may cause higher pressure drop if flow is high.
Material Consideration: Stainless steel mesh is preferred for chemical resistance, while Monel or nickel alloys are used in corrosive applications.
Y-strainers must be installed with the strainer leg pointing downward in horizontal pipelines to prevent debris accumulation in the main flow path.
In vertical installations, the flow direction should ensure fluid passes through the strainer first, minimizing pressure drop and debris bypass.
Manufacturers provide pressure drop curves for each strainer type, showing the relationship between flow rate and differential pressure.
Regular monitoring of ΔP across the strainer helps predict clogging and schedule maintenance.
Low ΔP ensures energy-efficient operation, especially in systems with high flow volumes or long piping runs.
Routine Inspection: Regularly check differential pressure to detect clogging before it impacts flow.
Cleaning and Replacement: Use blow-off ports or remove the strainer element for cleaning, depending on system design.
Gasket and Seal Integrity: High-pressure systems require gaskets and seals compatible with operating pressure and temperature.
Debris Handling: Design systems with blow-off valves to reduce downtime and prevent pressure surge during cleaning.
Y-strainers with proper pressure ratings and flow optimization are critical in various industries:
Oil & Gas: Protect control valves, compressors, and pumps in high-pressure pipelines.
Chemical Processing: Maintain consistent flow and prevent contamination in reactors and heat exchangers.
Power Generation: Filter debris from condensate lines, cooling water systems, and feedwater pipelines.
Water Treatment: Remove sediment and particulate matter to prevent damage to pumps and downstream valves.
Selecting the correct pressure rating and optimizing flow characteristics in Y-strainers are essential for safe and efficient industrial operations. Engineers must balance material strength, temperature tolerance, strainer size, and mesh selection to ensure minimal pressure drop while maintaining reliable filtration. Regular monitoring and maintenance further enhance system performance and longevity. By understanding these principles, industrial facilities can maximize efficiency, reduce downtime, and protect critical equipment from damage caused by particulate contamination.
