Y-strainers are an essential component in industrial fluid systems, providing reliable filtration to protect downstream equipment from damage caused by debris and particulate matter. Widely used in industries ranging from chemical processing to water treatment, Y-strainers help maintain system efficiency, reduce maintenance costs, and prevent unplanned downtime.

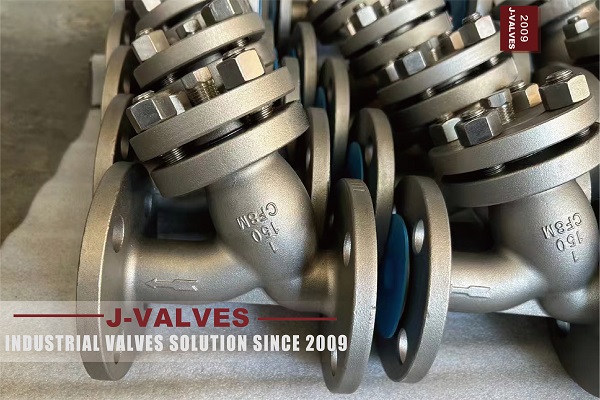

A Y-strainer gets its name from its “Y” shaped configuration, which includes a main body, a straining element, and a blow-off or drain connection. The primary components include:
Body: Typically made of stainless steel, carbon steel, or bronze, the body provides structural integrity and houses the straining element.
Strainer Element: Usually a perforated screen or wire mesh, the element captures debris while allowing fluid to pass through.
Cap or Cover: Provides access to the strainer element for cleaning or replacement.
Drain/Blow-off Connection: Allows removal of collected debris without disassembling the entire strainer.
The Y-strainer is designed so that fluid enters the strainer body, flows through the mesh element, and exits free of particulates. Correct installation orientation is critical:
Horizontal lines: The strainer leg should point downward to collect debris effectively.
Vertical lines: The flow should move from top to bottom to prevent accumulation above the strainer.
Materials: Stainless steel, Monel, or nickel alloys for corrosion resistance.
Mesh Sizes: Range from coarse (10 mesh) to fine (400 mesh), depending on the application and particle size requirements.
Regular maintenance is essential to ensure optimal performance and prevent system blockage or pressure drop.
Check for pressure differential across the strainer. A significant increase indicates clogging.
Inspect for corrosion or damage on the strainer body or element.
Manual Cleaning: Remove the cap and extract the screen for cleaning or replacement.
Blow-off Cleaning: Use the drain/blow-off connection to flush out debris without full disassembly.
The strainer element should be replaced if it shows signs of wear, perforation enlargement, or deformation.
Frequency depends on fluid quality, flow rate, and operational conditions.
Check gaskets and seals during maintenance to prevent leaks.
Use compatible gasket materials (PTFE, graphite, or spiral wound) for the operating temperature and fluid type.
Y-strainers are versatile and find use across multiple industries:
Protect pumps, compressors, and control valves from particulate contamination.
Common in upstream, midstream, and downstream pipelines.
Prevent clogging of sensitive instruments and flow meters.
Compatible with corrosive fluids when made from suitable alloys.
Remove sediment and debris to ensure consistent flow and prevent pump damage.
Used in both potable and industrial water systems.
Protect turbines, condensers, and heat exchangers from particulate matter.
Essential in cooling water and feedwater systems.
Ensure product purity by removing solids from liquid pipelines.
Hygienic designs with stainless steel and sanitary connections are standard.
Reliable Protection: Prevents damage to downstream equipment.
Low Maintenance: Easy access for cleaning or replacement of screens.
Versatility: Suitable for various fluids, pressures, and temperatures.
Cost-Effective: Simple design with long service life compared to other filtration devices.
Consider Flow Rate: Choose a strainer that accommodates the system’s flow without excessive pressure drop.
Determine Particle Size: Select appropriate mesh size to filter particles effectively.
Evaluate Material Compatibility: Ensure the body and screen material withstand the fluid’s chemical composition and temperature.
Plan for Maintenance Access: Install the strainer in locations that allow easy removal and cleaning of the element.
Y-strainers are indispensable in industrial fluid systems, offering reliable filtration, protecting critical equipment, and minimizing operational downtime. Understanding the design, proper maintenance, and application-specific selection ensures long-term efficiency and safety. By integrating Y-strainers into pipelines strategically, engineers can achieve optimal system performance and cost-effective operation across a wide range of industries.
