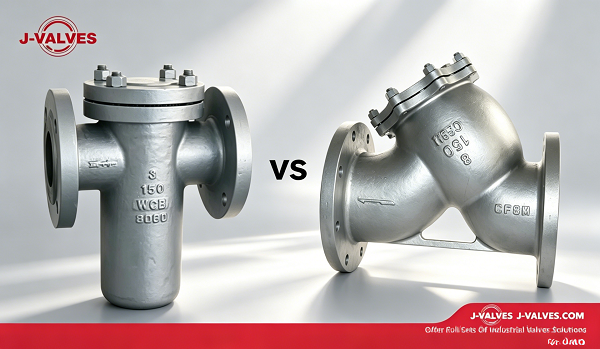

Strainers play a critical role in oil systems by removing debris, protecting pumps and valves, and maintaining smooth fluid flow. Among the most common types are Y-strainers and basket strainers. While both provide filtration, their energy efficiency, flow characteristics, and maintenance requirements differ significantly. Selecting the right strainer can improve system performance, reduce energy consumption, and lower operational costs.
Design: Y-strainers feature a compact Y-shaped body with a mesh or perforated element.
Installation: Can be installed horizontally or vertically.
Filtration Area: Limited due to the smaller mesh size and compact design.
Design: Basket strainers have a larger T-shaped body with a basket-like filtration element.
Installation: Typically installed horizontally for ease of access.
Filtration Area: Much larger than Y-strainers, allowing higher flow capacity and lower pressure drop.
Energy efficiency in oil systems is influenced primarily by pressure drop, flow turbulence, and pump load.
Y-Strainers: Smaller filtration area and sharp flow path bends create higher pressure drops, increasing the energy required by pumps.
Basket Strainers: Larger baskets and smoother flow paths reduce turbulence, minimizing pressure loss and lowering pump energy consumption.
Y-Strainers: Higher pressure drop increases pump work, raising operating costs over time.
Basket Strainers: Reduced pressure drop allows pumps to operate closer to optimal efficiency, saving energy in continuous oil system operations.
Y-Strainers: Smaller screens clog faster under high particulate load, causing more frequent cleaning and temporary flow restrictions, indirectly reducing energy efficiency.
Basket Strainers: Larger baskets accommodate more debris before cleaning is required, maintaining steady flow and consistent energy usage.
Feature | Y-Strainer | Basket Strainer |
|---|---|---|
Filtration Area | Small | Large |
Pressure Drop | Higher | Lower |
Energy Efficiency | Lower | Higher |
Maintenance Frequency | Frequent | Less Frequent |
Installation Flexibility | Horizontal/Vertical | Mostly Horizontal |
Space Requirement | Compact | Larger footprint |
Analysis:
For oil systems where continuous flow and pump efficiency are critical, basket strainers outperform Y-strainers in terms of energy efficiency, particularly in high-flow pipelines or systems handling significant particulate matter.
Y-Strainers: Suitable for small to medium pipelines, moderate flow rates, and space-constrained installations. Often used upstream of sensitive equipment for basic protection.
Basket Strainers: Recommended for high-capacity oil pipelines, where minimizing energy consumption and reducing pump load is essential. Ideal for primary filtration in mainline systems.
In oil systems, energy efficiency is closely tied to strainer design. While Y-strainers offer compactness and installation flexibility, basket strainers provide superior flow characteristics, lower pressure drop, and reduced pump energy consumption. Selecting the appropriate strainer type ensures optimized energy usage, reduced operational costs, and reliable protection for downstream equipment, especially in high-flow or particulate-heavy oil systems.
