In industrial systems, ensuring the smooth flow of fluids while protecting equipment from damage caused by contaminants is crucial. This is where filters come into play. Among the different types of filters used, the Y-strainer filter is a popular choice for applications requiring reliable debris removal and flow regulation.
A Y-strainer filter is a type of filtration device used to remove particles and debris from liquids or gases. The filter is named after its "Y" shape, which is a key characteristic of the design. It consists of a straining element (often a mesh or perforated screen) inside a housing shaped like the letter “Y.” The fluid passes through the strainer, and any larger particles or debris are trapped in the mesh while clean fluid continues to flow through the system.
The Y-strainer is typically installed in pipelines and is commonly used to protect pumps, valves, gauges, and other sensitive equipment from damage caused by unwanted debris or particles.
Effective Particle Removal
Y-strainers are highly effective at capturing larger particles (such as dirt, rust, scale, and other debris) from liquids and gases. The straining element can be made from a variety of materials, including stainless steel, bronze, or plastic, depending on the type of fluid being filtered. This makes them suitable for use in both low and high-pressure systems, ensuring that contaminants are consistently removed, protecting critical equipment from damage.
Durability and Corrosion Resistance

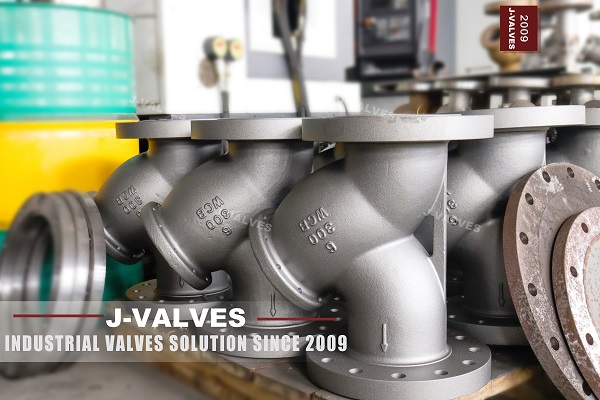

The WCB (Wrought Carbon Steel) material, as seen in many Y-strainer designs, is highly durable and resistant to wear, making these filters suitable for high-pressure applications such as 300LB systems. For environments that demand resistance to corrosion, such as seawater, brine, or chemical solutions, the filters can be constructed from stainless steel or other corrosion-resistant alloys to ensure long service life and reliable performance.
Easy Maintenance and Cleaning
One of the most significant advantages of Y-strainer filters is their ease of maintenance. The design allows for easy removal of the straining element, which can be cleaned or replaced as needed. This simple cleaning process helps maintain optimal performance, reduce downtime, and minimize the need for expensive replacements.
The Y-strainer is equipped with a blow-off valve, which allows operators to clean the filter element without disassembling the unit entirely. This feature makes maintenance less labor-intensive and helps reduce operational disruptions.
Compact Design for Space Efficiency
The Y-shape of the strainer body allows for a compact design that can easily be integrated into systems with limited space. The flanged connections seen in the Y-strainer design make it easy to install and replace, ensuring the filter doesn’t take up excessive space within a pipe network, making it ideal for both new systems and retrofit applications.
Flow Optimization
Y-strainers are designed to operate with minimal pressure drop, ensuring that the flow of fluids is not significantly impeded. This is particularly important in systems that require constant, uninterrupted flow. By removing debris without impacting the overall flow, Y-strainers help optimize the efficiency of the entire system.
Versatility in Fluid Applications
Y-strainers are versatile and can be used in a variety of industrial applications, from water filtration in treatment plants to oil and gas systems. Whether handling chemicals, slurries, air, or gases, the Y-strainer can be adapted to various applications depending on the fluid being processed.
Water Treatment Systems
In water treatment plants, Y-strainers are used to filter out debris from incoming water supplies before it enters filtration systems or pumps. They help ensure that contaminants like sand, dirt, and rust do not clog or damage downstream equipment such as pumps and membranes.
Oil and Gas Industry
In the oil and gas industry, Y-strainers are used to protect equipment from debris and sediment found in crude oil and natural gas pipelines. They ensure that particles do not damage valves, pumps, or compressors, which could result in costly repairs and downtime.
Chemical Processing Plants
Y-strainers are commonly used in chemical processing to remove particulates from liquid chemicals before they enter sensitive equipment. This helps prevent contamination of the final product and reduces the risk of equipment malfunction.
Steam Systems
Y-strainers are essential in steam systems, especially where water is used to generate steam. Removing debris from the water supply helps prevent buildup in the boilers and steam turbines, ensuring safe and efficient operation of the system.
Food and Beverage Industry
In the food and beverage industry, Y-strainers are used to filter out unwanted particles from liquids such as milk, juice, and syrup before processing. This helps ensure the purity and safety of the final product, preventing contamination during production.
HVAC Systems
In HVAC (Heating, Ventilation, and Air Conditioning) systems, Y-strainers are used to filter out particles that could clog air filters or damage HVAC components. They ensure that clean air is distributed throughout the building without compromising system efficiency.
When selecting a Y-strainer for your industrial system, several factors need to be considered to ensure optimal performance:
Material Compatibility: Choose the appropriate material for the Y-strainer, considering the nature of the fluid being filtered. Stainless steel is ideal for corrosive environments, while carbon steel works well for general applications.
Size and Pressure Rating: Ensure that the Y-strainer is sized correctly for your pipeline and pressure requirements. Filters should match the flow rate and pressure class of the system to avoid overloading the strainer and to prevent performance issues.
Micron Rating: Determine the desired level of filtration. The micron rating of the straining element determines the size of the particles the filter can remove. For high-precision applications, you may require a strainer with a finer mesh.
Installation Location: Y-strainers are often installed in horizontal pipelines to facilitate the removal of trapped debris. Make sure to choose the appropriate installation angle to achieve the most effective filtration.
Y-strainer filters are an indispensable part of many industrial systems, offering efficient filtration, easy maintenance, and long-term reliability. Whether you're dealing with water, oil, chemicals, or gas, Y-strainers help ensure the smooth operation of your system by removing debris and contaminants that could otherwise lead to equipment failure, reduced system efficiency, or contamination of your product. Their robust design, ease of maintenance, and space-saving features make them an ideal choice for industries ranging from water treatment and chemical processing to oil and gas and food processing.
