Strainers are essential components in industrial piping systems, protecting pumps, valves, meters, and other critical equipment from debris and contaminants. Among the most commonly used filtration devices are Y-strainers and basket strainers. While both serve the same basic purpose, their internal flow distribution characteristics differ significantly, directly affecting pressure drop, filtration efficiency, and maintenance requirements.
Understanding how flow behaves inside each design helps engineers select the most suitable strainer for specific industrial applications.
Flow distribution refers to how fluid moves through a strainer and across its filtering surface. Uniform flow distribution improves filtration efficiency, reduces pressure loss, and extends screen service life.
Poor flow distribution can result in:
Uneven debris accumulation
Increased pressure drop
Premature screen wear
Reduced system efficiency

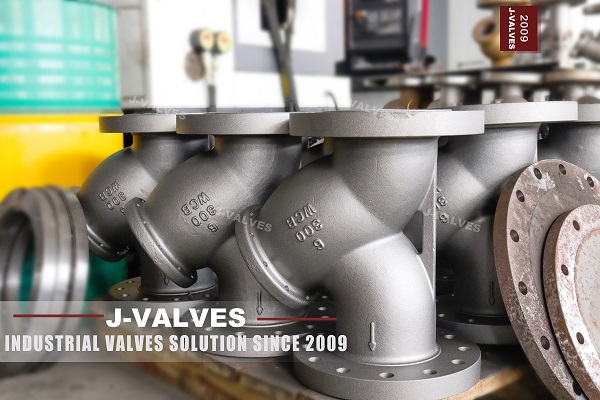

Y-strainers feature a compact Y-shaped body with the screen positioned at an angle to the main flow path.
As fluid enters the valve body, part of the flow is redirected through the angled screen chamber. Solid particles are trapped on the screen while clean fluid continues downstream.
Compact installation footprint
Suitable for high-pressure applications
Effective protection for pumps and control valves
Lower initial cost
Because the fluid changes direction inside the body, turbulence is typically higher than in basket strainers. Debris tends to accumulate in a smaller filtration area, which can increase pressure drop as contaminants build up.
Y-strainers are commonly used in:
Steam systems
Oil and gas pipelines
High-pressure process lines
Utility services
Basket strainers utilize a larger cylindrical basket positioned directly within the flow path.
Fluid enters the strainer body and flows evenly around the basket surface. The larger filtration area allows contaminants to be distributed more uniformly across the screen.
Superior flow distribution
Larger dirt-holding capacity
Lower pressure drop
Longer cleaning intervals
Basket strainers provide a smoother flow path with less turbulence. The larger screen area allows debris to spread evenly, reducing localized blockage and improving filtration efficiency.
They are ideal for:
High-flow systems
Cooling water applications
Chemical processing plants
Marine and offshore installations
| Feature | Y-Strainer | Basket Strainer |
Flow Path | Angled | Straight-through |
Flow Distribution | Moderate | Excellent |
Pressure Drop | Higher | Lower |
Dirt-Holding Capacity | Smaller | Larger |
Turbulence Level | Higher | Lower |
Maintenance Frequency | More Frequent | Less Frequent |
Several design factors influence strainer performance:
Larger filtration areas improve flow uniformity and reduce pressure loss.
Finer mesh provides better filtration but may increase differential pressure.
Higher velocities can create turbulence and uneven debris loading.
Proper installation ensures optimal flow distribution and filtration efficiency.
Space is limited
High-pressure service is required
Flow rates are moderate
Cost efficiency is important
High flow capacity is needed
Pressure drop must be minimized
Longer maintenance intervals are desired
Large volumes of debris are expected
Flow distribution plays a critical role in strainer performance and system reliability. Y-strainers offer a compact and economical solution for high-pressure applications, while basket strainers provide superior flow distribution, lower pressure loss, and greater debris-holding capacity.
By understanding the flow characteristics of each design, engineers can optimize filtration efficiency, reduce maintenance requirements, and improve the overall performance of industrial piping systems.
