Industrial Y-Strainer (300LB WCB): Technical Overview, Design Features, And Engineering Applications

Introduction

In modern industrial piping systems, filtration plays a critical role in protecting downstream equipment such as pumps, control valves, flow meters, and compressors. The Y-type strainer (Y-Strainer) is one of the most widely used filtration devices for removing solid particles from liquids, steam, and gas pipelines.

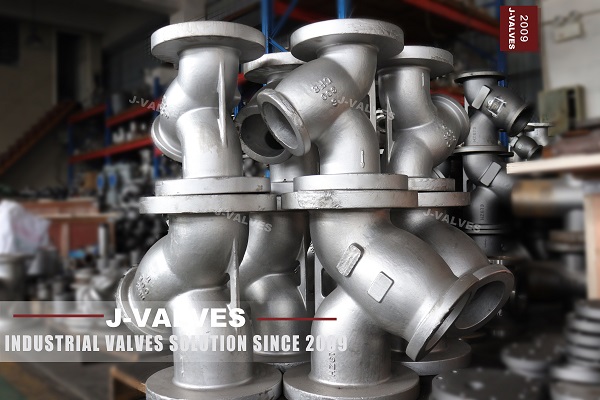

The shown configuration represents a 300LB pressure class cast steel (WCB) Y-strainer, designed for high-pressure industrial environments such as oil & gas, petrochemical, power generation, and water treatment systems. With its compact structure and high mechanical strength, it provides reliable debris removal while maintaining low pressure drop.

What Is a Y-Strainer?

A Y-strainer is a mechanical filtration device installed in a pipeline to capture and remove unwanted solid particles. Its Y-shaped body allows fluid to pass through a mesh or perforated screen, trapping contaminants before they can damage sensitive equipment.

Compared with basket strainers, Y-strainers are:

• More compact in design

• Suitable for high-pressure and high-temperature systems

• Easier to install in horizontal or vertical piping (depending on design)

Structural Design of 300LB WCB Y-Strainer

1. Body Material: ASTM A216 WCB

The strainer body is typically manufactured from ASTM A216 WCB carbon steel, offering:

• High tensile strength for Class 300LB pressure rating

• Excellent resistance to mechanical stress and thermal shock

• Suitability for oil, gas, steam, and industrial water systems

2. Pressure Class: 300LB

A 300LB rating ensures:

• Stable performance under high-pressure pipeline conditions

• Compatibility with ASME B16.34 piping systems

• Enhanced safety margin for industrial operations

3. Filtration Screen (Mesh Element)

The internal filter screen is the core functional component:

• Available in stainless steel (SS304 / SS316)

• Mesh sizes customizable (from coarse filtration to fine separation)

• Designed for easy removal and cleaning via cover plug or bolted cap

4. Flanged End Connection

The flanged connection ensures:

• Secure sealing under pressure

• Easy installation and maintenance

• Compatibility with ASME B16.5 piping flanges

Working Principle of Y-Strainer

The working mechanism is simple but highly efficient:

1. Fluid enters the Y-shaped body

2. Medium flows through the filter screen

3. Solid particles are trapped inside the mesh

4. Clean fluid continues downstream

5. Accumulated debris is removed periodically via drain plug or cover opening

This ensures continuous system protection without interrupting pipeline operation.

Key Advantages of Y-Type Strainers

1. Equipment Protection

Prevents damage to:

• Pumps

• Flow meters

• Control valves

• Heat exchangers

2. Low Pressure Drop

The streamlined Y-body design minimizes flow resistance, ensuring efficient system operation.

3. High Pressure Capability

The WCB forged/cast steel structure supports demanding Class 300LB applications.

4. Easy Maintenance

• Removable screen element

• Simple cleaning process

• Reduced downtime during servicing

5. Cost-Effective Filtration Solution

Compared with complex filtration systems, Y-strainers offer reliable performance at lower cost.

Typical Applications

The 300LB Y-strainer is widely used in:

• Oil and gas pipeline systems

• Petrochemical processing plants

• Power generation systems (steam & condensate lines)

• Marine and offshore platforms

• Water treatment and industrial filtration systems

• HVAC and cooling systems

J-VALVES Engineering Manufacturing Advantages

As a professional industrial valve manufacturer, J-VALVES provides high-performance Y-strainers designed for demanding industrial conditions.

Key advantages include:

• Strict compliance with API, ASME, and DIN standards

• Precision casting and CNC machining for dimensional accuracy

• Advanced pressure testing and quality inspection

• Customizable mesh size, flange standards, and material options

• Reliable performance in high-pressure and corrosive environments

J-VALVES Y-strainers are engineered for long service life and stable filtration efficiency, making them suitable for global industrial projects.

Testing & Quality Control

Each Y-strainer undergoes strict quality procedures:

• Hydrostatic pressure test

• Shell strength test

• Seat leakage inspection

• Material traceability verification (MTC documentation)

This ensures compliance with international industrial safety requirements.

Conclusion

The 300LB WCB Y-Strainer is a critical component in industrial piping systems, offering reliable filtration performance, robust structural integrity, and low maintenance requirements. Its ability to protect downstream equipment while maintaining flow efficiency makes it an essential solution across oil & gas, petrochemical, and power industries.

With advanced manufacturing capability and strict quality control, J-VALVES delivers high-performance Y-strainers that meet international standards and support long-term industrial reliability.
