Y-Strainer: Efficient Pipeline Protection Solution by J-VALVES

Introduction

The Y-Strainer is an essential pipeline filtration device widely used in industrial fluid systems to remove solid particles, rust, welding slag, and other debris from liquid, gas, or steam media. It plays a critical role in protecting downstream equipment such as pumps, control valves, flow meters, and compressors from damage and operational failure.

Designed and manufactured in accordance with API 598 testing requirements, ASME B16.34 pressure-temperature ratings, and ASME B16.5 flange standards, the Y-Strainer ensures reliable performance in demanding industrial environments, including oil & gas, petrochemical, power generation, marine, and water treatment systems.

With over a decade of engineering experience since 2009, J-VALVES provides high-quality Y-Strainer solutions that combine durability, efficiency, and compliance with international standards.

Working Principle of Y-Strainer

The Y-Strainer operates through a simple yet highly effective filtration mechanism. Fluid enters the strainer body and passes through a perforated or mesh screen installed at an angle in a “Y-shaped” configuration.

Solid particles are captured by the filter element, while clean fluid continues flowing through the pipeline. The accumulated debris can be removed by opening the drain plug or removing the cover, ensuring easy maintenance and minimal system downtime.

This design provides an ideal balance between flow efficiency and filtration performance, making it suitable for continuous industrial operation.

Key Features of Y-Strainer

1. High-Efficiency Filtration

Effectively removes rust, scale, welding debris, and solid particles, ensuring clean and stable pipeline flow.

2. Compact and Flexible Design

The Y-shaped structure allows installation in both horizontal and vertical pipelines, making it suitable for space-limited industrial systems.

3. Easy Maintenance

Removable screen design enables quick cleaning and replacement without dismantling the entire pipeline system.

4. High Pressure and Temperature Capability

Designed in compliance with ASME B16.34, the Y-Strainer can withstand high-pressure and high-temperature operating conditions.

5. Multiple Material Options

Available in a wide range of materials, including:

• Carbon Steel (WCB)

• Stainless Steel (CF8 / CF8M)

• Alloy Steel

• Nickel Aluminum Bronze (C95800)

J-VALVES Engineering Advantages

As a professional industrial valve manufacturer, J-VALVES focuses on precision engineering and strict quality control in every Y-Strainer product.

Advanced Manufacturing Process

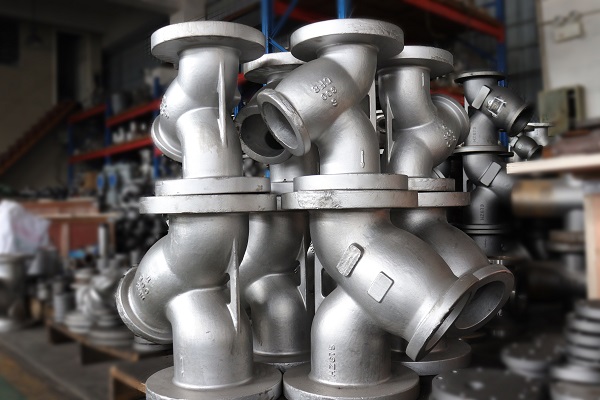

J-VALVES Y-Strainers are produced using precision casting, CNC machining, and strict assembly control to ensure accurate dimensions and stable performance.

Strict Quality Inspection

Each product undergoes comprehensive testing, including:

• Hydrostatic Pressure Test (API 598)

• Dimensional Inspection

• Material PMI Testing

• Surface and Assembly Inspection

Flexible Customization Capability

J-VALVES provides customized solutions based on customer requirements:

• Mesh size selection

• Pressure class (150LB to 2500LB)

• Flanged, threaded, or butt-weld connections

• Special materials for corrosive or offshore environments

Material Advantages for Special Applications

J-VALVES offers advanced material configurations to meet different industrial conditions:

• Carbon Steel Y-Strainer: General industrial pipelines with stable performance and cost efficiency

• Stainless Steel Y-Strainer: Corrosive environments such as chemical and seawater systems

• C95800 Aluminum Bronze Y-Strainer: Excellent seawater corrosion resistance for offshore and marine applications

• Alloy Steel Y-Strainer: High-pressure and high-temperature refinery systems

Industrial Applications

Y-Strainers manufactured by J-VALVES are widely used in:

• Oil and gas transmission systems

• Petrochemical processing plants

• LNG facilities

• Power generation plants

• Marine and offshore platforms

• Water treatment and desalination systems

• Industrial utility pipelines

J-VALVES Project Experience

J-VALVES Y-Strainers have been successfully applied in multiple global engineering projects.

In offshore seawater systems, C95800 Y-Strainers demonstrated outstanding corrosion resistance and long service life under continuous exposure to saltwater conditions.

In refinery and petrochemical applications, high-pressure carbon steel Y-Strainers ensured stable filtration performance and significantly reduced equipment maintenance frequency.

These successful applications highlight J-VALVES’ ability to deliver reliable filtration solutions for complex industrial environments.

Compliance with International Standards

All J-VALVES Y-Strainers are designed and manufactured according to:

• API 598 (Testing and Inspection Standard)

• ASME B16.34 (Valve Design Standard)

• ASME B16.5 (Flange Standard)

• NACE MR0175 (Sour Service Requirement)

This ensures full compliance with global engineering and safety requirements.

Conclusion

The Y-Strainer is a critical component in modern industrial pipeline systems, providing reliable protection against contamination and equipment damage. Its compact structure, easy maintenance, and high filtration efficiency make it an indispensable solution for industrial fluid control systems.

With advanced manufacturing capabilities, strict quality control, and compliance with API and ASME standards, J-VALVES delivers high-performance Y-Strainer solutions designed for long-term reliability, operational safety, and global industrial applications.
