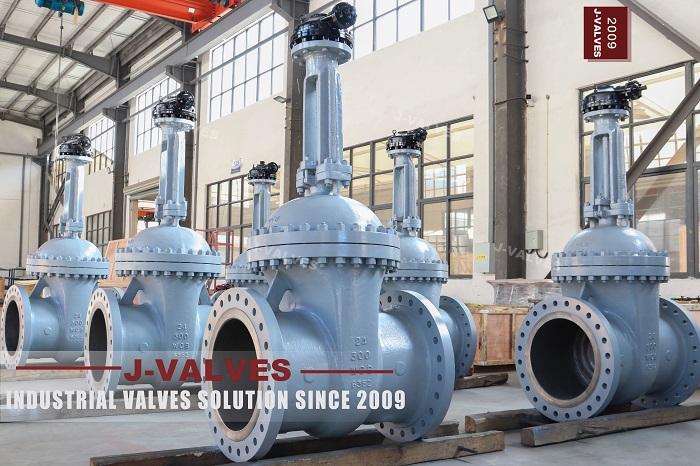

Understanding Wedge Gate Valves
Wedge gate valves are a type of gate valve that uses a wedge-shaped gate to control the flow of fluid. The wedge design allows the gate to seal tightly against the valve seats, providing a reliable shutoff mechanism. These valves are available in various materials and configurations to suit different operating conditions and media types.
Key Components of Wedge Gate Valves
• Valve Body: The main structure that houses all internal components.
• Wedge Gate: The closure element that controls the flow of fluid. It is wedge-shaped to provide a tight seal.
• Stem: The component that connects the gate to the external actuator or handle.
• Seats: The sealing elements that provide a tight seal against the gate.
• Bonnet: The cover that protects the internal components and provides access for maintenance.
• Actuator: The mechanism that provides the torque to operate the valve.
Applications in Chemical Processing Pipelines
Chemical processing often involves handling highly corrosive media, such as acids, bases, and solvents. Wedge gate valves made from corrosion-resistant materials like stainless steel, alloy steel, and other high-performance alloys can withstand these corrosive environments, ensuring long-term reliability and minimal maintenance.
In chemical processing, high pressures are common, especially in processes involving reactions and distillation. Wedge gate valves are designed to handle high pressures, making them suitable for these demanding applications. They can maintain a tight seal even under extreme pressure conditions, ensuring safe and efficient operation.
3. High-Temperature Applications
Many chemical processes operate at elevated temperatures. Wedge gate valves are available in materials that can withstand high temperatures, such as stainless steel and high-temperature alloys. These materials ensure that the valve maintains its mechanical properties and sealing performance even at high temperatures.
Wedge gate valves provide precise flow control, allowing operators to manage fluid flow accurately. This is particularly important in chemical processing, where precise control over reactants and products is crucial for maintaining process efficiency and product quality.
Safety is paramount in chemical processing, and wedge gate valves play a crucial role in ensuring system integrity. Their robust design and reliable sealing mechanism prevent leaks and backflow, reducing the risk of accidents and environmental contamination.
Advantages of Wedge Gate Valves in Chemical Processing Pipelines
1. Excellent Sealing Performance
The wedge design of the gate provides a tight seal against the valve seats, ensuring zero leakage. This is particularly important in chemical processing, where even small leaks can lead to significant safety and environmental risks.
2. High Pressure and Temperature Resistance
Wedge gate valves are designed to handle high pressures and temperatures, making them suitable for a wide range of chemical processing applications. Their robust construction ensures long-term reliability and minimal maintenance.
Available in a variety of corrosion-resistant materials, wedge gate valves can withstand the harsh chemical environments typical of chemical processing. This reduces the need for frequent replacements and maintenance, lowering overall operational costs.
4. Wide Range of Sizes and Configurations
Wedge gate valves are available in a wide range of sizes and configurations, making them suitable for various pipeline systems and applications. Whether for small-scale laboratory setups or large industrial plants, there is a wedge gate valve that meets the specific requirements.
